Magnesia Ceramic Crucible High Purity MgO Crucibles

Magnesium oxide crucible is resistant to high temperature and corrosion, with corrosion resistance to molten metal and long service life. It can be used for smelting non-ferrous metals and precious metals, such as platinum, rhodium, iridium and smelting high-purity radioactive metal uranium, thorium alloy, nickel base alloy, iron base alloy, etc.

Brand:
ATCERA
Item NO.:
AT-MG-GG1001

Materials
MgO
Shapes
Crucible
Applications
Petrochemical Industry , Metallurgy Industry

Inquire Now

Advantages of Magnesia Ceramic Crucible

Magnesium oxide crucible is resistant to high temperature and corrosion, working temperature can be up to higher than 2000℃, also has good corrosion resistance to molten metal, and the service life is long.

Applications of High Purity MgO Crucibles

Magnesium oxide crucible can be used for smelting non-ferrous metals and precious metals, such as platinum, rhodium, iridium and smelting high-purity radioactive metal uranium, thorium alloy, nickel base alloy, iron base alloy, etc.

Product Parameters
Material Parameters

Size Chart of Magnesia Ceramic Crucible

Committed to providing magnesium oxide crucible customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Drawing, working environment and parameter requirements shall be provided if customized design request.

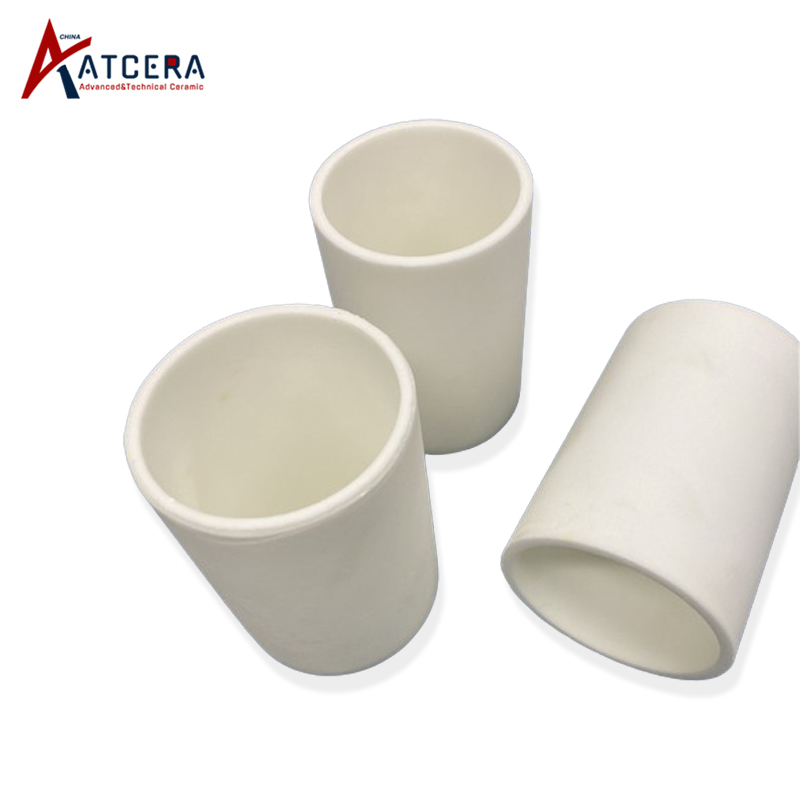

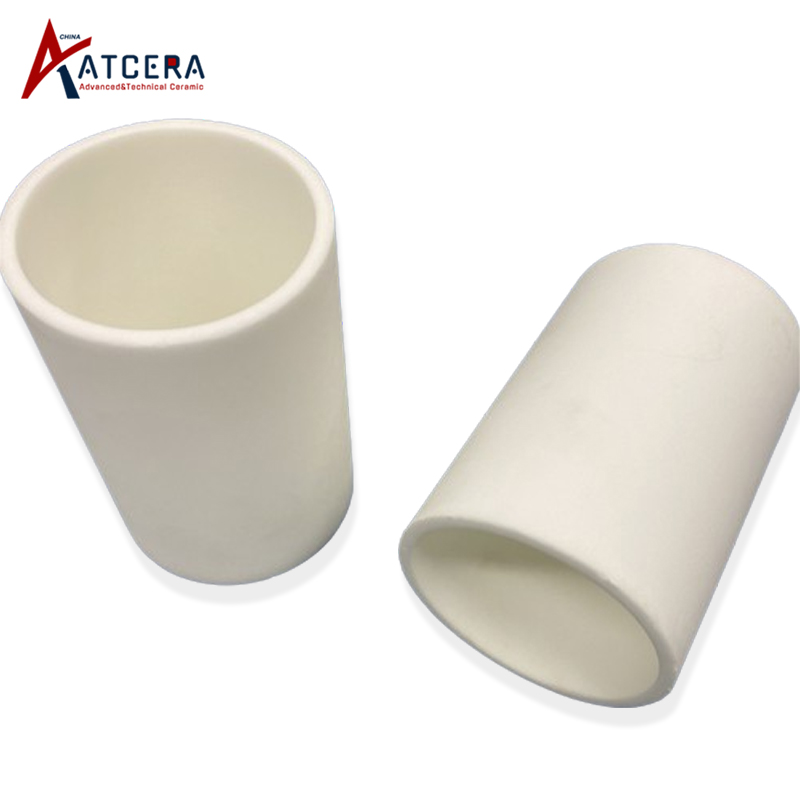

Magnesia Cylindrical Crucible
Item NO.	Outer Diameter（mm)	Inner Diameter（mm)	Height（mm)	MgO(%)
AT-MG-GG1001	7.6	5.5	4.7	99
AT-MG-GG1002	10	7	5	99
AT-MG-GG1003	12	8.5	27.5	99
AT-MG-GG1004	15	12	6	99
AT-MG-GG1005	18.5	14.5	5	99
AT-MG-GG1006	21	19	54	99
AT-MG-GG1007	23	19	80	99
AT-MG-GG1008	25	21	50	99
AT-MG-GG1009	30	22	25	99
AT-MG-GG1010	30	25	92	99
AT-MG-GG1011	32	26	100	99
AT-MG-GG1012	35	30	50	99
AT-MG-GG1013	40	31	59	99
AT-MG-GG1014	40	31	70	99
AT-MG-GG1015	45	33	70	99
AT-MG-GG1016	48	42	68	99
AT-MG-GG1017	50	40	115	99
AT-MG-GG1018	50	40	143	99
AT-MG-GG1019	60	50	100	99
AT-MG-GG1020	68.5	60	107.5	99
AT-MG-GG1021	70	60	110	99
AT-MG-GG1022	85	72	13	99
AT-MG-GG1023	99	92	130	99
AT-MG-GG1024	107	82	128	99

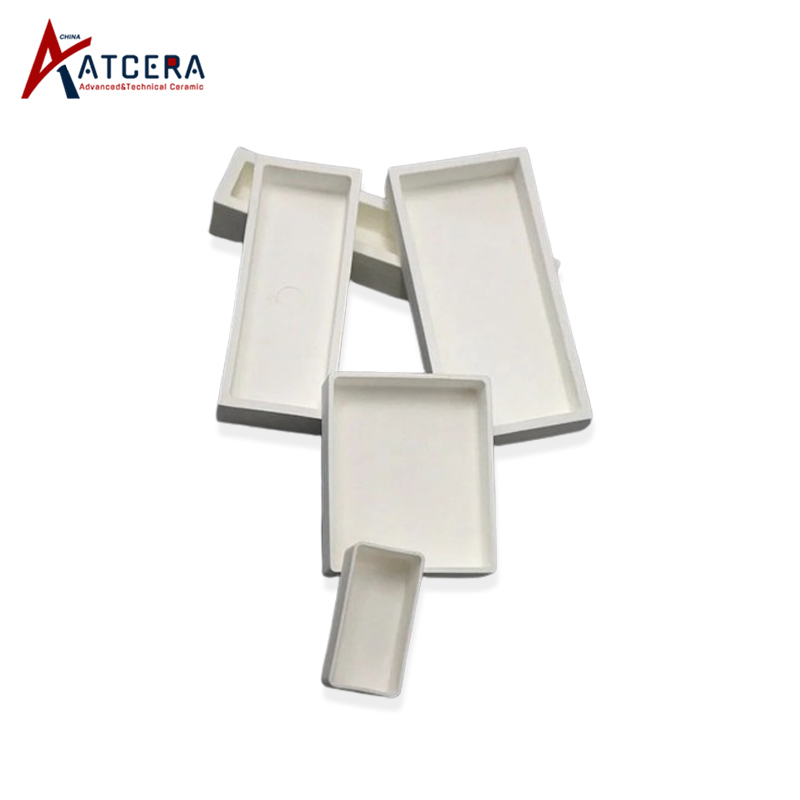

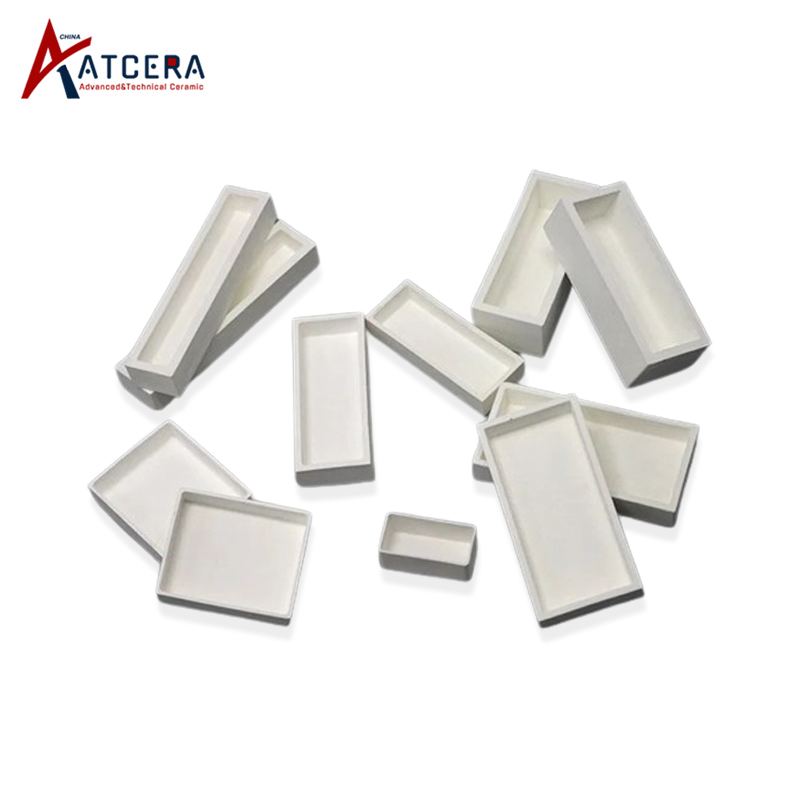

Magnesia Square Crucible
Item NO.	Length（mm)	Width（mm)	Height (mm)	MgO(%)
AT-MG-GG2001	27	25	21	99
AT-MG-GG2002	50	24	20	99
AT-MG-GG2003	77	63	19	99
AT-MG-GG2004	99	39	18	99
AT-MG-GG2005	116	46	34	99
AT-MG-GG2006	148	33	22	99
AT-MG-GG2007	149	33	22	99

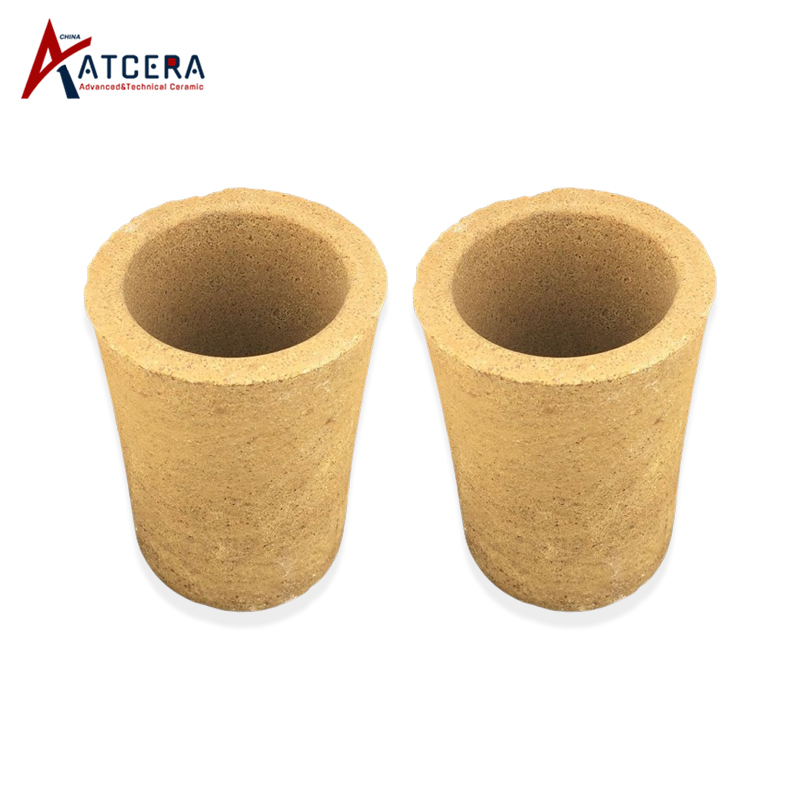

Magnesium/Magnesium-aluminum Crucibles
Item NO.	Outer Diameter (mm)	Inner Diameter (mm)	Outer Height (mm)	Inner Height (mm)	Volume (kg)
AT-M（MA)-1001	42	30	60	54	0.2
AT-M（MA)-1002	50	37	100	93	0.3
AT-M（MA)-1003	42	26	140	130	0.4
AT-M（MA)-1004	55	35	135	120	0.5
AT-M（MA)-1005	70	50	100	80	0.7
AT-M（MA)-1006	70	50	140	125	1
AT-M（MA)-1007	100	80	100	85	1.2
AT-M（MA)-1008	100	80	150	140	1.3
AT-M（MA)-1009	70	50	195	185	1.5
AT-M（MA)-1010	80	60	145	135	1.8
AT-M（MA)-1011	85	70	165	150	2
AT-M（MA)-1012	118	90	180	150	4.5
AT-M（MA)-1013	130	106	200	180	8.5
AT-M（MA)-1014	130	106	225	200	9.5
AT-M（MA)-1015	135	110	230	220	11
AT-M（MA)-1016	140	116	245	220	13
AT-M（MA)-1017	150	120	240	225	14
AT-M（MA)-1018	160	130	225	210	15
AT-M（MA)-1019	150	120	300	285	18
AT-M（MA)-1020	160	130	280	265	20
AT-M（MA)-1021	170	140	280	265	23
AT-M（MA)-1022	160	130	335	315	24
AT-M（MA)-1023	175	140	325	300	25
AT-M（MA)-1024	180	150	340	300	28
AT-M（MA)-1025	175	140	380	355	30
AT-M（MA)-1026	215	165	300	270	35
AT-M（MA)-1027	230	178	330	285	50
AT-M（MA)-1028	230	178	380	340	60
AT-M（MA)-1029	245	200	410	370	75
AT-M（MA)-1030	250	205	520	480	120
AT-M（MA)-1031	335	285	520	475	200
AT-M（MA)-1032	400	330	645	600	300

Technical Data of Magnesium Oxide Materials

Purity (%)	>99%
Density (g/cm3)	3.52-3.56
Bending Strength (MPa)	18
Compressive Strength (MPa)	50
Hardness (Moh's)	6
Maximum Working Temperature (℃)	2200
*Thermal Conductivity (W/mK)**	5
Thermal Expansion Coefficient (/℃)	13*10^-6
*Volume Resistivity (Ohmcm)**	1*10¹³
Dielectric Strength (kV/mm)	5.8

*This chart illustrates the standard characteristics of the magnesium oxide materials commonly employed in the manufacturing of our magnesium oxide products and parts. Please be aware that the attributes of customized magnesium oxide products and parts may vary depending on the specific processes involved.

Valuable Information

High Purity Magnesia Crucible Packing

High purity magnesia ceramic crucibles are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
