Magnesia Ceramia Plate Magnesium Oxide Board

Magnesium oxide ceramic plate is resistant to high temperature and corrosion, can withstand high temperatures above 2000℃, also with good thermal stability and chemical stability, can be in direct contact with a variety of chemical substances, and has very good electrical insulation. It can be used as insulation board for electronic and electrical industry, and can also be used as heat-resistant gasket and burning board.

Brand:
ATCERA
Item NO.:
AT-MO-P1001

Materials
MgO
Shapes
Plate
Applications
Electronics and Electricity , Metallurgy Industry

Inquire Now

Advantages of Magnesium Oxide Ceramic Plate

Applications of MgO Ceramic Plates

Magnesium oxide ceramic plate can be used as insulation board for electronic and electrical industry, and can also be used as heat-resistant gasket and burning board.

Product Parameters
Material Parameters

Size Chart of Magnesia Ceramic Plate

Committed to providing optimal magnesia ceramic plate customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Please provide drawing and parameter requirements for customization.

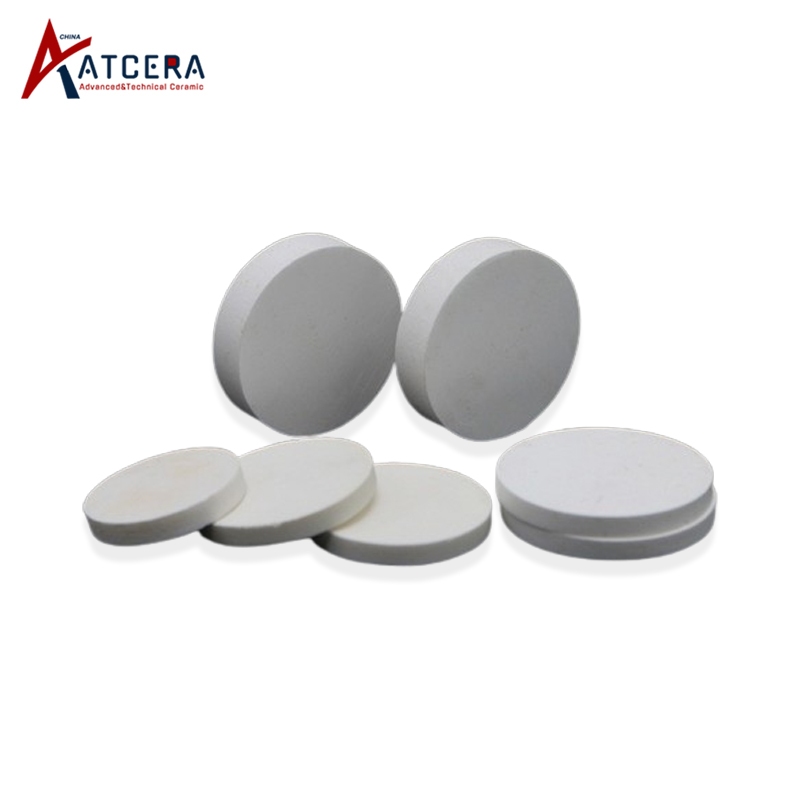

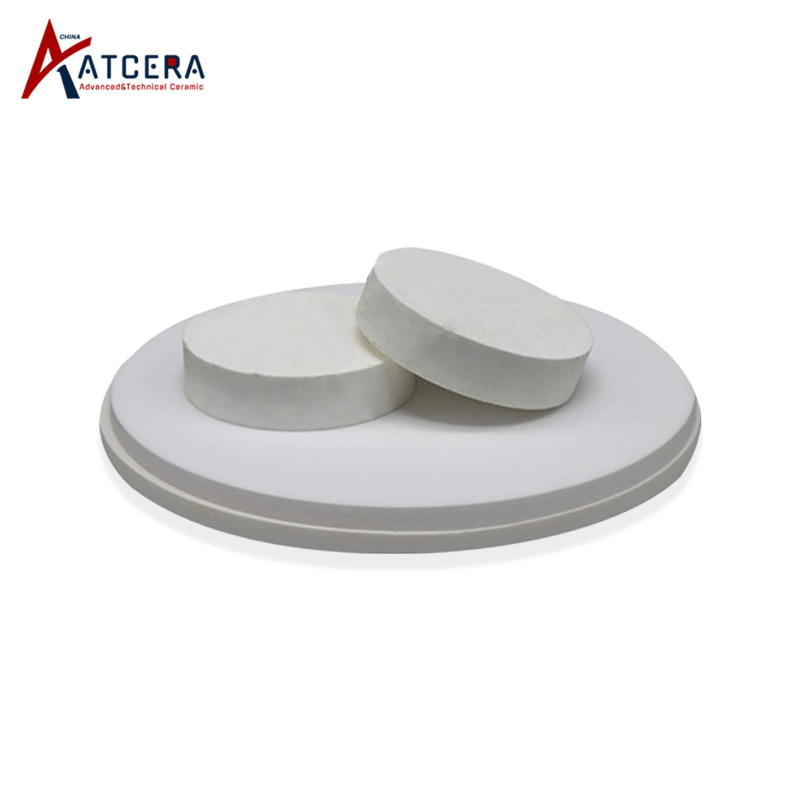

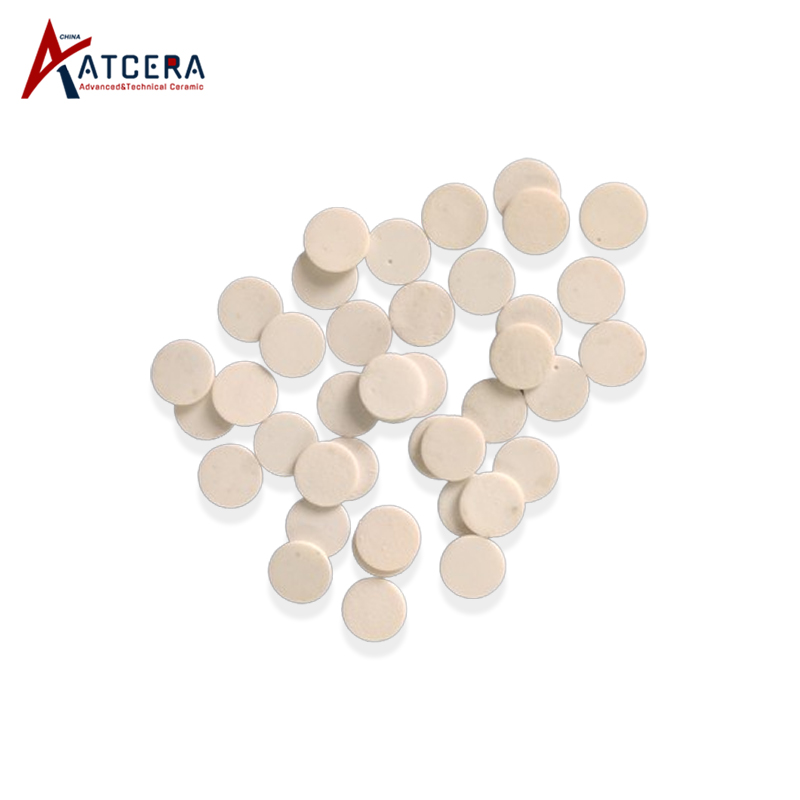

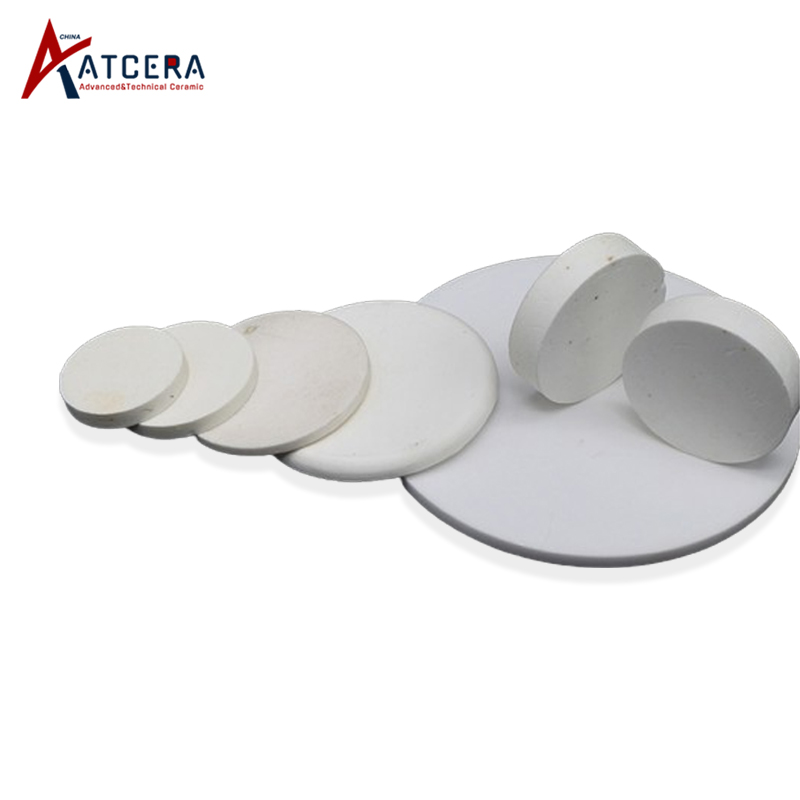

Magnesia Ceramic Plate Round
Item NO.	Diameter(mm)	Thickness(mm)
AT-MO-P1001	25	5
AT-MO-P1002	25	3
AT-MO-P1003	30	3
AT-MO-P1004	30	5
AT-MO-P1005	36.5	4.5
AT-MO-P1006	41	4.5
AT-MO-P1007	41	10
AT-MO-P1008	51	3
AT-MO-P1009	59	4.5

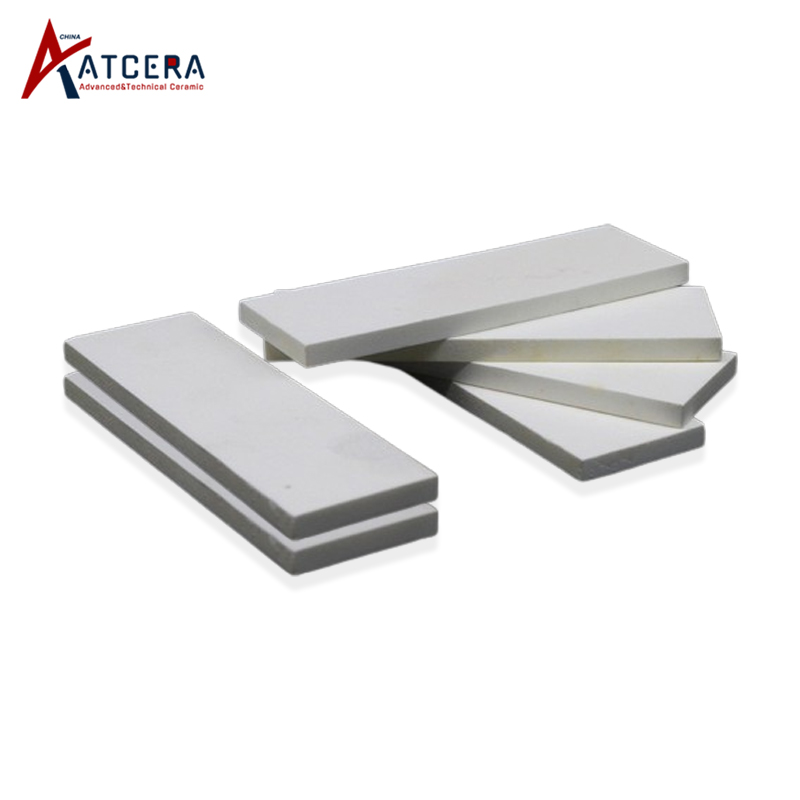

Magnesium Oxide Ceramic Plate Square
Item NO.	Length(mm)	Width(mm)	Thickness(mm)
AT-MO-P2001	68.5	55	2.2
AT-MO-P2002	96	30	5
AT-MO-P2003	78	65	2
AT-MO-P2004	120	60	3
AT-MO-P2005	120	60	10

Technical Data of Magnesium Oxide Materials

Purity (%)	>99%
Density (g/cm3)	3.52-3.56
Bending Strength (MPa)	18
Compressive Strength (MPa)	50
Hardness (Moh's)	6
Maximum Working Temperature (℃)	2200
*Thermal Conductivity (W/mK)**	5
Thermal Expansion Coefficient (/℃)	13*10^-6
*Volume Resistivity (Ohmcm)**	1*10¹³
Dielectric Strength (kV/mm)	5.8

*This chart illustrates the standard characteristics of the magnesium oxide materials commonly employed in the manufacturing of our magnesium oxide products and parts. Please be aware that the attributes of customized magnesium oxide products and parts may vary depending on the specific processes involved.

Valuable Information

Magnesium Oxide Ceramic Plate Packing

Magnesium oxide ceramic plates are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
