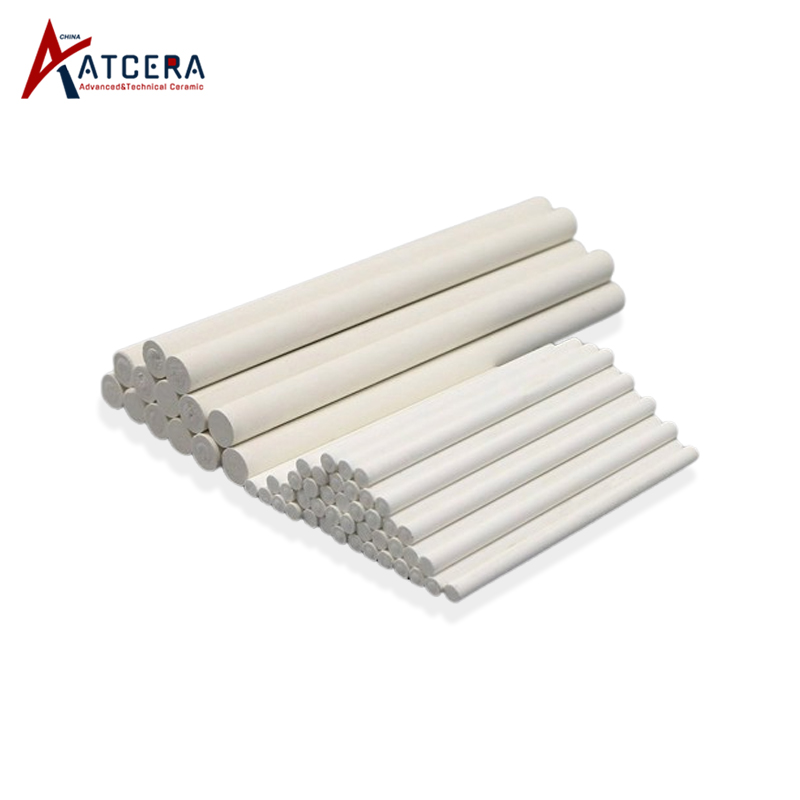

Magnesium Oxide Ceramic Rod MgO Rods

Magnesium oxide ceramic rod is resistant to high temperature and corrosion, has good thermal and chemical stability, can be in direct contact with a variety of chemical substances, and has very good electrical insulation. It can be used as heating tube in electric heater, to slow down the corrosion of metal water tank and pipe of the water heater, and extend the service life.



  • Brand:

    ATCERA
  • Item NO.:

    AT-MO-B1001
  • Materials

    MgO
  • Shapes

    Rod
  • Applications

    Electronics and Electricity

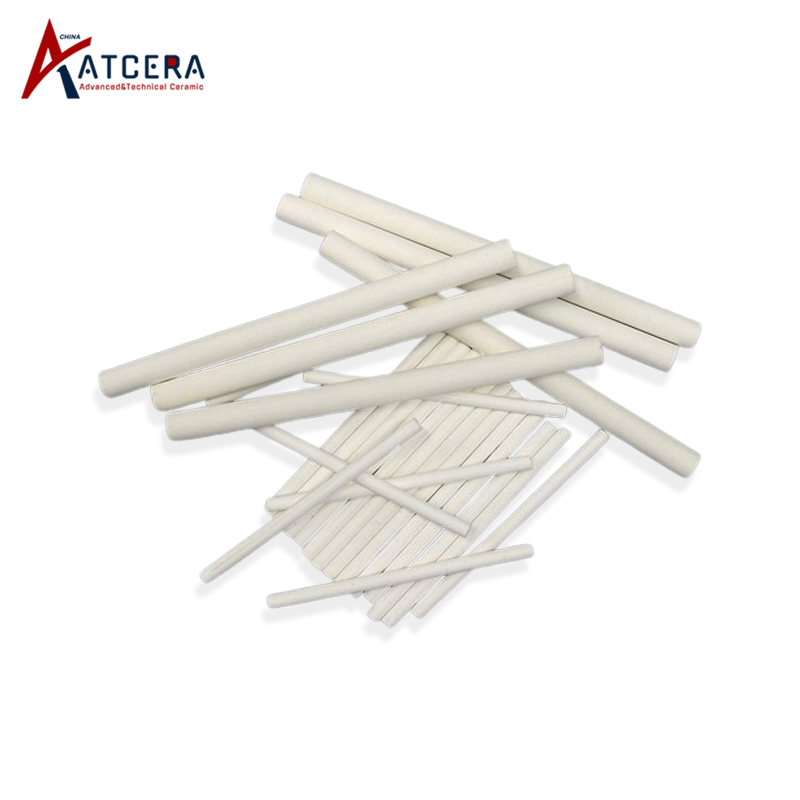

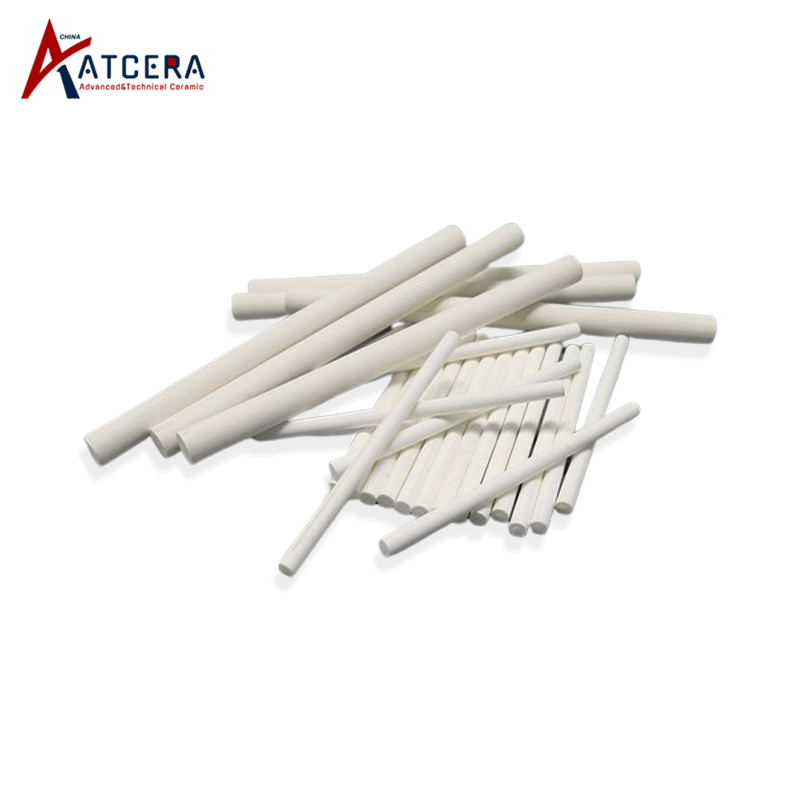

Magnesium oxide ceramic rod

Advantages of Magnesium Oxide Ceramic Rod





Magnesium oxide ceramic rod is resistant to high temperature and corrosion, has good thermal and chemical stability, can be in direct contact with a variety of chemical substances, and has very good electrical insulation.



application of MgO ceramic rod

Applications of MgO Ceramic Rods





Magnesium oxide ceramic rod can be used as heating tube in electric heater, to slow down the corrosion of metal water tank and pipe of the water heater, and extend the service life.











Size Chart of Magnesia Ceramic Rod



Committed to providing optimal magnesia ceramic rod customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.





Please provide drawing and parameter requirements for customization.



Magnesium Oxide Ceramic Rod
Item NO. Diameter(mm) Length(mm)
AT-MO-B1001 3 200
AT-MO-B1002 5 200
AT-MO-B1003 6 200
AT-MO-B1004 8 200
AT-MO-B1005 10 200
AT-MO-B1006 12 200
AT-MO-B1007 14 200
AT-MO-B1008 16 200
AT-MO-B1009 18 200
AT-MO-B1010 20 200







Technical Data of Magnesium Oxide Materials

Purity (%) >99%
Density (g/cm3) 3.52-3.56
Bending Strength (MPa) 18
Compressive Strength (MPa) 50
Hardness (Moh's) 6
Maximum Working Temperature () 2200
Thermal Conductivity (W/m*K) 5
Thermal Expansion Coefficient (/) 13*10-6
Volume Resistivity (Ohm*cm) 1*1013
Dielectric Strength (kV/mm) 5.8



*This chart illustrates the standard characteristics of the magnesium oxide materials commonly employed in the manufacturing of our magnesium oxide products and parts. Please be aware that the attributes of customized magnesium oxide products and parts may vary depending on the specific processes involved.





Valuable Information



NBSIC refractory plates

Magnesia Ceramic Rods Packing





High purity magnesia ceramic rods are carefully packaged in appropriate containers to avoid any potential damage.







Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
