Vacuum coating machine ceramic electrode

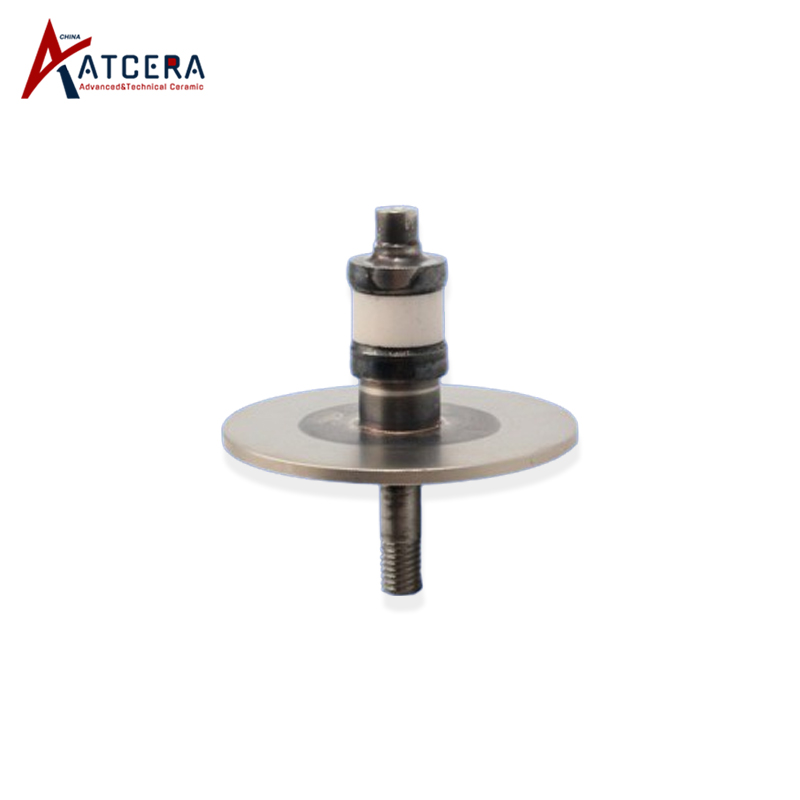

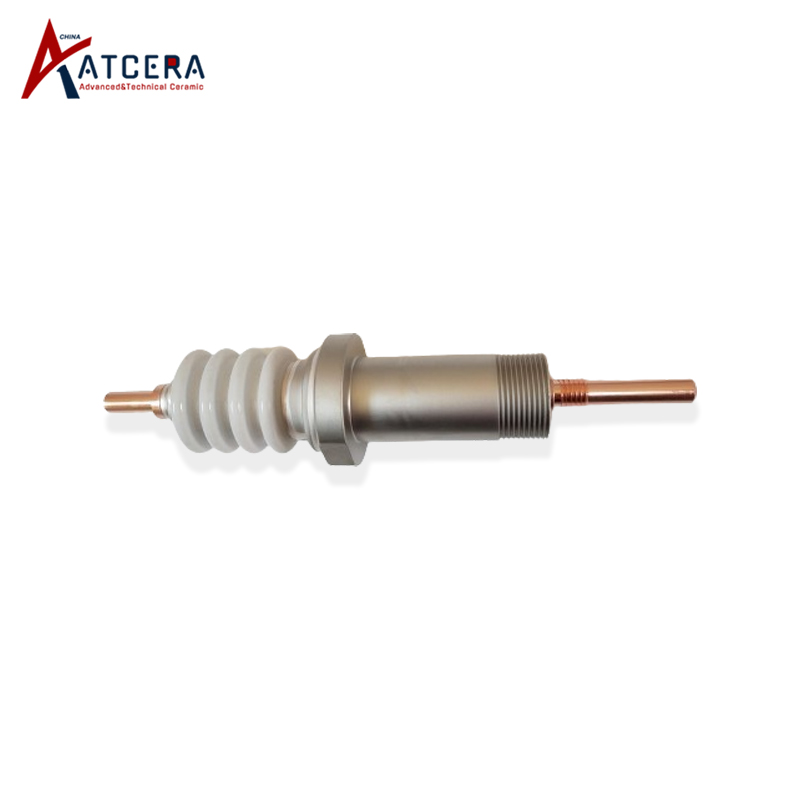

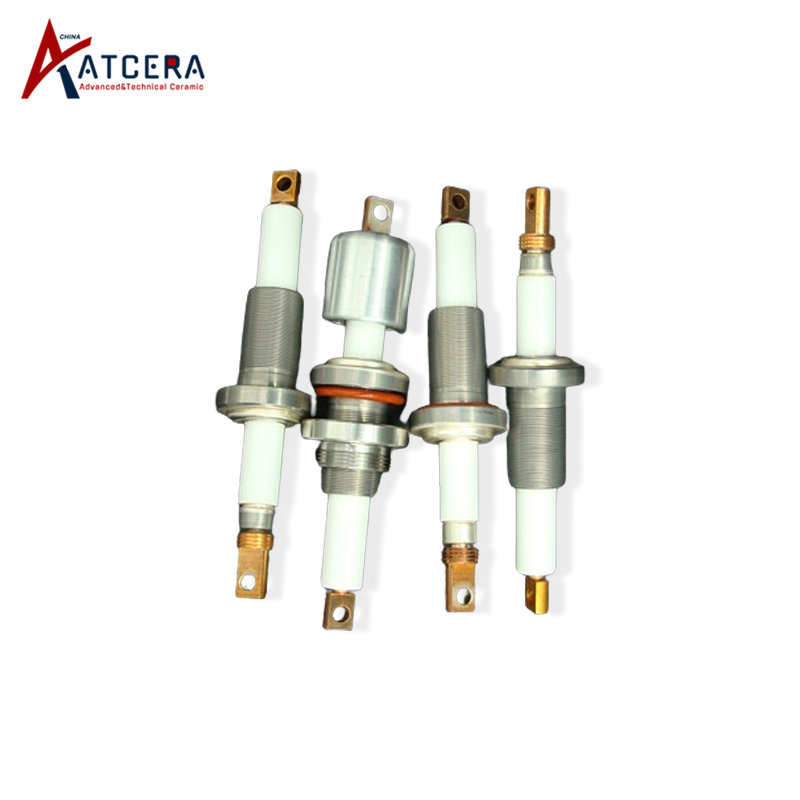

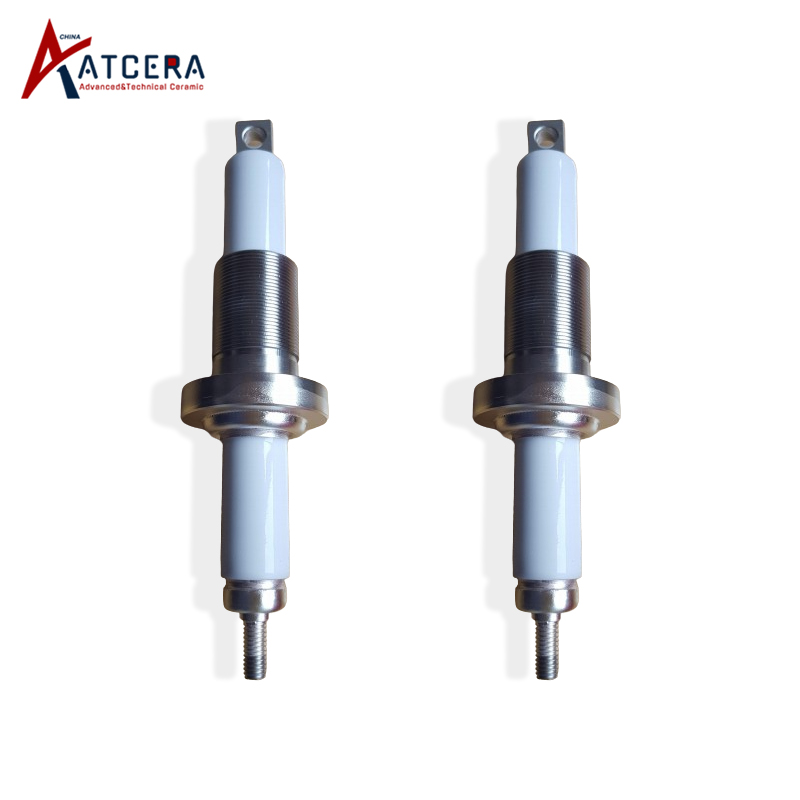

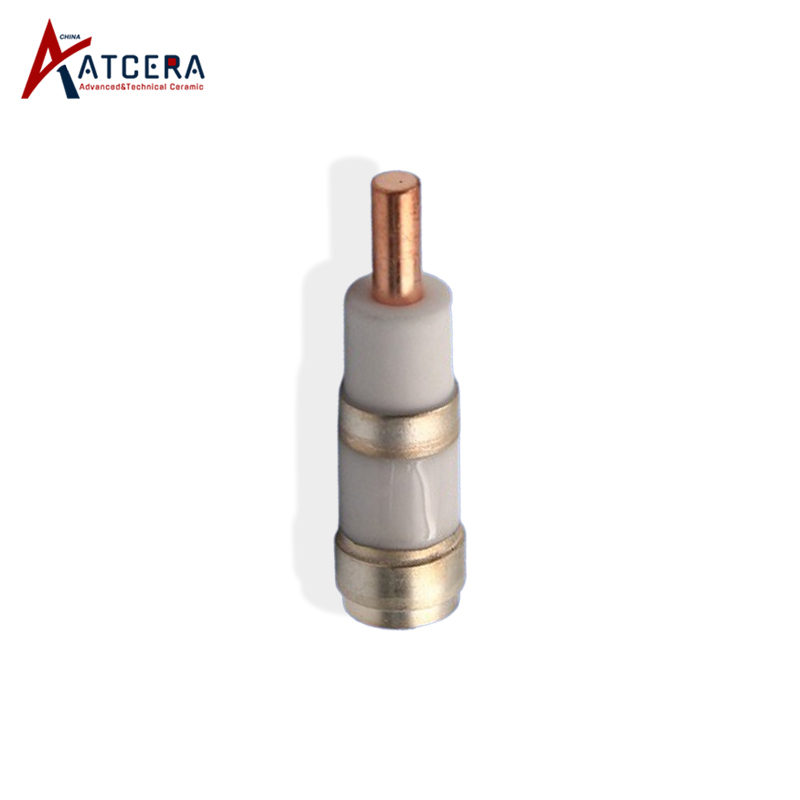

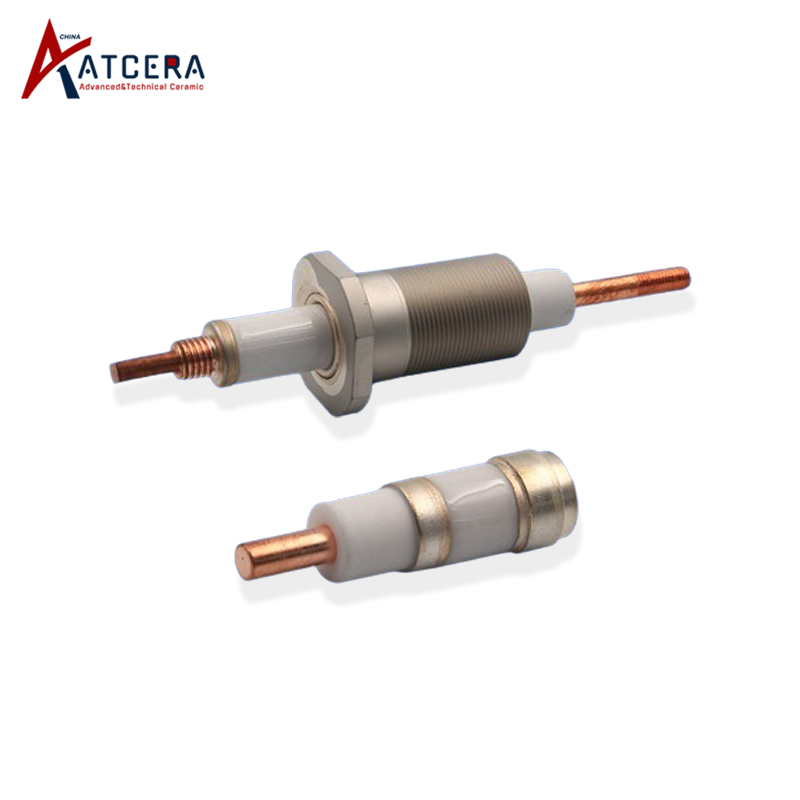

Ceramic Electrode for Vacuum Coating Machine

Ceramic electrode is used to transfer high voltage signal to the vacuum chamber body. It has good insulation, high voltage resistance, the maximum working voltage can reach 12KV, and with maximum working current of 200A. Ceramic electrode can be used in vacuum coating machine and other electronic vacuum devices.

Brand:
ATCERA
Item NO.:
AT-TCDJ-1001

Materials
Metallized Ceramics
Shapes
Mechanical Parts
Applications
Semiconductor , Electronics and Electricity , Metallurgy Industry

Inquire Now

Advantages of Ceramic Electrode for Vacuum Coating Machine

Ceramic electrode has good insulation, high voltage resistance, the maximum working voltage can reach 12KV, and with maximum working current of 200A.

Applications of Vacuum Coating Machine Ceramic Electrode

Ceramic electrode is used to transfer high voltage signal to the vacuum chamber body, widely applied for vacuum coating machine and other electronic vacuum devices.

Product Parameters

Size Chart of Vacuum Coating Machine Ceramic Electrode

Committed to providing optimal vacuum coating machine ceramic electrode customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Please provide drawing and parameter requirements for customization.

Ceramic Electrode for Vacuum Coating Machine
Item NO.	Sealing seat thread	Electrode rod threaded/flat structure
AT-TCDJ-1001	M24	M8
AT-TCDJ-1002	M24	flat structure
AT-TCDJ-1003	M25	M10
AT-TCDJ-1004	M25	M6
AT-TCDJ-1005	M25	flat structure
AT-TCDJ-1006	M25	M12
AT-TCDJ-1007	M28	M10
AT-TCDJ-1008	M28	M12
AT-TCDJ-1009	M32	M8
AT-TCDJ-1010	M33	flat structure

Valuable Information

Ceramic electrode for vacuum coating machine

Ceramic Electrodes for Vacuum Coating Machine Packing

Ceramic electrodes for vacuum coating machine are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Could Hot Press Sintering Be the Future of High-Performance Transparent Ceramic Production?

As a new inorganic nonmetallic material with high performance and multiple functions, transparent ceramics show great application potential in optics, electronics, aerospace and other fields because of its excellent light transmission, high strength, high hardness and good thermal and chemical stability. Among the many methods to prepare transparent ceramics, hot pressing sintering has become one ...

How Does Vacuum Sintering Technology Facilitate the Preparation of Transparent Ceramics?

As a kind of high performance material, transparent ceramics show great application potential in the fields of optical window, laser medium and high temperature wave transmittance materials because of its unique optical transparency and excellent mechanical properties. Among the many methods of preparing transparent ceramics, vacuum sintering technology has become one of the most widely resea...

What Are The Advantages Of Cold Isostatic Pressing In The Preparation Of Transparent Ceramics?

As a kind of high performance material, transparent ceramics show great application potential in optics, electronics, aerospace and other fields because of its excellent light transmission, high hardness, high temperature resistance and other characteristics. However, the preparation process of transparent ceramics is complicated, and the molding technology is one of the key factors to determine i...

Transparent Ceramics: Basic Principle & Process of Dry Pressing Molding Technology

As a new material with excellent optical properties, transparent ceramics have shown great application potential in optical Windows, laser devices, high temperature sensors and other fields. In the process of its preparation, molding technology is one of the key links, which directly affects the performance and quality of the final product. Among the many molding methods, dry pressing has bec...

How Do Sintering Process Parameters Affect The Properties Of Alumina Substrate?

As a high-performance material, alumina substrate has been widely used in electronics, aerospace and new energy fields. The preparation process involves many complicated processes, in which casting and drying process are the key links to ensure the quality of the substrate. In this article, the effects of raw material formula, casting film thickness and sintering process parameters on th...

What Are Future Trends In Alumina Substrate Preparation Process For Enhanced Performance?

Because of its excellent mechanical properties, thermal stability and chemical inertness, alumina substrate has shown wide application potential in electronic packaging, thermal management and high-performance structural parts. The preparation process involves complex process steps, in which casting process, as the core link, plays a decisive role in the performance of the final product. This...

What Are The Key Factors Influencing Alumina Substrate Performance During Preparation?

In the rapidly developing electronics industry, alumina substrate has become an indispensable substrate for electronic components with its excellent insulation properties, chemical stability, high thermal conductivity and good high-frequency characteristics. It not only provides support for electronic components, but also plays a key role in heat dissipation and insulation. However, the prepa...

Why Is Process Optimization Crucial for High-Quality Alumina Substrate Preparation?

The preparation of alumina substrate is a multi-step process with high precision, in which the choice of solvent directly affects the homogeneity of slurry, drying efficiency and physical properties of the final product. The solvent must not only be able to quickly dissolve each component to form a stable slurry, but also need to have rapid volatilization characteristics to ensure efficient d...

How Do Alumina Powder Characteristics Affect Alumina Substrate Casting Process?

In the field of electronics industry, alumina substrate has become an indispensable base material for electronic components because of its excellent insulation, chemical stability, high thermal conductivity and good high-frequency performance. It not only plays the role of support and heat dissipation, but also ensures the insulation performance of electronic components. Alumina casting slurr...

Technological Advancements To Improve Silicon Carbide Substrate CMP Efficiency

With the continuous progress of semiconductor technology, silicon carbide (SiC), as a high-performance material, has shown great application potential in the field of power electronic devices. However, in the preparation process of silicon carbide substrate, surface quality control is particularly critical, especially after thinning, grinding and polishing and other processes to obtain ultra-...

Magnesium Oxide Ceramic Rod MgO Rods

Surface Metallized Alumina Ceramic

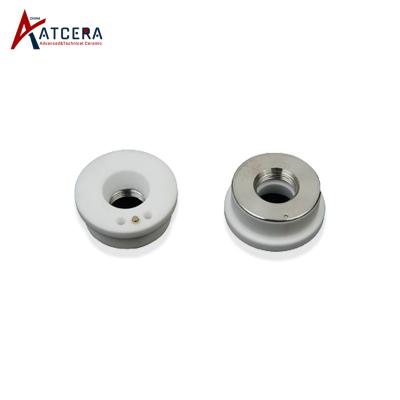

Ceramic Ring for Fiber Laser Cutting Machine
