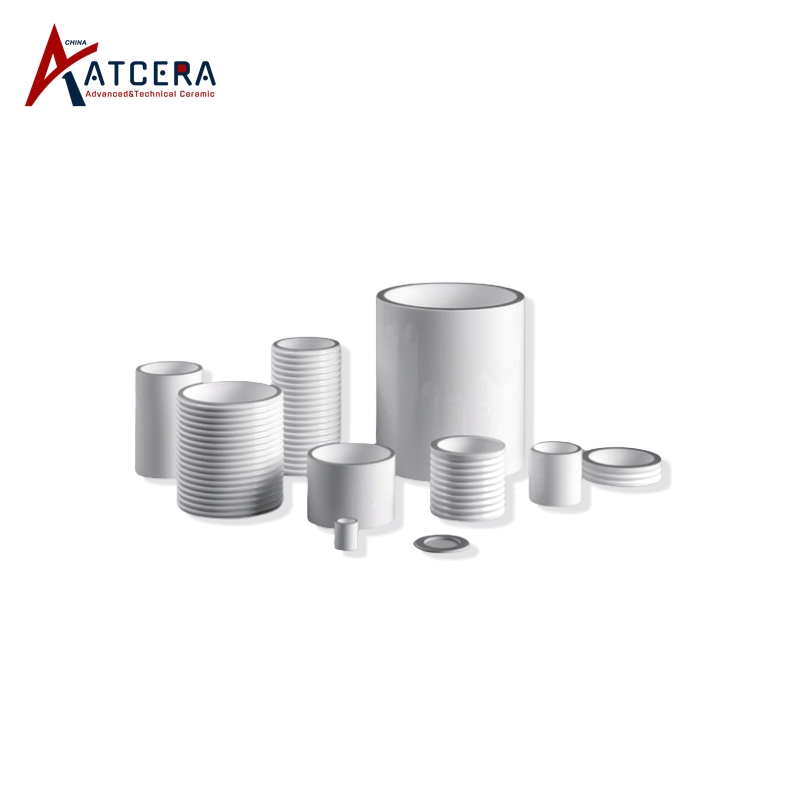

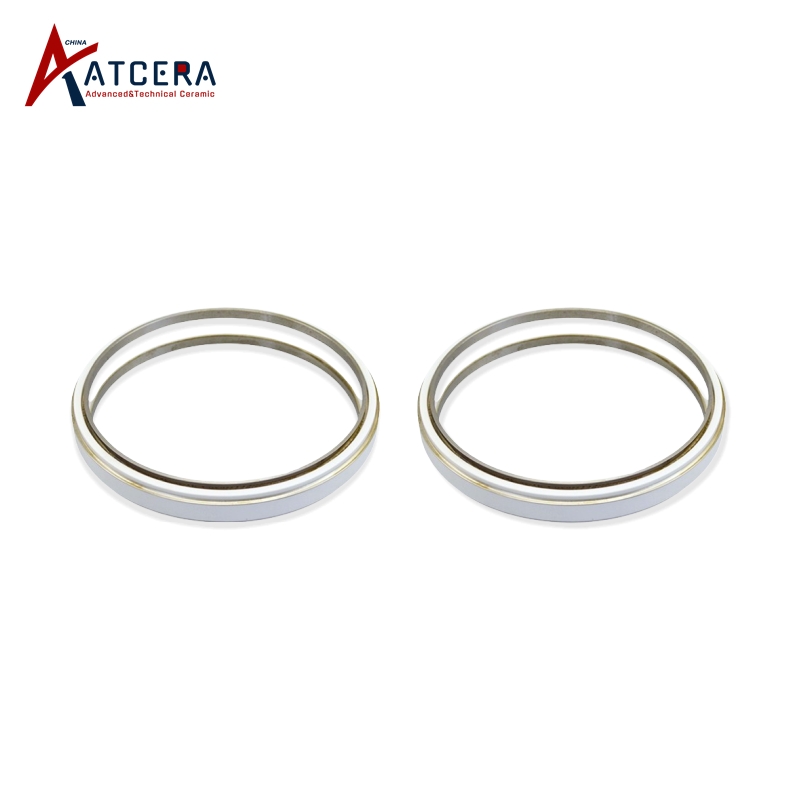

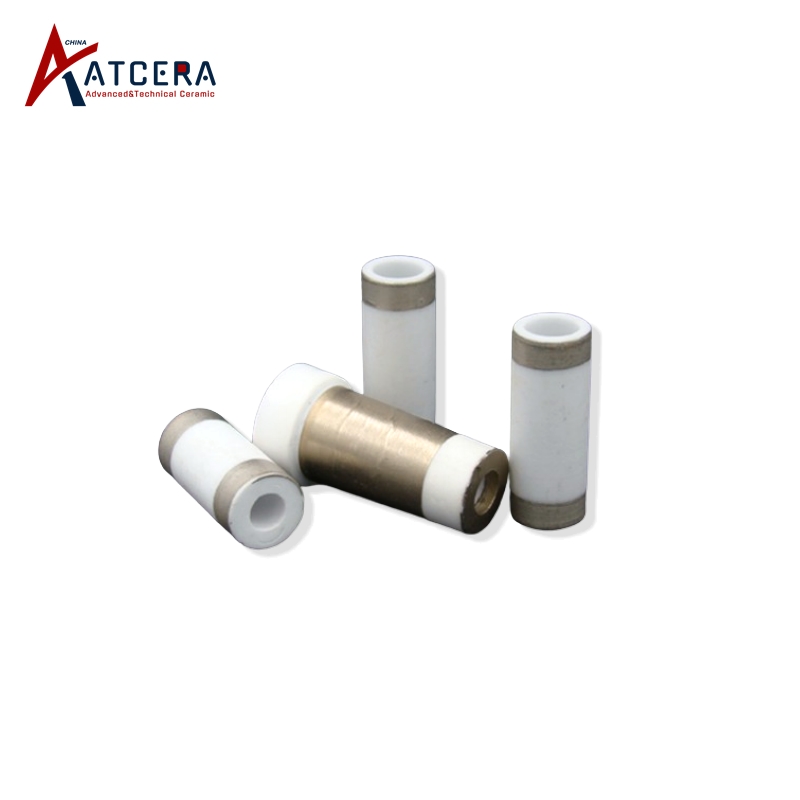

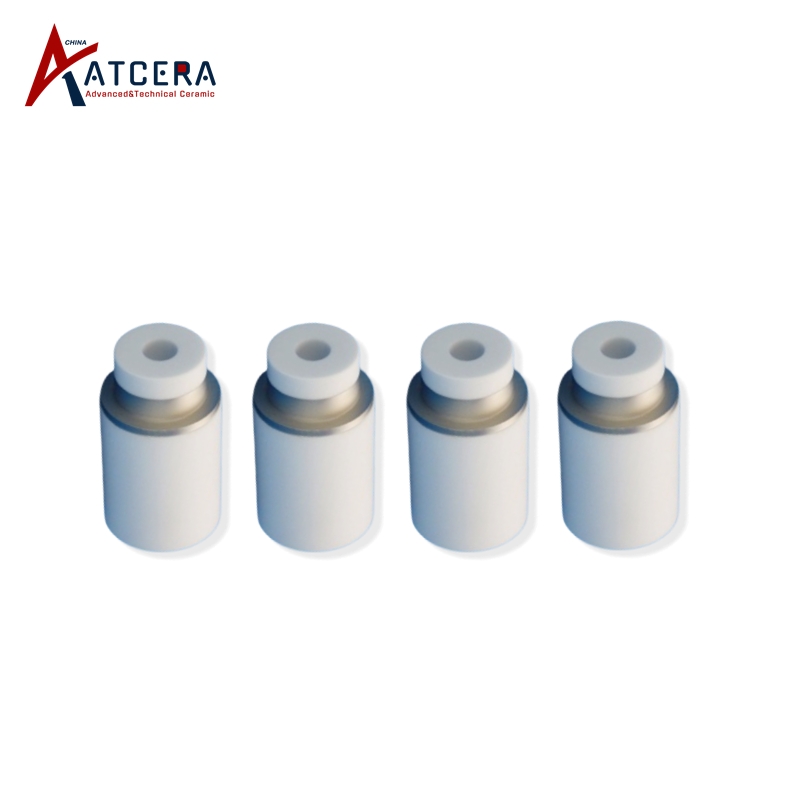

Surface Metallized Alumina Ceramic

Metallized alumina ceramic is a layer of metal powder printed on the surface of ceramic parts, via high temperature sintering to form a firm, dense metallized layer, so as to achieve welding of ceramics and metals. Metal and ceramic connection is reliable and stable, with high strength, good air tightness, mainly used in electronic and electrical components, such as vacuum switch tube, klystron, microwave tube, magnetron, thyratron, trigger, vacuum regulator, microwave night vision, X-ray emission tube, etc.

Brand:
ATCERA
Item NO.:
AT-MN-ZKG1001

Materials
Metallized Ceramics
Shapes
Mechanical Parts
Applications
Electronics and Electricity

Inquire Now

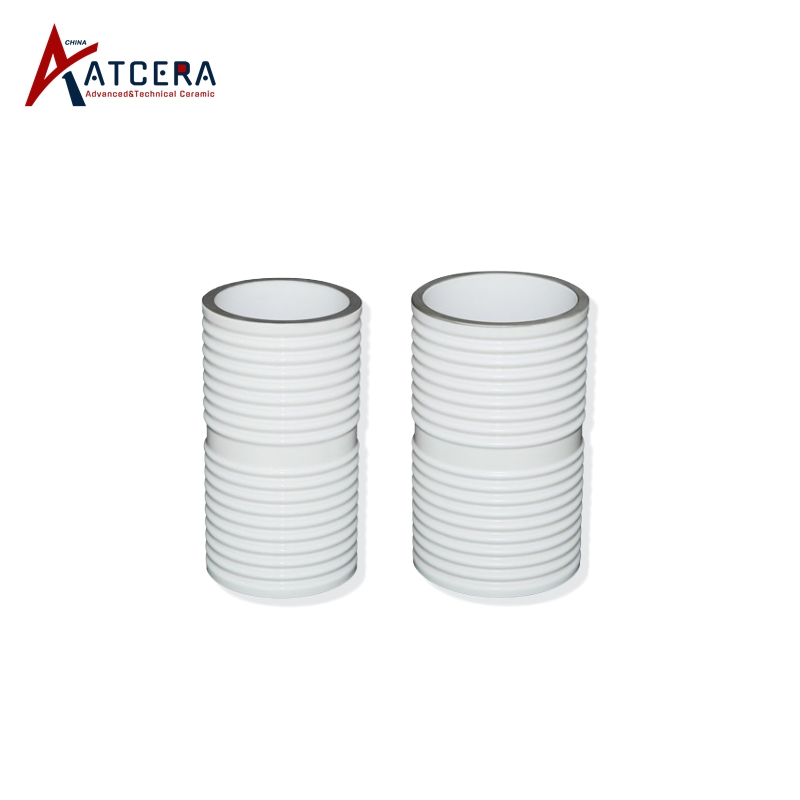

Advantages of Metallized Alumina Ceramic Tube

Metallized alumina ceramic can realize welding of ceramics and metals, the connection is reliable and stable, with high strength, good air tightness, can withstand harsh working conditions.

application of Surface metallized alumina ceramic

Applications of Metallized Alumina Ceramic

Metallized alumina ceramic is mainly used in electronic and electrical components, such as vacuum switch tube, klystron, microwave tube, magnetron, thyratron, trigger, vacuum regulator, microwave night vision, X-ray emission tube,etc.

Product Parameters

Size Chart of Metallized Alumina Ceramic Tube

Committed to providing optimal metallized alumina ceramic tube customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Provide drawing and parameter requirements, including ceramic type/purity, metal material, metal coating material(if need).

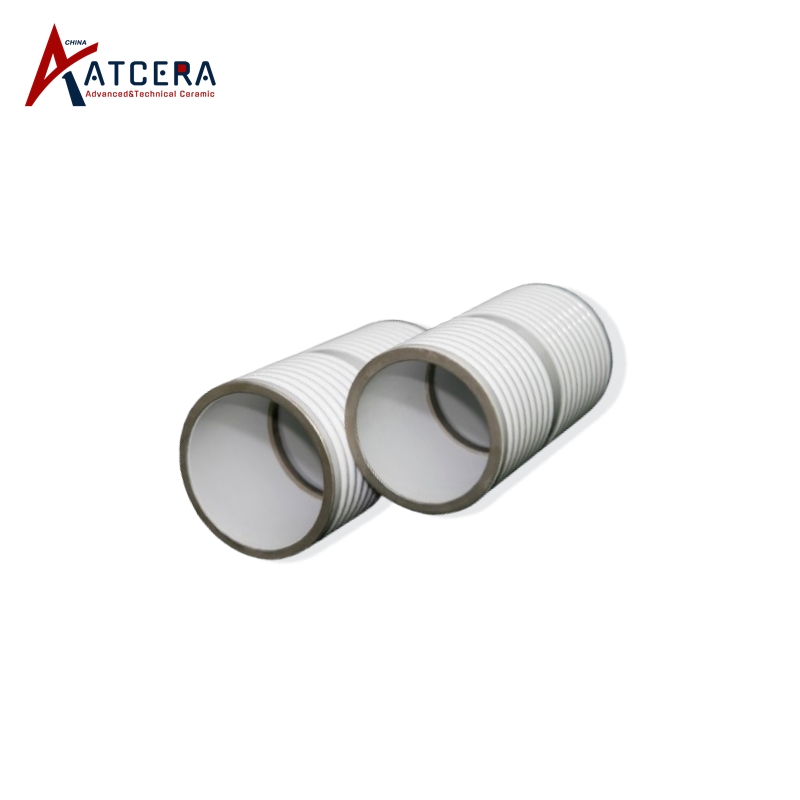

Metallized Alumina Ceramic Tube
Item NO.	Outer Diameter(mm)	Inner Diameter(mm）	Length(mm)	Alumina Purity(%)
AT-MN-ZKG1001	7	4	10	95%
AT-MN-ZKG1002	8	5	10	95%
AT-MN-ZKG1003	10	6	15	95%
AT-MN-ZKG1004	16	12	20	95%
AT-MN-ZKG1005	61	48	106	95%
AT-MN-ZKG1006	100	87	150	95%

Valuable Information

Surface Metallized Alumina Ceramic Tubes Packing

Surface metallized alumina ceramics tubes are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
