Opaque Quartz Glass Tube Frosted Quartz Glass Tube

Opaque quartz glass tube has excellent optical properties, good high temperature resistance and thermal stability, corrosion resistance, good chemical stability, excellent electrical insulation properties, it has wide range application in process heating, semiconductor manufacture, electric light source, optical instruments, experimental instruments and chemical machinery and equipment.

Brand:
ATCERA
Item NO.:
AT-SY-MSG1001

Materials
Quartz
Shapes
Tube
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry , Laboratory Equipment and Instruments

Inquire Now

Properties of Opaque Quartz Glass Tube

1. Opaque quartz tube can be used for a long time at 1100℃, and the temperature of short time use can reach 1450℃, also the coefficient of thermal expansion is small, so it can withstand drastic temperature changes。

2. Opaque quartz tube can emit infrared red with a wavelength of 5-15μm after being heated, and has good light transmission performance from ultraviolet to visible light, with visible light transmittance of more than 93% and ultraviolet spectral transmittance of more than 85%.

3. In addition to hydrofluoric acid, opaque quartz tube almost does not react with other acids, and can maintain chemical stability at high temperature condition.

Applications of Opaque Quartz Glass Tube

Opaque quartz glass tube has wide range application in process heating, semiconductor manufacture, electric light source, optical instruments, experimental instruments and chemical machinery and equipment.

Product Parameters
Material Parameters

Size Chart of Opaque Quartz Glass Tube

We are committed to delivering optimal opaque quartz glass tubes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and parameter requirements shall be provided if customized design request.

Send Requirements for Custom Design

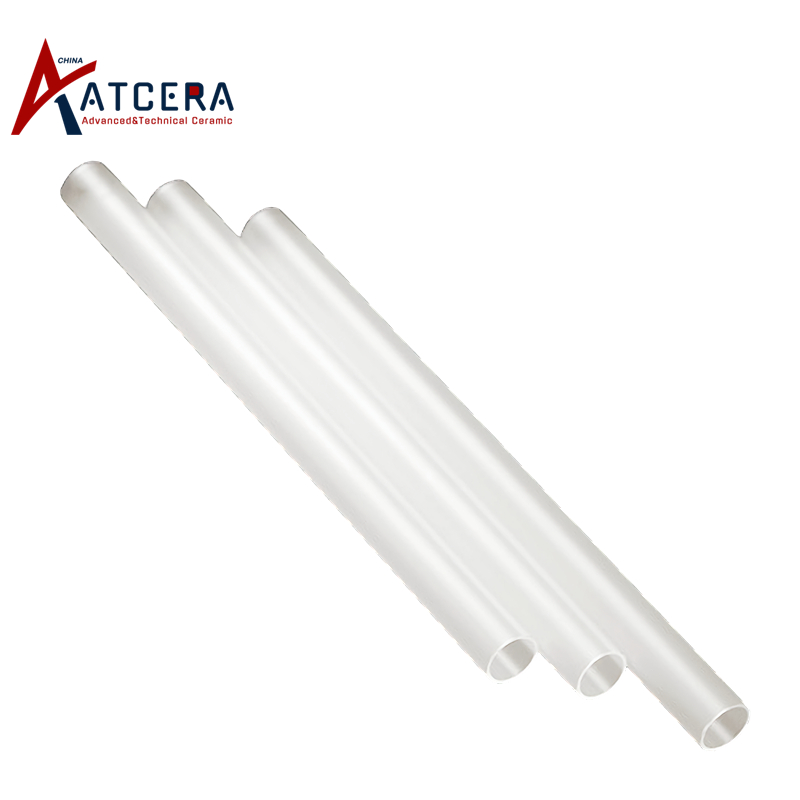

Opaque Quartz Glass Tube Both End Open
Item no.	Outer Dia. (mm)	Inner Dia. (mm)	Length (mm)	Purity (%)
AT-SY-MSG1001	1	0.25	20-2000	99%-99.98%
AT-SY-MSG1002	2	1.5	20-2000	99%-99.98%
AT-SY-MSG1003	2	5	20-2000	99%-99.98%
AT-SY-MSG1004	5	4.5	20-2000	99%-99.98%
AT-SY-MSG1005	5	4.2	20-2000	99%-99.98%
AT-SY-MSG1006	5	4	20-2000	99%-99.98%
AT-SY-MSG1007	10	8	20-2000	99%-99.98%
AT-SY-MSG1008	15	14	20-2000	99%-99.98%
AT-SY-MSG1009	20	16	20-2000	99%-99.98%
AT-SY-MSG1010	50	45	20-2000	99%-99.98%
AT-SY-MSG1011	100	80	20-2000	99%-99.98%
AT-SY-MSG1012	150	125	20-2000	99%-99.98%
AT-SY-MSG1013	200	180	20-2000	99%-99.98%
AT-SY-MSG1014	1-500	0.25-450	20-2000	99%-99.98%

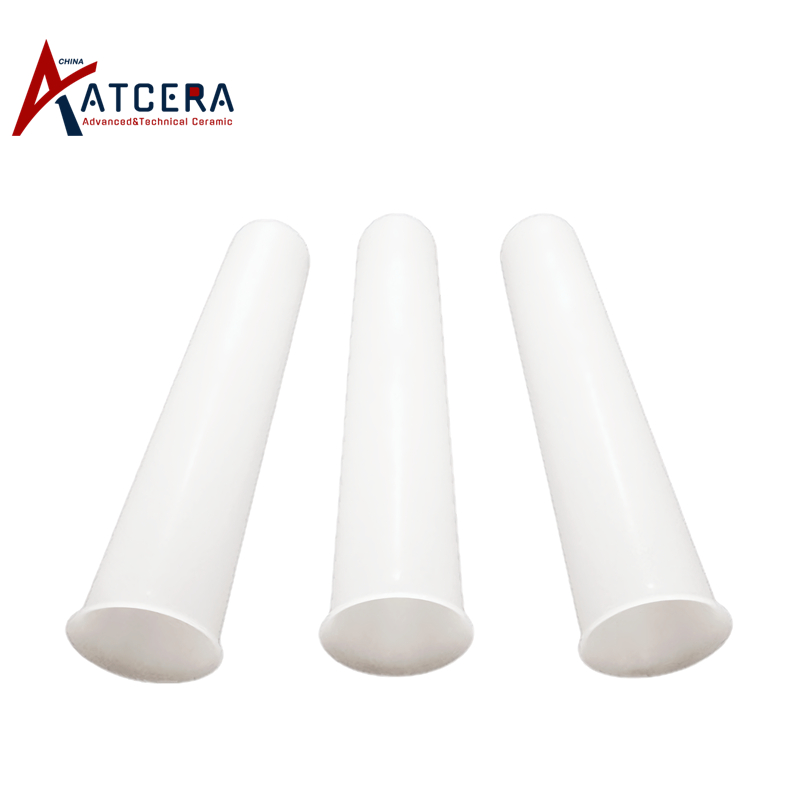

Opaque Quartz Glass Tube One End Closed
Item no.	Outer Dia. (mm)	Inner Dia. (mm)	Length (mm)	Purity (%)
AT-SY-MSG2001	6	5	20-1500	99%-99.98%
AT-SY-MSG2002	6	5.5	20-1500	99%-99.98%
AT-SY-MSG2003	10	9	20-1500	99%-99.98%
AT-SY-MSG2004	15	13	20-1500	99%-99.98%
AT-SY-MSG2005	20	18	20-1500	99%-99.98%
AT-SY-MSG2006	30	27	20-1500	99%-99.98%
AT-SY-MSG2007	50	45	20-1500	99%-99.98%
AT-SY-MSG2008	80	70	20-1500	99%-99.98%

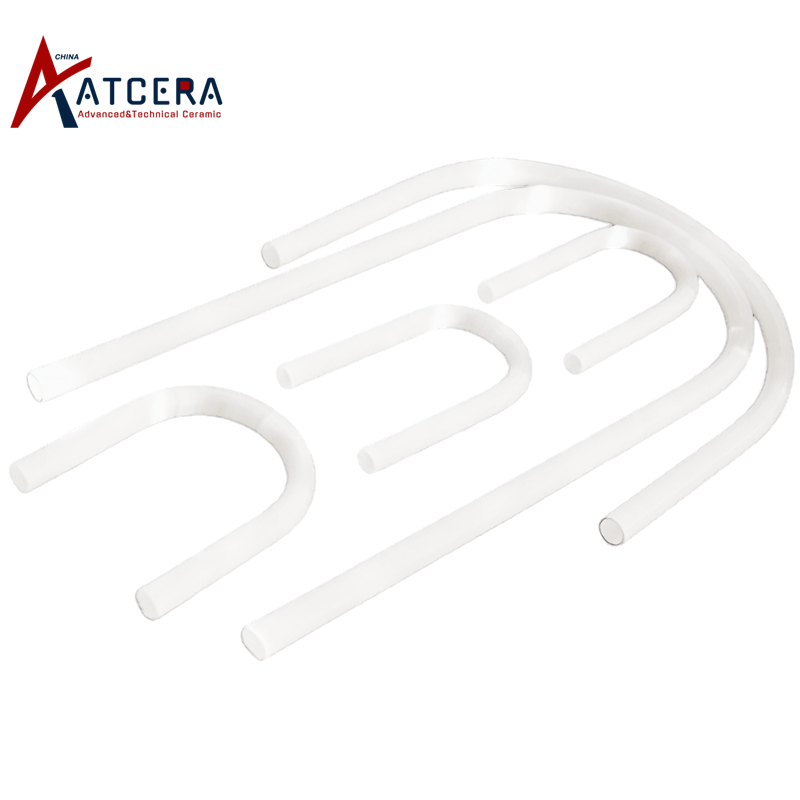

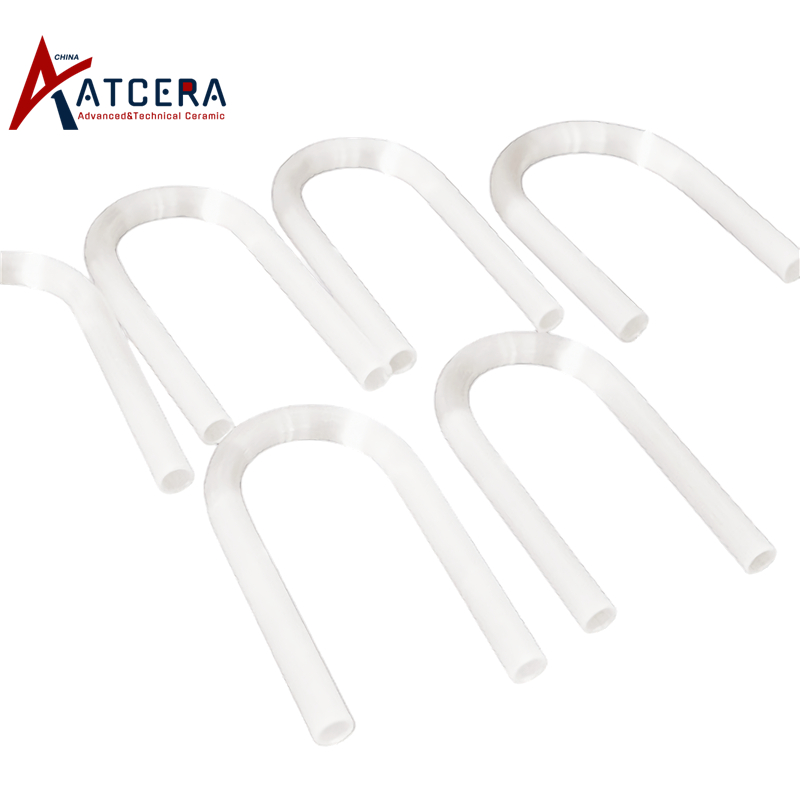

Opaque Quartz Glass Tube U-Type
Item no.	Outer Dia. (mm)	Inner Dia. (mm)	Length (mm)	Purity (%)
AT-SY-MSG3001	10	9	Customization	99%-99.98%
AT-SY-MSG3002	12	11	Customization	99%-99.98%
AT-SY-MSG3003	15	13.2	Customization	99%-99.98%
AT-SY-MSG3004	18	15	Customization	99%-99.98%
AT-SY-MSG3005	20	18	Customization	99%-99.98%
AT-SY-MSG3006	32	28	Customization	99%-99.98%
AT-SY-MSG3007	50	45	Customization	99%-99.98%
AT-SY-MSG3008	80	70	Customization	99%-99.98%

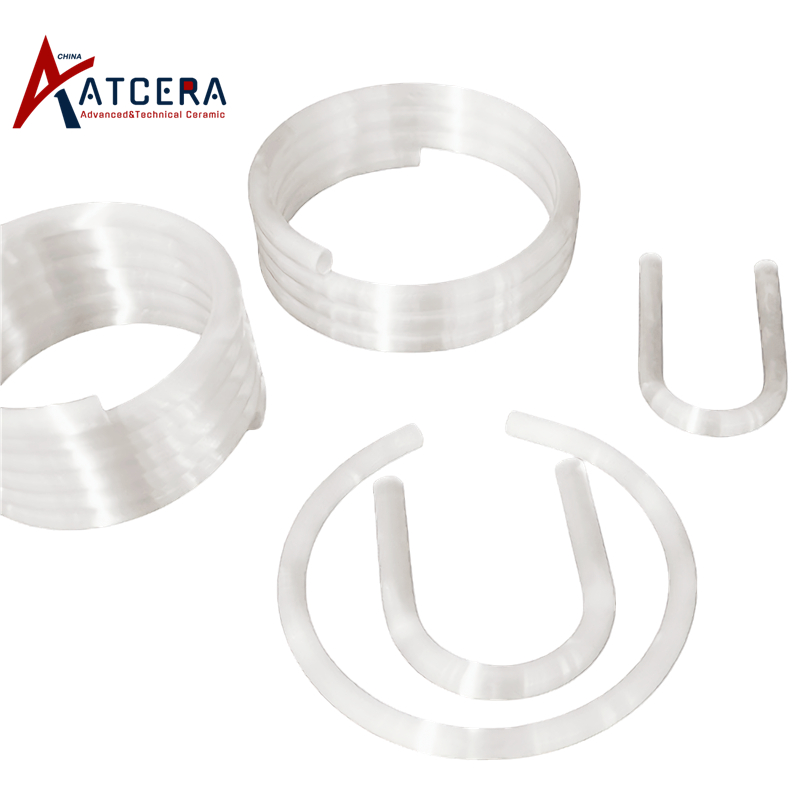

Opaque Quartz Glass Tube Helix
Item no.	Outer Dia. (mm)	Inner Dia. (mm)	Length (mm)	Purity (%)
AT-SY-MSG5001	15	13	Customization	99%-99.98%
AT-SY-MSG5002	30	27	Customization	99%-99.98%
AT-SY-MSG5003	50	47	Customization	99%-99.98%
AT-SY-MSG5004	60	56	Customization	99%-99.98%
AT-SY-MSG5005	80	75	Customization	99%-99.98%

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Valuable Information

Opaque Quartz Glass Tube Packing

Opaque quartz glass tubes are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
