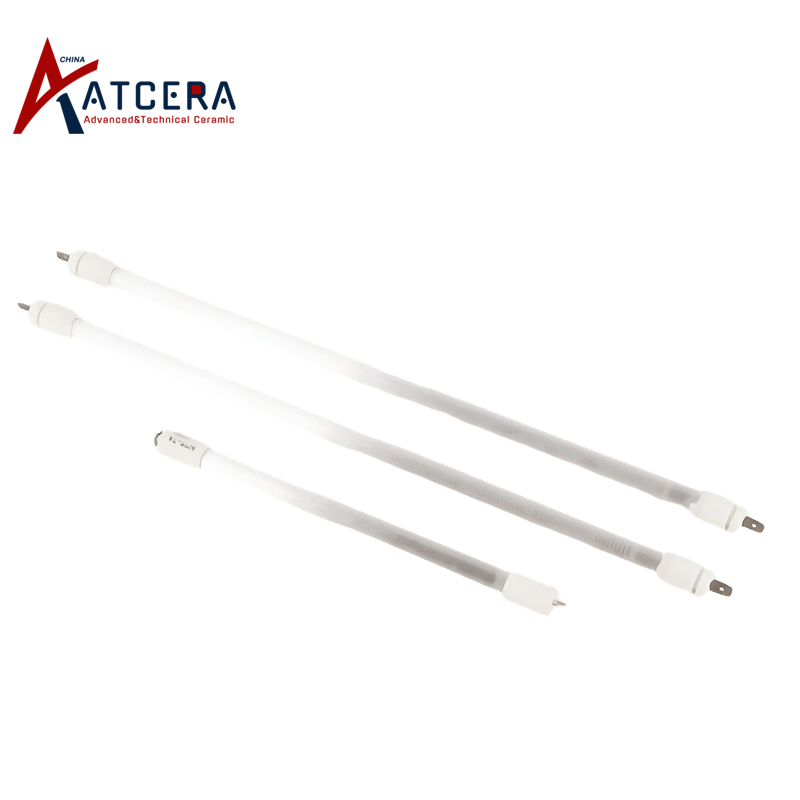

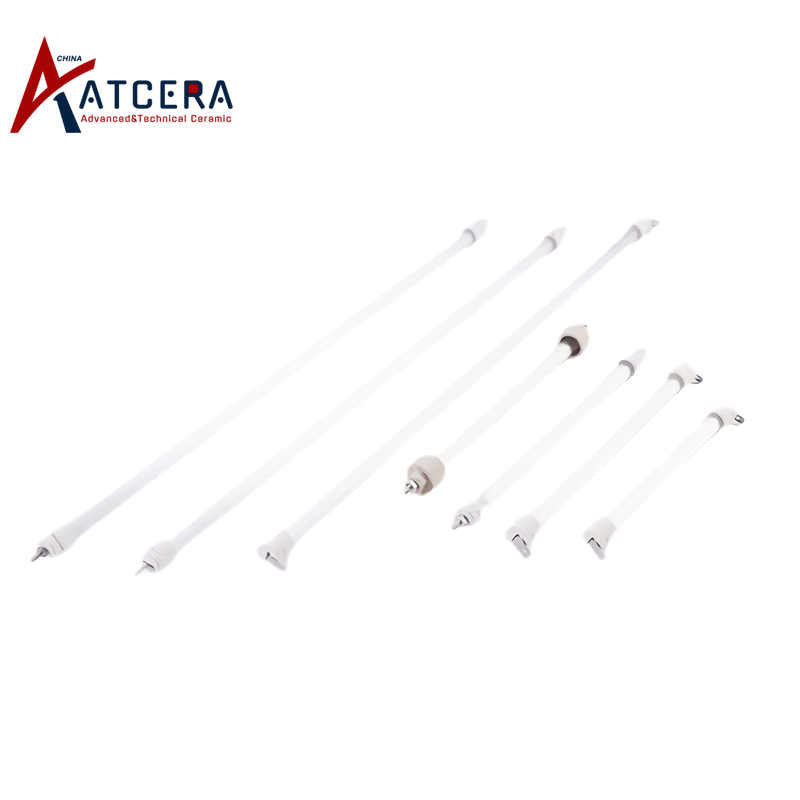

Quartz Infrared Heating Tube

Electric heating wire of quartz infrared heating tube is placed inside of the quartz tube. When the electric heating wire is powered, the heating tube will radiate infrared rays for heating objects, and wavelength of infrared rays depends on the electric heating wire material and coil parameter. Quartz infrared heating tube can withstand high temperature and corrosion, also with excellent thermal shock resistance, long service life, can be used for industrial drying, dehumidification, dehydration and heating purposes, such as vacuum blisting, paint curing, food drying, plastic melting and other processes, widely used in packaging, mechanical processing, food and drug manufacturing, injection molding, paper, rubber and other industries.

Brand:
ATCERA
Item NO.:
AT-SY-JRG001

Materials
Quartz
Shapes
Tube
Applications
Petrochemical Industry , Food Processing , Biology and Medicine , Laboratory Equipment and Instruments

Inquire Now

Properties of Quartz Infrared Heating Tube

Quartz infrared heating tube is resistant to high temperature and corrosion, can adapt to harsh working environment, also with good thermal shock resistance, can adapt to sharp temperature changes, so the heating speed is fast and efficiency is high. The material has no pollution to the heated substance, and heating plate has long service life.

Applications of Quartz Infrared Heating Tube

Quartz infrared heating tube can be used for industrial drying, dehumidification, dehydration and heating purposes, such as vacuum blisting, paint curing, food drying, plastic melting and other processes, widely used in packaging, mechanical processing, food and drug manufacturing, injection molding, paper, rubber and other industries.

Product Parameters
Material Parameters

Size Chart of Quartz Infrared Heating Tube

We are committed to delivering optimal quartz infrared heating tubes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and working parameter requirements shall be provided if customized design request.

Send Requirements for Custom Design

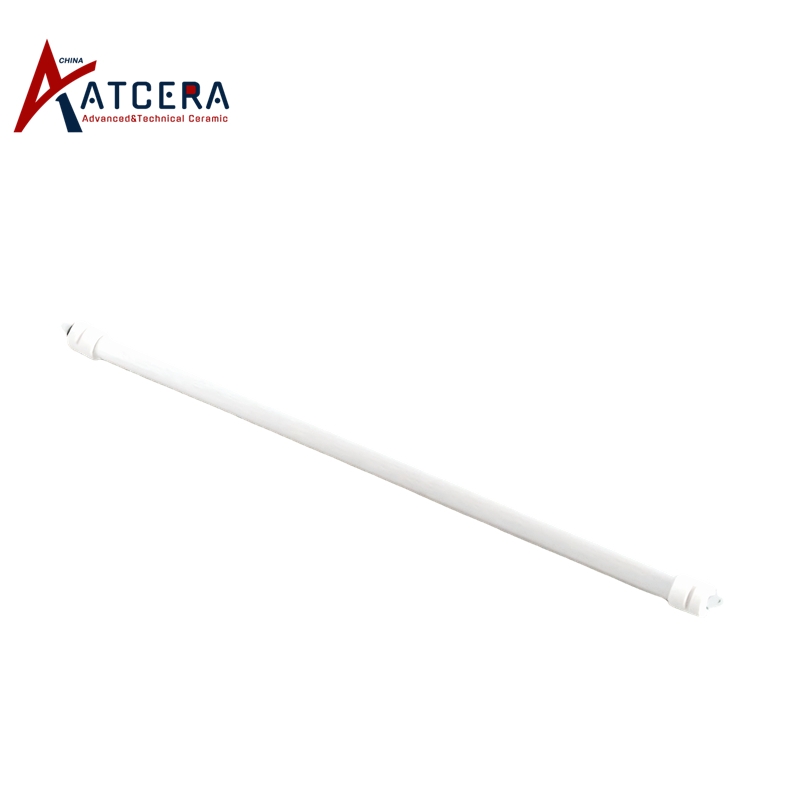

Quartz Infrared Heating Tube
Item no.	Diameter (mm)	Length (mm)	Operating Voltage (v)	Power (w)
AT-SY-JRG001	8	120	220	300
AT-SY-JRG002	10	120	220	300
AT-SY-JRG003	11	220	220	700
AT-SY-JRG004	12	120	220	300
AT-SY-JRG005	12	160	220	300
AT-SY-JRG006	12	180	220	300
AT-SY-JRG007	12	205	220	300
AT-SY-JRG008	12	220	220	300
AT-SY-JRG009	12	230	220	300
AT-SY-JRG010	12	250	220	300
AT-SY-JRG011	12	260	220	300
AT-SY-JRG012	12	280	220	300
AT-SY-JRG013	12	300	220	300
AT-SY-JRG014	12	330	220	300
AT-SY-JRG015	14	330	220	300
AT-SY-JRG016	18	400	110/220/380	100-5000
AT-SY-JRG017	18	500	110/220/380	100-5000
AT-SY-JRG018	18	600	110/220/380	100-5000
AT-SY-JRG019	18	700	110/220/380	100-5000
AT-SY-JRG020	18	800	110/220/380	100-5000
AT-SY-JRG021	18	900	110/220/380	100-5000
AT-SY-JRG022	18	1000	110/220/380	100-5000
AT-SY-JRG023	18	1500	110/220/380	100-5000
AT-SY-JRG024	18	1800	110/220/380	100-5000
AT-SY-JRG025	22	180-1800	110/220/380	100-5000
AT-SY-JRG026	25	180-1800	110/220/380	100-5000
AT-SY-JRG027	28	180-1800	110/220/380	100-5000
AT-SY-JRG028	32	180-1800	110/220/380	100-5000

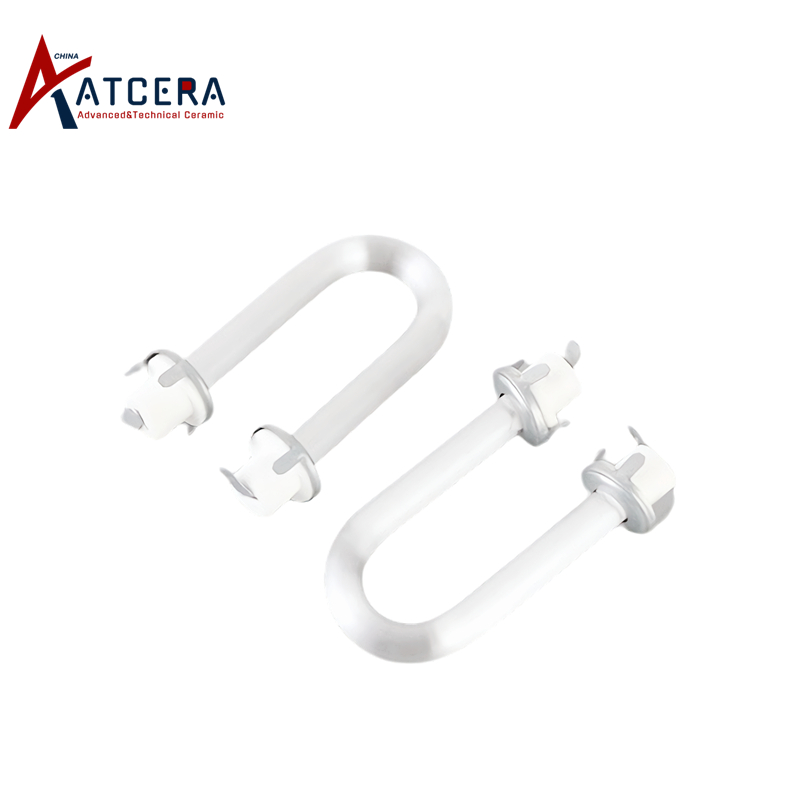

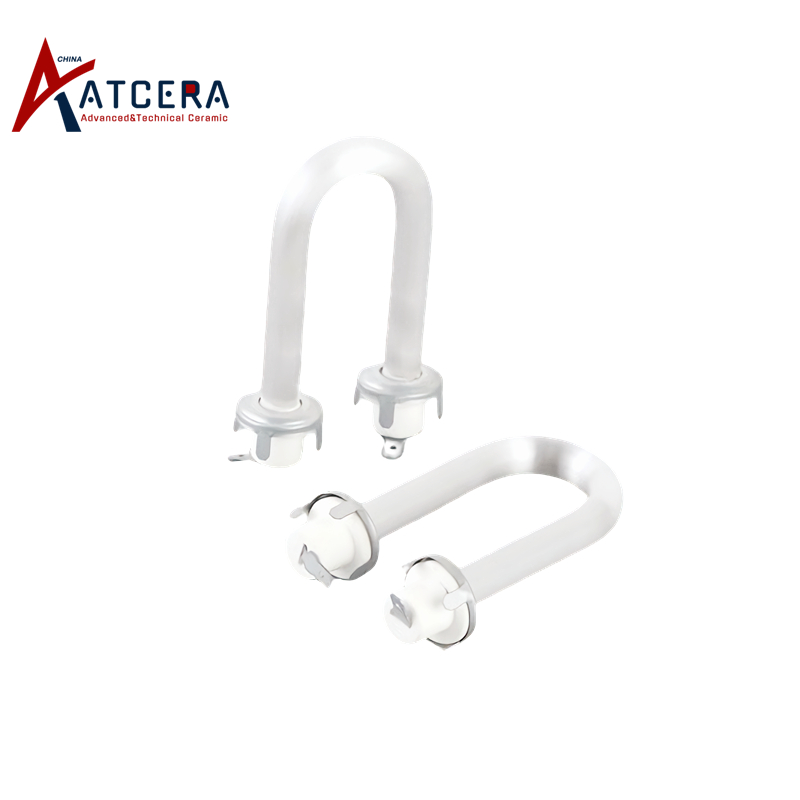

Quartz Infrared Heating Tube U-Type
Item no.	Diameter (mm)	Length (mm)	Operating Voltage (v)	Power (w)
AT-SY-JRG029	10	Customization	220	300
AT-SY-JRG030	12	Customization	220	300
AT-SY-JRG031	14	Customization	220	300
AT-SY-JRG032	18	Customization	110/220/380	100-5000

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Valuable Information

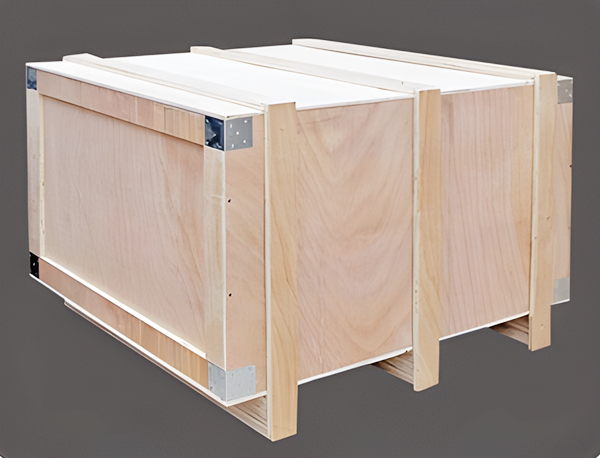

Quartz Infrared Heating Tube Packing

Quartz infrared heating tubes are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology

In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...

Exploration Of Laser Processing Technology Of AlN Substrate To Realize High Quality Flat Machining Surface

With the rapid development of electronic technology, the integration and performance requirements of large-scale integrated circuits are increasing day by day. As a key supporting material, aluminum nitride ceramics have become an ideal cooling substrate and packaging material because of their excellent thermal conductivity, mechanical strength, corrosion resistance and excellent electrical proper...

ELID Grinding Process Of AlN Substrate: Solving The Difficult Problem Of Machining High-hardness Brittleness

With the rapid development of microelectronics technology, the requirements for electronic packaging materials are increasingly stringent. Aluminum nitride ceramics, with its excellent thermal conductivity, excellent mechanical properties, corrosion resistance and excellent electrical properties, become the leader of large-scale integrated circuit cooling substrate and packaging materials. However...

AlN Ceramic Magnetorheological Polishing Process Achieves High-Quality Surface For AlN Substrate

Today, with the rapid development of the electronics industry, aluminum nitride ceramics have become the first choice for large-scale integrated circuit cooling substrates and packaging materials because of their excellent thermal conductivity, excellent mechanical properties, corrosion resistance and good electrical properties. Especially in the pursuit of miniaturization and high performance int...

Chemical Mechanical Polishing Of AlN Substrate: The Key Path To Overcome Micro-cracks And Subsurface Damage

In the field of microelectronic packaging, aluminum nitride ceramics are gradually becoming the preferred material for high-performance chip cooling substrates due to their excellent thermal conductivity, mechanical strength and electrical properties. However, its high hardness and high brittleness can easily cause surface micro-cracks and sub-surface damage during processing, which directly affec...

Study On Thermal Conductivity Of Aluminum Nitride Substrate And Analysis Of Influence Of Oxygen Impurity

For a long time, most of the substrate materials of high-power hybrid integrated circuits have been using Al2O3 and BeO ceramics, but the thermal conductivity of the Al2O3 substrate is low, and the thermal expansion coefficient is not well matched with Si. Although the comprehensive performance of BeO is excellent, its high production cost and highly toxic shortcomings limit its application and pr...

Evolution Of Ceramic Substrate Materials: Breakthroughs From Alumina To Aluminum Nitride And Silicon Nitride

In today's rapidly changing electronics industry, ceramic substrate materials as a key basis for supporting high-performance electronic devices, its performance and characteristics directly affect the overall performance and reliability of electronic products. From the early alumina ceramics to the later aluminum nitride, silicon nitride and other new materials, the development of ceramic substrat...

The Applicability of Aluminum Nitride Substrate as a Packaging Material for Enhancing Heat Dissipation in Power Devices

With the rapid development of electronic technology, the comprehensive performance of electronic chips is improving day by day, but the overall size is shrinking. This trend brings significant performance improvements, but it also comes with a serious challenge - a dramatic increase in heat flux. For electronic devices, even a small increase in temperature can have a significant impact on their pe...

Thermal Conductivity Improvement of Silicon Nitride Substrate

In the field of advanced ceramic materials, silicon nitride (Si3N4) has attracted much attention for its excellent mechanical strength, chemical stability and high temperature properties. However, the thermal conductivity of silicon nitride ceramics, as one of the key factors affecting its wide application, has been an important subject in materials science research. This paper aims to investigate...

Exploring Lattice Vibration Mechanism And Sintering Assistant Strategy Of Silicon Nitride Substrates

In cutting-edge technologies such as high-performance electronic packaging, aerospace and energy conversion, silicon nitride (Si3N4) substrate materials are highly regarded for their excellent mechanical properties, chemical stability and high temperature resistance. However, the thermal conductivity of silicon nitride, as one of the key factors affecting its wide application, has always been...

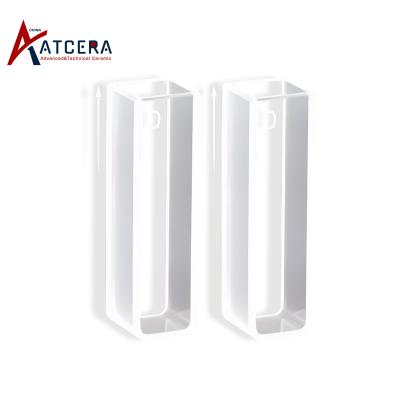

Quartz Cuvette UV Quartz Cuvette

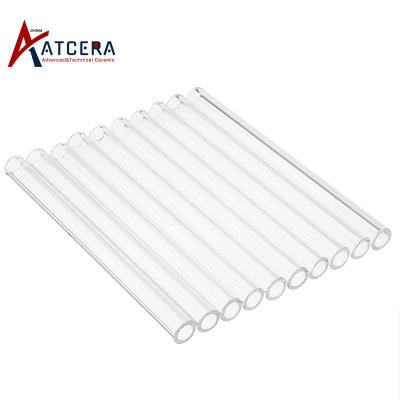

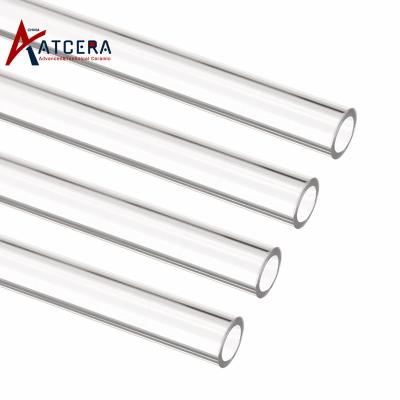

Quartz Transparent Tube Fused Silica Tubing

Quartz Capillary Tube Fused Silica Pipe

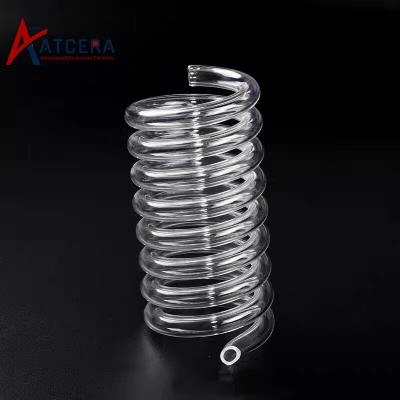

Quartz Helical Tube Fused Silica Spiral Tubing

Ultraviolet Fused Quartz Tubes UV Silica Tubing

Filter UV Quartz Tube Fused Silica Tubing UV Filter

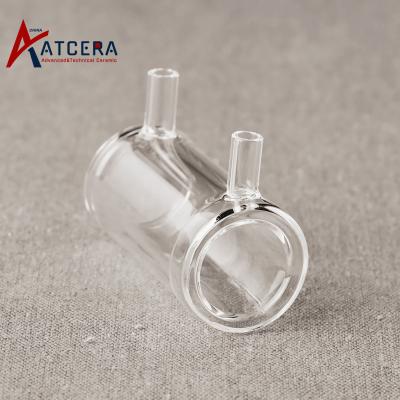

Double Walled Quartz Tube Silica Cooling Sleeve Tubing
