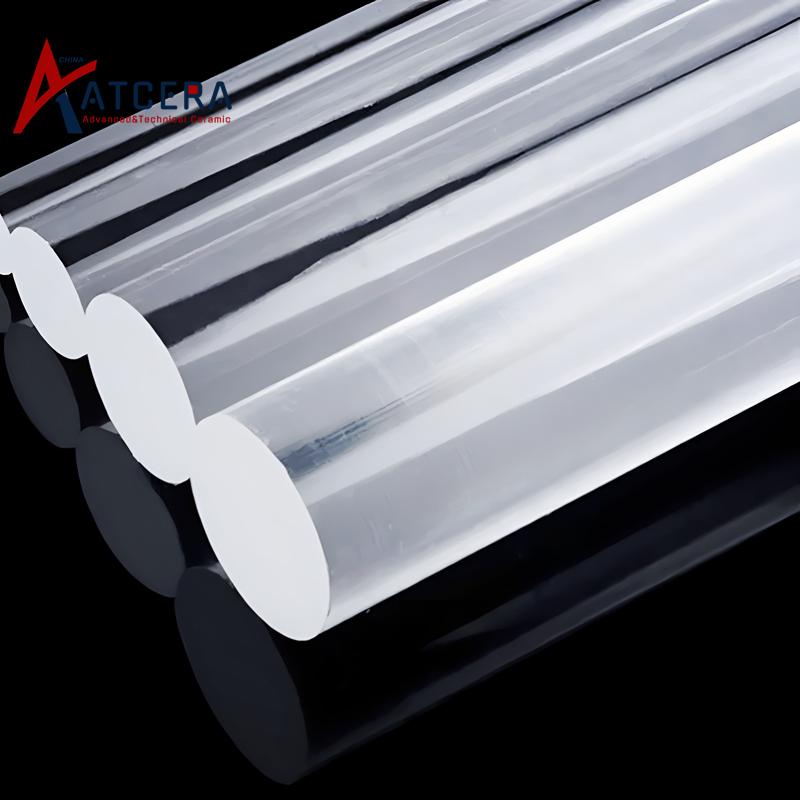

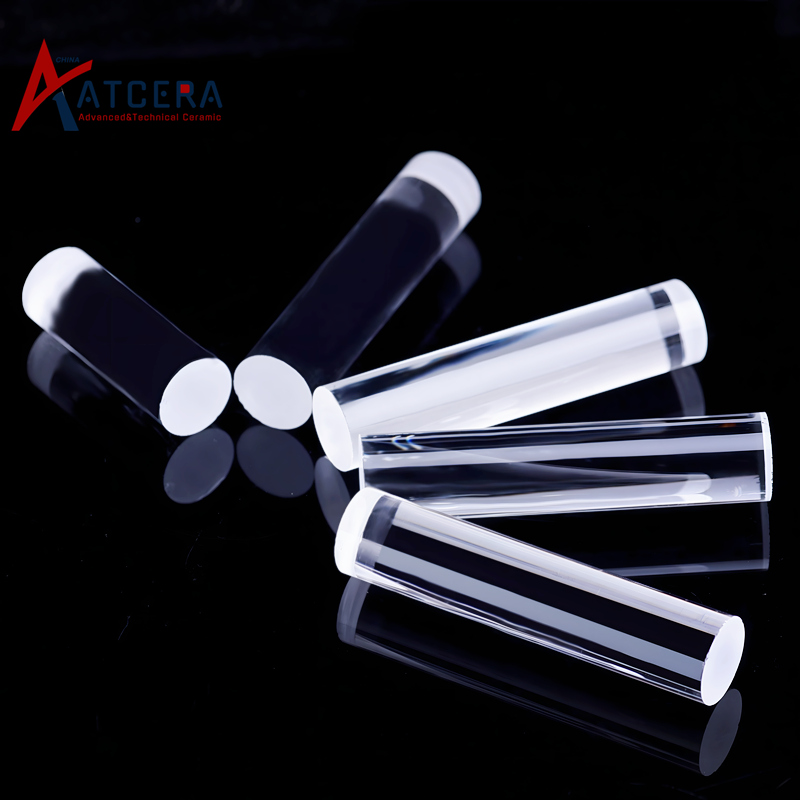

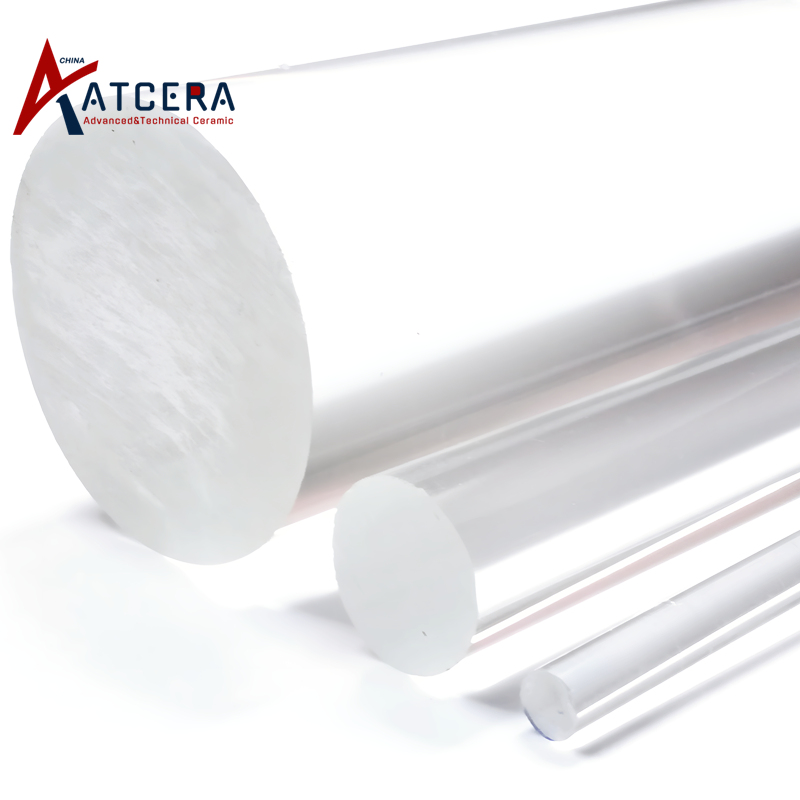

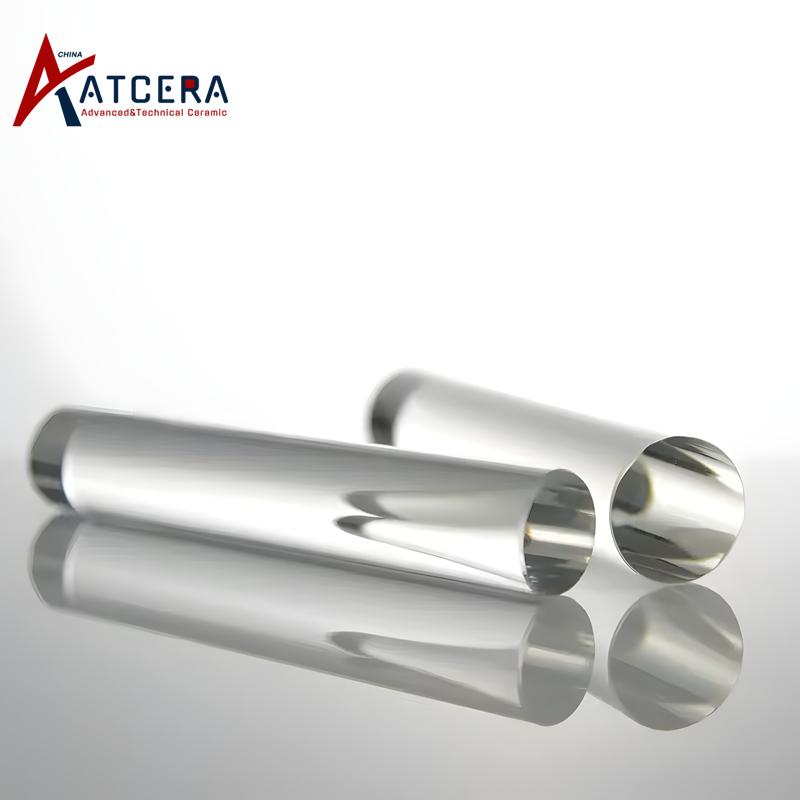

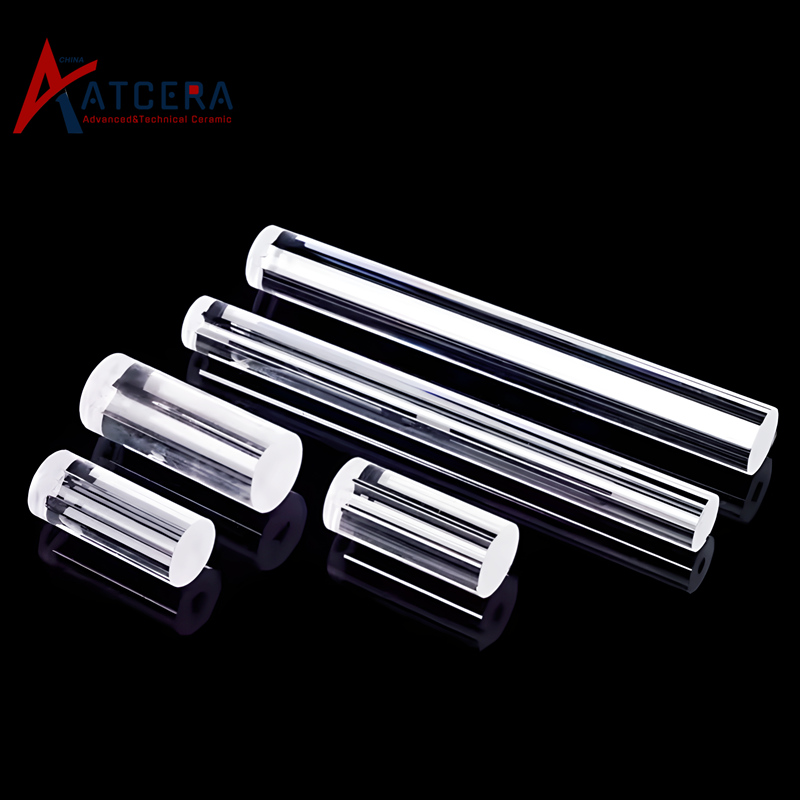

Quartz Rod Fused Quartz Rod

Quartz rod is a special industrial technology glass rod made of silica, with very good optical properties, high resistance value, it is an excellent electrical insulation material, even at high temperatures also has good insulation properties.

Brand:
ATCERA
Item NO.:
AT-QTZ-G001

Materials
Quartz
Shapes
Rod
Applications
Petrochemical Industry , Metallurgy Industry , Biology and Medicine , Laboratory Equipment and Instruments

Inquire Now

Properties of Fused Quartz Rod

1. High temperature resistance, quartz softening point temperature is about 1730℃, it can be used at 1100℃ for a long time, short time maximum use temperature up to higher than 1450℃.

2. Quartz rod has good light transmission and stable optical performance, the transparent range is wide, which is from 120nm-4500nm, and there is no absorption peak in this spectrum range.

3. Quartz rod has good corrosion resistance, can contact directly with various acids, alkalis and chemical reagents, and has good chemical stability.

4. Good electrical insulation performance, even at high temperatures quartz rod also has good insulation performance.

Applications of Quartz Rod

Quartz rod has good light transmittance, excellent electrical insulation performance, high temperature and corrosion resistance, and has important applications in the fields of optics, chemical industry and experimental instruments.

1. Optical Field

High-purity quartz rod has a small bending radius and can be used to fabricate optical fibers, in which light can be transmitted over long distances for communication, medicine, measurement and other applications, even in harsh environments it is available used for long-term stable transmission.

2. Chemical Industry

Quartz rod has good high temperature resistance and corrosion resistance, can be used as catalyst carrier, and make thermometers, pressure gauges and other measuring instruments for chemical industry.

3. Experimental Equipment

Quartz has good light transmittance, stable optical performance, high temperature and corrosion resistance, and can be used to manufacture a variety of optical and chemical experimental instruments.

Size Chart of Fused Quartz Rod

We are committed to delivering prime fused quartz rods tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawings and parameter requirements shall be provided if customized design request.

Dimension Tolerance of Quartz Rods
Diameter Range	Diameter%	Ovality%	Tortuosity
≤6mm	±2.0	2.0	2.5
6.0 ~ 15.0mm	±1.25	1.5	2.5
15.0 ~ 20.0mm	±1.25	1.5	2.5
20.0 ~ 25.0mm	±1.25	1.5	3.0
25.0 ~ 30.0mm	±1.35	1.5	3.0
30.0 ~ 80.0mm	±1.5	2.0	3.0

Send Requirements for Custom Design

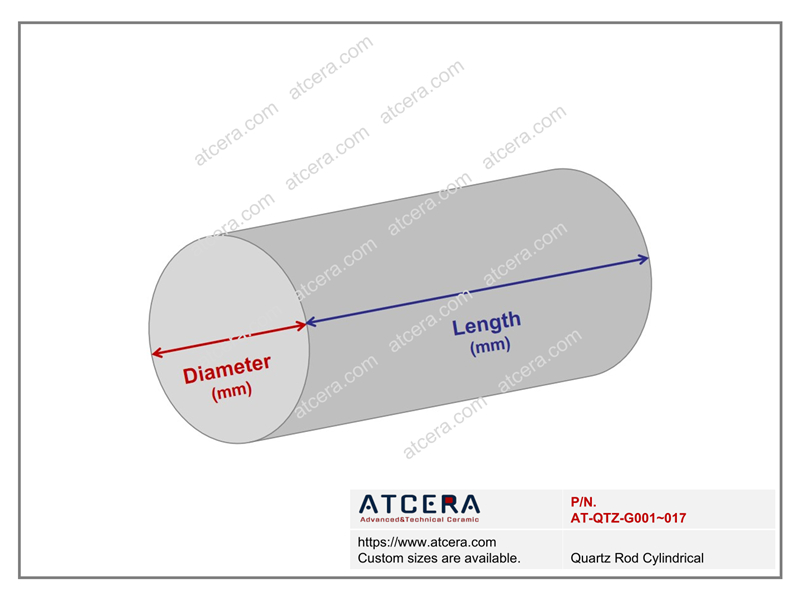

Drawing of Quartz Rod Cylindrical

Quartz Rod Cylindrical
Item NO.	Diameter (mm)	Length (mm)	Quartz's Purity (mm)
AT-QTZ-G001	1.8	30	99%~99.98%
AT-QTZ-G002	2	50	99%~99.98%
AT-QTZ-G003	2.5	200	99%~99.98%
AT-QTZ-G004	3	300	99%~99.98%
AT-QTZ-G005	4.5	150	99%~99.98%
AT-QTZ-G006	5	600	99%~99.98%
AT-QTZ-G007	6	700	99%~99.98%
AT-QTZ-G008	7	400	99%~99.98%
AT-QTZ-G009	8	635	99%~99.98%
AT-QTZ-G010	9	720	99%~99.98%
AT-QTZ-G011	10	55	99%~99.98%
AT-QTZ-G012	20	102	99%~99.98%
AT-QTZ-G013	30	50-1400	99%~99.98%
AT-QTZ-G014	40	50-1400	99%~99.98%
AT-QTZ-G015	50	50-1400	99%~99.98%
AT-QTZ-G016	60	50-1400	99%~99.98%
AT-QTZ-G017	1.8-350	20-2000	99%~99.98%

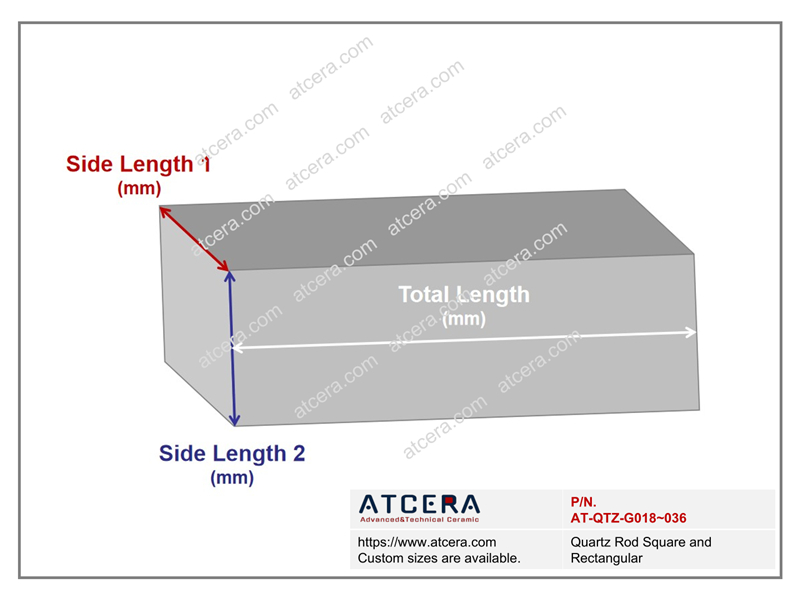

Drawing of Quartz Rod Square and Rectangular

Quartz Rod Square and Rectangular
Item NO.	Side Length 1 (mm)	Side Length 2 (mm)	Total Length (mm)	Quartz's Purity (mm)
AT-QTZ-G018	3	3	50-1400	99%~99.98%
AT-QTZ-G019	3	5	50-1400	99%~99.98%
AT-QTZ-G020	6	6	50-1400	99%~99.98%
AT-QTZ-G021	6	4	50-1400	99%~99.98%
AT-QTZ-G022	7	3	50-1400	99%~99.98%
AT-QTZ-G023	7	7	50-1400	99%~99.98%
AT-QTZ-G024	8	6	50-1400	99%~99.98%
AT-QTZ-G025	8.7	6.3	50-1400	99%~99.98%
AT-QTZ-G026	9.5	9.5	50-1400	99%~99.98%
AT-QTZ-G027	10	10	50-1400	99%~99.98%
AT-QTZ-G028	11	8	50-1400	99%~99.98%
AT-QTZ-G029	13	10	50-1400	99%~99.98%
AT-QTZ-G030	15	15	50-1400	99%~99.98%
AT-QTZ-G031	16.5	16.5	50-1400	99%~99.98%
AT-QTZ-G032	23	16	50-1400	99%~99.98%
AT-QTZ-G033	25	25	50-1400	99%~99.98%
AT-QTZ-G034	32	27	50-1400	99%~99.98%
AT-QTZ-G035	36	30	50-1400	99%~99.98%
AT-QTZ-G036	40	30	50-1400	99%~99.98%

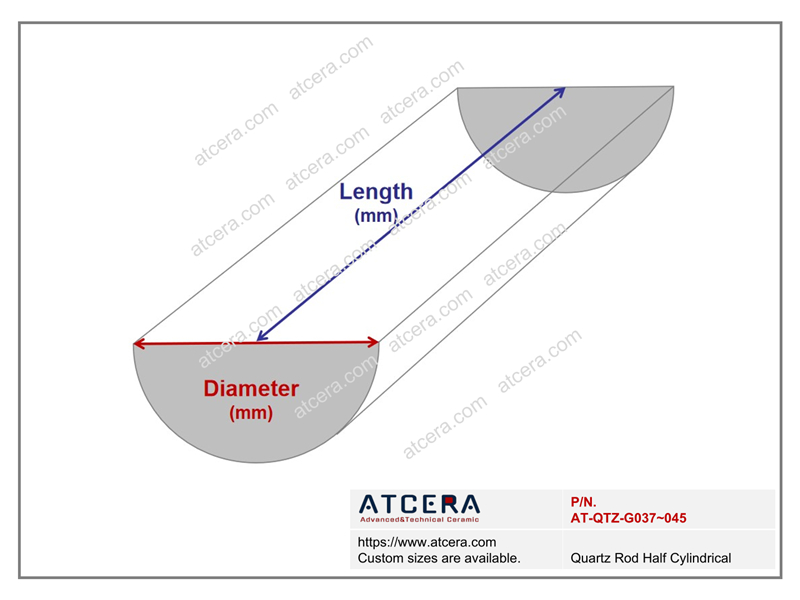

Drawing of Quartz Rod Half Cylindrical

Quartz Rod Half Cylindrical
Item NO.	Diameter (mm)	Length (mm)	Quartz's Purity (mm)
AT-QTZ-G037	5	50-1400	99%~99.98%
AT-QTZ-G038	10	50-1400	99%~99.98%
AT-QTZ-G039	15	50-1400	99%~99.98%
AT-QTZ-G040	18	50-1400	99%~99.98%
AT-QTZ-G041	20	50-1400	99%~99.98%
AT-QTZ-G042	24	50-1400	99%~99.98%
AT-QTZ-G043	28	50-1400	99%~99.98%
AT-QTZ-G044	30	50-1400	99%~99.98%
AT-QTZ-G045	5-150	50-1400	99%~99.98%

Quartz Rod Customized Design Option
Item NO.	Diameter (mm)	Length (mm)	Quartz's Purity (mm)
AT-QTZ-G046	2	50-1400	99%~99.98%
AT-QTZ-G047	5	50-1400	99%~99.98%
AT-QTZ-G048	8	50-1400	99%~99.98%
AT-QTZ-G049	10	50-1400	99%~99.98%
AT-QTZ-G050	18	50-1400	99%~99.98%
AT-QTZ-G051	22	50-1400	99%~99.98%
AT-QTZ-G052	24	50-1400	99%~99.98%
AT-QTZ-G053	28	50-1400	99%~99.98%
AT-QTZ-G054	32	50-1400	99%~99.98%
AT-QTZ-G055	50	50-1400	99%~99.98%

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Usage Instructions

1. When using the quartz rod, handle it gently to avoid severe impact or fall, so as to avoid damage.

2. Shall not exceed the maximum use temperature of the quartz rod, otherwise it will cause crystallization or soften deformation.

3. Quartz rod for high temperature conditions must be wiped clean before use, fine thread gloves shall be worn during operation and do not touch it directly with hands.

4. Quartz rod is acidic material, strictly avoid contact with alkaline substances (such as sodium silicate, asbestos, potassium and sodium compounds, etc.) when used at high temperature, otherwise it will greatly reduce the crystallization resistance.

Valuable Information

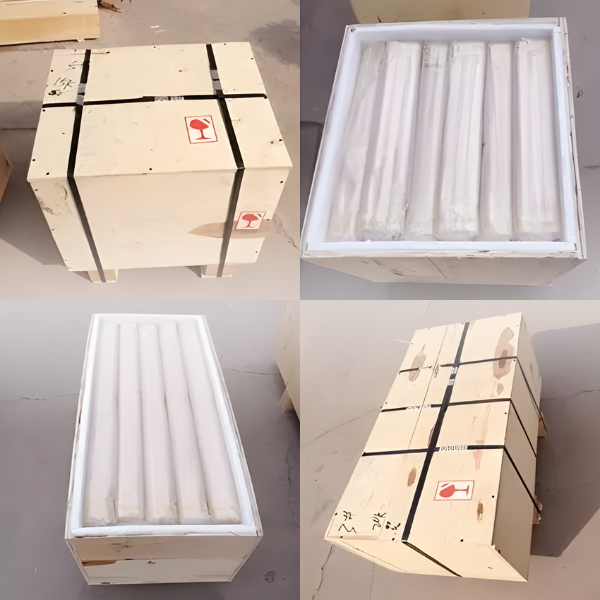

Quartz Rod Packing

Quartz rods are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
