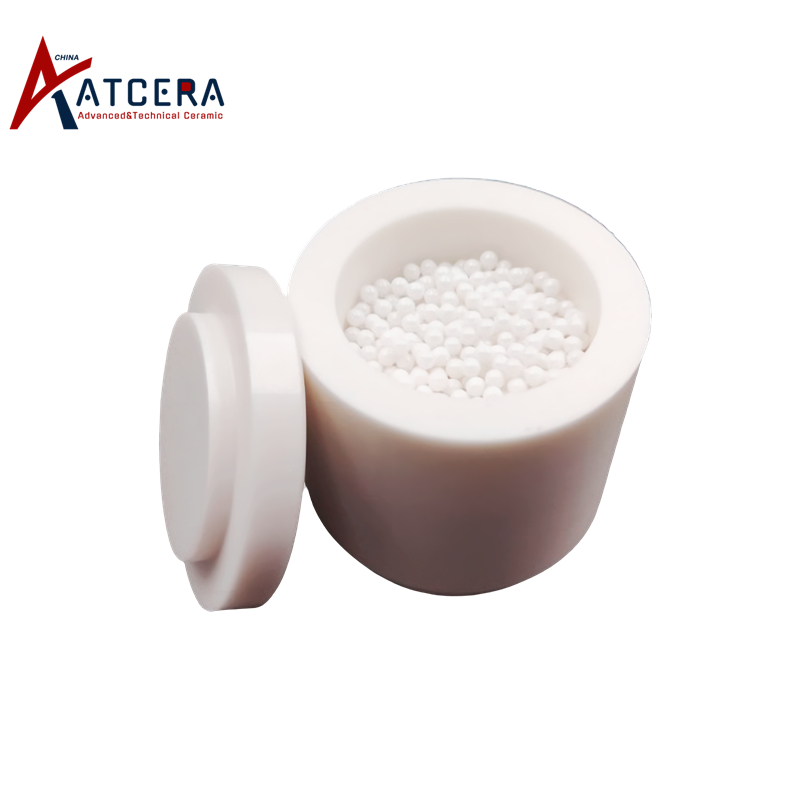

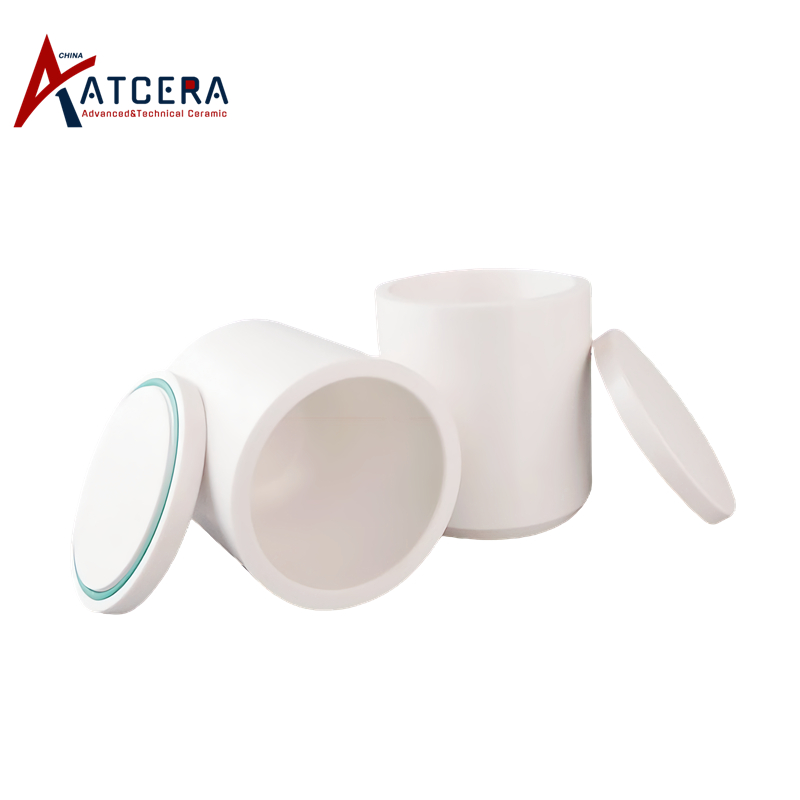

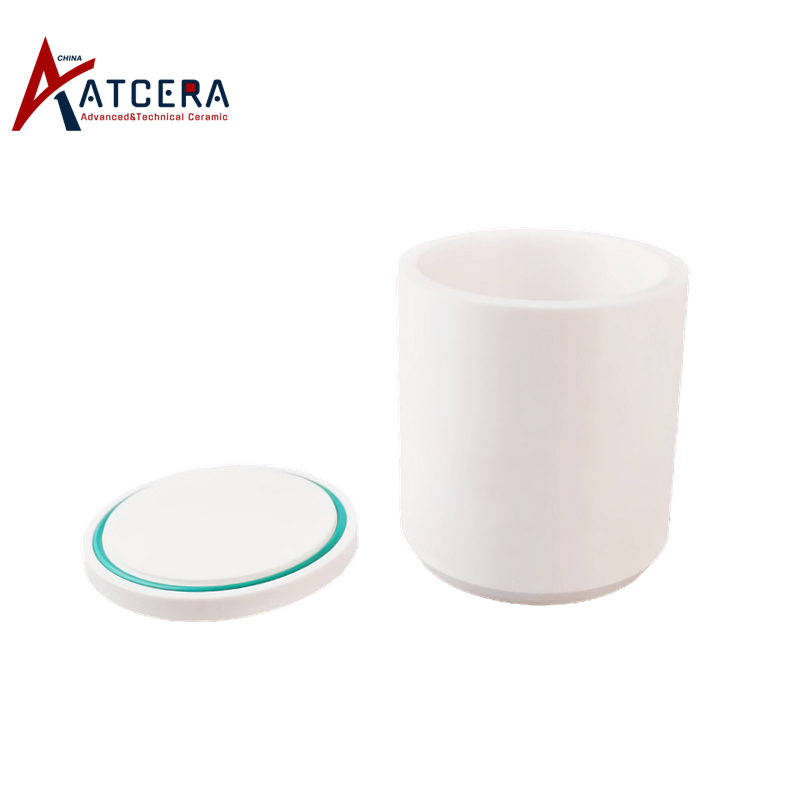

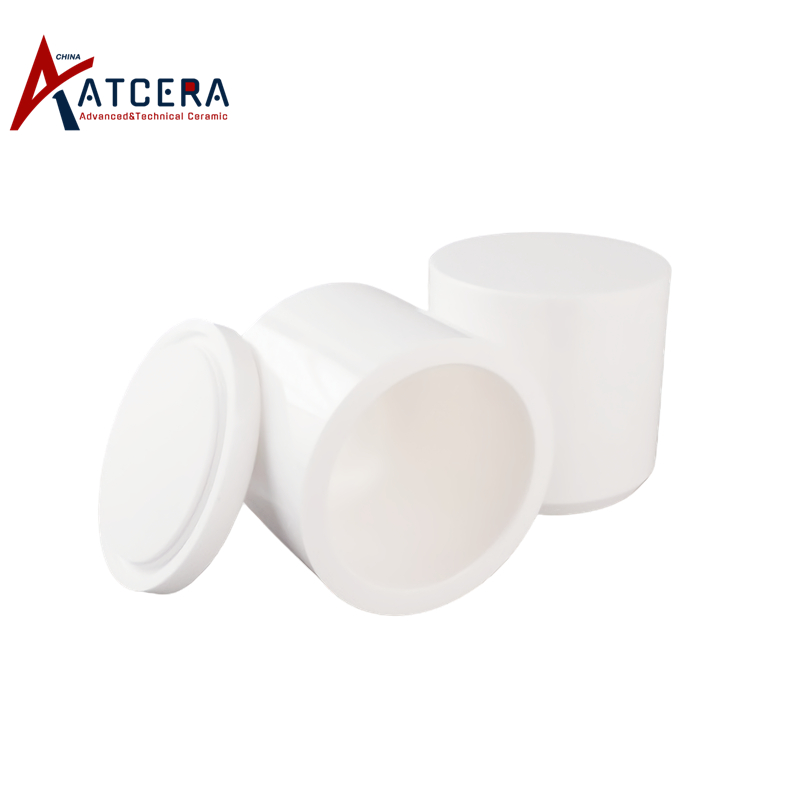

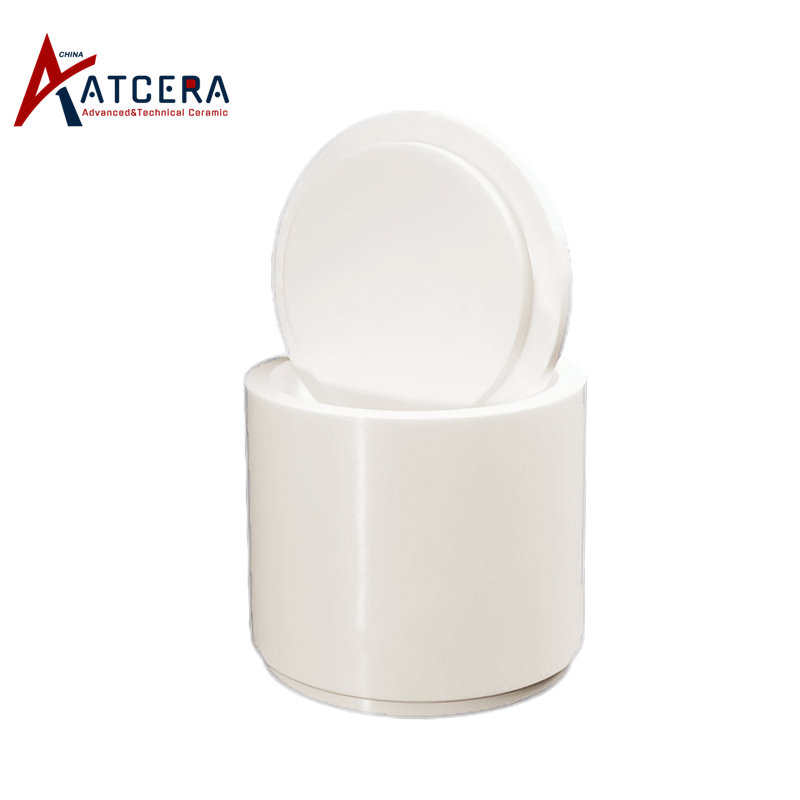

The Zirconia ceramic grinding tank boasts exceptional hardness, wear resistance, high strength, robust resistance to mechanical impacts, and superior corrosion and biocompatibility. It is suitable for grinding various materials, including medicinal herbs, foodstuffs, minerals, and chemical raw materials, with a long service life and zero contamination to powders, ensuring no admixture of impurities.
Brand:
ATCERAItem NO.:
AT-YHG-YMG001Materials
ZirconiaShapes
Mechanical PartsApplications
Petrochemical Industry , Food Processing , Biology and Medicine
1. The Zirconia ceramic grinding tank, with its high hardness and wear resistance, ensures a prolonged service life while eliminating contamination of ground powders.
2. Its superior corrosion resistance makes it compatible with a wide range of abrasives.
The Zirconia grinding tank is utilized for grinding various solid materials to produce powders, such as pharmaceuticals, food products, coffee beans, minerals, chemical raw materials, dyes, and paints. It finds extensive applications in the food processing, pharmaceutical, and chemical industries.
We are committed to delivering optimal zirconia grinding tanks tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.
Please provide drawings and parametric specifications for customization.
| Zirconia Ceramic Grinding Tank | ||||||
| Item no. | Volume (ml) |
Outer Dia. (mm) |
Inner Dia. (mm) |
Height (mm) |
Thickness (mm) |
ZrO2's Purtiy (%) |
| AT-YHG-YMG001 | 50 | 55 | 38 | 67 | 8.5 | 95 |
| AT-YHG-YMG002 | 50 | 64 | 50 | 56 | 7 | 95 |
| AT-YHG-YMG003 | 100 | 65 | 50 | 75 | 7.5 | 95 |
| AT-YHG-YMG004 | 100 | 74 | 60 | 68 | 7 | 95 |
| AT-YHG-YMG005 | 250 | 92 | 74 | 88 | 9 | 95 |
| AT-YHG-YMG006 | 250 | 94 | 80 | 88 | 7 | 95 |
| AT-YHG-YMG007 | 500 | 100 | 84 | 118 | 8 | 95 |
| AT-YHG-YMG008 | 500 | 103 | 89 | 100 | 7 | 95 |
| AT-YHG-YMG009 | 1000 | 128 | 108 | 150 | 10 | 95 |
| AT-YHG-YMG010 | 1000 | 130 | 114 | 118 | 8 | 95 |
| AT-YHG-YMG011 | 1500 | 132 | 112 | 175 | 10 | 95 |
| AT-YHG-YMG012 | 2000 | 158 | 138 | 162 | 10 | 95 |
| AT-YHG-YMG013 | 3000 | 158 | 138 | 220 | 10 | 95 |
| Material | Zirconia (ZrO2)+ Stabilizing agent |
| Thermal Conductivity | 3.0w/m.k |
| Temperature resistance | 1000℃ |
| Density | 5.65-6.05g/cm3 |
| Thermal Expansion Coefficient | 0.00001/℃ |
| Bending Strength | 480-1000MPa |
| Hardness (Hv) | 1200-1450HV1 |
| Fracture Toughness | 6-8MPa*m1/2 |
| Hazardous Substances | In compliance with EU ROHS standards |
*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.
Zirconia ceramic grinding tanks are carefully packaged in appropriate containers to avoid any potential damage.
1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.
2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.
3. Flexible business cooperation mechanism, support at least one piece of quantity customization.
4. Quickly provide samples and test reports to confirm that the product meets your needs.
5. Provide product use and maintenance suggestions to reduce your cost of use.
Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.
Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.
We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.
In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.
Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
