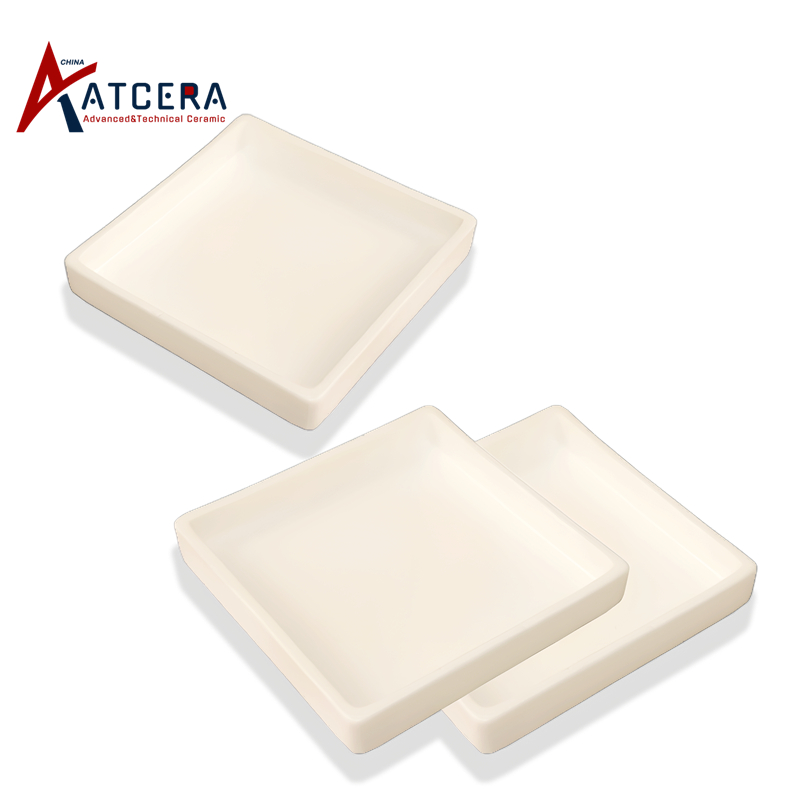

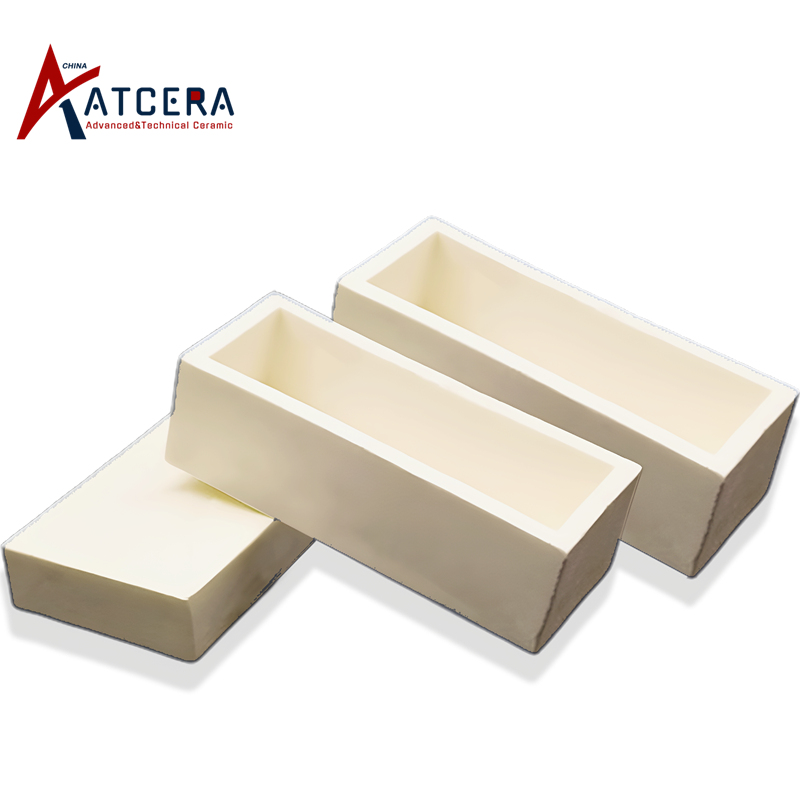

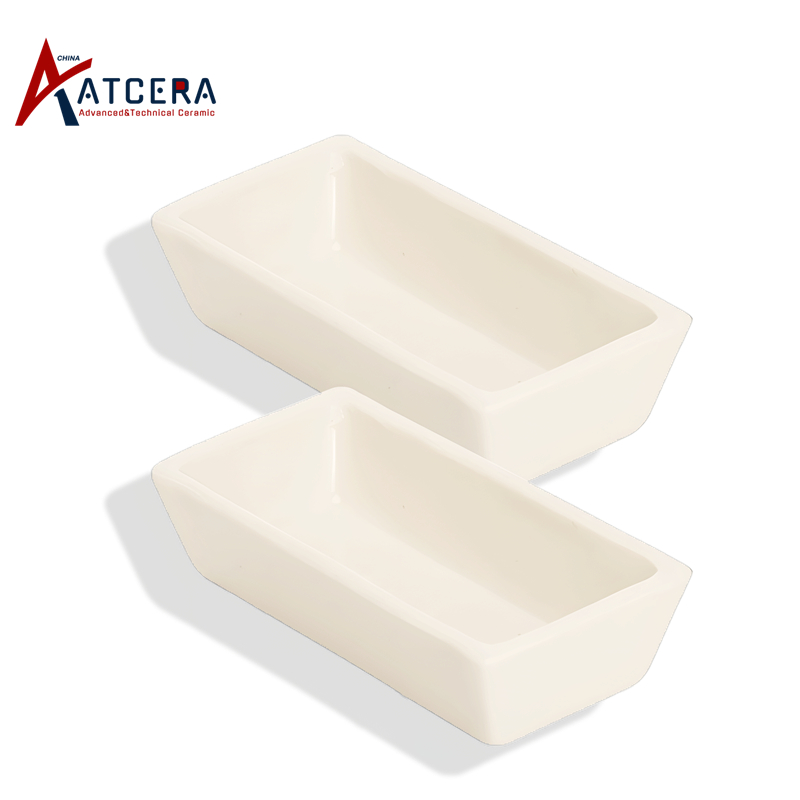

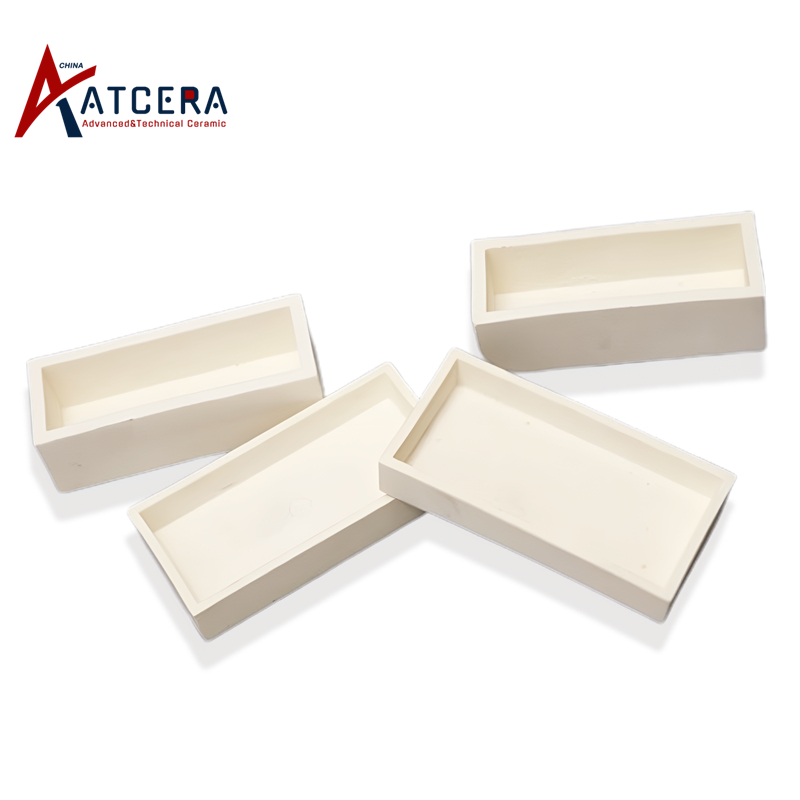

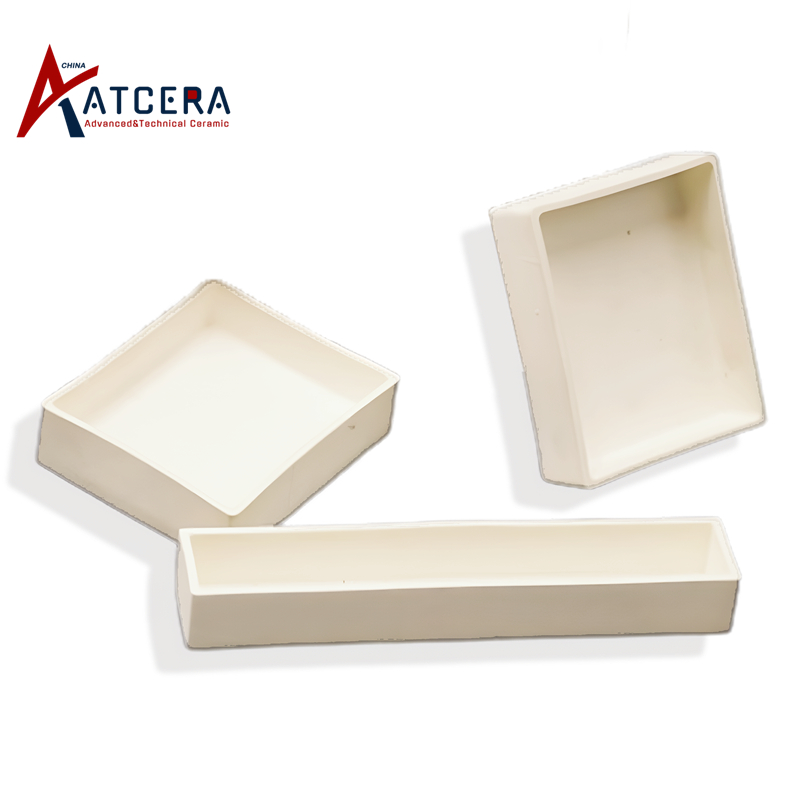

Zirconia Crucible Tray Zirconium Oxide Ceramic Crucible Rectangular

Zirconia crucible is suitable for melting precious metals like platinum, high temperature calcination test, and high temperature thermal analysis.

  • Brand:

    ATCERA
  • Item NO.:

    AT-YHG-F001
  • Materials

    Zirconia
  • Shapes

    Crucible
  • Applications

    Mechanical Parts , Petrochemical Industry , Metallurgy Industry , Lithium Battery Production
zirconia ceramic crucible tray

Advantages of Zirconia Crucible Tray



1. High temperature resistance, the highest working temperature can reach up to 2200℃.



2. High hardness, good wear resistance and acid and alkali corrosion resistance.



3. Rectangular crucible has large heating surface, stable and uniform heating, and easy to carry and move.

Applications of Yttria Stabilized Zirconia (YSZ) Crucible

Applications of Zirconium Oxide Ceramic Crucible Rectangular



1. Zirconia crucible is widely used in metal processing, glass melting, jewelry industry gem purification and other high temperature applications.



2. Zirconia crucible can be used in various industrial thermal analysis, melting metal and non-metallic material samples.



3. Rectangular crucible is used for rapid material melting, heating, sintering and other experiments, as well as factory mass production or processing.



Size Chart of Zirconium Oxide Ceramic Crucible Rectangular

We are committed to delivering prime zirconia crucible tray tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Requirements for Custom Design
1. Drawing (requirements of material, size, tolerance standard, etc. could be attached) and other specification requirements.
2. Application scenario

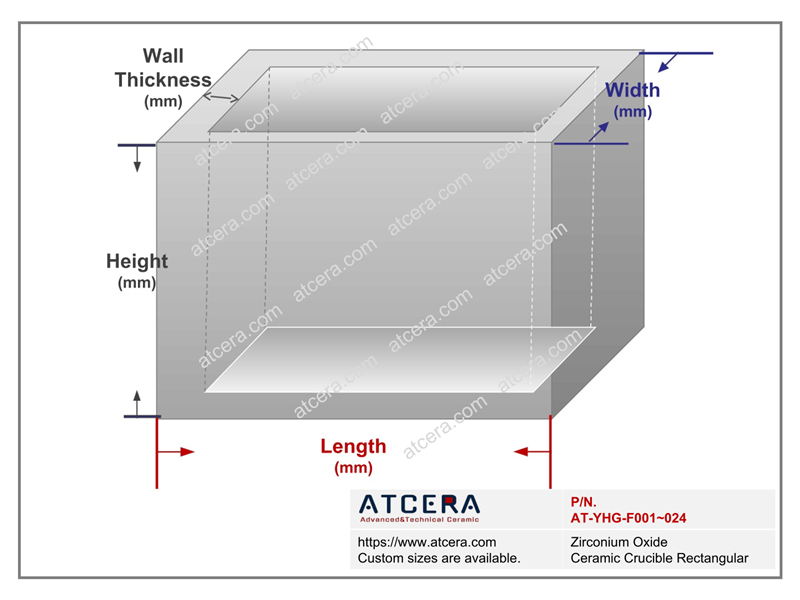

Drawing of Zirconium Oxide Ceramic Crucible Rectangular

Zirconium Oxide Ceramic Crucible Rectangular
Item No. Volume
(ml)
Length
(mm)
Width
(mm)
Height
(mm)
Wall Thickness
(mm)
ZrO2's Purity
(%)
AT-YHG-F001 19 50 50 15 3 95
AT-YHG-F002 25 60 30 20 3 95
AT-YHG-F003 34 64 53 17 3 92
AT-YHG-F004 36 66 55 16.8 3 92
AT-YHG-F005 39 70 45 20 3 95
AT-YHG-F006 62 70 70 20 3.5 95
AT-YHG-F007 48 75 50 20 3 95
AT-YHG-F008 72 98 39 29 3.5 92
AT-YHG-F009 43 100 49 16 4 92
AT-YHG-F010 55 100 40 20 3 95
AT-YHG-F011 20 100 35 10 3.5 95
AT-YHG-F012 138 110 110 18 4 95
AT-YHG-F013 19 120 22 16 4 92
AT-YHG-F014 236 135 135 20 5 95
AT-YHG-F015 96 160 80 14 5 92
AT-YHG-F016 475 164 164 25 5 95
AT-YHG-F017 105 84 84 23 4 95
AT-YHG-F018 152 67 67 48 4 95
AT-YHG-F019 98 88 62 27 4 95
AT-YHG-F020 35 64 53 17 3 92
AT-YHG-F021 37 66 55 16.8 3 92
AT-YHG-F022 72 98 39 29 3.5 92
AT-YHG-F023 43 100 49 16 4 92
AT-YHG-F024 19 120 22 16 4 92

Technical Data of Zirconium Oxide Materials

Material Zirconia (ZrO2)+ Stabilizing agent
Thermal Conductivity 3.0w/m.k
Temperature resistance 1000℃
Density 5.65-6.05g/cm3
Thermal Expansion Coefficient 0.00001/℃
Bending Strength 480-1000MPa
Hardness (Hv) 1200-1450HV1
Fracture Toughness 6-8MPa*m1/2
Hazardous Substances In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products  and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.




Usage Instructions

1. Can not use gasoline spray gun, acetylene gun, alcohol burner to heat the zirconia crucible directly.

2. Before using the zirconia crucible for the first time, put it in the oven at about 105℃ for 120 minutes to remove the water on crucible surface.

3. Heating/cooling speed should not be too fast, below 1200℃ shall not over 5℃/ min; and above 1200℃ shall be controlled within 4℃/ min, too fast heating or cooling may lead to crucible cracking.

4. The distance between the crucible and the heating body (silicon carbon heting tube, heating rod or heating wire) should be no less than 2cm.

5. The bottom should not be in direct contact with the bottom of the furnace. It is recommended to use corundum pieces and other temperature resistant substances to lift the crucible to form air convection.

6. The material should be added according to the volume of the crucible, and should not be squeezed too tightly to avoid the metal thermal expansion and cause crack of the crucible.

7. When taking out the metal molten liquid, scoop it out with a spoon, in the case that caliper need to be used,   avoid excessive force on the crucible which may shorten the service life.

8. Safety during use: zirconia crucible works at high temperature, and personal protective equipment such as heat-releasing gloves and protective glasses should be worn when using to avoid burns or eye injuries.

9. Storage: when store zirconia crucible, it should be placed in a dry and ventilated place to avoid friction or collision with other items, so as not to scratch or damage the surface of the crucible.

Valuable Information



Production Process Flow

Production Process Flow



1. Dry pressing forming



2. Hot pressing casting



3. Medium temperature dewaxing



4. High temperature sintering



5. Centerless grinding



6. Internal grinding



7. External grinding



8. Plane grinding



9. Honing and polishing

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
