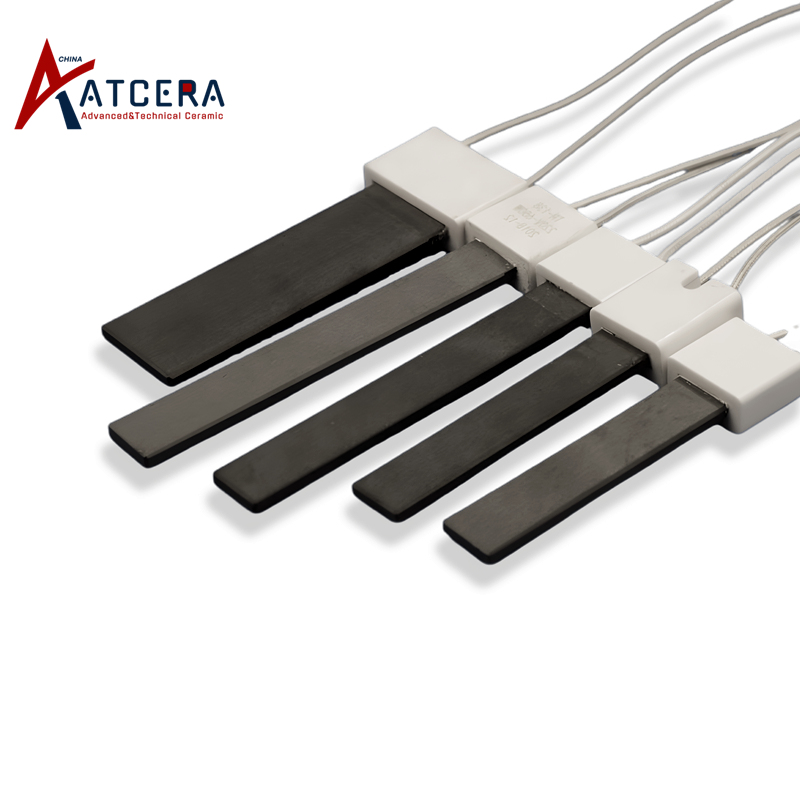

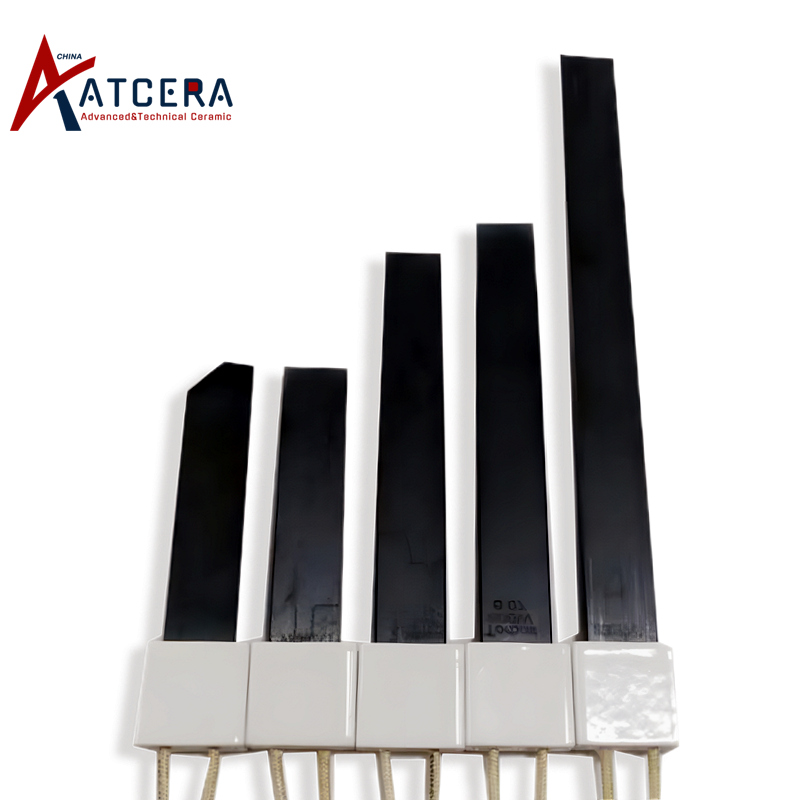

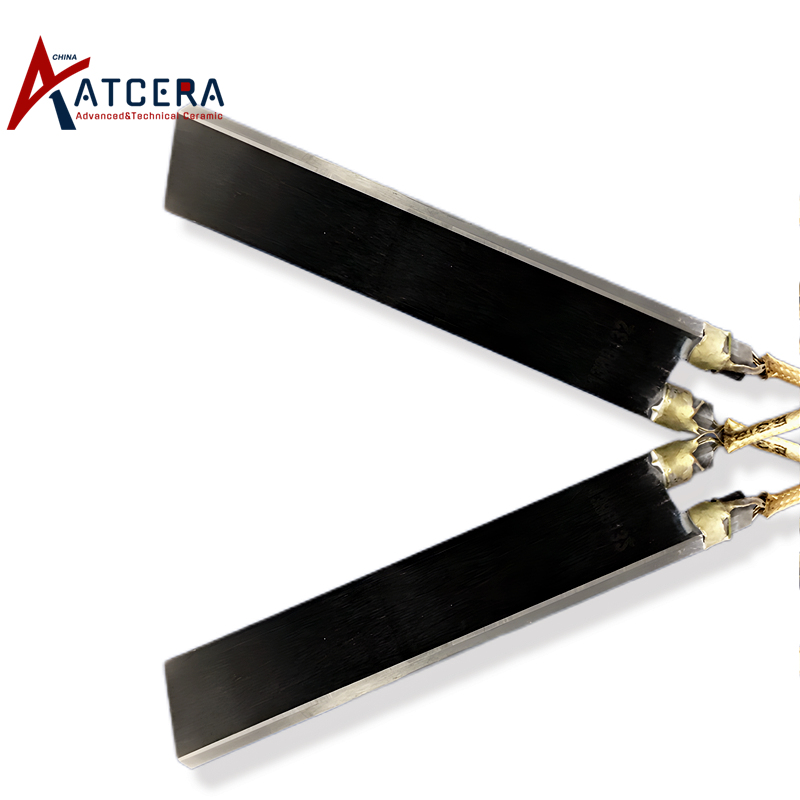

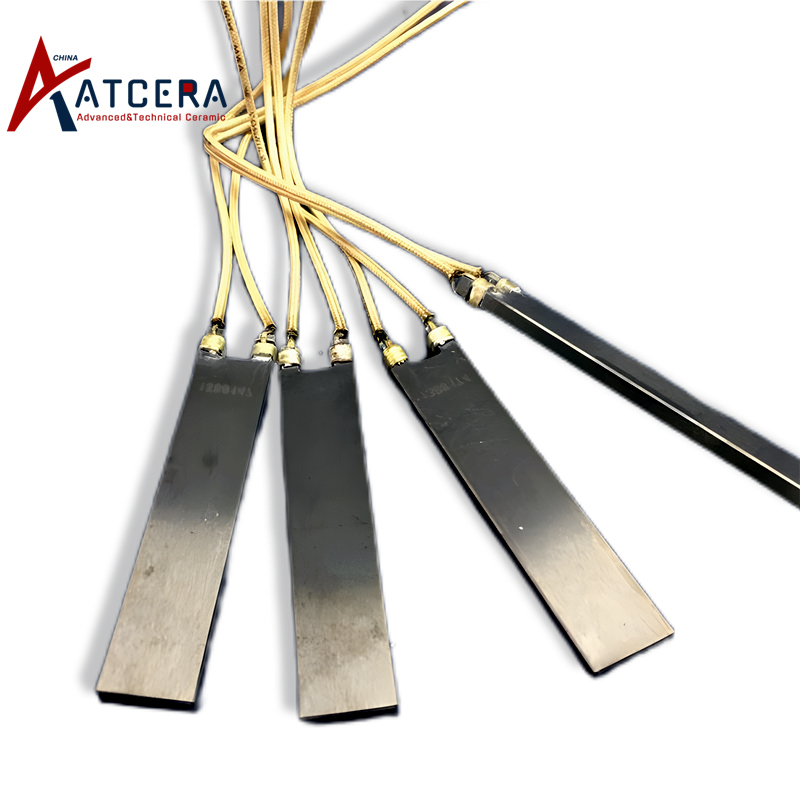

Silicion Nitride Ceramic Heating Element Si3N4 Ceramic Ignitor

After the silicon nitride ceramic ignitor is powered, it can heat up to 800~1000℃ in tens of seconds, and ignite the fuel by direct heat transfer or blast heat transfer. The temperature buffer area is designed on the ignitor to protect the terminal from being damaged, and the insulation package at the terminal can effectively prevent short circuit caused by conductive ash.

Brand:
ATCERA
Item NO.:
AT-DHG-JR138

Materials
Si3N4
Shapes
Mechanical Parts
Applications
Electronics and Electricity , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Silicion Nitride Ceramic Heating Element

1. High temperature resistance, dry burning temperature up to 1200℃;

2. High surface load, heating load up to 25w/cm2;

3. Good acid and alkali corrosion resistance;

4. Excellent thermal shock resistance, fast heating speed, and the surface temperature can rise to 800℃ within 15 seconds;

5. Excellent oxidation resistance, long service life, up to 100,000 times of use.

Applications of Si₃N₄ Ceramic Ignitor

Silicon nitride ignitor is widely used in industrial burner, preheater, gas water heater, mold heater, packaging machinery, industrial heating equipment, cigarette lighter and other high temperature ignition devices.

1. Home appliance industry: silicon nitride ignitor is used for the ignition of gas water heater, gas stove, gas dryer and other home appliance equipment, with the advantages of fast ignition speed and long service life;

2. Industrial process: silicon nitride ignitor can meet the heating and ignition needs of various process, such as plastics, rubber, petrochemical, etc., with high heating efficiency, wide operating temperature range, and good corrosion resistance;

3. Industrial equipment: silicon nitride ignition rod can be used for industrial burners, mold heaters, packaging equipment, etc.

Size Chart of Silicon Nitride Heating Element

We are committed to delivering optimal Silicon nitride ceramic heating element tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and specification requirements shall be provided if customized design request.

Machining Tolerance:

1. Length: ±1mm

2. Width and Diameter: ±0.2mm

Send Requirements for Custom Design

Silicon Nitride Heating Element

Silicon Nitride Heating Element

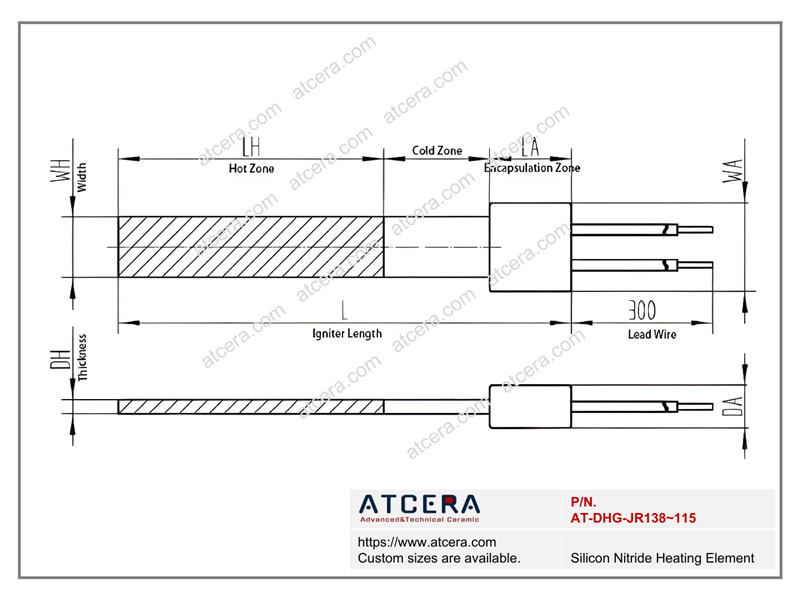

Item NO.	Total Length (mm)	Heating Zone		Encapsulation Zone				Voltage (V)	Power (W)
Item NO.	Total Length (mm)	LH (mm)	WH (mm)	LA (mm)	WA (mm)	DA (mm)	DH (mm)	Voltage (V)	Power (W)
AT-DHG-JR138	138	94	17	23	25	12	4	AC220-240	700/450
AT-DHG-JR128	128	84	17	23	25	12	4	AC220-240	600/400
AT-DHG-JR95	95	58	17	23	25	12	4	AC220-240	400
AT-DHG-JR52	52	15	17	23	25	12	4	AC110	100
AT-DHG-JR135	135	98	23	23	31	12	4	AC220-240	900/600
AT-DHG-JR115	115	76	30	25	38	12	4	AC220-240	900/600

Technical Data of Silicon Nitride Materials

Si3N4 Type	Gas pressure sintering Si3N4	Hot pressing sintering Si3N4
Density (g/cm³)	3.2	3.3
Flexture strength (MPa)	700	900
Young Modulus (GPa)	300	300
Poisson's ratio	0.25	0.28
Compressive strength (MPa)	2500	3000
Hardness (GPa)	15	16
Fracture toughness (MPa*m^1/2)	5~7	6~8
Maximum working temperature (℃)	1100	1300
Thermal conductivity (W/m*K)	20	25
Thermal expansion coefficient (/℃)	3*10^-6	3.1*10^-6
Thermal shock resistance (ΔT ℃)	550	800

*This chart illustrates the standard characteristics of the silicon nitride materials commonly employed in the manufacturing of our Si₃N₄ products and parts. Please be aware that the attributes of customized silicon nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. When igniting solid fuel, it is necessary to use blast mode to transfer the heat of the ignitor to the fuel;

2. It is necessary to determine the appropriate gas flow rate according to the selected ignitor specification, and the design of the airflow channel should ensure that airflow is fully in contact with the ignitor, and ensure that the external heat dissipation of the ignitor is sufficient;

3. No part of the igniter shall be placed in the combustion chamber;

4. Models with large heating area or the combination of multiple ignitors can provide faster ignition speed;

5. The ignitor should be monitored when using the ignitor and the temperature of the package end, the ignitor package end should be well dissipated, the temperature should not exceed 400℃, and the ignitor should be closed in time after successful ignition.

Valuable Information

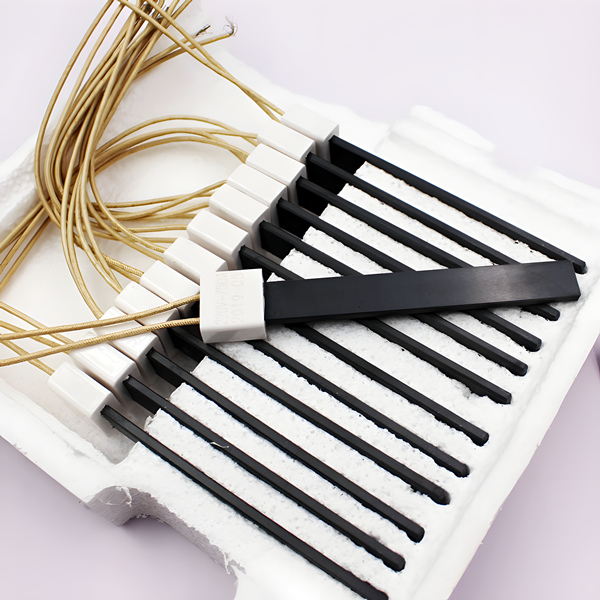

Si₃N₄ Ceramic Ignitor Packing

Silicon nitride ceramic heating elements are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
