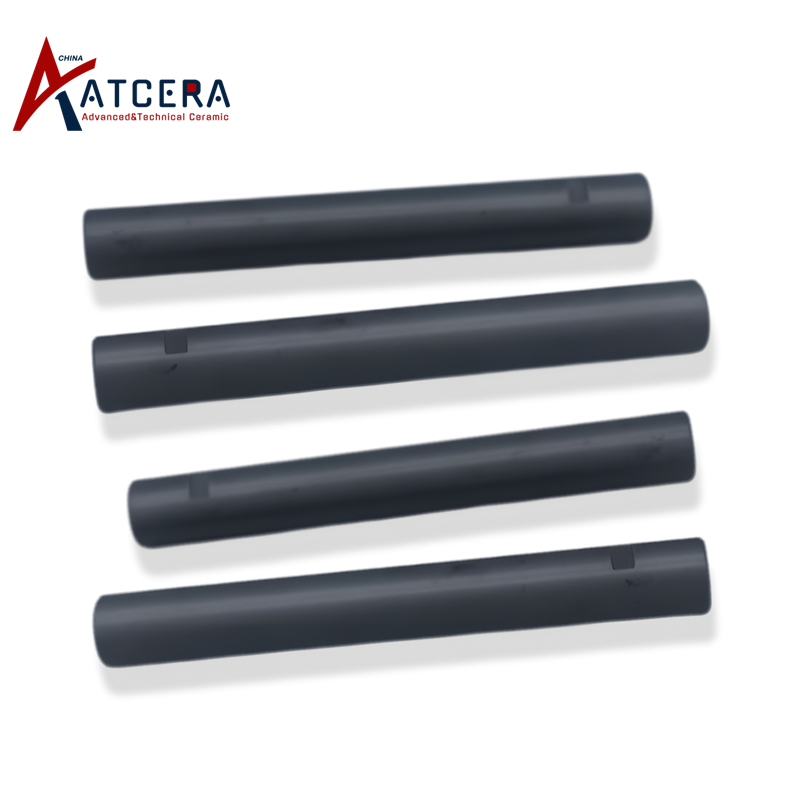

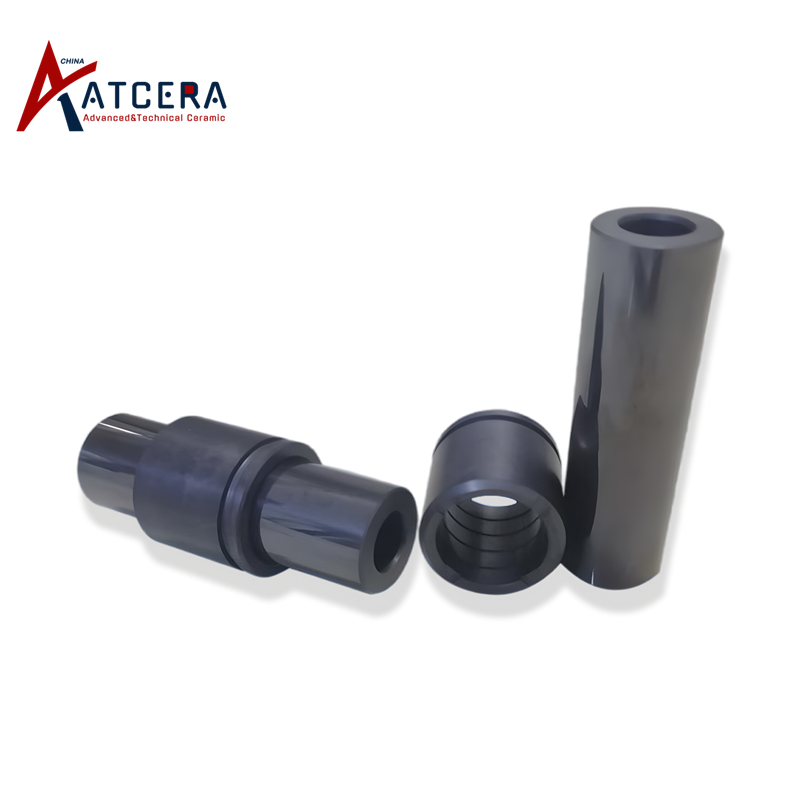

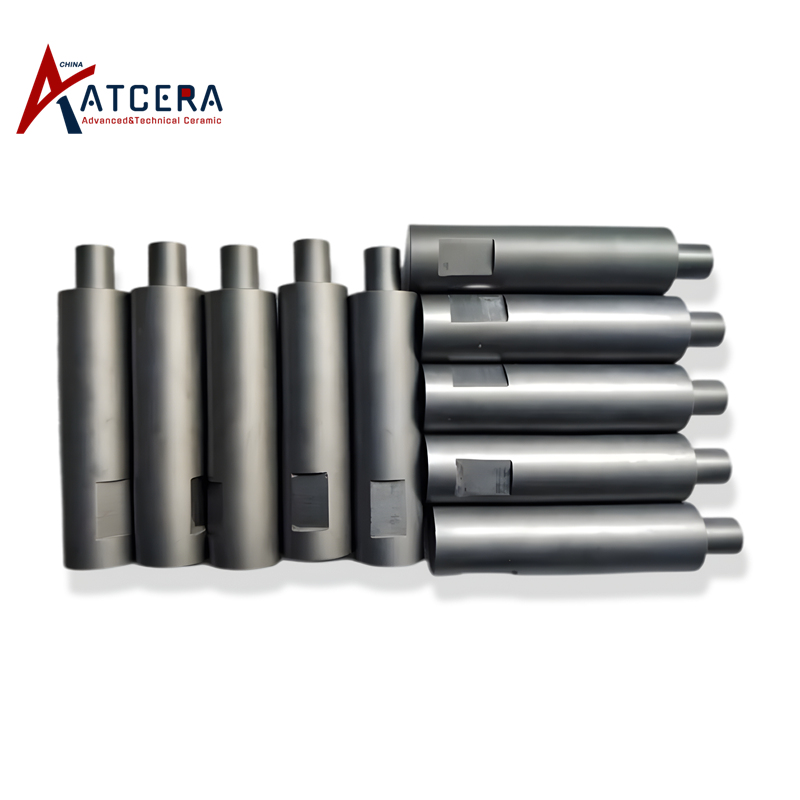

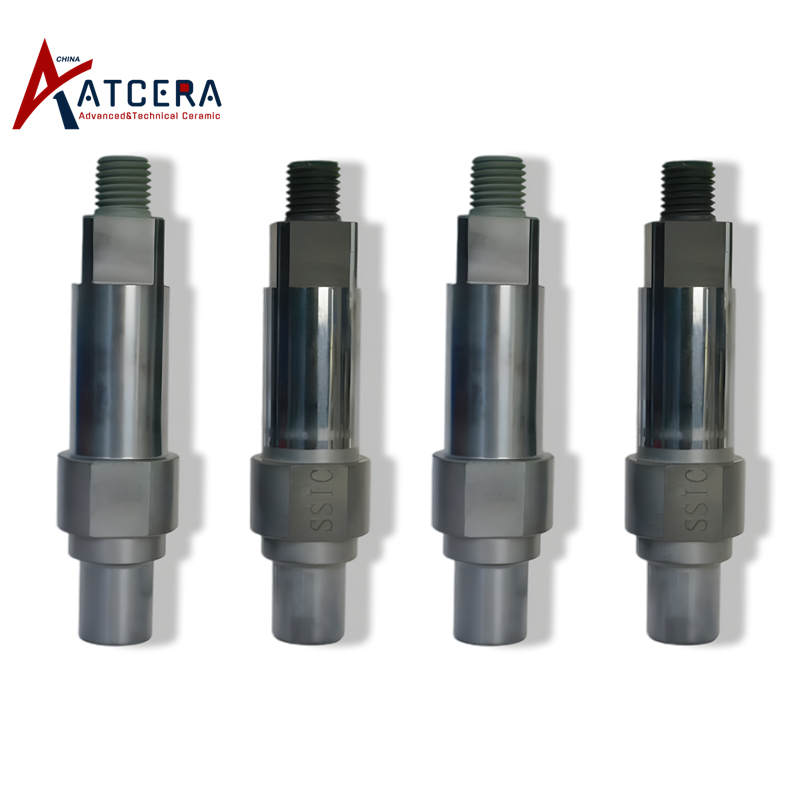

Silicon Carbide Pump Shaft SiC Ceramic Shaft

Silicon carbide shaft is made of high purity silicon carbide powder, with excellent mechanical properties and chemical stability, mainly used in high temperature, corrosion and heavy load and other harsh conditions.

Brand:
ATCERA
Item NO.:
AT-SCB-001

Materials
SiC
Shapes
Rod
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Silicon Carbide Pump Shaft

Silicon carbide shaft has the advantages of good corrosion resistance, high temperature resistance, oxidation resistance, thermal shock resistance and high mechanical strength.

1. High temperature resistance

Silicon carbide has high temperature stability, can maintain stable chemical and mechanical properties at high temperatures, and good oxidation resistance;

2. Small thermal expansion coefficient

Silicon carbide thermal expansion coefficient is small, so that silicon carbide shaft at high temperature thermal stress is small, can maintain stable mechanical properties at high temperature;

3. Good corrosion resistance

Silicon carbide shaft can work stably in corrosive media such as acid, alkali and salt for a long time, and is suitable for bearing work in acid and alkali environment.

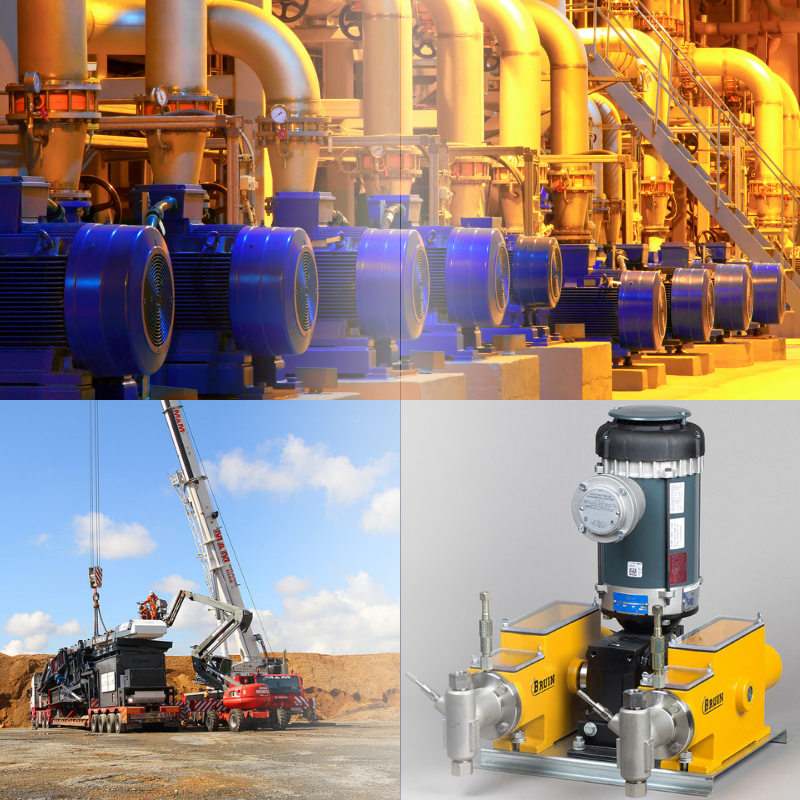

Applications of SiC Ceramic Shaft

Silicon carbide shaft has high temperature resistance, corrosion resistance, high mechanical strength, it is widely used in petrochemical, mechanical equipment, metallurgy and other industries.

1. Petrochemical industry

Silicon carbide shaft has excellent corrosion resistance, can be used in chemical pumps, motors and other equipment, durable, no need to worry about the risk of corrosion;

2. Mechanical equipment

Silicon carbide shaft has high strength and strong bearing capacity, can be used in a variety of high speed and heavy load mechanical equipment;

3. Metallurgical industry

Silicon carbide shaft has high temperature resistance, strong oxidation resistance and small thermal expansion coefficient, and can be used in metallurgical industry and other production equipment.

Size Chart for Silicon Carbide Pump Shaft

We are committed to delivering optimal silicon carbide shaft tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and requirements of product parameter shall be provided if customized design request.

Send Requirements for Custom Design

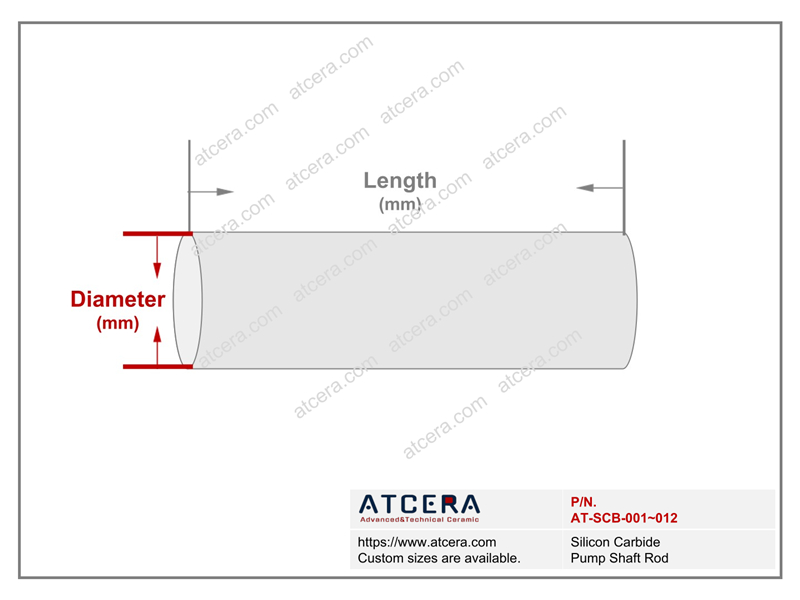

Drawing of Silicon Carbide Pump Shaft Rod

Silicon Carbide Pump Shaft Rod
Item NO.	Diameter (mm)	Length (mm)	SiC’s Purity (%)
AT-SCB-001	8	10-500	85-99
AT-SCB-002	10	10-500	85-99
AT-SCB-003	12	10-500	85-99
AT-SCB-004	17	10-500	85-99
AT-SCB-005	20	20-500	85-99
AT-SCB-006	22	20-500	85-99
AT-SCB-007	28	20-500	85-99
AT-SCB-008	31	40-500	85-99
AT-SCB-009	45	40-500	85-99
AT-SCB-010	50	40-500	85-99
AT-SCB-011	83	40-500	85-99
AT-SCB-012	92	80-500	85-99

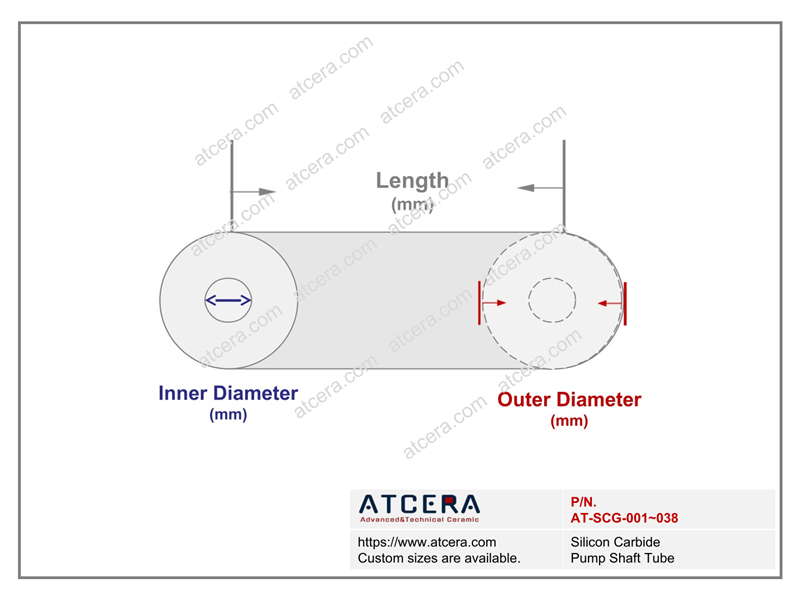

Drawing of Silicon Carbide Pump Shaft Tube

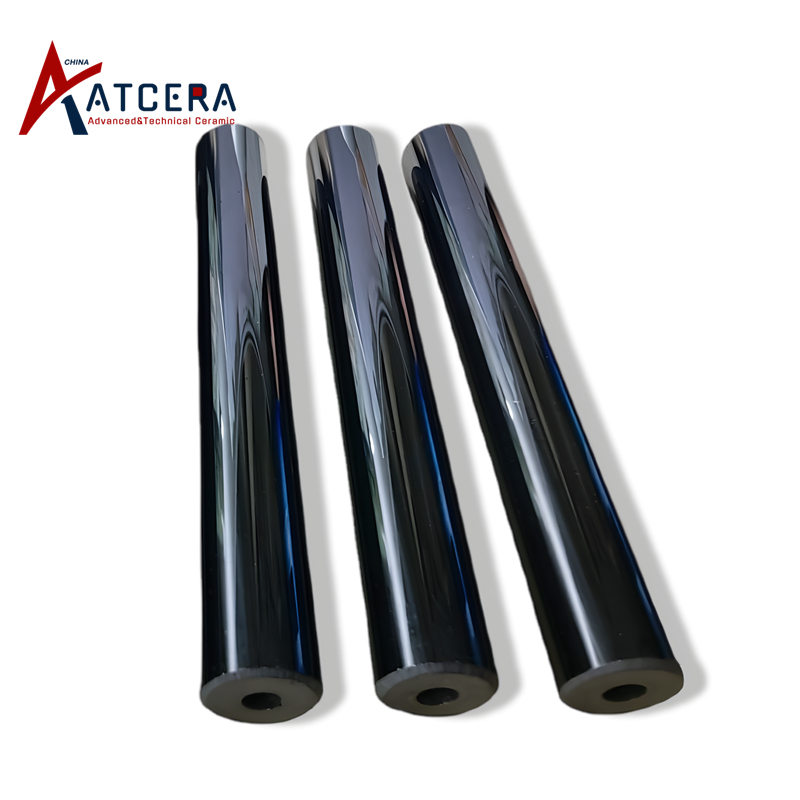

Silicon Carbide Pump Shaft Tube
Item NO.	Outer Diameter (mm)	Inner Diameter (mm)	Length (mm)	SiC’s Purity (%)
AT-SCG-001	16	6	42	85-99
AT-SCG-002	16	8	42	85-99
AT-SCG-003	18	10	42	85-99
AT-SCG-004	20	10	45	85-99
AT-SCG-005	24	12	51	85-99
AT-SCG-006	24	12	51	85-99
AT-SCG-007	24	10	51	85-99
AT-SCG-008	25	12	56	85-99
AT-SCG-009	28	14	60	85-99
AT-SCG-010	28	14	70	85-99
AT-SCG-011	28	14	70	85-99
AT-SCG-012	28	14	60	85-99
AT-SCG-013	30	16	70	85-99
AT-SCG-014	30	16	70	85-99
AT-SCG-015	32	16	85	85-99
AT-SCG-016	32	16	85	85-99
AT-SCG-017	32	18	85	85-99
AT-SCG-018	32	18	85	85-99
AT-SCG-019	32	20	85	85-99
AT-SCG-020	32	20	85	85-99
AT-SCG-021	32	15	85	85-99
AT-SCG-022	32	15	85	85-99
AT-SCG-023	32	22	85	85-99
AT-SCG-024	32	22	85	85-99
AT-SCG-025	32	18	74	85-99
AT-SCG-026	32	18	74	85-99
AT-SCG-027	40	20	85	85-99
AT-SCG-028	44	25	108	85-99
AT-SCG-029	49	25	108	85-99
AT-SCG-030	49	30	108	85-99
AT-SCG-031	49	28	108	85-99
AT-SCG-032	49	25	108	85-99
AT-SCG-033	49	25	108	85-99
AT-SCG-034	49	24	108	85-99
AT-SCG-035	49	25	108	85-99
AT-SCG-036	58	35	140	85-99
AT-SCG-037	58	30	123	85-99
AT-SCG-038	68	40	150	85-99

Technical Data of Silicon Carbide Materials

Item		Unit	Index Data
Item		Unit	Reaction-sintered SiC (SiSiC)	Silicon Nitride Bonded With SiC (NBSiC)	Sintered SiCn Without Pressure (SSiC)
SiC Content		%	85	80	99
Free Silicon Content		%	15	0	0
Max. Service Temp.		℃	1380	1550	1600
Density		g/cm3	3.02	2.72	3.1
Porosity		%	0	12	0
Bending Strength	20℃	Mpa	250	160	380
Bending Strength	1200℃	Mpa	280	180	400
Modulus of Elasticity	20℃	Gpa	330	220	420
Modulus of Elasticity	1200℃	Gpa	300	/	/
Thermal Conductivity	1200℃	W/m.k	45	15	74
Coefficient of Thermal Expansion		K-1×10-6	4.5	5	4.1
Vickers Hardness	HV	kg/mm2	2500	2500	2800

*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Keep clean: when use the silicon carbide shaft, it is necessary to keep the shaft clean to avoid impurities, so as not to affect the performance and service life of the shaft;

2. Temperature control: working temperature of the silicon carbide shaft needs to be controlled within an appropriate range, too high or too low temperature shall be avoided to not affect the shaft performance and service life;

3. Correct installation: When install the silicon carbide shaft, avoid using too much force or excessive rotation to avoid damage to the shaft;

4. Regular inspection: In the process of use, it is necessary to regularly check wear of the silicon carbide shaft, and replace the seriously worn shaft in time to ensure normal operation of equipment.

Valuable Information

Machining Precision of SiC Seal Ring

1. Diameter Tolerance: ±3μm

2. Concentricity: ±2μm

3. Cylindricity: ±3μm

4. Surfance Roughness: Ra0.02

5. Hole Depth: ±5μm

6. Parallelism: ±2μm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Preparation Of Aluminum Nitride Substrate And Selection Of Sintering Additives

In the field of high-tech materials, aluminum nitride (AlN) ceramics, with its excellent thermal conductivity, excellent electrical insulation properties and excellent mechanical strength, have become the core material in key fields such as electronic packaging, power electronics and microwave communication equipment. However, the preparation of aluminum nitride substrate is a complex process...

Application Requirements Of Aluminum Nitride Substrate

Aluminum nitride (AlN) as an advanced ceramic material, because of its unique physical and chemical properties, has shown great application potential in electronic packaging, power electronics, high frequency communication and other fields. As a core component in these fields, aluminum nitride substrates not only have to meet the basic physical performance requirements, but also need to ...

Effect Of Bulk Density Of Granulated Powder On Sintering Densification Of Silicon Nitride Balls

Si3N4 powder is the main raw material for the preparation of silicon nitride balls. Selecting the appropriate treatment method to obtain the powder with regular shape and uniform particle size distribution is the basis for the stable implementation of Si3N4 ceramic ball forming, sintering, processing and other processes. According to the different atomization methods, the spray gr...

Optimizing The Spray Granulation Process To Improve The Performance Of Si3N4 balls

Silicon nitride (Si3N4) balls show great potential in the field of high-speed, high-precision, long-life bearings due to their excellent properties, such as lightweight, self-lubricating, high insulation, non-magnetic, high elastic modulus and excellent corrosion resistance. This paper aims to discuss the optimization of the spray granulation process of Si3N4 powder, especially the press...

Silicon Nitride Ball: A New Choice For High-Tech Powder Grinding Media

With the rapid development of high-tech industry, the requirements for fineness, purity and consistency of powder materials are increasing. As a key component in the powder preparation process, the performance of grinding medium directly determines the quality of the final product. Traditionally, zirconia ceramic balls are widely used in the field of ultra-fine grinding because of their high bendi...

Application Performance And Advantage Analysis Of Silicon Nitride Ball In Ultrafine Grinding Field

With the rapid development of nanotechnology and ultrafine material science, the demand for high-purity and ultrafine powder is increasing day by day. Silicon nitride ball, with its excellent hardness, very low wear rate and good chemical stability, has gradually become the key grinding medium in the field of ultrafine grinding. The purpose of this paper is to systematically describe the performan...

Study On Performance Characteristics And Application Of Silicon Nitride Ball In Mechanical Engineering Field

With the rapid development of modern mechanical engineering technology, the requirements for material properties are increasingly stringent, especially under extreme conditions such as high temperature, high speed, strong corrosion, etc., traditional metal materials and polymer materials have been difficult to meet the needs. Silicon nitride (Si ₄) As an advanced ceramic material with excellent ov...

Sol-gel Polishing Technology: Challenges And Opportunities To Innovate Silicon Carbide Substrate Polishing

Silicon carbide, the emerging star of the semiconductor material industry, is gradually leading the innovation trend of microelectronics technology with its excellent performance indicators. Its unique thermal conductivity, far superior to traditional semiconductor materials, provides the possibility for efficient heat dissipation, especially in high-power electronic devices show unparalleled adva...

Application And Advantages Of Plasma Assisted Polishing In AlN Substrate Processing

Aluminum nitride (AlN) ceramics, as a material with excellent thermal conductivity, mechanical properties and electrical properties, have been widely used in large-scale integrated circuits and electronic packages in recent years. Its excellent properties make it an ideal cooling substrate and packaging material. However, due to the high hardness, high brittleness and low fracture toughness of alu...

Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology

In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...

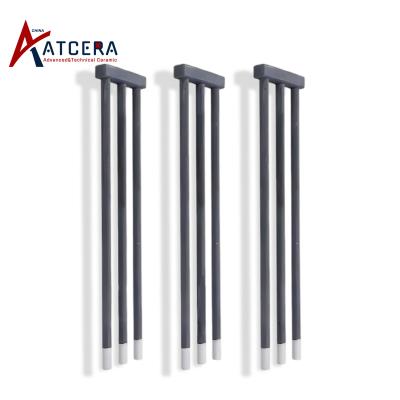

Silicon Carbide Heating Element SiC Heating Rod
