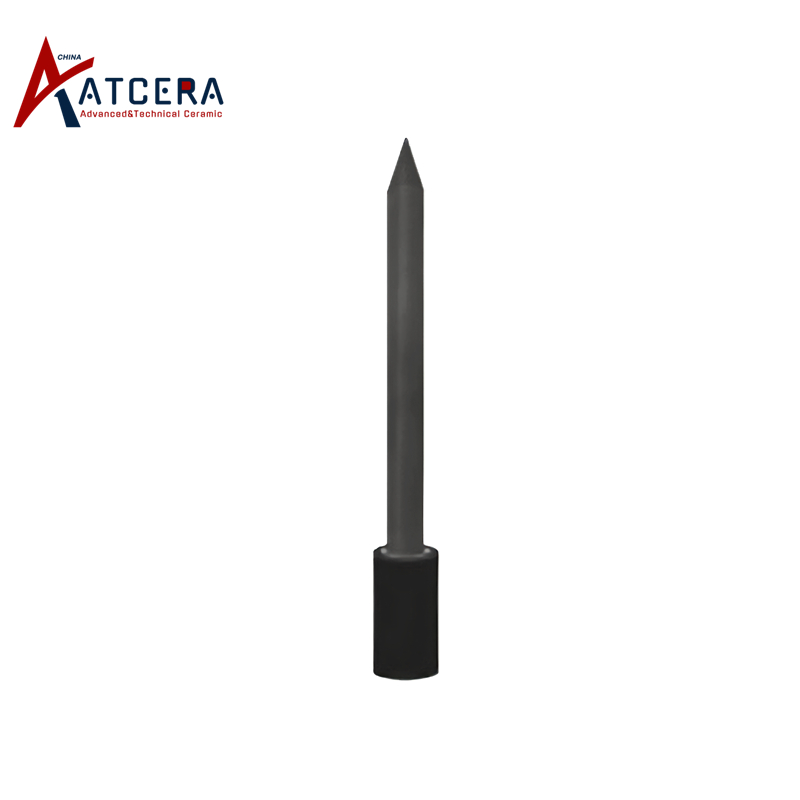

Silicon Nitride Ceramic Rod Si3N4 Bar

Silicon nitride liquid level probe is installed in the detector hole of the container or equipment, it is used to detect the liquid level, so the liquid volume can be calculated in real time.

Brand:
ATCERA
Item NO.:
AT-SNR-5001

Materials
Si3N4
Shapes
Rod
Applications
Mechanical Parts , Petrochemical Industry

Inquire Now

Properties of Silicon Nitride Ceramic Liquid Level Probe

1. Silicon nitride liquid level probe has good high and low temperature resistance, good thermal shock resistance.

2. Silicon nitride liquid level probe has strong corrosion resistance, it does not react with acid, alkali or various chemicals, so it will not pollute the liquid, and has long service life.

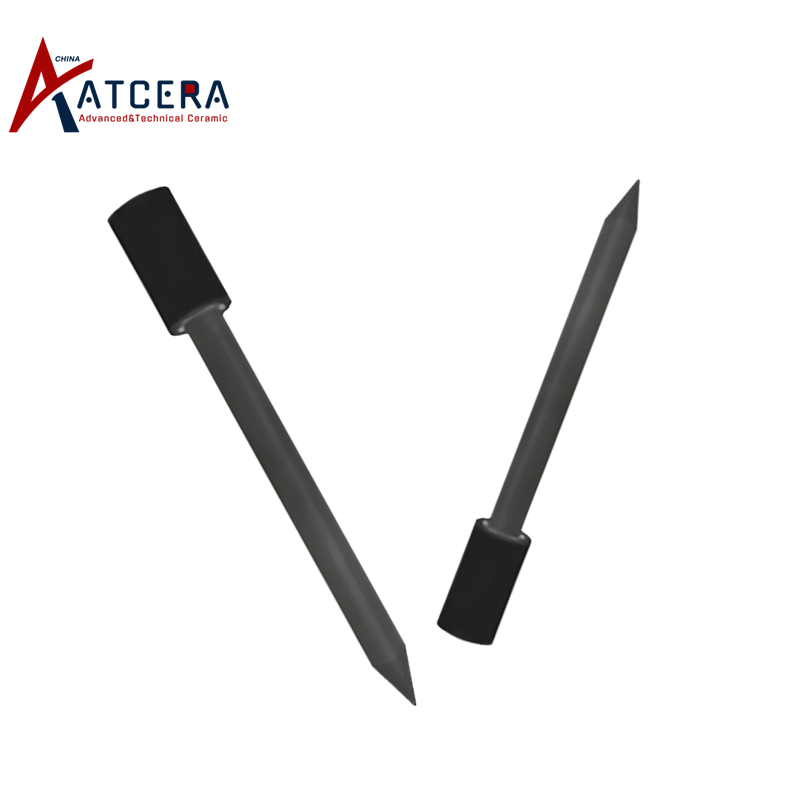

Silicon nitride liquid level probe ceramic

Applications of Si₃N₄ Liquid Level Probe

Silicon nitride liquid level probe is installed in the detector hole of the container or equipment, it is used to detect the liquid level, so the liquid volume can be calculated in real time, also the detected information can be transferred to the control system for automatic operation control.

Customized Design for Silicon Nitride Ceramic Liquid Level Probe

We are committed to delivering optimal silicon nitride liquid level probes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and product parameter requirements shall be provided if customized design request.

Send Requirements for Custom Design

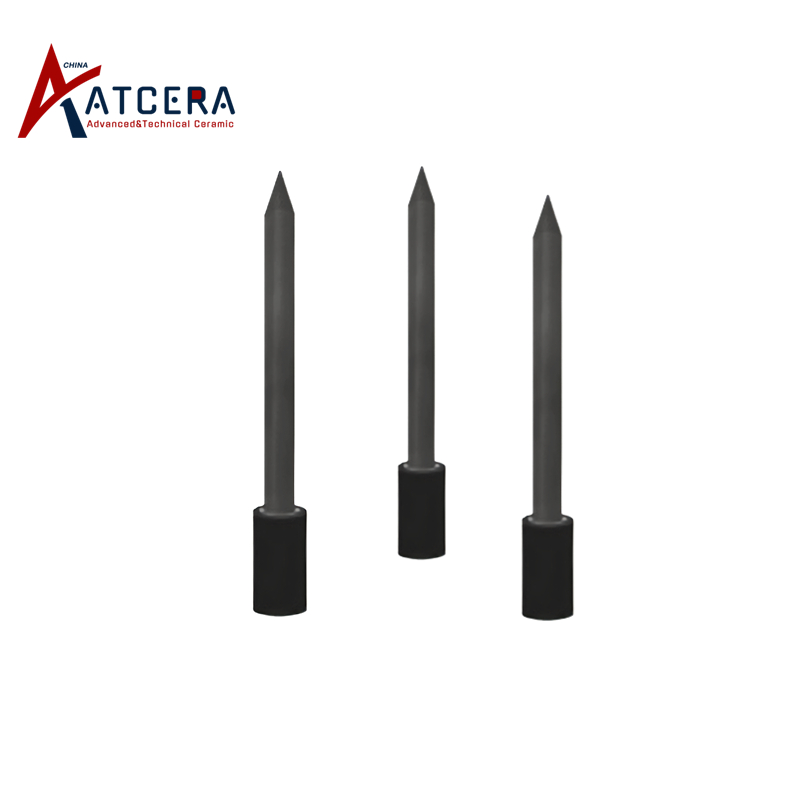

Si3N4 liquid level probe

Technical Data of Silicon Nitride Materials

Si3N4 Type	Gas pressure sintering Si3N4	Hot pressing sintering Si3N4
Density (g/cm³)	3.2	3.3
Flexture strength (MPa)	700	900
Young Modulus (GPa)	300	300
Poisson's ratio	0.25	0.28
Compressive strength (MPa)	2500	3000
Hardness (GPa)	15	16
Fracture toughness (MPa*m^1/2)	5~7	6~8
Maximum working temperature (℃)	1100	1300
Thermal conductivity (W/m*K)	20	25
Thermal expansion coefficient (/℃)	3*10^-6	3.1*10^-6
Thermal shock resistance (ΔT ℃)	550	800

*This chart illustrates the standard characteristics of the silicon nitride materials commonly employed in the manufacturing of our Si₃N₄ products and parts. Please be aware that the attributes of customized silicon nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Ensure that the silicon nitride probe matches the liquid level detection hole of the container or device to avoid the inaccurate detection caused by too large or too small clearance.

2. During the installation process, avoid damage to the probe caused by violent impact. After installation, check whether the connection is tight to prevent liquid leakage.

3. Clean the probe regularly to remove dirt and impurities on the surface, and check whether the probe has cracks, wear or other damage. If there is defect, it should be replaced in time.

Valuable Information

Si₃N₄ Liquid Level Probe Packing

Silicon nitride ceramic liquid level probes are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
