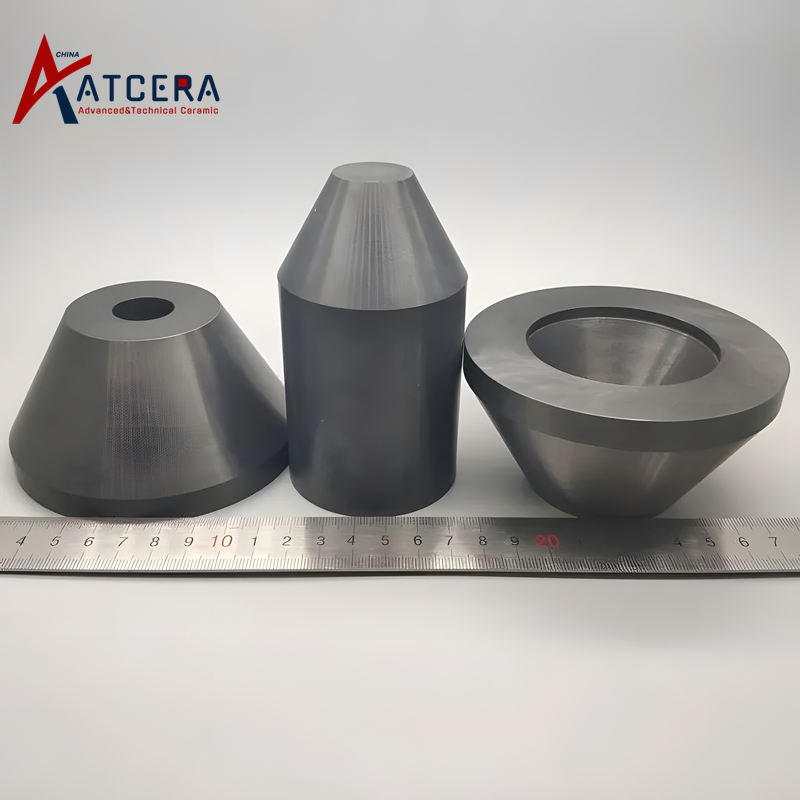

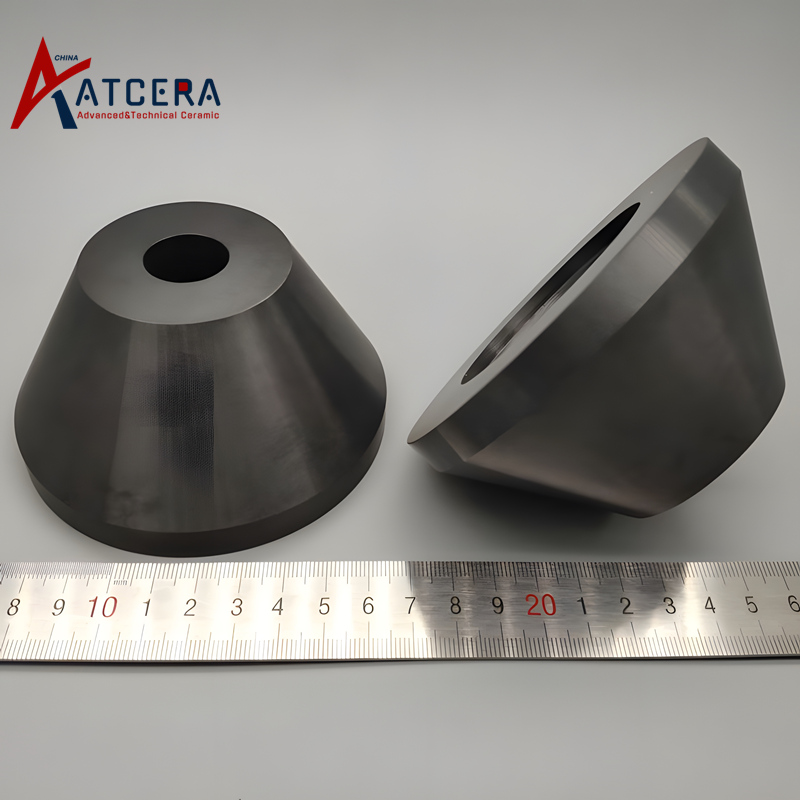

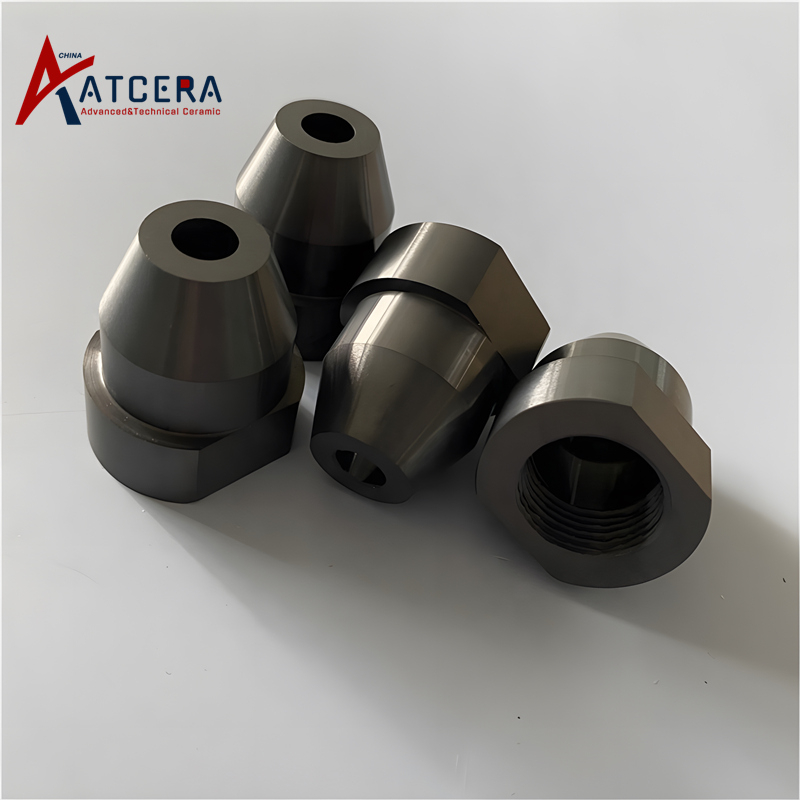

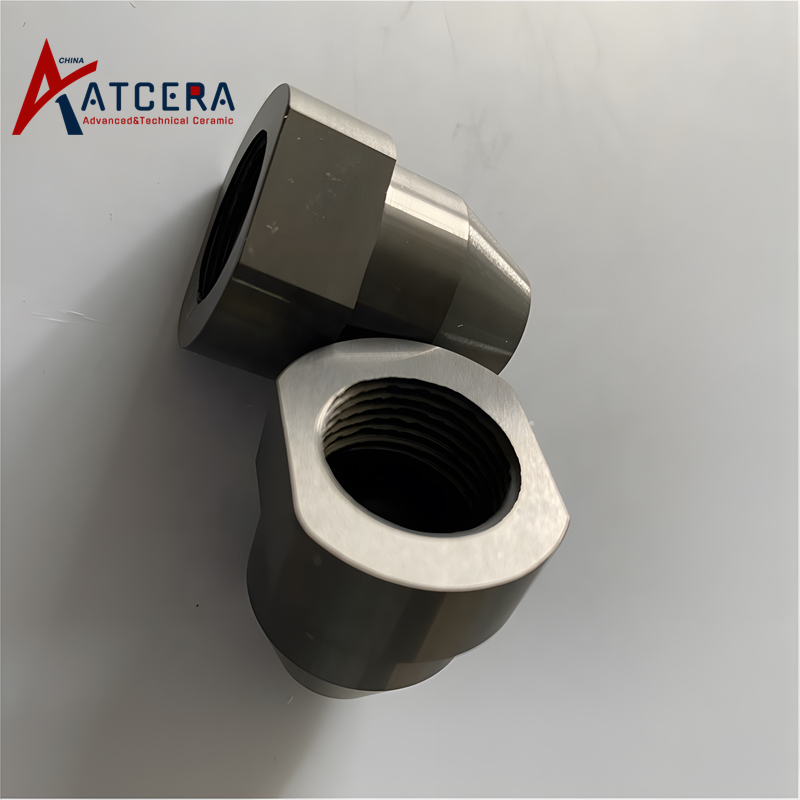

Silicon Nitride Ceramic Nozzle

Silicon nitride ceramic nozzle is made of silicon nitride powder as raw material, through forming and high temperature sintering processes, it has high temperature and corrosion resistance, good wear and thermal shock resistance, can be used in industrial production, fire safety, agricultural planting and other industries, to achieve purpose of spraying, cleaning, cooling, humidification, dust removal, desulfurization, irrigation, etc.

Brand:
ATCERA
Item NO.:
AT-SIN-PZ1001

Materials
Si3N4
Shapes
Mechanical Parts
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Silicon Nitride Ceramic Nozzle

1. Good corrosion resistance

Silicon nitride spiral nozzle has good corrosion resistance, can directly spray acid, alkali and other chemicals, generally do not produce chemical reactions, can be applied to various liquid spraying and corrosive working environment.

2. Good wear resistance

Silicon nitride hardness is high, compared with metal or plastic nozzles, silicon nitride nozzle has better wear resistance, wear during use is very small, so the service life is long.

3. No rust or aging

Compared with metal nozzles, silicon nitride nozzle is not easy to rust during long term contact with water, and there is no need to consider maintenance problems in humid environments.

4. Good high temperature resistance

The silicon nitride nozzle has good high temperature resistance, can work continuouslly for a long time in the environment of higher than 1200℃, and has good thermal shock resistance, not easy to crack due to hot and cold alternately.

Applications of Si₃N₄ Nozzle

(1) Spray coating

In the automotive, shipbuilding industry, construction and other industries, silicon nitride ceramic nozzle can be used to form a film by spraying paint evenly onto the surface of the coated material. The quality and efficiency of the coating are high, and the waste of the coating can be reduced.

(2) Washing and cleaning

Silicon nitride ceramic nozzle can be used for washing and cleaning purpose, by spraying water or detergent at high pressure and high speed to the surface of the object, to remove stains and dirt.

(3) Cooling and humidification

Silicon nitride nozzles can be used for humidification or cooling by spraying water mist or steam onto the object surface or to the air.

(4) Mechanical processing

Silicon nitride nozzle can be used for sandblasting process, so that the surface of the workpiece to obtain cleanliness and a certain degree of roughness, increase the adhesion between the surface of the workpiece and the coating, extend the durability of the film, also eliminate the stress of the workpiece, improve its fatigue resistance.

(5) Fuel combustion

Silicon nitride nozzles can be used in combustion engineering to spit out gas or liquid fuel at a certain pressure, mix with air and ignite the mixed gas.

Customized Design for Silicon Nitride Nozzle

We are committed to delivering optimal silicon nitride nozzles tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing, specification and application informations shall be provided if customized design request.

Send Requirements for Custom Design

Silicon nitride nozzle

Technical Data of Silicon Nitride Materials

Si3N4 Type	Gas pressure sintering Si3N4	Hot pressing sintering Si3N4
Density (g/cm³)	3.2	3.3
Flexture strength (MPa)	700	900
Young Modulus (GPa)	300	300
Poisson's ratio	0.25	0.28
Compressive strength (MPa)	2500	3000
Hardness (GPa)	15	16
Fracture toughness (MPa*m^1/2)	5~7	6~8
Maximum working temperature (℃)	1100	1300
Thermal conductivity (W/m*K)	20	25
Thermal expansion coefficient (/℃)	3*10^-6	3.1*10^-6
Thermal shock resistance (ΔT ℃)	550	800

*This chart illustrates the standard characteristics of the silicon nitride materials commonly employed in the manufacturing of our Si₃N₄ products and parts. Please be aware that the attributes of customized silicon nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Nozzle selection

Select appropriate size nozzle according to the application, for instance, large diameter nozzles can be used to spray viscous liquids, and when spray small objests small diameter nozzle shall be selected.

2. Adjust the spray angle and distance

The injection angle and distance will affect the use efficiency and need to be adjusted according to the application and use requirements.

3. Keep the nozzle clean

Silicon nitride nozzle is easily to be polluted by dust, oil and other substances during use, so it need to be cleaned regularly. Special cleaning agents should be used when clean it, and metal tools shall not be used to not scratch the nozzle.

4. Avoid collision:

During the transportation and installation of silicon nitride nozzles, collisions and falls should be avoided.

5. Use temperature and pressure

Silicon nitride nozzle can not be used at too high temperature condition to avoid bursting, and the working pressure can not exceed its specified range, to not affect the service life.

Valuable Information

Si₃N₄ Nozzle Packing

Silicon nitride ceramic nozzles are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
