Silicon Nitride Substrate Si3N4 Substrate Ceramic Substrate

Silicon nitride ceramic substrate is a new generation of semiconductor substrate materials, made of high-purity silicon nitride powder, with excellent thermal conductivity and insulation, high mechanical strength and hardness, small thermal expansion coefficient, good thermal shock resistance performance, widely used in semiconductors and integrated circuits, including power components, inverters, power modules, multi-device integrated circuits, etc.

Brand:
ATCERA
Item NO.:
AT-DHG-JB001

Materials
Si3N4
Shapes
Substrate
Applications
Semiconductor , Electronics and Electricity

Inquire Now

Properties of Silicon Nitride Substrate

1. High temperature resistance, the maximum use temperature can reach 1300℃;

2. Large thermal conductivity, up to 95W/(℃*m), small thermal expansion coefficient, only 3*10-6/℃, with good thermal shock resistance;

3. High mechanical strength, good toughness, strong resistance to mechanical impact;

4. Good electric insulation, high breakdown voltage, large current carrying capacity;

5. It can resist erosion of various acid, alkali and other chemical substances, corrosion resistance is very good.

Applications of Si₃N₄ Substrate

Silicon nitride ceramic substrate is mainly used in semiconductor, electronics and other microelectronics device manufacturing, as the substrate of chips and electronic components, including integrated circuit (IC), radio frequency (RF) devices, piezoelectric components, photoelectric components, sensors, MEMS and other micro electronic devices. As a high-performance material, silicon nitride ceramic substrate can provide a stable support platform to ensure normal operation and performance of the components.

1. Electronic Industry Applications

Silicon nitride ceramic substrate has high insulation performance and excellent high temperature resistance, can meet the high reliability and high performance requirements of electronic components, mainly used in the manufacture of electronic components, such as electronic capacitors, resistors, magnetic components and so on. In addition, it can also be used to manufacture the medium layer of high-speed communication equipment to ensure the stable transmission of high-frequency signals.

2. Photoelectric Industry

Silicon nitride ceramic substrates can provide good thermal performance and mechanical strength, and are widely used in the photoelectric industry, especially in the manufacture of high-power leds, ensuring the stability and life of LED components. In addition, it can also be used to manufacture support materials for solar panels to enhance their mechanical strength and chemical resistance.

3. Electrical Industry

Silicon nitride ceramic substrate has excellent insulation performance and good heat dissipation, and can be used to manufacture various high-power electrical components, such as power modules, heating modules, etc., effectively ensuring the service life and reliability of electrical equipment.

Size Chart of Si₃N₄ Substrate

We are committed to delivering optimal silicon nitride ceramic substrate tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and specification requirement shall be provided if customized design request.

Machining Tolerance:

1. Diameter: ±0.003mm

2. Hole Depth: ±0.005mm

3. Surfance Roughness:Ra0.02

4. Cylindricity: ±0.002mm

5. Concentricity: ±0.002mm

6. Parallelism: ±0.002mm

Send Requirements for Custom Design

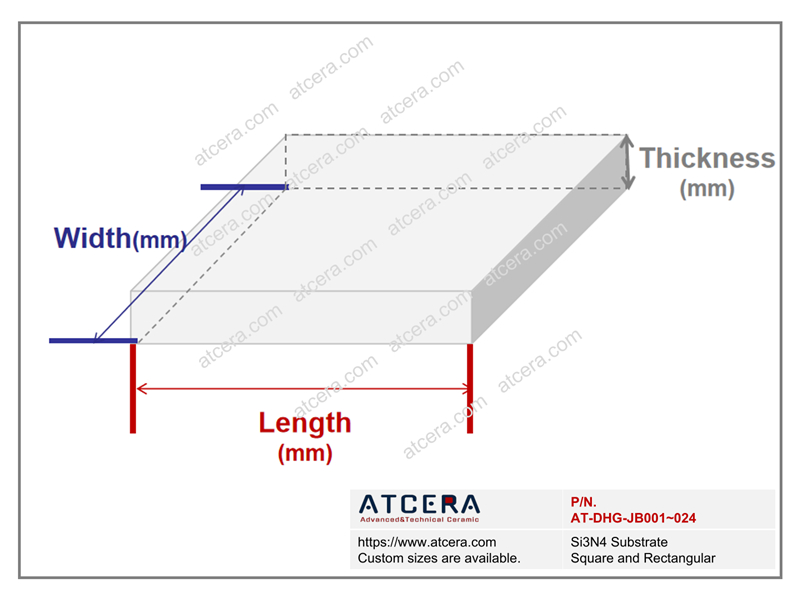

Drawing of Si3N4 Substrate Square and Rectangular

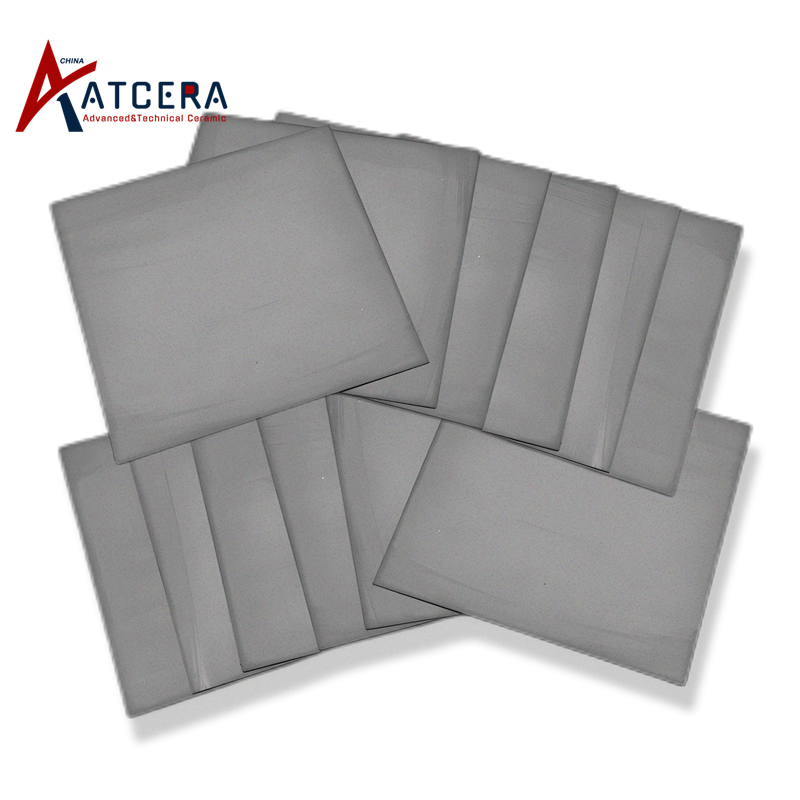

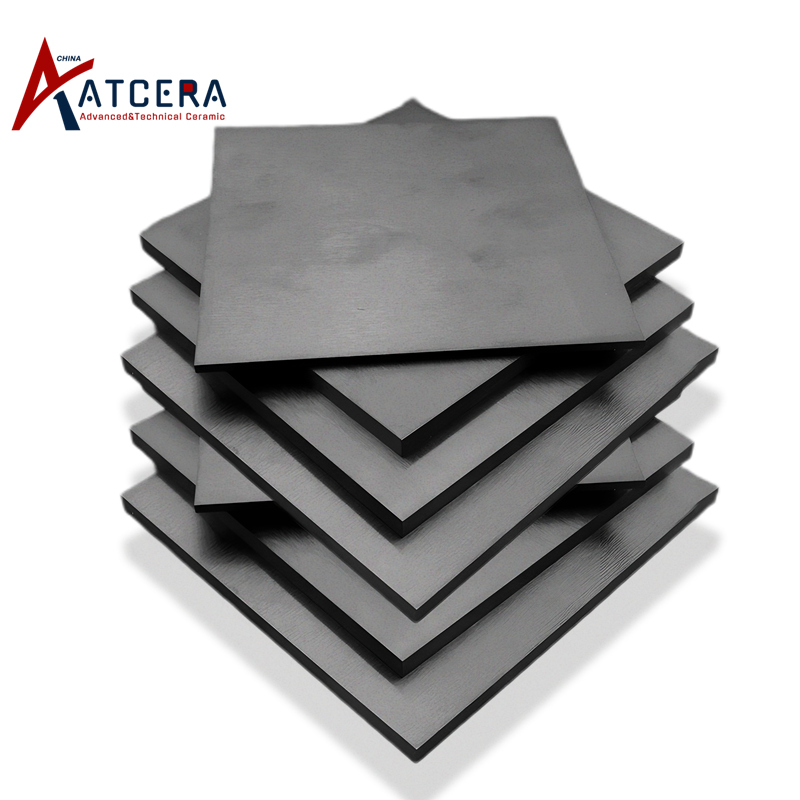

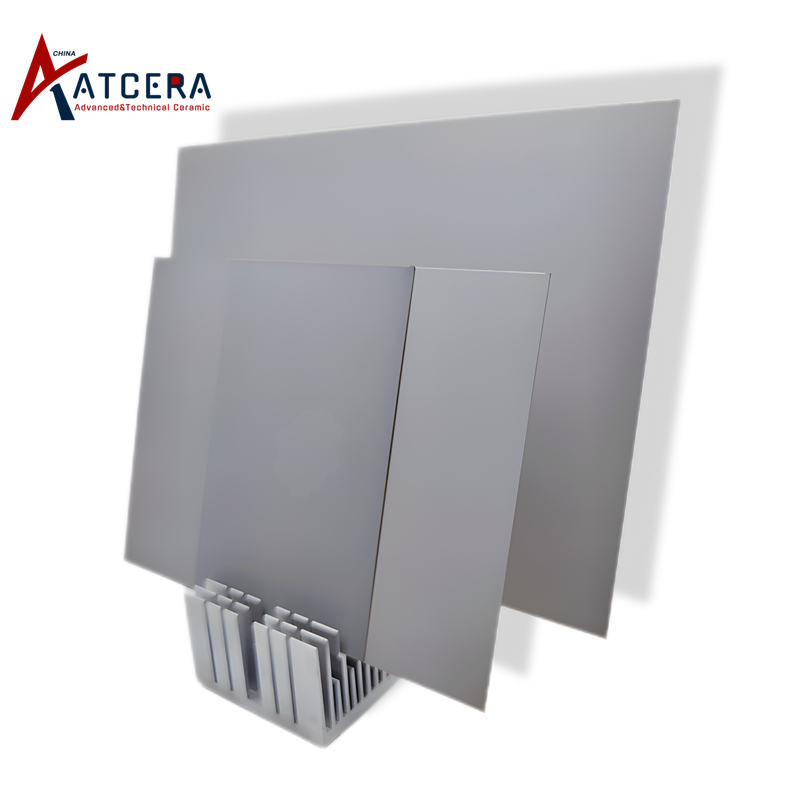

Si₃N₄ Substrate Square and Rectangular
Item No.	Length (mm)	Width (mm)	Thickness (mm)
AT-DHG-JB001	10	10	0.32
AT-DHG-JB002	20	20	0.32
AT-DHG-JB003	30	30	4.0
AT-DHG-JB004	40	40	0.5
AT-DHG-JB005	50	50	0.32
AT-DHG-JB006	50	50	0.635
AT-DHG-JB007	50	50	1.0
AT-DHG-JB008	50	50	2.0
AT-DHG-JB009	50	50	4.0
AT-DHG-JB010	50	50	9.0
AT-DHG-JB011	100	100	0.3
AT-DHG-JB012	100	100	0.5
AT-DHG-JB013	100	100	0.6
AT-DHG-JB014	100	100	1.0
AT-DHG-JB015	100	100	4.0
AT-DHG-JB016	100	100	9.0
AT-DHG-JB017	114	114	0.3
AT-DHG-JB018	114	114	0.5
AT-DHG-JB019	114	114	0.6
AT-DHG-JB020	114	114	1.0
AT-DHG-JB021	190	138	0.3
AT-DHG-JB022	190	138	0.5
AT-DHG-JB023	190	138	0.6
AT-DHG-JB024	190	138	1.0

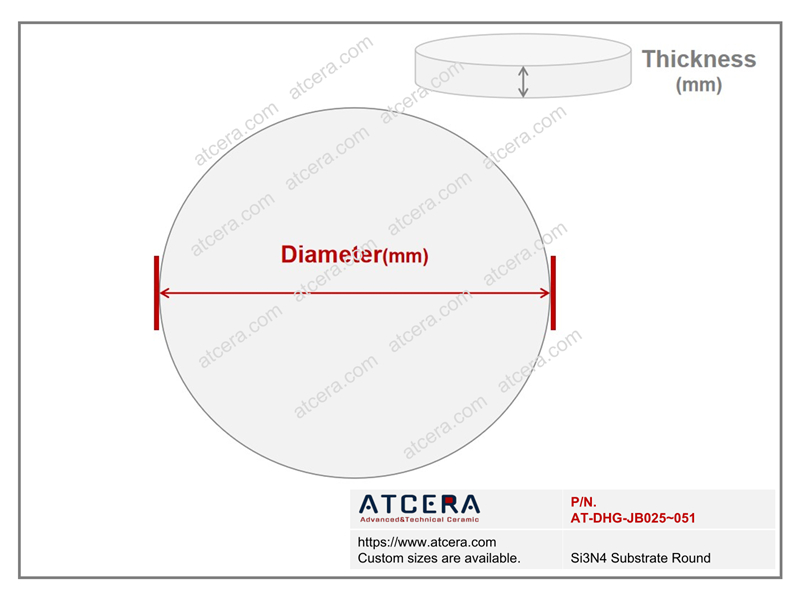

Drawing of Si3N4 Substrate Round

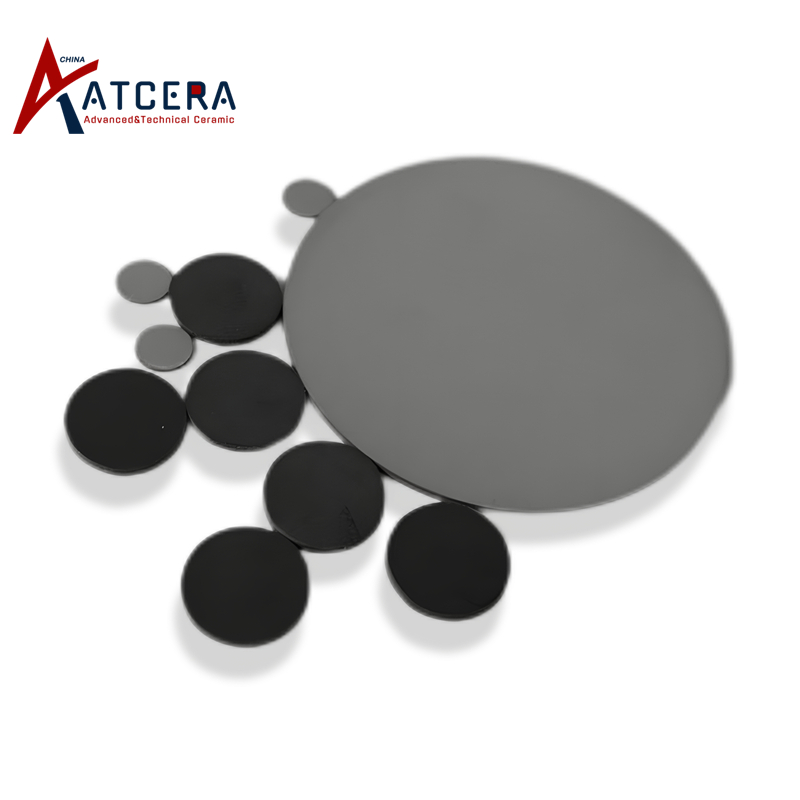

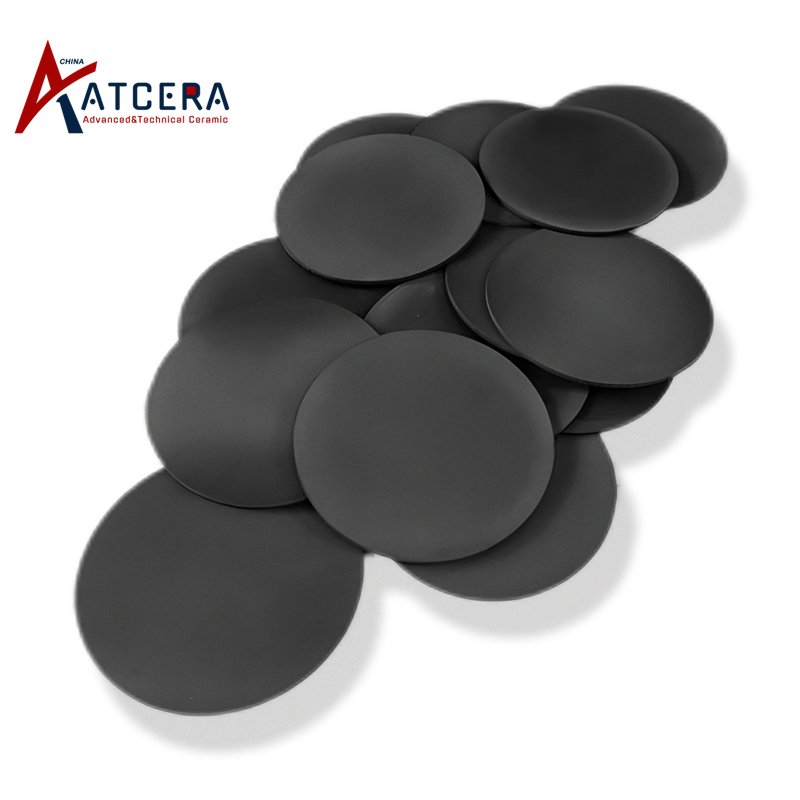

Si₃N₄ Substrate Round
Item No.	Diameter (mm)	Thickness (mm)
AT-DHG-JB025	5	0.25
AT-DHG-JB026	5	0.32
AT-DHG-JB027	5	0.625
AT-DHG-JB028	5	1
AT-DHG-JB029	10	0.25
AT-DHG-JB030	10	0.32
AT-DHG-JB031	10	0.625
AT-DHG-JB032	10	1
AT-DHG-JB033	20	0.25
AT-DHG-JB034	20	0.32
AT-DHG-JB035	20	0.625
AT-DHG-JB036	20	1
AT-DHG-JB037	40	0.25
AT-DHG-JB038	40	0.32
AT-DHG-JB039	40	0.625
AT-DHG-JB040	40	1
AT-DHG-JB041	50	0.25
AT-DHG-JB042	50	0.32
AT-DHG-JB043	50	0.625
AT-DHG-JB044	50	1
AT-DHG-JB045	100	0.32
AT-DHG-JB046	100	1
AT-DHG-JB047	100	2
AT-DHG-JB048	150	0.32
AT-DHG-JB049	150	1
AT-DHG-JB050	150	2
AT-DHG-JB051	150	20

Technical Data of Silicon Nitride Materials

Si3N4 Type	Gas pressure sintering Si3N4	Hot pressing sintering Si3N4
Density (g/cm³)	3.2	3.3
Flexture strength (MPa)	700	900
Young Modulus (GPa)	300	300
Poisson's ratio	0.25	0.28
Compressive strength (MPa)	2500	3000
Hardness (GPa)	15	16
Fracture toughness (MPa*m^1/2)	5~7	6~8
Maximum working temperature (℃)	1100	1300
Thermal conductivity (W/m*K)	20	25
Thermal expansion coefficient (/℃)	3*10^-6	3.1*10^-6
Thermal shock resistance (ΔT ℃)	550	800

*This chart illustrates the standard characteristics of the silicon nitride materials commonly employed in the manufacturing of our Si₃N₄ products and parts. Please be aware that the attributes of customized silicon nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Collision and impact during use shall be to avoid damage;

2. Working temperature of silicon nitride ceramic substrate shall be strictly controlled, long time over temperature working shall be avoided;

3. Silicon nitride ceramic substrate has good corrosion resistance to acid, alkali, salt and other chemicals, but contact with hydrofluoric acid shall be avoided;

4. The surface of silicon nitride ceramic substrate is easy to be contaminated with dust and dirt, which may affect its performance and service life, therefore it shall be regularly cleaned during use to keep its surface clean and shiny.
