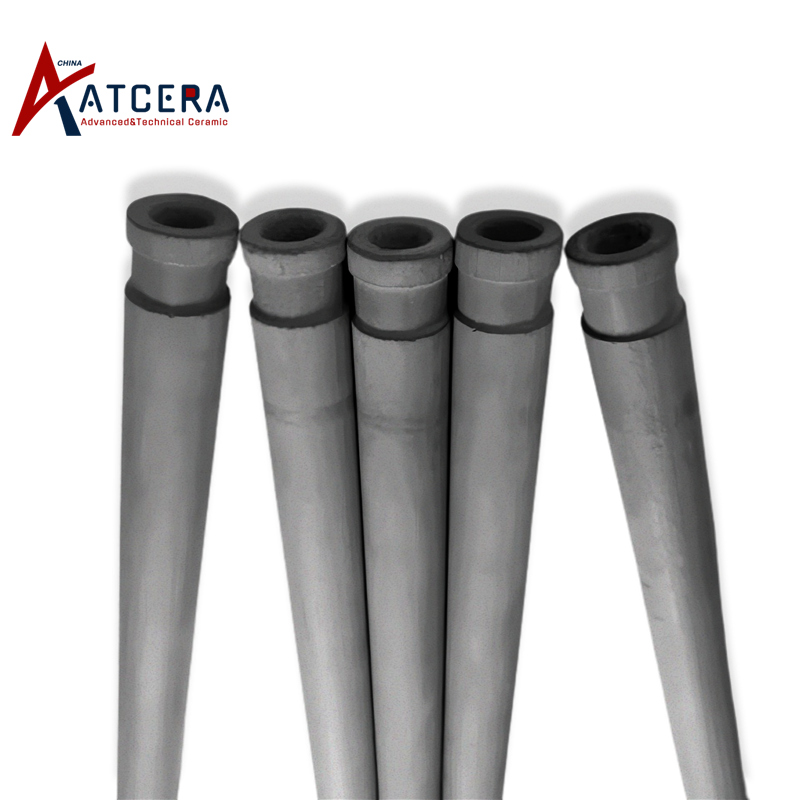

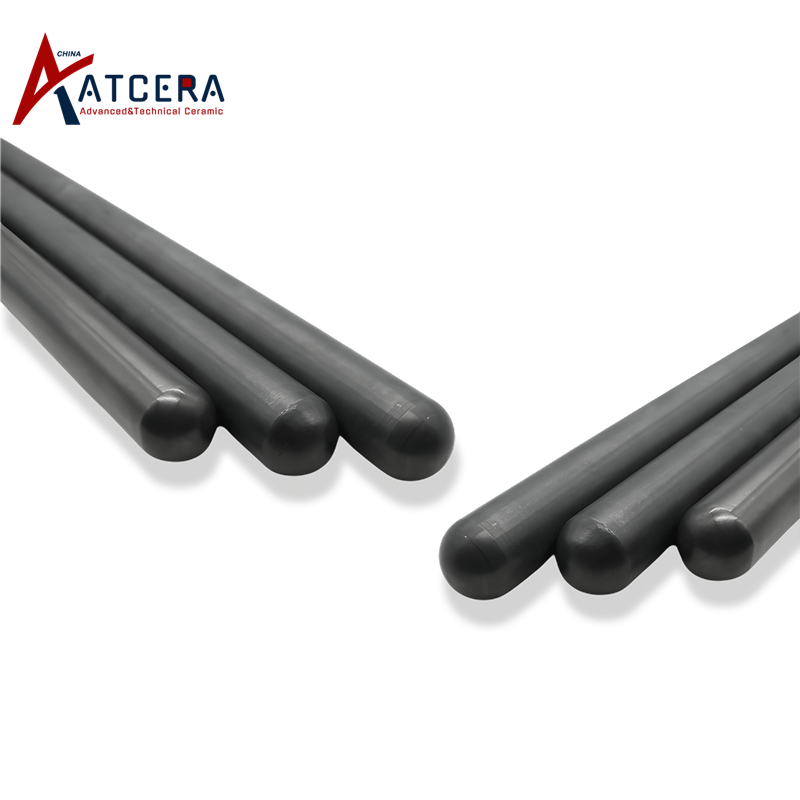

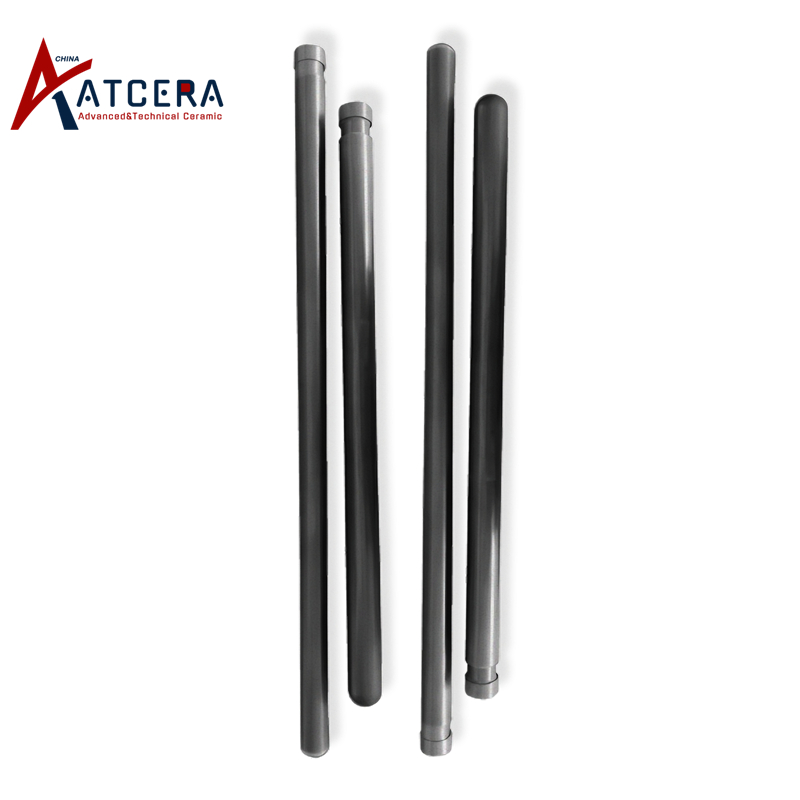

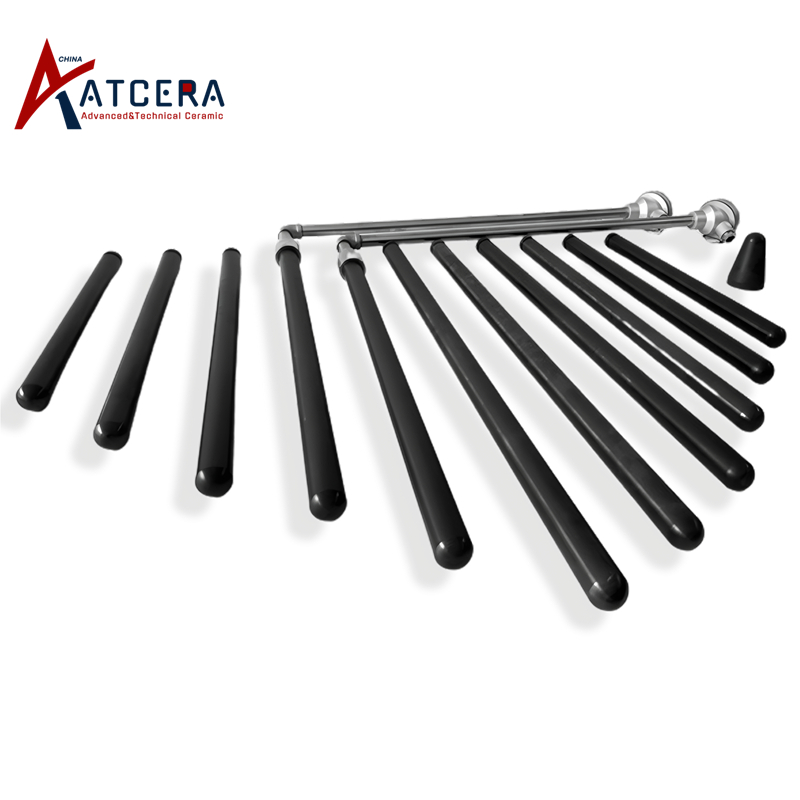

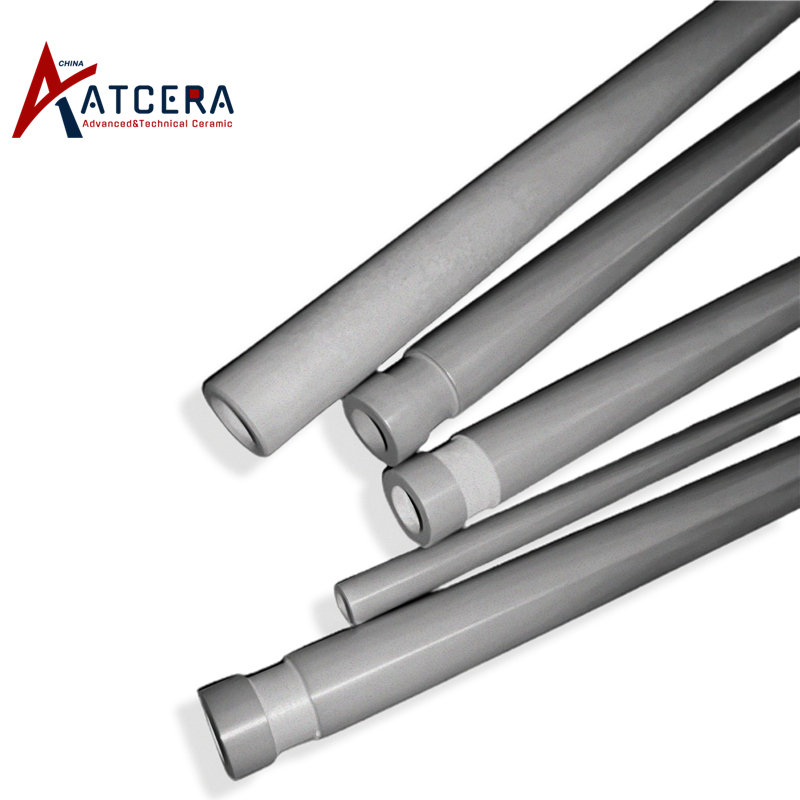

Silicon nitride thermocouple protection tube is high temperature resistant, light weight, good thermal conductivity, so it responds quickly to temperature changes, and is widely used to protect thermocouple that for applied temperature measurement in non-ferrous metal liquids such as aluminum liquid.
Brand:
ATCERAItem NO.:
AT-DHG-G1001Materials
Si3N4Shapes
TubeApplications
Metallurgy Industry
1. High strength, good thermal conductivity, thin tube wall (only a few millimeters), so the product is very sensitive to temperature changes;
2. Good corrosion resistance, completely unaffected by erosion;
3. High temperature resistance, will not melt at high temperature, no pollution to metal liquid;
4. The surface of the protection tube does not adhere to slag and is very easy to maintain.

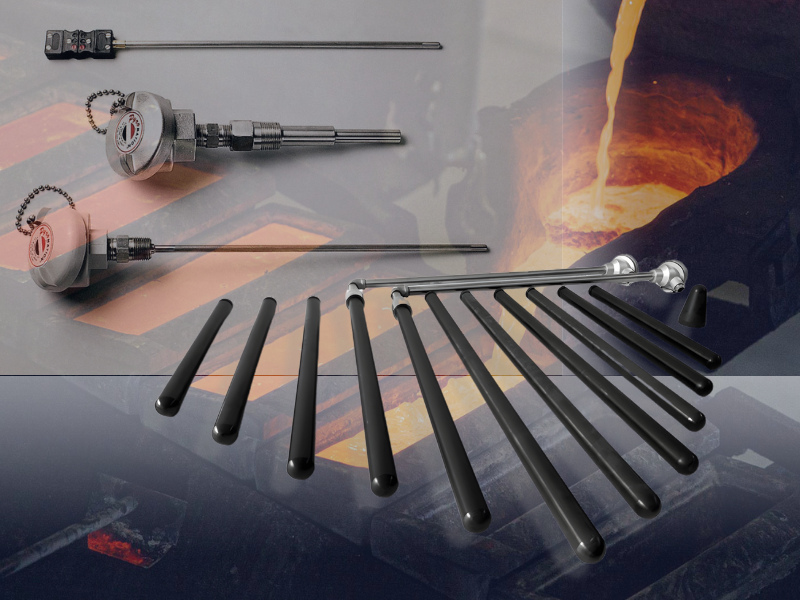

Silicon nitride thermocouple protection tube can be used to protect thermocouples that measure liquid aluminum temperature, and also used in nonferrous gold smelting industry.
We are committed to delivering optimal silicon nitride ceramic thermocouple protection tube tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.
Drawing and specification requirements shall be provided if customized design request.
| Machining Tolerance: |
| Length: ±1~2mm |

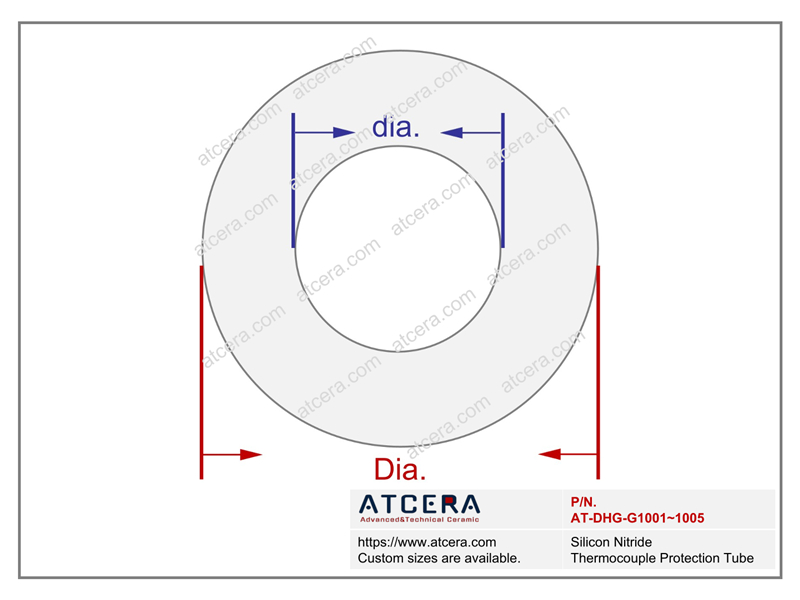

| Silicon Nitride Thermocouple Protection Tube | |||
| Item NO. | External Diameter (mm) |
Inner Diameter (mm) |
Length (mm) |
| AT-DHG-G1001 | 16 | 8 | 300-1200 |
| AT-DHG-G1002 | 22 | 12 | 300-1200 |
| AT-DHG-G1003 | 28 | 16 | 300-1200 |
| AT-DHG-G1004 | 30 | 18 | 300-1200 |
| AT-DHG-G1005 | 45 | 25 | 300-1200 |
| Si3N4 Type | Gas pressure sintering Si3N4 | Hot pressing sintering Si3N4 |
| Density (g/cm3) | 3.2 | 3.3 |
| Flexture strength (MPa) | 700 | 900 |
| Young Modulus (GPa) | 300 | 300 |
| Poisson's ratio | 0.25 | 0.28 |
| Compressive strength (MPa) | 2500 | 3000 |
| Hardness (GPa) | 15 | 16 |
| Fracture toughness (MPa*m1/2) | 5~7 | 6~8 |
| Maximum working temperature (℃) | 1100 | 1300 |
| Thermal conductivity (W/m*K) | 20 | 25 |
| Thermal expansion coefficient (/℃) | 3*10-6 | 3.1*10-6 |
| Thermal shock resistance (ΔT ℃) | 550 | 800 |
*This chart illustrates the standard characteristics of the silicon nitride materials commonly employed in the manufacturing of our Si3N4 products and parts. Please be aware that the attributes of customized silicon nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

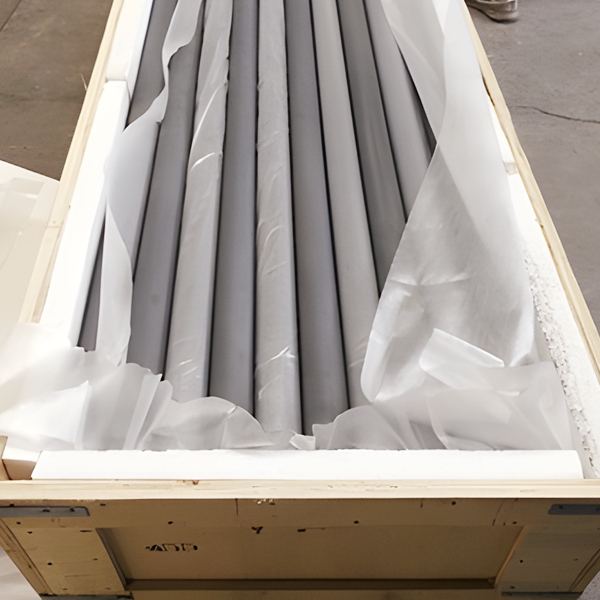

Silicon nitride ceramic thermocouple protection tubes are carefully packaged in appropriate containers to avoid any potential damage.
1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.
2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.
3. Flexible business cooperation mechanism, support at least one piece of quantity customization.
4. Quickly provide samples and test reports to confirm that the product meets your needs.
5. Provide product use and maintenance suggestions to reduce your cost of use.
Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.
Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.
We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.
In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.
Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
