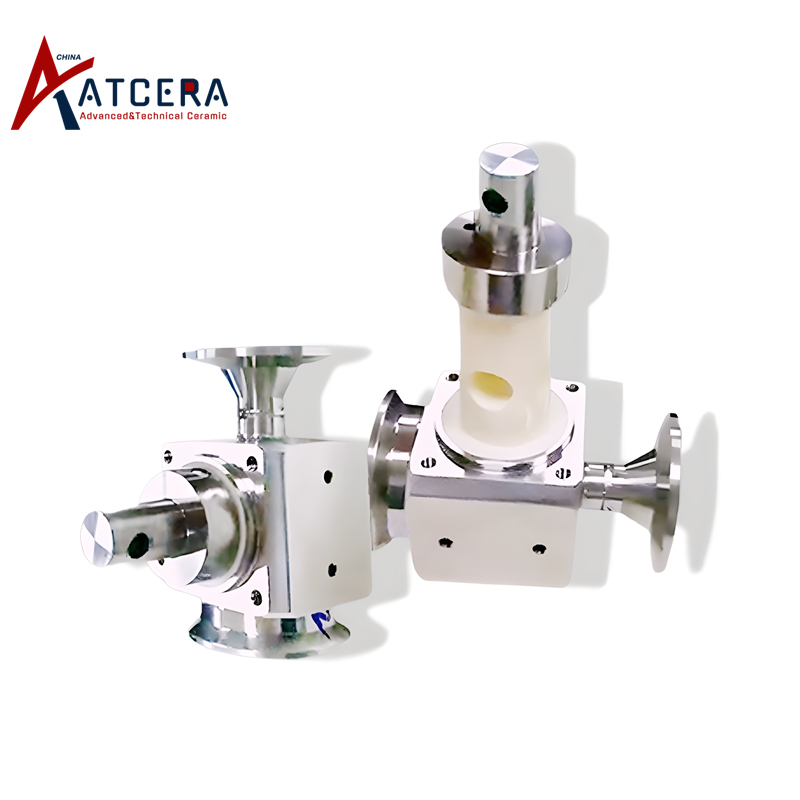

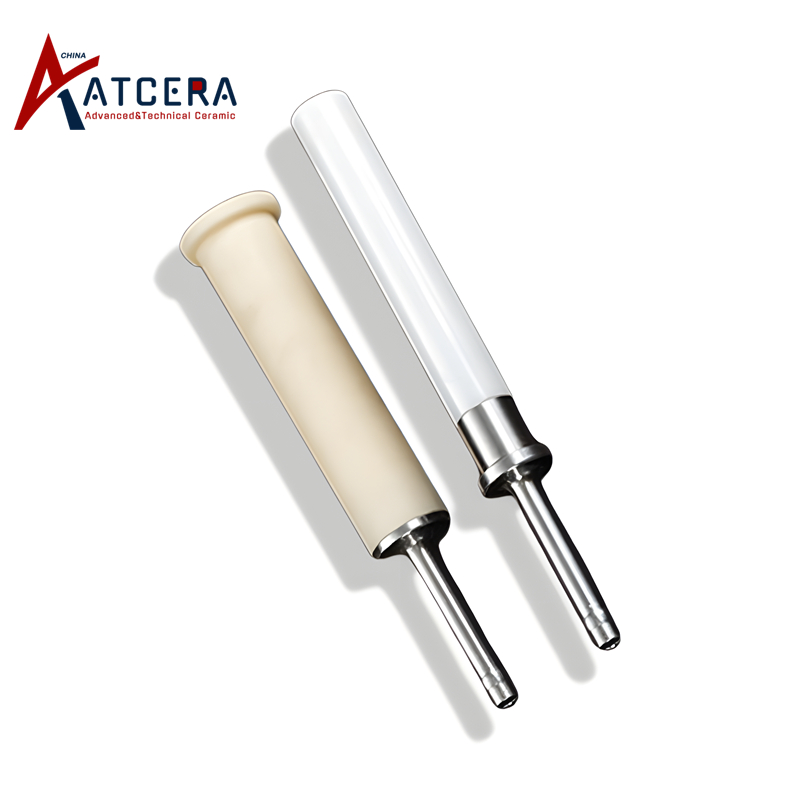

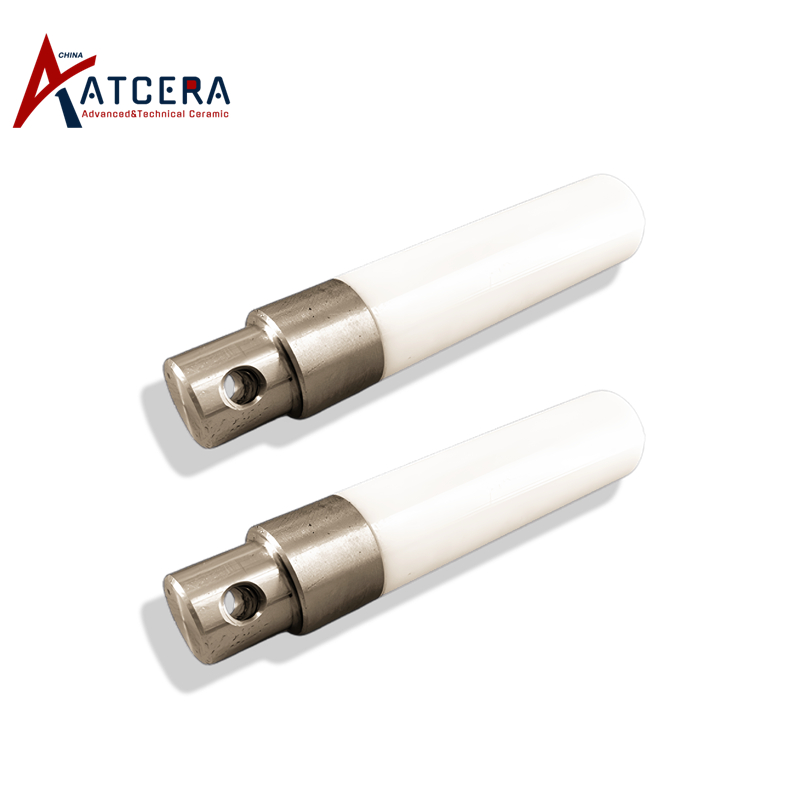

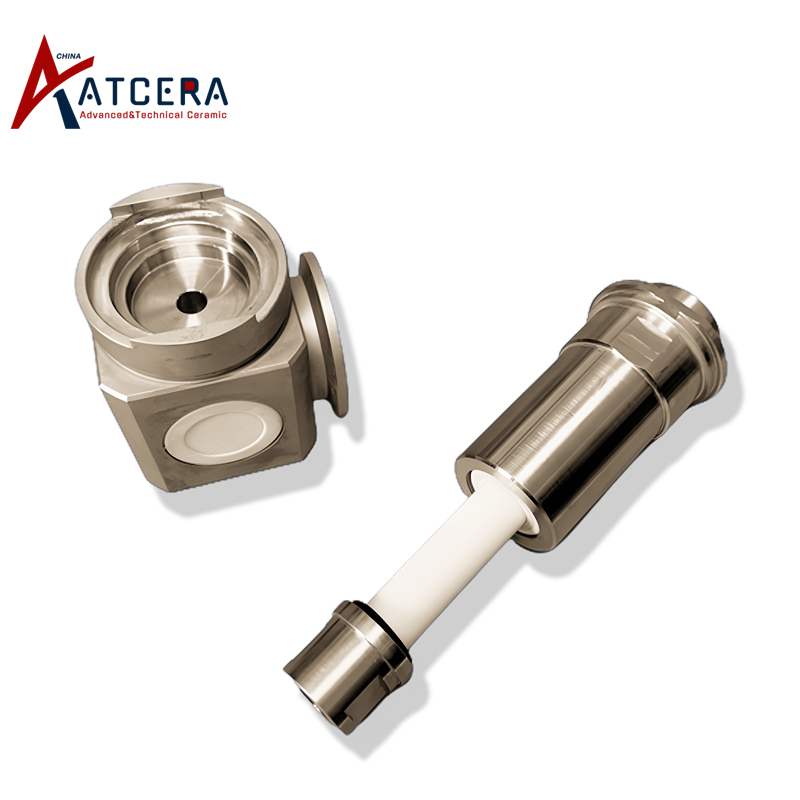

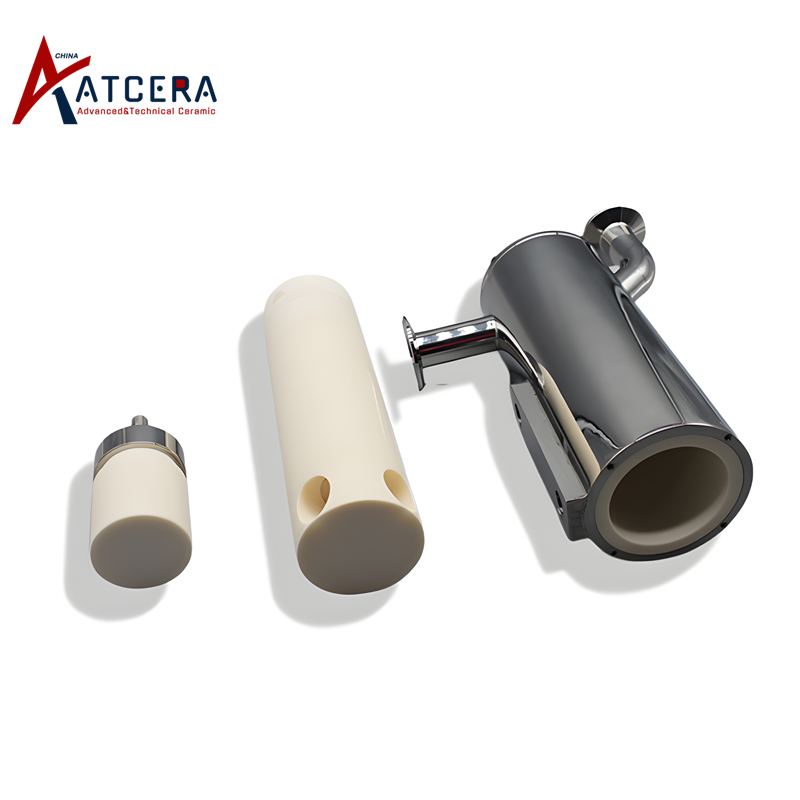

Aluminum Oxide Alumina Ceramic Piston Pump

Alumina ceramic piston pump is composed of piston, connecting rod, cylinder, sealing ring and other components, mainly used for various corrosive liquid transportation,circulation and pressurization.

  • Brand:

    ATCERA
  • Item NO.:

    AT-CP-4001
  • Materials

    Alumina
  • Shapes

    Pump
  • Applications

    Mechanical Parts , Petrochemical Industry , Food Processing , Lithium Battery Production
al2o3 ceramic pump

Properties of Aluminum Oxide Piston Pump



⩟ Strong corrosion resistance

Alumina ceramic material has good corrosion resistance, can be used to transport a variety of corrosive liquids, no pollution to the liquid.



⩟ Long life

The alumina material hs high hardness and good wear resistance, so service life of alumina piston pump is long.



⩟ Easy maintenance

The structure of alumina ceramic piston pump is simple, clean is easy, which can reduce operation cost.

Applications of Ceramic Piston Pump

Applications of Ceramic Piston Pump

Alumina piston ceramic pump is widely used for various corrosive liquid transportation,circulation and pressurization.



⩟ 1. Motor vehicles

Automobile engine cooling water cycle, fuel delivery, lubricating oil cycle, etc.



⩟  Hydraulic system

Hydraulic fluid delivery system, used to increase the pressure of the fluid



Size Chart for Aluminum Oxide Piston Pump



Drawing and specification requirement shall be provided. We are committed to delivering alumina piston pump tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Drawing and specification requirement shall be provided if customized request.



Machining Tolerance
1. Flow rate: 4-250m3/h
2. Liquid temperature: -40-250
3. Maximum working pressure: 0.6MPa (for higher pressure request please inquire ATCERA)



Aluminum Oxide Piston Pump
Item NO. Max. Flow Rate (m3/h) Max. Working Pressure (MPa) Diameter of Inlet (mm) Diameter of Outlet (mm)
AT-CP-4001 4 0.6 40 25
AT-CP-4002 10 0.6 40 25
AT-CP-4003 25 0.6 50 40
AT-CP-4004 40 0.6 65 40
AT-CP-4005 60 0.6 80 50
AT-CP-4006 100 0.6 100 65
AT-CP-4007 150 0.6 125 80
AT-CP-4008 250 0.6 150 100

Specification of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions

1. Installation requirements
When install the alumina piston pump, ensure that it's firmly fixed to avoid axial and radial movement.

2. Liquid temperature and pressure
The liquid temperature and pressure should be within the specified range to ensure normal operation.

3. Liquid properties
For liquid containing solid particles or high viscosity, it is necessary to pre-treat or select appropriate pump head.

4. Regular maintenance
It is better to regularly check the pump piston, seals and other parts wear, and timely replacement or adjustment if any wear that may affect the pump performance.

5. Pump storage
In the case that alumina piston pump is not used for a long time, the pump should be cleaned and stored in a dry and cool environment.

Valuable Information

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
