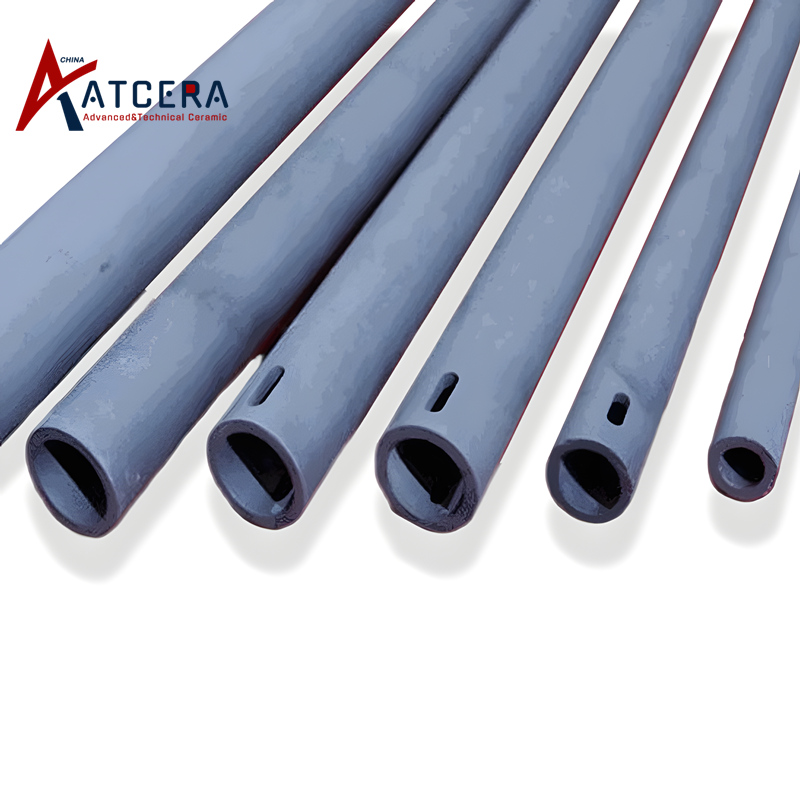

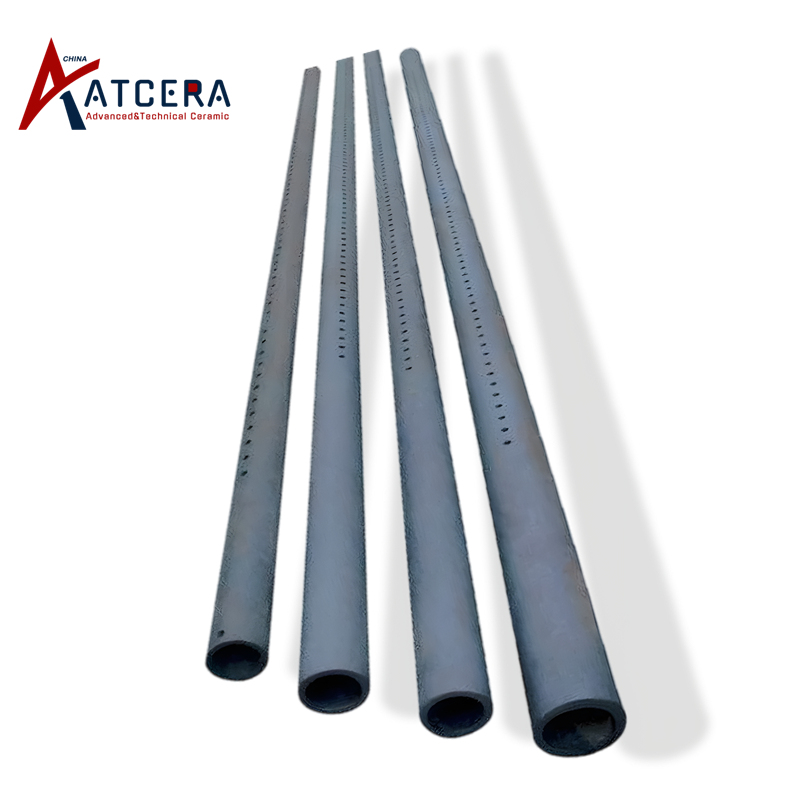

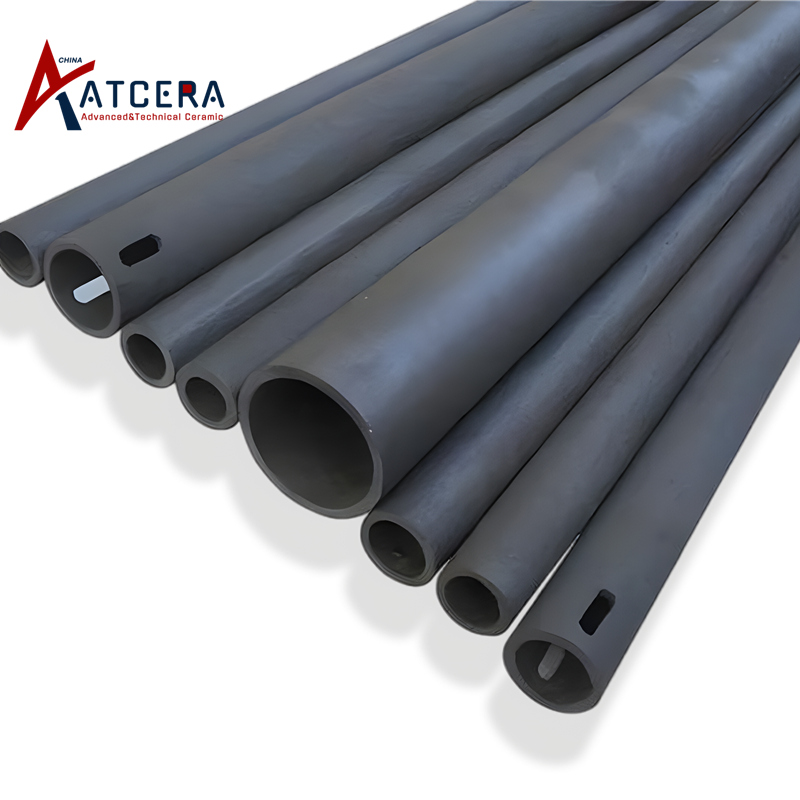

Reaction Bonded Silicon Carbide Tube RBSiC Tube

Reaction bonded silicon carbide is high performance silicon carbide material obtained by chemical reaction and heat treatment of carbide and silicon powder under high temperature and high pressure conditions. Reaction bonded silicon carbide tube has high hardness, good wear resistance, high temperature resistance, corrosion resistance, good thermal shock resistance, good thermal conductivity and good oxidation resistance, it is mainly used in a variety of lectric furnace and gas furnace equipment, as well as ceramic and glass manufacturing, chemical industry, metallurgy and other industries.

Brand:
ATCERA
Item NO.:
AT-THG-LFG001

Materials
SiC
Shapes
Tube
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Reaction Bonded Silicon Carbide Tube

1. Reaction bonded silicon carbide tube has good thermal conductivity and thermal shock resistance;

2. Reaction bonded silicon carbide tube is high temperature resistant, the use temperature can reach 1380℃ under the condition of no protective atmosphere, and the coefficient of thermal expansion is small, anti-oxidation, can be used at high temperature for a long time;

3. Reaction bonded silicon carbide tube has good corrosion resistance and can resist corrosion of various acidic and alkaline substances;

4. Reaction bonded silicon carbide sintering temperature is low, sintering process volume shrinkage is small, especially suitable for manufacture of large size complex shape structural parts.

Applications of RBSiC Tube

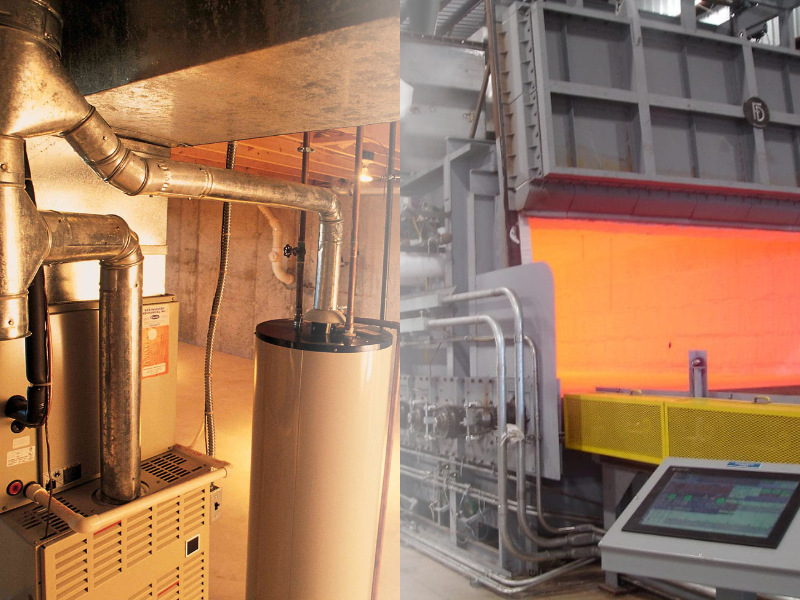

Reaction bonded silicon carbide tube can be used to make thermocouple protection tube, heating tube, heat radiant tube, high temperature furnace roller and structure support tube.

1. Reaction bonded silicon carbide tube can be used as thermocouple protection tube or temperature measuring tube, used in metallurgy, chemical industry, glass and ceramic manufacturing and other industries;

2. Reaction bonded silicon carbide tube can be used to make heating tube, heat exchange tube and heat radiant tube, used in high temperature electric furnace, gas furnace, heat exchanger, etc.;

3. Reaction bonded silicon carbide tube can be used for roller, support tube and other structures in high temperature furnace.

Size Chart for Reaction Bonded Silicon Carbide Tube

We are committed to delivering prime reaction bonded silicon carbide tube tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing, specification requirement and usage scenario information shall be provided if customized design request.

Send Requirements for Custom Design

Machining Tolerance:

1. Diameter ≤50mm: ±0.5mm

2. Diameter 50-100mm: ±1.5mm

3. Diameter 100-300mm: ±3mm

4. Length ≤500mm:±2mm

5. Length 500-2000mm:±3mm

Drawing of RBSiC Tube Cooling Air Pipe

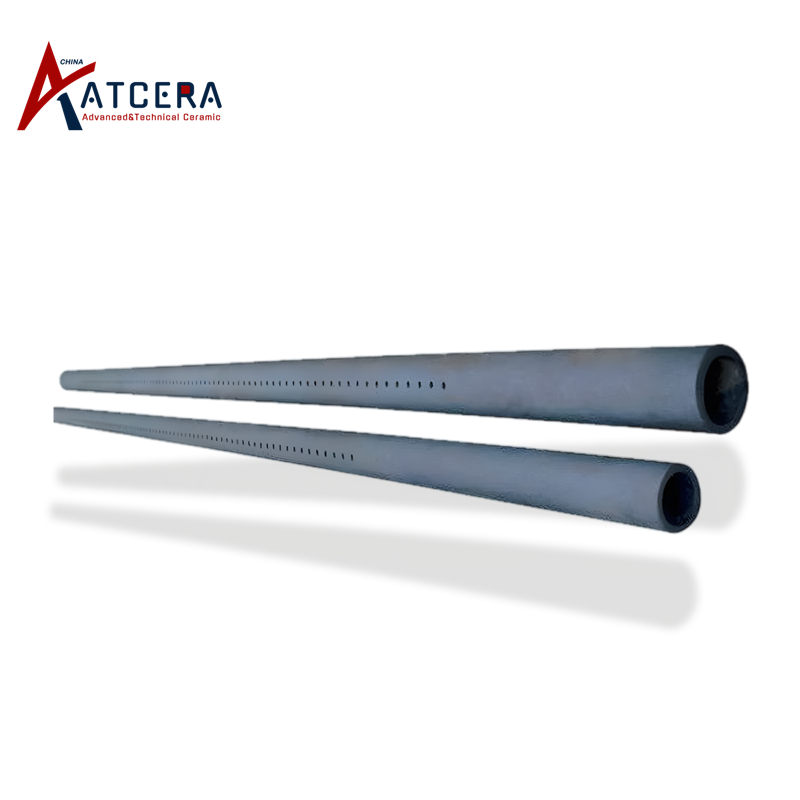

RBSiC Tube Cooling Air Pipe
Item NO.	Outer Diameter (mm)	Inner Diameter (mm)	Thickness (mm)	Length (mm)
AT-THG-LFG001	40	30	5	50-4000mm
AT-THG-LFG002	42	32	5
AT-THG-LFG003	42	30	6
AT-THG-LFG004	45	35	5
AT-THG-LFG005	45	33	6
AT-THG-LFG006	45	31	7
AT-THG-LFG007	48	38	5
AT-THG-LFG008	48	36	6
AT-THG-LFG009	48	34	7
AT-THG-LFG010	50	40	5
AT-THG-LFG011	50	38	6
AT-THG-LFG012	50	36	7
AT-THG-LFG013	55	43	6
AT-THG-LFG014	55	39	8
AT-THG-LFG015	58	46	6
AT-THG-LFG016	58	44	7
AT-THG-LFG017	58	42	8
AT-THG-LFG018	60	48	6
AT-THG-LFG019	60	46	7
AT-THG-LFG020	60	44	8
AT-THG-LFG021	65	51	7
AT-THG-LFG022	65	53	6
AT-THG-LFG023	70	58	6
AT-THG-LFG024	70	56	7
AT-THG-LFG025	70	54	8
AT-THG-LFG026	75	57	9
AT-THG-LFG027	75	55	10
AT-THG-LFG028	80	60	10
AT-THG-LFG029	80	58	11
AT-THG-LFG030	80	56	12

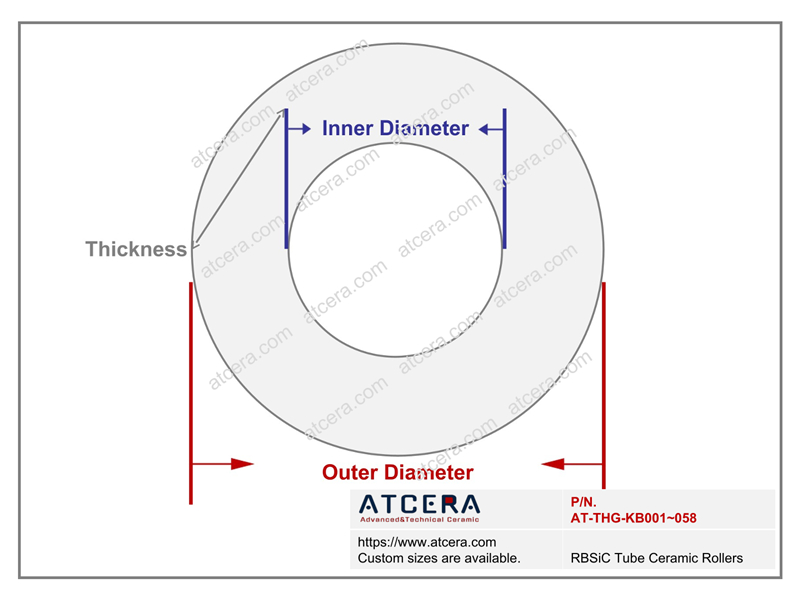

Drawing of RBSiC Tube Ceramic Rollers

RBSiC Tube Ceramic Rollers
Item NO.	Outer Diameter (mm)	Inner Diameter (mm)	Thickness (mm)	Length (mm)
AT-THG-KB001	20	12	4	50-4500mm
AT-THG-KB002	20	10	5
AT-THG-KB003	25	15	5
AT-THG-KB004	28	20	4
AT-THG-KB005	25	13	6
AT-THG-KB006	25	17.3	4
AT-THG-KB007	25	18.3	3.5
AT-THG-KB008	28	18	5
AT-THG-KB009	30	22	4
AT-THG-KB010	30	18	6
AT-THG-KB011	30	21.3	4.5
AT-THG-KB012	32	24	4
AT-THG-KB013	32	22	5
AT-THG-KB014	32	20	6
AT-THG-KB015	33	25.5	4
AT-THG-KB016	33	23.5	5
AT-THG-KB017	33	21.5	6
AT-THG-KB018	35	27	4
AT-THG-KB019	35	25	5
AT-THG-KB020	35	23	6
AT-THG-KB021	35	27.5	4
AT-THG-KB022	35	25.5	5
AT-THG-KB023	35	23.5	6
AT-THG-KB024	38	30	4
AT-THG-KB025	38	28	5
AT-THG-KB026	38	26	6
AT-THG-KB027	40	30	5
AT-THG-KB028	40	29	5.5
AT-THG-KB029	40	28	6
AT-THG-KB030	42	32	5
AT-THG-KB031	42	30	6
AT-THG-KB032	45	35	5
AT-THG-KB033	45	33	6
AT-THG-KB034	45	31	7
AT-THG-KB035	48	38	5
AT-THG-KB036	48	36	6
AT-THG-KB037	48	34	7
AT-THG-KB038	50	40	5
AT-THG-KB039	50	38	6
AT-THG-KB040	50	36	7
AT-THG-KB041	55	43	6
AT-THG-KB042	55	39	8
AT-THG-KB043	58	46	6
AT-THG-KB044	58	44	7
AT-THG-KB045	58	42	8
AT-THG-KB046	60	48	6
AT-THG-KB047	60	46	7
AT-THG-KB048	60	44	8
AT-THG-KB049	65	51	7
AT-THG-KB050	65	53	6
AT-THG-KB051	70	58	6
AT-THG-KB052	70	56	7
AT-THG-KB053	70	54	8
AT-THG-KB054	75	63	6
AT-THG-KB055	75	61	7
AT-THG-KB056	75	59	8
AT-THG-KB057	89	75	7
AT-THG-KB058	99	79	10

Technical Data of Silicon Carbide Materials

Item		Unit	Index Data
Item		Unit	Reaction-sintered SiC (SiSiC)	Silicon Nitride Bonded With SiC (NBSiC)	Sintered SiCn Without Pressure (SSiC)
SiC Content		%	85	80	99
Free Silicon Content		%	15	0	0
Max. Service Temp.		℃	1380	1550	1600
Density		g/cm3	3.02	2.72	3.1
Porosity		%	0	12	0
Bending Strength	20℃	Mpa	250	160	380
Bending Strength	1200℃	Mpa	280	180	400
Modulus of Elasticity	20℃	Gpa	330	220	420
Modulus of Elasticity	1200℃	Gpa	300	/	/
Thermal Conductivity	1200℃	W/m.k	45	15	74
Coefficient of Thermal Expansion		K-1×10-6	4.5	5	4.1
Vickers Hardness	HV	kg/mm2	2500	2500	2800

*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Select the appropriate type of silicon carbide tube according to the application scenario and parameter requirements;

2. Pay attention to the strength when installing and using, avoid violent impact, so as not to break or damage, reserve a certain space to ensure free expansion, avoid damage due to thermal expansion;

3.Do not contact objects containing too much water when used, and do not exceed the maximum use temperature, otherwise it may affect the life time of the silicon carbide tube;

4. When used for the first time or used again after long-term storage, it is necessary to control the heating speed and use low power heating to heat slowly;

5. The spare silicon carbon tube should be placed in a cool, dry and non-erosion place.

Valuable Information

Nitride Bonded Silicon Carbide Tube Packing

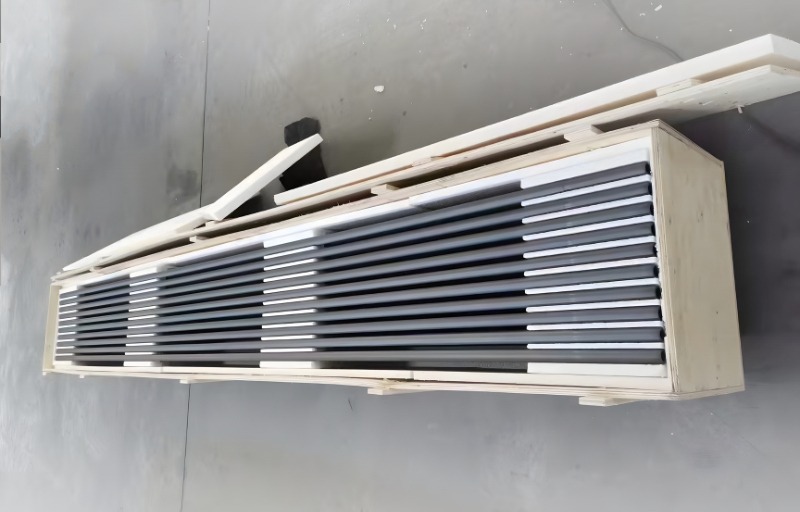

Reaction Bonded Silicon Carbide Tube Packing

Reaction bonded silicon carbide tubes are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Preparation Of Aluminum Nitride Substrate And Selection Of Sintering Additives

In the field of high-tech materials, aluminum nitride (AlN) ceramics, with its excellent thermal conductivity, excellent electrical insulation properties and excellent mechanical strength, have become the core material in key fields such as electronic packaging, power electronics and microwave communication equipment. However, the preparation of aluminum nitride substrate is a complex process...

Application Requirements Of Aluminum Nitride Substrate

Aluminum nitride (AlN) as an advanced ceramic material, because of its unique physical and chemical properties, has shown great application potential in electronic packaging, power electronics, high frequency communication and other fields. As a core component in these fields, aluminum nitride substrates not only have to meet the basic physical performance requirements, but also need to ...

Effect Of Bulk Density Of Granulated Powder On Sintering Densification Of Silicon Nitride Balls

Si3N4 powder is the main raw material for the preparation of silicon nitride balls. Selecting the appropriate treatment method to obtain the powder with regular shape and uniform particle size distribution is the basis for the stable implementation of Si3N4 ceramic ball forming, sintering, processing and other processes. According to the different atomization methods, the spray gr...

Optimizing The Spray Granulation Process To Improve The Performance Of Si3N4 balls

Silicon nitride (Si3N4) balls show great potential in the field of high-speed, high-precision, long-life bearings due to their excellent properties, such as lightweight, self-lubricating, high insulation, non-magnetic, high elastic modulus and excellent corrosion resistance. This paper aims to discuss the optimization of the spray granulation process of Si3N4 powder, especially the press...

Silicon Nitride Ball: A New Choice For High-Tech Powder Grinding Media

With the rapid development of high-tech industry, the requirements for fineness, purity and consistency of powder materials are increasing. As a key component in the powder preparation process, the performance of grinding medium directly determines the quality of the final product. Traditionally, zirconia ceramic balls are widely used in the field of ultra-fine grinding because of their high bendi...

Application Performance And Advantage Analysis Of Silicon Nitride Ball In Ultrafine Grinding Field

With the rapid development of nanotechnology and ultrafine material science, the demand for high-purity and ultrafine powder is increasing day by day. Silicon nitride ball, with its excellent hardness, very low wear rate and good chemical stability, has gradually become the key grinding medium in the field of ultrafine grinding. The purpose of this paper is to systematically describe the performan...

Study On Performance Characteristics And Application Of Silicon Nitride Ball In Mechanical Engineering Field

With the rapid development of modern mechanical engineering technology, the requirements for material properties are increasingly stringent, especially under extreme conditions such as high temperature, high speed, strong corrosion, etc., traditional metal materials and polymer materials have been difficult to meet the needs. Silicon nitride (Si ₄) As an advanced ceramic material with excellent ov...

Sol-gel Polishing Technology: Challenges And Opportunities To Innovate Silicon Carbide Substrate Polishing

Silicon carbide, the emerging star of the semiconductor material industry, is gradually leading the innovation trend of microelectronics technology with its excellent performance indicators. Its unique thermal conductivity, far superior to traditional semiconductor materials, provides the possibility for efficient heat dissipation, especially in high-power electronic devices show unparalleled adva...

Application And Advantages Of Plasma Assisted Polishing In AlN Substrate Processing

Aluminum nitride (AlN) ceramics, as a material with excellent thermal conductivity, mechanical properties and electrical properties, have been widely used in large-scale integrated circuits and electronic packages in recent years. Its excellent properties make it an ideal cooling substrate and packaging material. However, due to the high hardness, high brittleness and low fracture toughness of alu...

Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology

In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...

Nitride Bonded Silicon Carbide Tube NBSiC Protection Tube

Pressureless Sintered Silicon Carbide Tube SSiC Tube

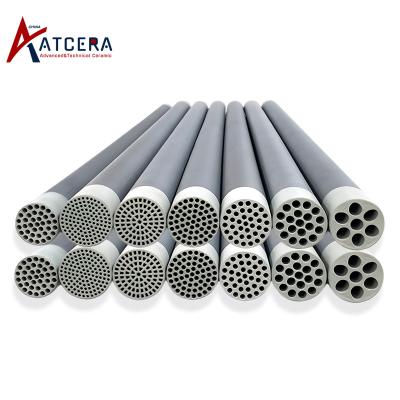

Silicon Carbide Membrane Tube SiC Ceramic Membrane Filter
