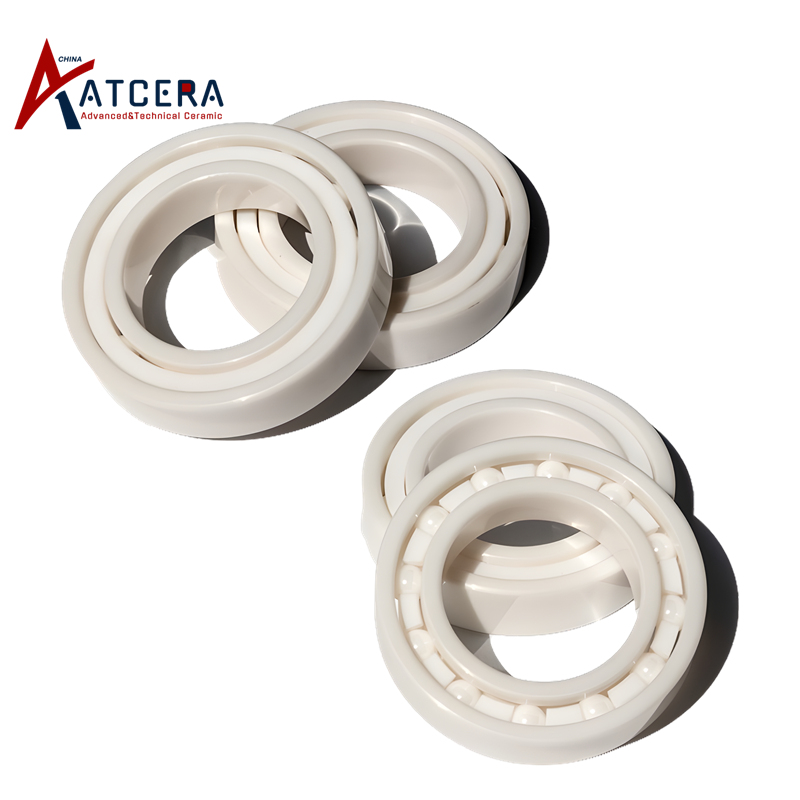

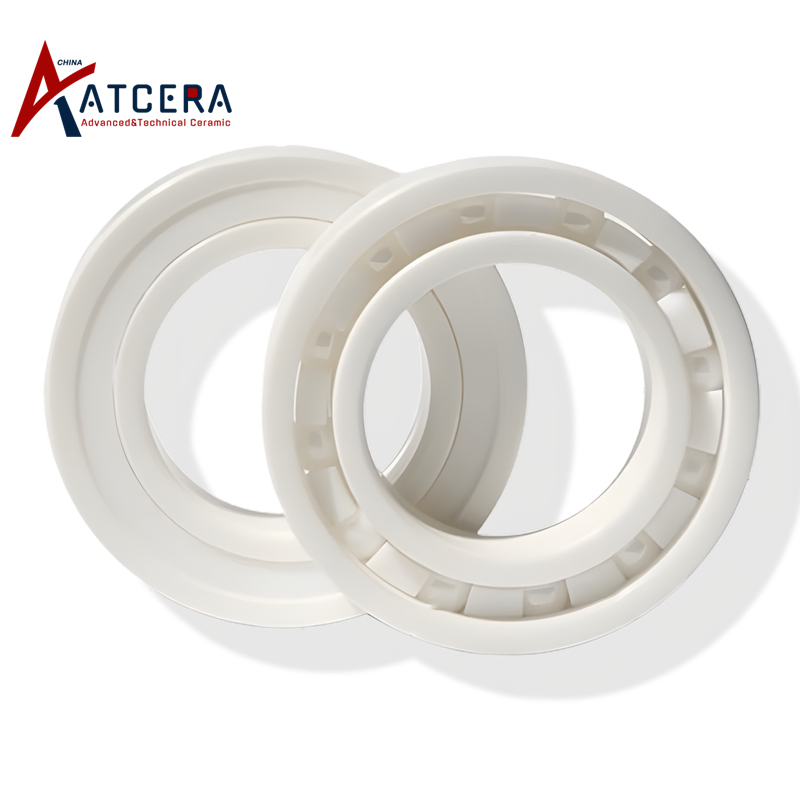

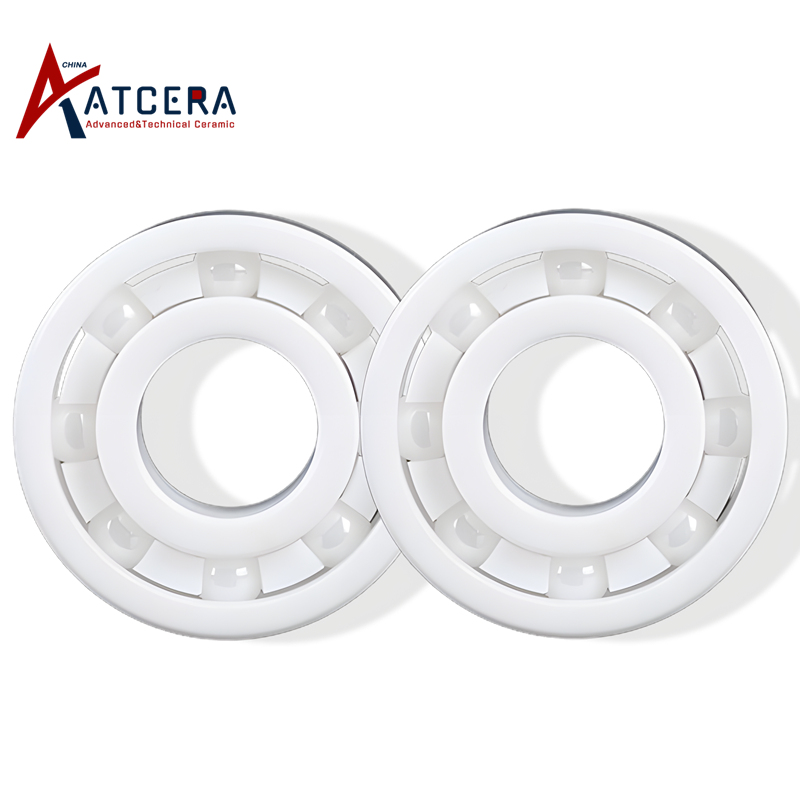

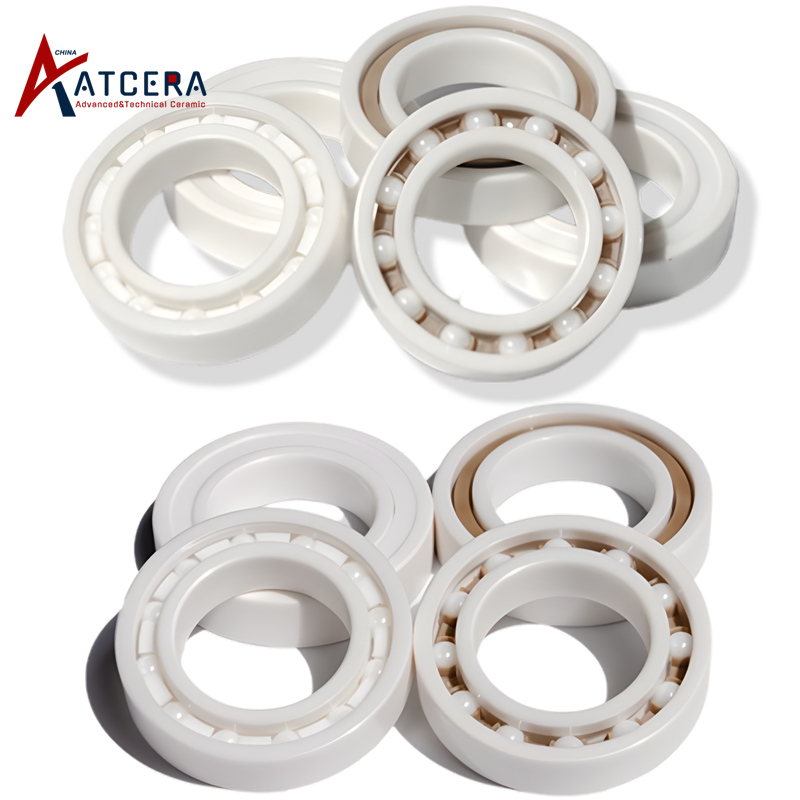

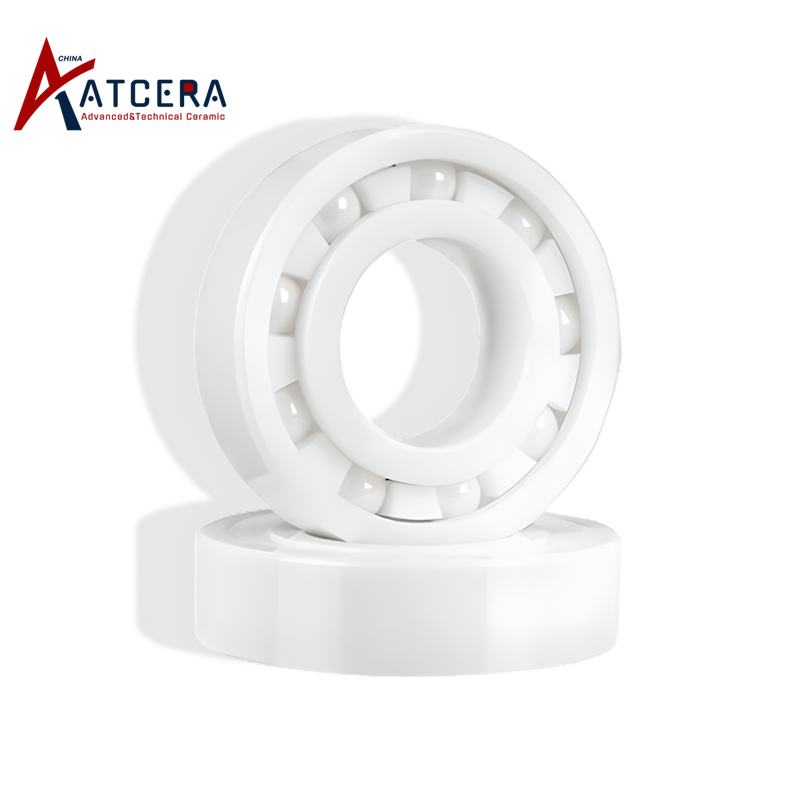

Zirconia Ceramic Ball Bearing

Zirconia (ZrO2) ceramic bearing has good wear resistance, non-magnetic, good electrical insulation, acid and alkali corrosion resistance, self-lubrication, high temperature resistance, it can adapt to extreme harsh environment and special conditions that out of steel bearing working capability. With stainless steel cage or full ball, it can be used for high temperature environment higher than 500℃, and with PTFE or PEEK cage can be used for 260℃ temperature environment.

Brand:
ATCERA
Item NO.:
AT-YHG-ZC684CE

Materials
Zirconia
Shapes
Bearing
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry , Lithium Battery Production

Inquire Now

Advantages of Zirconia Ceramic Ball Bearing

Zirconia ceramic bearing has the advantages of high hardness, good wear resistance, high temperature resistance and good self-lubrication effect, also with acid & alkali and chemical corrosion resistance, good electrical insulation.

1. High temperature resistance

Normal working temperature of full zirconia bearing can reach higher than 500℃, which can meet the high temperature equipment such as furnace, plastic making and steel manufacture;

2. Corrosion resistance

Zirconia material itself has good corrosion resistance, can be in contact with a variety of acids, alkalis, salt water and other chemicals, zirconia bearings can be used in electroplating equipment, electronic equipment, chemical machinery, shipbuilding, medical equipment, etc.;

3. Wear resistance

Zirconia bearing material has high hardness, good wear resistance, so zirconia bearing can work stably with long service life;

4. High strength

Zirconia material has high compressive strength, good toughness, small friction coefficient, light weight, so zirconia bearing can meet the needs of high-speed rotation, the highest speed of 80000 RPM, for the application of high-speed spindle and other high-precision equipment.

5. Good anti-magnetic performance

Because the zirconia material has no magnetic and does not absorb dust, surface spallation, loud noise and other faults can be reduced, so zirconia bearings is applicable in demagnetization equipment and precision instruments;

6. Good electrical insulation

Zirconia electrical insulation is good, can avoid arc damage bearings, zirconia bearings can be used in a variety of electrical equipment those need electrical insulation;

7. Lubrication-free

Due to the unique self-lubrication characteristics of zirconia material, zirconia bearings can work without lubrication oil, so can be used normally in vacuum environment.

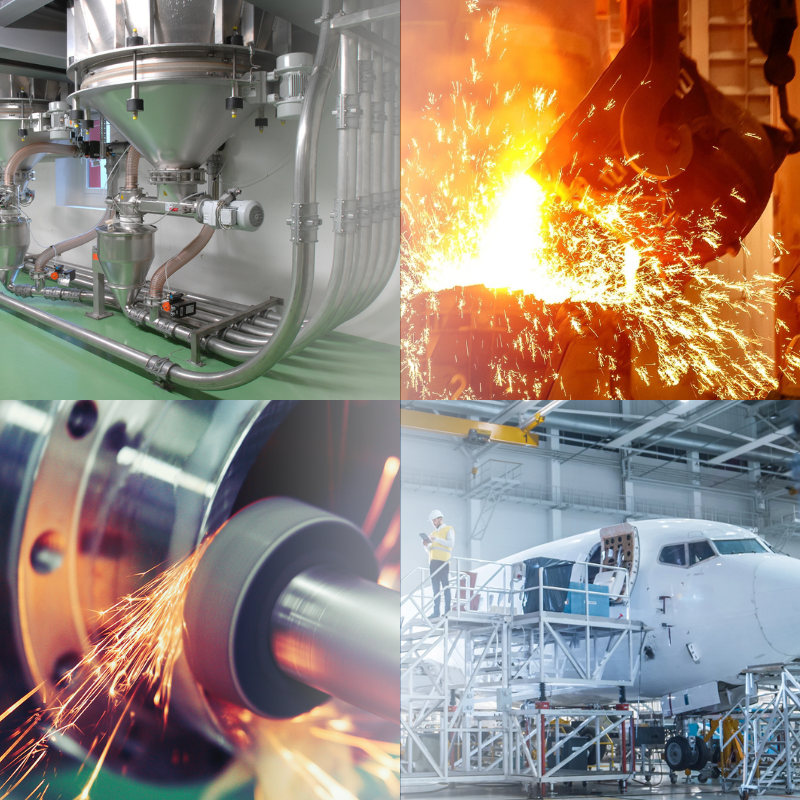

Applications of Ball Bearing Zirconia

Zirconia ceramic bearing has good wear resistance, no magnetic, good electrical insulation, acid and alkali corrosion resistance, self-lubrication, small friction coefficient, light weight, high temperature resistance, it is widely used in high precision machinery, chemical industry, electronics, medical, high temperature environment, metallurgy, aerospace and other industries to ensure stable operation and long service life of equipment, also reduce maintenance costs.

1. Chemical industry

Zirconia ceramic bearing has good corrosion resistance, it is widely used in liquid and gas conveying equipment in the chemical industry, especially for occasions with corrosion media, such as pickling machines, chemical pumps, etc.

2. Electronics industry

Zirconia ceramic bearings have small friction coefficient, and weight is light, it is often used in precision machining equipment and electronic components, such as chip manufacturing devices, hard disk motors, high-precision machine tools, etc.

3. Machinery industry

Zirconia ceramic bearing has high compressive strength, good toughness, good wear resistance, low friction coefficient, it is widely used in the mechanical industry, such as high-speed motors, hydraulic pumps, precision machine tools, wind turbines, high-speed trains, etc., bearing long service life, good stability, reduce equipment maintenance costs;

4. Aerospace industry

Zirconia ceramic bearing because of its non-magnetic, good electrical insulation, high temperature resistance, high rigidity, good wear resistance and other advantages, in the aerospace field it has a very important application, such as aircraft engines, gyroscopes, inertial measurement devices and so on;

5. Metallurgy and high temperature environment

Zirconia bearing has high temperature resistance, good thermal shock resistance, widely used in metallurgy, rubber and plastic production equipment and other high temperature environment;

6. Medical field

Zirconia ceramic bearing has good biocompatible, also it is non-toxic and harmless to human, it has important applications in the medical field, such as artificial hip joints and artificial knee joints used in joint replacement surgery.

Size Chart of Zirconia Ceramic Ball Bearing

Committed to providing optimal zirconia ceramic ball bearing customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Please provide the requirements listed below at least, if the customized design needed:

1. Use environment, working temperature, design rotation speed, load and other parameters;

2. Size and tolerance requirements of outer diameter, inner diameter and height;

3. Drawings and specifications requirements.

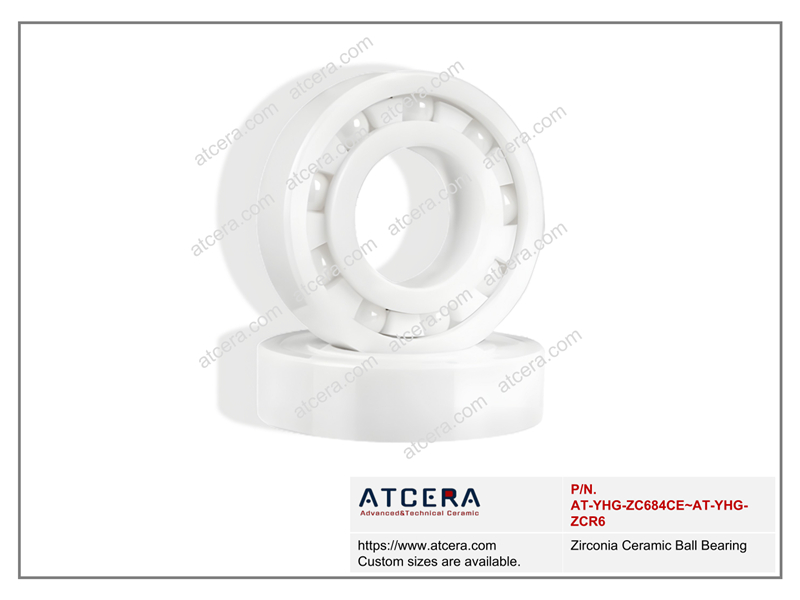

Drawing of Zirconia Ceramic Ball Bearing

Zirconia Ceramic Ball Bearing
Item No.	Model	Inner Diameter		Outer Diameter		Height		R		Weight
Item No.	Model	(mm)	Min. installation size(mm)	(mm)	Max. installation size(mm)	(mm)	Max. installation size(mm)		Max. installation value	(kg)
AT-YHG-ZC684CE	684CE	4	4.8	9	/	2.5	8.2	0.1	0.1	0.0005
AT-YHG-ZC694CE	694CE	4	5.2	11	/	4	9.8	0.15	0.15	0.0013
AT-YHG-ZC604CE	604CE	4	5.6	12	/	4	10.4	0.2	0.2	0.0017
AT-YHG-ZC624CE	624CE	4	5.6	13	/	5	11.4	0.2	0.2	0.0023
AT-YHG-ZC634CE	634CE	4	6	16	/	5	14	0.3	0.3	0.004
AT-YHG-ZC685CE	685CE	5	6.2	11	/	3	9.8	0.15	0.15	0.0009
AT-YHG-ZC695CE	695CE	5	6.6	13	/	4	11.4	0.2	0.2	0.0019
AT-YHG-ZC605CE	605CE	5	6.6	14	/	5	12.4	0.2	0.2	0.0027
AT-YHG-ZC625CE	625CE	5	7	16	/	5	14	0.3	0.3	0.0038
AT-YHG-ZC635CE	635CE	5	7	19	/	6	17	0.3	0.3	0.0066
AT-YHG-ZC686CE	686CE	6	7.2	13	/	3.5	11.8	0.15	0.15	0.0015
AT-YHG-ZC696CE	696CE	7	7.6	15	/	5	13.4	0.2	0.2	0.003
AT-YHG-ZC606CE	606CE	8	8	17	/	6	15	0.3	0.3	0.0046
AT-YHG-ZC626CE	626CE	9	8	19	/	6	17	0.3	0.3	0.0063
AT-YHG-ZC636CE	636CE	10	8	22	/	7	20	0.3	0.3	0.0108
AT-YHG-ZC687CE	687CE	7	8.2	14	/	3.5	12.8	0.15	0.15	0.0017
AT-YHG-ZC697CE	697CE	7	9	17	/	5	15	0.3	0.3	0.004
AT-YHG-ZC607CE	607CE	7	9	19	/	6	17	0.3	0.3	0.0059
AT-YHG-ZC627CE	627CE	7	9	22	/	7	20	0.3	0.3	0.0098
AT-YHG-ZC637CE	637CE	7	9	26	/	9	24	0.3	0.3	0.0185
AT-YHG-ZC688CE	688CE	8	9.6	16	/	4	14.4	0.2	0.2	0.0025
AT-YHG-ZC698CE	698CE	8	10	19	/	6	17	0.3	0.3	0.0056
AT-YHG-ZC608CE	608CE	8	10	22	/	7	20	0.3	0.3	0.0093
AT-YHG-ZC628CE	628CE	8	10	24	/	8	22	0.3	0.3	0.013
AT-YHG-ZC638CE	638CE	8	10	28	/	9	26	0.3	0.3	0.022
AT-YHG-ZC689CE	689CE	9	10.6	17	/	4	15.4	0.2	0.2	0.0027
AT-YHG-ZC699CE	699CE	9	11	20	/	6	18	0.3	0.3	0.0065
AT-YHG-ZC609CE	609CE	9	11	24	/	7	22	0.3	0.3	0.011
AT-YHG-ZC629CE	629CE	9	11	26	/	8	24	0.3	0.3	0.015
AT-YHG-ZC639CE	639CE	9	13	30	/	10	26	0.6	0.6	0.028
AT-YHG-ZC6800CE	6800CE	10	12	19	12	5	17	0.3	0.3	0.004
AT-YHG-ZC6900CE	6900CE	10	12	22	12.5	6	20	0.3	0.3	0.007
AT-YHG-ZC6000CE	6000CE	10	12	26	13	8	24	0.3	0.3	0.014
AT-YHG-ZC6200CE	6200CE	10	14	30	16	9	26	0.6	0.6	0.025
AT-YHG-ZC6300CE	6300CE	10	14	35	16.5	11	31	0.6	0.6	0.04
AT-YHG-ZC6801CE	6801CE	12	14	21	14	5	19	0.3	0.3	0.005
AT-YHG-ZC6901CE	6901CE	12	14	24	14.5	6	22	0.3	0.3	0.008
AT-YHG-ZC16001CE	16001CE	12	14	28	/	7	26	0.3	0.3	0.015
AT-YHG-ZC6001CE	6001CE	12	14	28	15.5	8	26	0.3	0.3	0.017
AT-YHG-ZC6201CE	6201CE	12	16	32	17	10	28	0.6	0.6	0.028
AT-YHG-ZC6301CE	6301CE	12	17	37	18	12	32	1	1	0.046
AT-YHG-ZC6802CE	6802CE	15	17	24	17	5	22	0.3	0.3	0.005
AT-YHG-ZC6902CE	6902CE	15	17	28	17	7	26	0.3	0.3	0.012
AT-YHG-ZC16002CE	16002CE	15	17	32	/	8	30	0.3	0.3	0.021
AT-YHG-ZC6002CE	6002CE	15	17	32	19	9	30	0.3	0.3	0.024
AT-YHG-ZC6202CE	6202CE	15	19	35	20.5	11	31	0.6	0.3	0.035
AT-YHG-ZC6302CE	6302CE	15	20	42	22.5	13	37	1	1	0.064
AT-YHG-ZC6803CE	6803CE	17	19	26	19	5	24	0.3	0.3	0.005
AT-YHG-ZC6903CE	6903CE	17	19	30	19.5	7	28	0.3	0.3	0.013
AT-YHG-ZC16003CE	16003CE	17	19	35	/	8	33	0.3	0.3	0.025
AT-YHG-ZC6003CE	6003CE	17	19	35	21.5	10	33	0.3	0.3	0.032
AT-YHG-ZC6203CE	6203CE	17	21	40	23.5	12	36	0.6	0.6	0.052
AT-YHG-ZC6303CE	6303CE	17	22	47	25.5	14	42	1	1	0.087
AT-YHG-ZC6403CE	6403CE	17	23.5	62	/	17	55.5	1.1	1	0.21
AT-YHG-ZC6804CE	6804CE	20	22	32	22.5	7	30	0.3	0.3	0.013
AT-YHG-ZC6904CE	6904CE	20	22	37	24	9	35	0.3	0.3	0.028
AT-YHG-ZC16004CE	16004CE	20	22	42	/	8	40	0.3	0.3	0.037
AT-YHG-ZC6004CE	6004CE	20	24	42	25.5	12	38	0.6	0.6	0.052
AT-YHG-ZC6204CE	6204CE	20	25	47	26.5	14	42	1	1	0.082
AT-YHG-ZC6304CE	6304CE	20	26.5	52	28	15	45.5	1.1	1	0.11
AT-YHG-ZC6404CE	6404CE	20	26.5	72	/	19	65.5	1.1	1	0.31
AT-YHG-ZC6805CE	6805CE	25	27	37	27	7	35	0.3	0.3	0.016
AT-YHG-ZC6905CE	6905CE	25	27	42	28.5	9	40	0.3	0.3	0.032
AT-YHG-ZC16005CE	16005CE	25	27	47	/	8	45	0.3	0.3	0.045
AT-YHG-ZC6005CE	6005CE	25	29	47	30	12	43	0.6	0.6	0.061
AT-YHG-ZC6205CE	6205CE	25	30	52	32	15	47	1	1	0.099
AT-YHG-ZC6305CE	6305CE	25	31.5	62	36	17	55.5	1.1	1	0.18
AT-YHG-ZC6405CE	6405CE	25	33	80	/	21	72	1.5	1.5	0.41
AT-YHG-ZC6806CE	6806CE	30	32	42	32	7	50	0.3	1	0.018
AT-YHG-ZC6906CE	6906CE	30	32	47	34	9	57	0.3	1	0.04
AT-YHG-ZC16006CE	16006CE	30	32	55	42.5	9	65.5	0.3	1	0.067
AT-YHG-ZC6006CE	6006CE	30	35	55	36.5	13	53	1	1	0.089
AT-YHG-ZC6206CE	6206CE	30	35	62	38.5	16	60	1	1	0.15
AT-YHG-ZC6306CE	6306CE	30	36.5	72	42.5	19	68.5	1.1	1	0.27
AT-YHG-ZC6406CE	6406CE	30	54	90	/	23	82	1.5	2	0.57
AT-YHG-ZC6807CE	6807CE	35	37	47	37	7	45	0.3	0.3	0.021
AT-YHG-ZC6907CE	6907CE	35	39	55	39	10	51	0.6	0.6	0.058
AT-YHG-ZC16007CE	16007CE	35	37	62	/	9	60	0.3	0.3	0.082
AT-YHG-ZC6007CE	6007CE	35	40	62	41.5	14	57	1	1	0.12
AT-YHG-ZC6207CE	6207CE	35	41.5	72	44.5	17	65.5	1.1	1	0.22
AT-YHG-ZC6307CE	6307CE	35	43	80	47	21	72	1.5	1.5	0.36
AT-YHG-ZC6407CE	6407CE	35	43	100	/	25	92	1.5	1.5	0.73
AT-YHG-ZC6808CE	6808CE	40	42	52	42	7	50	0.3	0.3	0.02
AT-YHG-ZC6908CE	6908CE	40	44	62	46	12	58	0.6	0.6	0.09
AT-YHG-ZC16008CE	16008CE	40	42	68	/	9	66	0.3	0.3	0.1
AT-YHG-ZC6008CE	6008CE	40	45	68	47.5	15	63	1	1	0.15
AT-YHG-ZC6208CE	6208CE	40	46.5	80	50.5	18	73.5	1.1	1	0.28
AT-YHG-ZC6308CE	6308CE	40	48	90	53	23	80	1.5	1.5	0.49
AT-YHG-ZC6408CE	6408CE	40	49	110	/	27	101	2	2	0.946
AT-YHG-ZC6809CE	6809CE	45	47	58	47.5	7	56	0.3	0.3	0.029
AT-YHG-ZC6909CE	6909CE	45	49	68	50	12	64	0.6	0.6	0.097
AT-YHG-ZC16009CE	16009CE	45	49	75	/	10	71	0.6	0.6	0.13
AT-YHG-ZC6009CE	6009CE	45	50	75	53.5	16	70	1	1	0.19
AT-YHG-ZC6209CE	6209CE	45	51.5	85	55.5	19	78.5	1.1	1	0.32
AT-YHG-ZC6309CE	6309CE	45	53	100	61.5	25	92	1.5	1.5	0.64
AT-YHG-ZC6409CE	6409CE	45	54	120	/	29	111	2	2	1.18
AT-YHG-ZC6810CE	6810CE	50	52	65	52.5	7	63	0.3	0.3	0.038
AT-YHG-ZC6910CE	6910CE	50	54	72	55	12	68	0.6	0.6	0.1
AT-YHG-ZC16010CE	16010CE	50	54	80	/	10	76	0.6	0.6	0.13
AT-YHG-ZC6010CE	6010CE	50	55	80	58.5	16	75	1	1	0.2
AT-YHG-ZC6210CE	6210CE	50	56.5	90	60	20	83.2	1.1	1	0.35
AT-YHG-ZC6310CE	6310CE	50	59	110	68	27	101	2	2	0.82
AT-YHG-ZC6410CE	6410CE	50	61	130	/	31	119	2.1	2	1.45
AT-YHG-ZC6811CE	6811CE	55	57	72	59	9	70	0.3	0.3	0.06
AT-YHG-ZC6911CE	6911CE	55	60	80	61.5	13	75	1	1	0.15
AT-YHG-ZC16011CE	16011CE	55	59	90	/	11	86	0.6	0.6	0.2
AT-YHG-ZC6011CE	6011CE	55	61.5	90	64	18	83.5	1.1	1	0.29
AT-YHG-ZC6211CE	6211CE	55	63	100	66.5	21	92	1.5	1.5	0.48
AT-YHG-ZC6311CE	6311CE	55	64	120	72.5	29	111	2	2	1.05
AT-YHG-ZC6411CE	6411CE	55	66	140	/	33	129	2.1	2	1.76
AT-YHG-ZC6812CE	6812CE	60	62	78	64	10	76	0.3	0.3	0.08
AT-YHG-ZC6912CE	6912CE	60	65	85	66	13	80	1	1	0.15
AT-YHG-ZC16012CE	16012CE	60	64	95	/	11	91	0.6	0.6	0.22
AT-YHG-ZC6012CE	6012CE	60	66.5	95	69	18	88.5	1.1	1	0.32
AT-YHG-ZC6212CE	6212CE	60	68	110	74.5	22	102	1.5	1.5	0.6
AT-YHG-ZC6312CE	6312CE	60	71	130	79	31	119	2.1	2	1.32
AT-YHG-ZC6412CE	6412CE	60	71	150		35	139	2.1	2	2.13
AT-YHG-ZC6813CE	6813CE	65	69	85	69	10	81	0.6	0.6	0.1
AT-YHG-ZC6913CE	6913CE	65	70	90	71.5	13	85	1	1	0.17
AT-YHG-ZC16013CE	16013CE	65	69	100	/	11	96	0.6	0.6	0.23
AT-YHG-ZC6013CE	6013CE	65	71.5	100	73	18	93.5	1.1	1	0.34
AT-YHG-ZC6213CE	6213CE	65	73	120	80	23	112	1.5	1.5	0.77
AT-YHG-ZC6313CE	6313CE	65	76	140	85.5	33	129	2.1	2	1.62
AT-YHG-ZC6814CE	6814CE	70	74	90	74.5	10	86	0.6	0.6	0.1
AT-YHG-ZC6914CE	6914CE	70	75	100	77.5	16	95	1	1	0.27
AT-YHG-ZC16014CE	16014CE	70	74	110	/	13	106	0.6	0.6	0.34
AT-YHG-ZC6014CE	6014CE	70	76.5	110	80.5	20	103.5	1.1	1	0.47
AT-YHG-ZC6214CE	6214CE	70	78	125	84	24	117	1.5	1.5	0.84
AT-YHG-ZC6314CE	6314CE	70	81	150	92	35	139	2.1	2	1.98
AT-YHG-ZC6815CE	6815CE	75	79	95	79.5	10	91	0.6	0.6	0.11
AT-YHG-ZC6915CE	6915CE	75	80	105	82	16	100	1	1	0.28
AT-YHG-ZC16015CE	16015CE	75	79	115	/	13	111	0.6	0.6	0.36
AT-YHG-ZC6015CE	6015CE	75	81.5	115	85.5	20	108.5	1.1	1	0.5
AT-YHG-ZC6215CE	6215CE	75	83	130	90	25	122	1.5	1.5	0.92
AT-YHG-ZC6816CE	6816CE	80	84	100	84.5	10	96	0.6	0.6	0.12
AT-YHG-ZC6916CE	6916CE	80	85	110	87.5	16	105	1	1	0.3
AT-YHG-ZC16016CE	16016CE	80	84	125	/	14	121	0.6	0.6	0.48
AT-YHG-ZC6016CE	6016CE	80	86.5	125	91	22	118.5	1.1	1	0.67
AT-YHG-ZC6216CE	6216CE	80	89	140	95.5	26	131	2	2	1.09
AT-YHG-ZC6817CE	6817CE	85	90	110	90.5	13	105	1	1	0.2
AT-YHG-ZC6917CE	6917CE	85	91.5	120	94.5	18	113.5	1.1	1	0.42
AT-YHG-ZC16017CE	16017CE	85	89	130	/	14	126	0.6	0.6	0.5
AT-YHG-ZC6017CE	6017CE	85	91.5	130	96	22	123.5	1.1	1	0.71
AT-YHG-ZC6217CE	6217CE	85	94	150	102	28	141	2	2	1.35
AT-YHG-ZC6818CE	6818CE	90	95	115	95.5	13	110	1	1	0.21
AT-YHG-ZC6918CE	6918CE	90	96.5	125	98.5	18	118.5	1.1	1	0.45
AT-YHG-ZC16018CE	16018CE	90	95	140	/	16	135	1	1	0.67
AT-YHG-ZC6018CE	6018CE	90	98	140	103	24	132	1.5	1.5	0.92
AT-YHG-ZC6819CE	6819CE	95	100	120	102	13	115	1	1	0.23
AT-YHG-ZC6919CE	6919CE	95	101.5	130	104	18	123.5	1.1	1	0.46
AT-YHG-ZC16019CE	16019CE	95	100	145	/	16	140	1	1	0.7
AT-YHG-ZC6019CE	6019CE	95	103	145	109	24	137	1.5	1.5	0.95
AT-YHG-ZC6820CE	6820CE	100	105	125	106	13	120	1	1	0.24
AT-YHG-ZC6920CE	6920CE	100	106.5	140	111	20	133.5	1.1	1	0.64
AT-YHG-ZC16020CE	16020CE	100	105	150	/	16	145	1	1	0.73
AT-YHG-ZC6020CE	6020CE	100	108	150	113	24	142	1.5	1.5	0.99
AT-YHG-ZC6821CE	6821CE	105	110	130	111	13	125	1	1	0.25
AT-YHG-ZC6921CE	6921CE	105	111.5	145	116	20	138.5	1.1	1	0.66
AT-YHG-ZC6822CE	6822CE	110	115	140	117	16	135	1	1	0.38
AT-YHG-ZC6922CE	6922CE	110	116.5	150	121	20	143.5	1.1	1	0.69
AT-YHG-ZC6824CE	6824CE	120	125	150	127	16	145	1	1	0.41
AT-YHG-ZC6924	6924	120	/	165	/	22	/	1.1	/	1.08
AT-YHG-ZC16024	16024	120	/	180	/	19	/	1	/	1.38
AT-YHG-ZC6024	6024	120	/	180	/	28	/	2	/	1.6
AT-YHG-ZC6224	6224	120	/	215	/	40	/	2.1	/	3.96
AT-YHG-ZC6324	6324	120	/	260	/	55	/	3	/	9.62
AT-YHG-ZC6826	6826	130	/	165	/	18	/	1.1	/	0.72
AT-YHG-ZC6926	6926	130	/	180	/	24	/	1.5	/	1.43
AT-YHG-ZC16026	16026	130	/	200	/	22	/	1.1	/	2.07
AT-YHG-ZC6026	6026	130	/	200	/	33	/	2	/	2.43
AT-YHG-ZC6226	6226	130	/	230	/	40	/	3	/	4.48
AT-YHG-ZC6326	6326	130	/	280	/	58	/	4	/	11.6
AT-YHG-ZC6828	6828	140	/	175	/	18	/	1.1	/	0.77
AT-YHG-ZC6928	6928	140	/	190	/	24	/	1.5	/	1.52
AT-YHG-ZC16028	16028	140	/	210	/	22	/	1.1	/	2.2
AT-YHG-ZC6028	6028	140	/	210	/	33	/	2	/	2.73
AT-YHG-ZC6228	6228	140	/	250	/	42	/	3	/	5.73
AT-YHG-ZC6328	6328	140	/	300	/	62	/	4	/	14.9
AT-YHG-ZC6830	6830	150	/	190	/	20	/	1.1	/	1.08
AT-YHG-ZC6930	6930	150	/	210	/	28	/	2	/	2.35
AT-YHG-ZC16030	16030	150	/	225	/	24	/	1.1	/	2.75
AT-YHG-ZC6030	6030	150	/	225	/	35	/	2.1	/	3.25
AT-YHG-ZC6230	6230	150	/	270	/	45	/	3	/	7.24
AT-YHG-ZC6330	6330	150	/	320	/	65	/	4	/	20.15
AT-YHG-ZC60/22	60/22	22	/	44	/	12	/	0.6	/	0.057
AT-YHG-ZC62/22	62/22	22	/	50	/	14	/	1	/	0.092
AT-YHG-ZC63/22	63/22	22	/	56	/	16	/	1.1	/	0.138
AT-YHG-ZC60/28	60/28	28	/	52	/	12	/	0.6	/	0.074
AT-YHG-ZC62/28	62/28	28	/	58	/	16	/	1	/	0.135
AT-YHG-ZC63/28	63/28	28	/	68	/	18	/	1.1	/	0.221
AT-YHG-ZC60/32	60/32	33	/	58	/	13	/	1	/	0.094
AT-YHG-ZC62/32	62/32	33	/	65	/	17	/	1	/	0.173
AT-YHG-ZC63/32	63/32	33	/	75	/	20	/	1.1	/	0.299
AT-YHG-ZC603CE	603CE	3	/	9	/	3	/	/	/	/
AT-YHG-ZC606CE	606CE	6	/	17	/	6	/	/	/	/
AT-YHG-ZCMR117	MR117	7	/	11	/	3	/	/	/	/
AT-YHG-ZCMR128	MR128	8	/	12	/	3.5	/	/	/	/
AT-YHG-ZCMR85	MR85	5	/	8	/	2.5	/	/	/	/
AT-YHG-ZCMR63-1	MR63-1	3	/	6	/	2.5	/	/	/	/
AT-YHG-ZCMR85-1	MR85-1	5	/	8	/	2	/	/	/	/
AT-YHG-ZCMR148	MR148	8	/	14	/	4	/	/	/	/
AT-YHG-ZCMR84	MR84	4	/	8	/	2	/	/	/	/
AT-YHG-ZCMR126	MR126	6	/	12	/	4	/	/	/	/
AT-YHG-ZCMR74-1	MR74-1	4	/	7	/	2	/	/	/	/
AT-YHG-ZCMR84-1	MR84-1	4	/	8	/	3	/	/	/	/
AT-YHG-ZCMR74	MR74	4	/	7	/	2.5	/	/	/	/
AT-YHG-ZCMR148	MR148	8	/	14	/	3.5	/	/	/	/
AT-YHG-ZCMR63	MR63	3	/	6	/	2	/	/	/	/
AT-YHG-ZCMR103	MR103	3	/	10	/	4	/	/	/	/
AT-YHG-ZCMR104	MR104	4	/	10	/	4	/	/	/	/
AT-YHG-ZCMR105	MR105	5	/	10	/	3	/	/	/	/
AT-YHG-ZCMR105-1	MR105-1	5	/	10	/	4	/	/	/	/
AT-YHG-ZCMR106	MR106	6	/	10	/	2.5	/	/	/	/
AT-YHG-ZCMR106-1	MR106-1	6	/	10	/	3	/	/	/	/
AT-YHG-ZCMR115	MR115	5	/	11	/	4	/	/	/	/
AT-YHG-ZCMR52	MR52	2	/	5	/	2.5	/	/	/	/
AT-YHG-ZCMR62	MR62	2	/	6	/	2.5	/	/	/	/
AT-YHG-ZCMR94	MR94	4	/	9	/	3	/	/	/	/
AT-YHG-ZCMR95	MR95	5	/	9	/	3	/	/	/	/
AT-YHG-ZCR188	R188	6.35	/	12.7	/	4.763	/	/	/	/
AT-YHG-ZCR6	R6	9.525	/	22.225	/	5.556	/	/	/	/

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instruction

1. Bearing selection

Zirconia bearing is precision parts, need to choose the appropriate bearings according to the size of the shaft, tolerance and load, to avoid improper fit or overload.

2. Bearing installation

When install zirconia ceramic bearing, it is necessary to apply equal pressure on the circumference of the ring end face. In order to load the ring, it is forbidden to hit the bearing end face directly with a hammer, so as not to damage the bearing.

3. Matching of bearing and shaft

The fit selection of zirconia ceramic bearing must be selected according to the load direction and load features. For rotating load and indefinite load, the ring should adopt a static fit, and for static load, the combination of excessive fit and dynamic fit can be adopted.

4. Bearing lubrication

The zirconia ceramic bearing itself has a certain lubricity, but in order to further increase lubrication and ensure the service life of the bearing under high-speed rotation, an appropriate amount of lubricating oil or grease can be added.

5. Bearing maintenance

Regularly check the vibration and noise of zirconia bearing, the temperature of bearing operation and the state of lubricating oil, according to the use of the environment and operating conditions of regular cleaning and maintenance, timely clean off the debris on the bearing.

Valuable Information

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Preparation Of Aluminum Nitride Substrate And Selection Of Sintering Additives

In the field of high-tech materials, aluminum nitride (AlN) ceramics, with its excellent thermal conductivity, excellent electrical insulation properties and excellent mechanical strength, have become the core material in key fields such as electronic packaging, power electronics and microwave communication equipment. However, the preparation of aluminum nitride substrate is a complex process...

Application Requirements Of Aluminum Nitride Substrate

Aluminum nitride (AlN) as an advanced ceramic material, because of its unique physical and chemical properties, has shown great application potential in electronic packaging, power electronics, high frequency communication and other fields. As a core component in these fields, aluminum nitride substrates not only have to meet the basic physical performance requirements, but also need to ...

Effect Of Bulk Density Of Granulated Powder On Sintering Densification Of Silicon Nitride Balls

Si3N4 powder is the main raw material for the preparation of silicon nitride balls. Selecting the appropriate treatment method to obtain the powder with regular shape and uniform particle size distribution is the basis for the stable implementation of Si3N4 ceramic ball forming, sintering, processing and other processes. According to the different atomization methods, the spray gr...

Optimizing The Spray Granulation Process To Improve The Performance Of Si3N4 balls

Silicon nitride (Si3N4) balls show great potential in the field of high-speed, high-precision, long-life bearings due to their excellent properties, such as lightweight, self-lubricating, high insulation, non-magnetic, high elastic modulus and excellent corrosion resistance. This paper aims to discuss the optimization of the spray granulation process of Si3N4 powder, especially the press...

Silicon Nitride Ball: A New Choice For High-Tech Powder Grinding Media

With the rapid development of high-tech industry, the requirements for fineness, purity and consistency of powder materials are increasing. As a key component in the powder preparation process, the performance of grinding medium directly determines the quality of the final product. Traditionally, zirconia ceramic balls are widely used in the field of ultra-fine grinding because of their high bendi...

Application Performance And Advantage Analysis Of Silicon Nitride Ball In Ultrafine Grinding Field

With the rapid development of nanotechnology and ultrafine material science, the demand for high-purity and ultrafine powder is increasing day by day. Silicon nitride ball, with its excellent hardness, very low wear rate and good chemical stability, has gradually become the key grinding medium in the field of ultrafine grinding. The purpose of this paper is to systematically describe the performan...

Study On Performance Characteristics And Application Of Silicon Nitride Ball In Mechanical Engineering Field

With the rapid development of modern mechanical engineering technology, the requirements for material properties are increasingly stringent, especially under extreme conditions such as high temperature, high speed, strong corrosion, etc., traditional metal materials and polymer materials have been difficult to meet the needs. Silicon nitride (Si ₄) As an advanced ceramic material with excellent ov...

Sol-gel Polishing Technology: Challenges And Opportunities To Innovate Silicon Carbide Substrate Polishing

Silicon carbide, the emerging star of the semiconductor material industry, is gradually leading the innovation trend of microelectronics technology with its excellent performance indicators. Its unique thermal conductivity, far superior to traditional semiconductor materials, provides the possibility for efficient heat dissipation, especially in high-power electronic devices show unparalleled adva...

Application And Advantages Of Plasma Assisted Polishing In AlN Substrate Processing

Aluminum nitride (AlN) ceramics, as a material with excellent thermal conductivity, mechanical properties and electrical properties, have been widely used in large-scale integrated circuits and electronic packages in recent years. Its excellent properties make it an ideal cooling substrate and packaging material. However, due to the high hardness, high brittleness and low fracture toughness of alu...

Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology

In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...

Zirconia Ceramic Valve Disc Ceramic Cartridge

Zirconia Ceramic Ferrule Ceramic Optical Fiber Ferrule

Zirconia Ceramic Ferrule Sleeve Zirconia Split Sleeve

Zirconia Ceramic Blade Ceramic Cutting Blade

Zirconia Ceramic Gauge Zirconia Gauge Set

Zirconia Oxygen Sensor Chip Ceramic Oxygen Sensor Element

Zirconia Ceramic Mobile Phone Back Cover

Zirconia Ceramic Piezoelectric Injector Pin

FAQ

Do you supply the materials unlisted on your website?

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Can you aid in material selection & ceramic product design?

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

Do you have a minimum order value requirement?

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

What services beyond ceramic products do you offer?

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Do you offer international shipping services?

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.

All FAQs

Send Your inquiry

Contact With Us

Contact With Us

Looking for Video?

Office Hours

Monday to Friday: 9:00 AM - 12:00 PM, 2:00 PM - 5:30 PM

Please note that our office hours are based on Beijing Time, which is eight hours ahead of Greenwich Mean Time (GMT). We appreciate your understanding and cooperation in scheduling your inquiries and meetings accordingly. For any urgent matters or queries outside our regular hours, feel free to contact us via email, and we will get back to you as soon as possible. Thank you for your business, and we look forward to serving you.

Home

Products

contact
