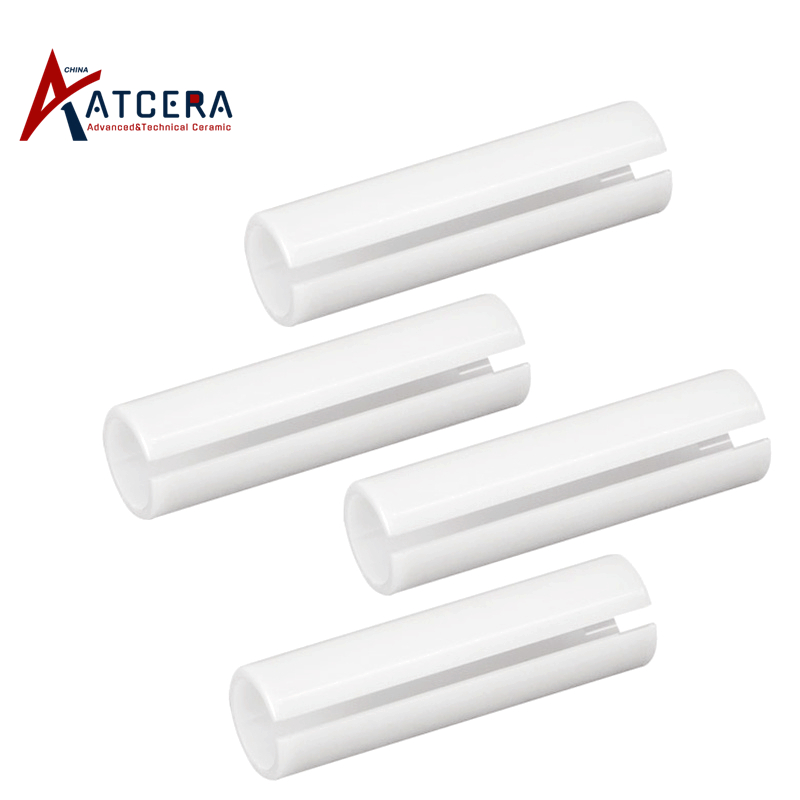

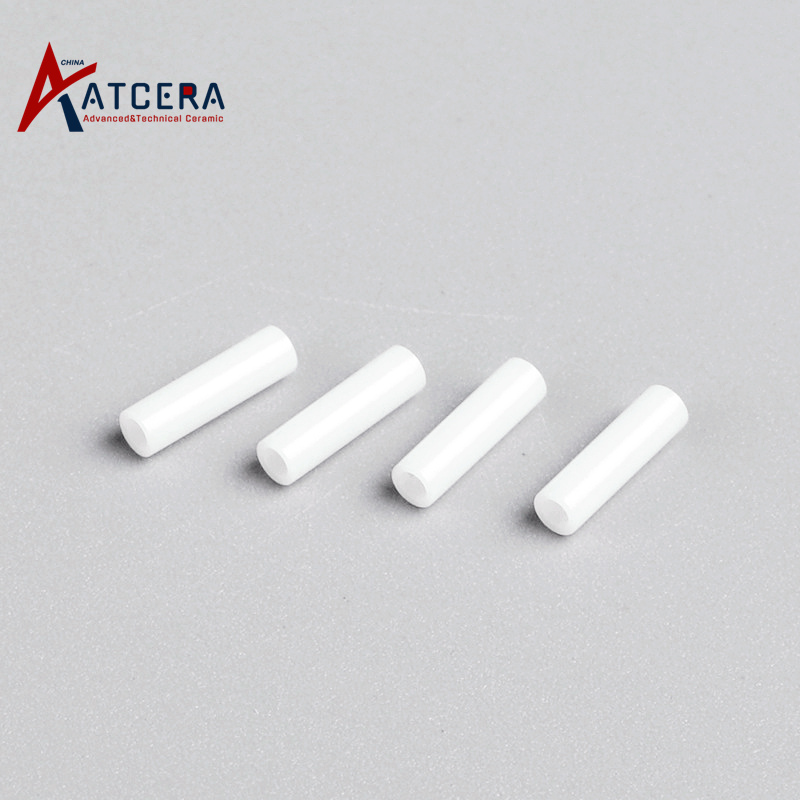

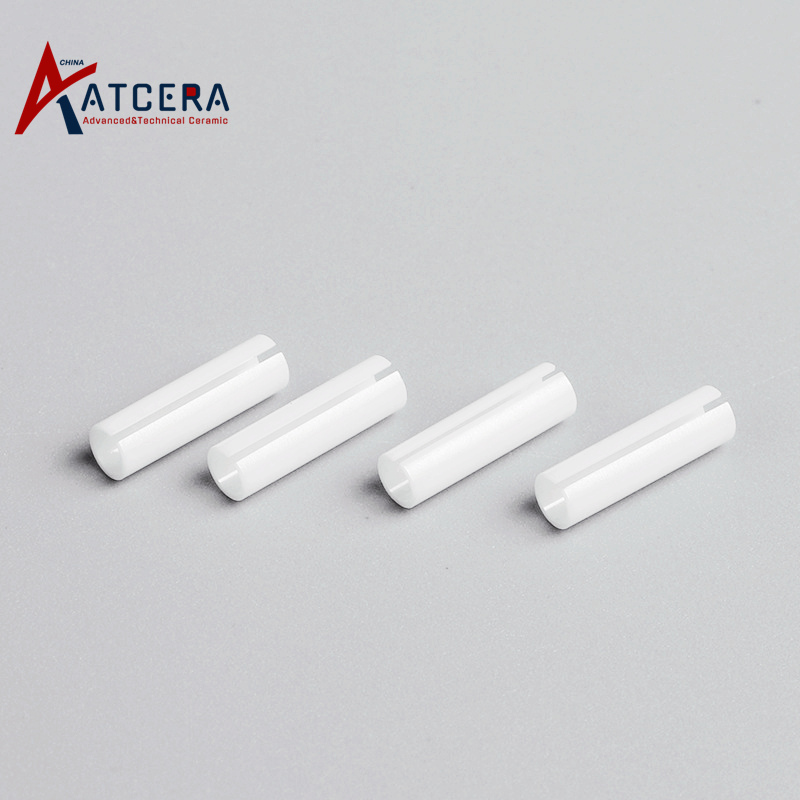

Zirconia Ceramic Ferrule Sleeve Zirconia Split Sleeve

Zirconia ceramic sleeve is one of the key components in optical fiber connector, its role is to achieve accurate physical connection of two optical fibers, so that the complete transmission of communication signals without attenuation and loss, to achieve rapid and reliable on-off connection between optical fiber and equipment, optical fiber and instrument, optical fiber and optical fiber.

Brand:
ATCERA
Item NO.:
AT-YHG-TT001

Materials
Zirconia
Shapes
Mechanical Parts
Applications
Communications

Inquire Now

Features of Zirconia Ceramic Ferrule Sleeve

Zirconia ceramic sleeve has the advantages of high hardness, good wear resistance, high machining precision and good thermal stability, acid & alkali and chemical corrosion resistance, good electrical insulation.

1. Zirconia ceramic can get high processing accuracy, with very small deviation of concentricity and inner hole roundness, to ensure accurate connection of two optical fibers, can effectively reduce loss and back reflection;

2. With high mechanical strength, can effectively protect fiber connection points;

3. Surface finish of the inner hole is high, operation is simple, the risk of optical fiber damage during connection can be reduced;

4. Zirconia ceramic sleeve has high temperature and high humidity resistance, excellent aging resistance and durability, service life is long.

Applications of Zirconia Ferrule Sleeve

Zirconia ceramic sleeve is used for optical fiber connectors to realize the physical connection of optical fibers.

Zirconia ceramic sleeve is used in optical fiber connectors to realize the physical connection of optical fibers, therefore it has an irreplaceable role in optical communication, medical treatment, industrial automation, optical detection and other applications.

Size Chart of Zirconia Ceramic Ferrule Sleeve

Committed to providing prime zirconia ceramic ferrule sleeve customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Provide drawing and specification requirements for customized design.

Send Requirements for Custom Design

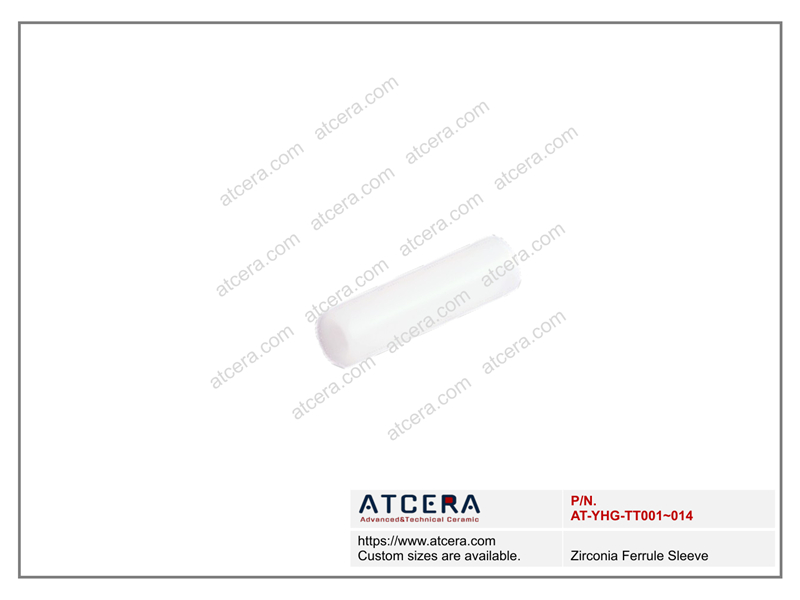

Drawing of Zirconia Ferrule Sleeve

Zirconia Ferrule Sleeve
Item No.	Outer Diameter (mm) Tolerance: ±0.001	Inner Diameter (mm) Tolerance: ±0.0005	Length (mm) Tolerance: ±0.015	Note
AT-YHG-TT001	0.70	0.50	1~50	Working Temperature: -40℃—+85℃ Durability: ＜0.2db Withdrawal Force: 2-6N
AT-YHG-TT002	1.62	1.25	1~50
AT-YHG-TT003	1.85	1.57	1~50
AT-YHG-TT004	2.05	1.68	1~50
AT-YHG-TT005	2.45	2.00	1~50
AT-YHG-TT006	3.35	2.50	1~50
AT-YHG-TT007	3.85	3.00	1~50
AT-YHG-TT008	5.40	3.20	1~50
AT-YHG-TT009	6.00	3.40	1~50
AT-YHG-TT010	7.00	3.60	1~50
AT-YHG-TT011	8.50	4.50	1~50
AT-YHG-TT012	10.50	6.45	1~50
AT-YHG-TT013	15.50	13.50	1~50
AT-YHG-TT014	20.00	17.80	1~50

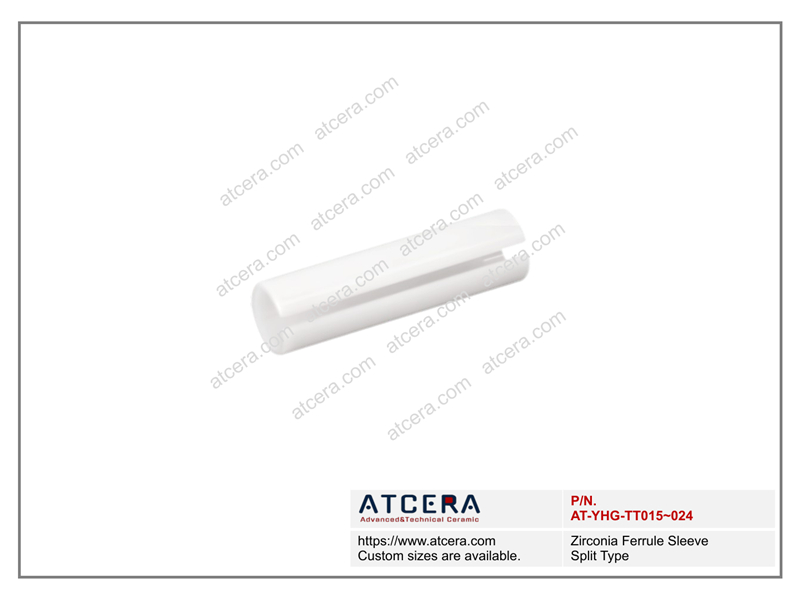

Drawing of Zirconia Ferrule Sleeve Split Type

Zirconia Ferrule Sleeve Split Type
Item No.	Outer Diameter (mm) Tolerance: ±0.001	Inner Diameter (mm) Tolerance: ±0.0005	Length (mm) Tolerance: ±0.015	Note
AT-YHG-TT015	0.80	0.50	2.5~15	Working Temperature: -40℃—+85℃ Durability: ＜0.2db Withdrawal Force: 2-6N
AT-YHG-TT016	1.00	0.65	2.5~15
AT-YHG-TT017	1.62	1.25	2.5~15
AT-YHG-TT018	2.05	1.68	2.5~15
AT-YHG-TT019	2.45	1.95	2.5~15
AT-YHG-TT020	3.20	2.50	2.5~15
AT-YHG-TT021	4.05	3.20	2.5~15
AT-YHG-TT022	4.65	3.85	2.5~15
AT-YHG-TT023	4.90	4.05	2.5~15
AT-YHG-TT024	5.00	3.00	2.5~15

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Keep clean: the surface of zirconia ceramic sleeve should be kept clean before and during use to avoid oil, dust and other impurities affecting its performance.

2. Select appropriate size: appropriate size and specification of zirconia ceramic sleeve should be selected according to the requirements.

3. Avoid contact with corrosive substances: Zirconia ceramic sleeve should avoid contact with corrosive chemicals during use, so as not to cause damage to it.

4. Avoid heavy pressure: zirconia optical fiber sleeve can not withstand too high pressure, otherwise normal performance might be influenced.

5. Regular inspection: the status and use of zirconia ceramic sleeve should be regularly checked after installation, it should be processed and replaced in time if any abnormality.

Valuable Information

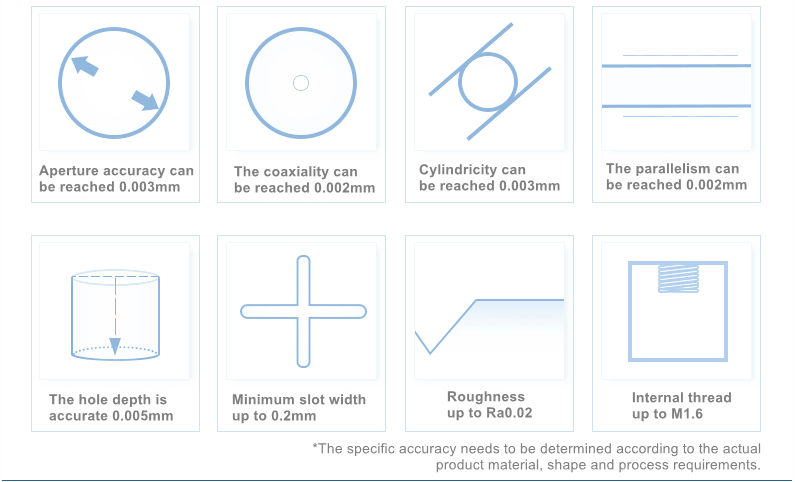

Machining Precision

1. Outer Diameter Tolerance: ±0.001mm

2. Inner Diameter Tolerance: ±0.0005mm

3. Length Tolerance: ±0.015mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
