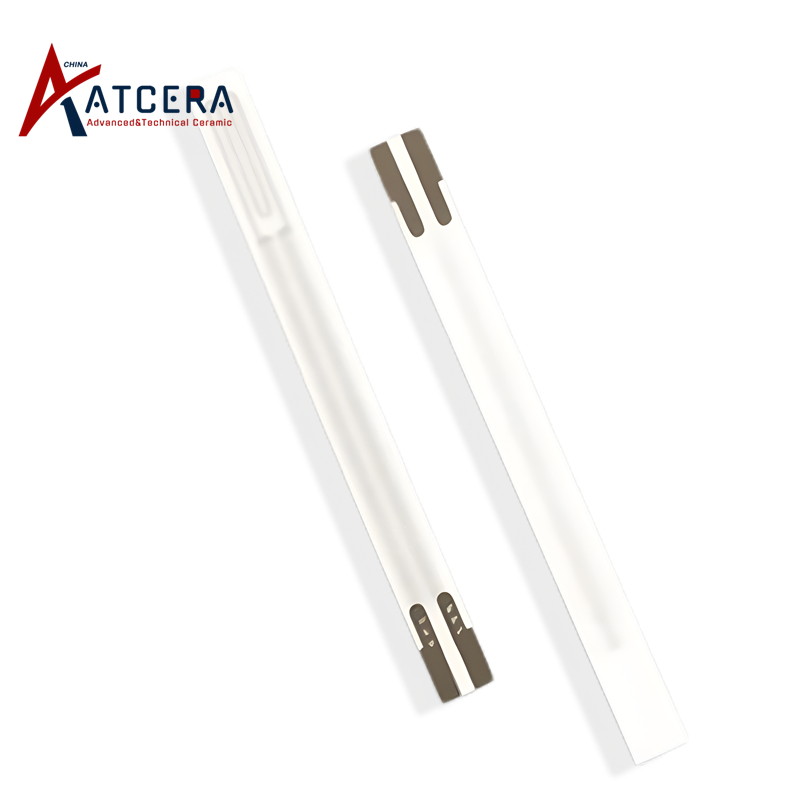

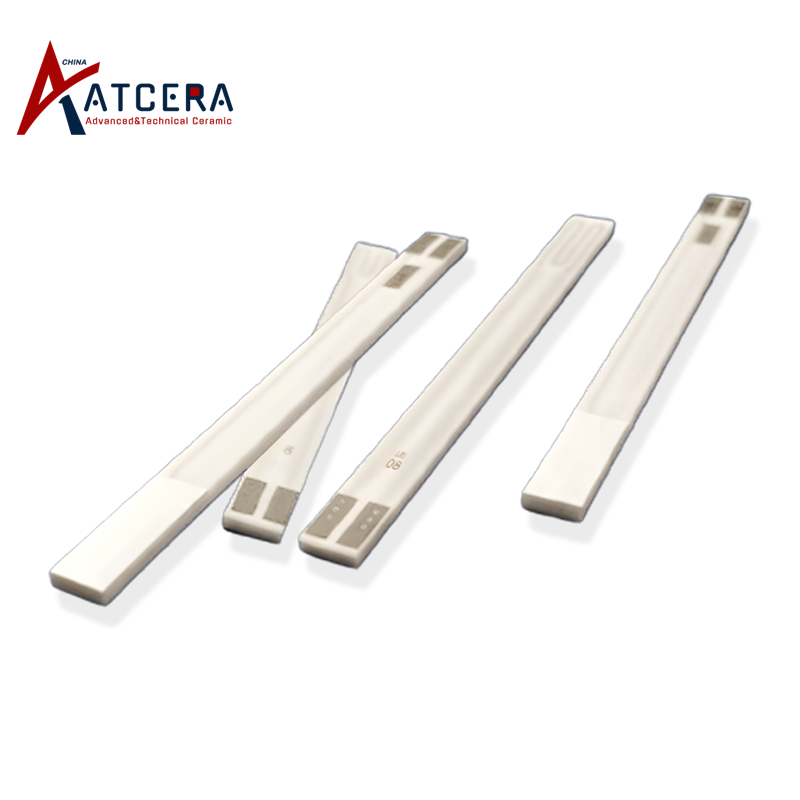

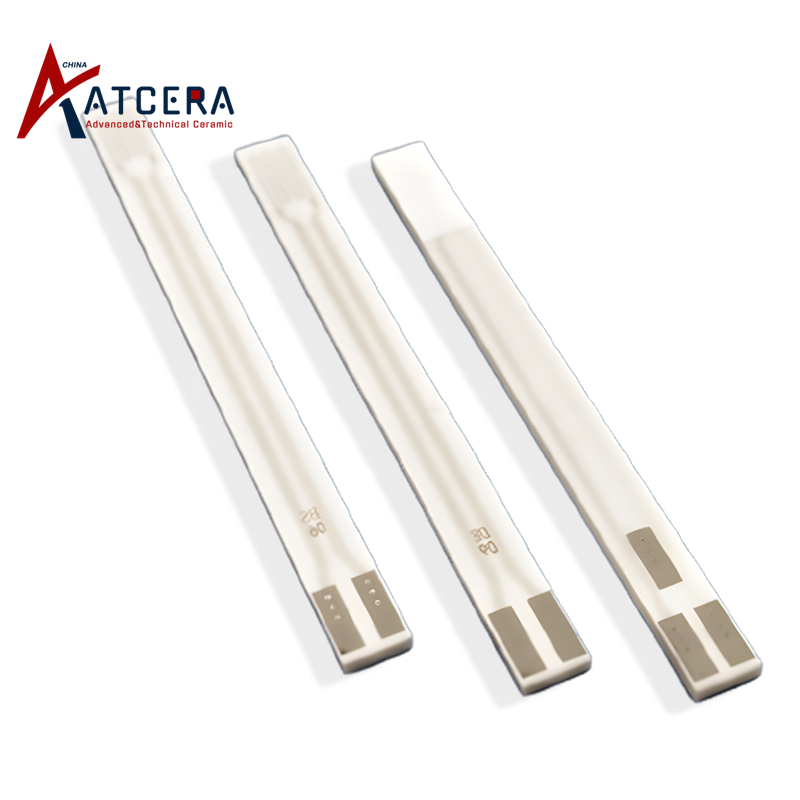

Zirconia Oxygen Sensor Chip Ceramic Oxygen Sensor Element

The core element of zirconia oxygen sensor is the zirconia ceramic chip, as a solid electrolyte, it produces oxygen ions at high temperatures and becomes a conductor. When the oxygen concentration on both sides of the zirconia ceramic tube is different, oxygen ions will produce migration and form an electromotive force. This principle can be used to detect the oxygen concentration in the engine exhaust gas and high temperature flue gas, which can be applied to control the air-fuel ratio and improve the combustion efficiency, also reduce harmful gas emissions.

Brand:
ATCERA
Item NO.:
AT-YHG-YC001

Materials
Zirconia
Shapes
Mechanical Parts
Applications
Petrochemical Industry

Inquire Now

Properties of Zirconia Oxygen Sensor Chip

Fast ignition, quick response, high strength, high ionic conductivity, high temperature resistance, good thermal shock resistance, good corrosion resistance.

1. The zirconia oxygen sensor heater owns high temperature resistance and strong anti-poisoning ability;

2. With heater integreated, low heating power, fast ignition and response;

3. Good aging resistance and long service life.

Applications of Zirconia Ceramic Oxygen Sensor Element

Zirconia oxygen sensor is the key component of the engine control system, which is used to detect the oxygen concentration in the exhaust gas, feed the test results to the ECU, and control the amount of fuel injection to maintain the theoretical air-fuel ratio of the engine, so as to control the automobile exhaust emissions, reduce the environmental pollution of the automobile, and improve the combustion efficiency of the automobile engine.

Zirconia oxygen sensor is used in various internal combustion engines to monitor the oxygen content in engine exhaust to control pollutant emissions and improve fuel combustion efficiency. It plays an irreplaceable role in the automotive industry and construction machinery industry.

Size Chart of Zirconia Oxygen Sensor Chip

We are committed to delivering optimal zirconia ceramic oxygen sensor element tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Please provide the requirements listed below at least, if the customized design needed:

1. Sensor types, including air-fuel ratio type oxygen sensor, switch type oxygen sensor and five-wire wide range type planar oxygen sensor

2. Specification request

3. Drawings

Send Requirements for Custom Design

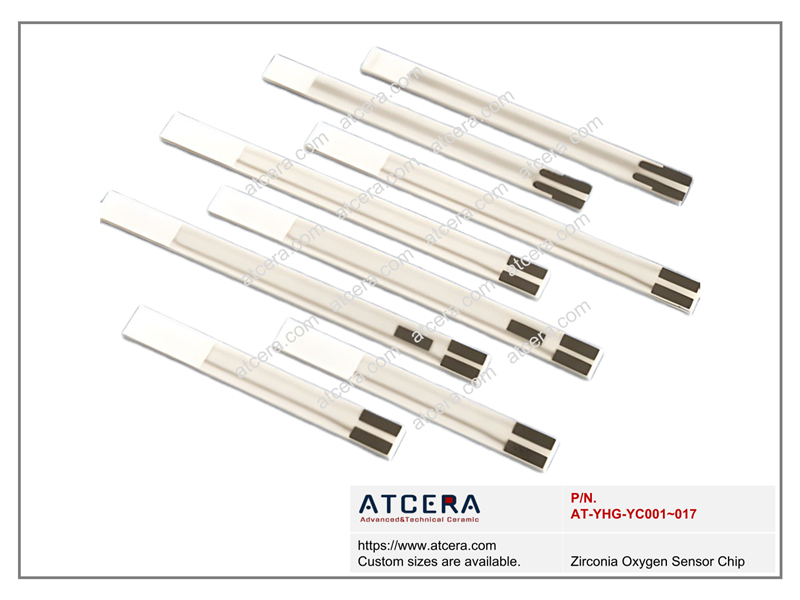

Drawing of Zirconia Oxygen Sensor Chip

Zirconia Oxygen Sensor Chip For Switch Type Oxygen Sensor
Item NO.	Length (mm) ±0.5	Width (mm) ±0.1	Thickness (mm) ±0.1	Resistance (Ω) under temp. of 24℃±3℃	Note
AT-YHG-YC001	58.6	4.4	1.28	9.0±1.5	/
AT-YHG-YC002	54.0	4.4	1.28	9.0±1.5	/
AT-YHG-YC003	54.0	4.4	1.28	6.0±1.2	/
AT-YHG-YC004	54.0	4.4	1.28	13.0±1.5	/
AT-YHG-YC005	36.5	4.2	1.28	9.0±1.5	/
AT-YHG-YC006	36.0	4.4	1.28	3.0±0.5	/
AT-YHG-YC007	30.0	2.5	0.90	/	2 wires
AT-YHG-YC008	27.0	2.5	0.90	17.0±3.0	/

Zirconia Oxygen Sensor Chip For Air-fuel Ratio Type Oxygen Sensor
Item NO.	Length (mm) ±0.5	Width (mm) ±0.1	Thickness (mm) ±0.1	Resistance (Ω) under temp. of 24℃±3℃	Note
AT-YHG-YC009	46.2	4.0	1.45	2.1±0.3	@A/F=4%,lp=0.3mA
AT-YHG-YC010	46.2	4.0	1.45	2.1±0.3	@A/F=4%,lp=0.5mA

Zirconia Oxygen Sensor Chip For Five-wire Wide Range Type Planar Oxygen Sensor
Item NO.	Length (mm) ±0.5	Width (mm) ±0.1	Thickness (mm) ±0.1	Resistance (Ω) under temp. of 24℃±3℃	Note
AT-YHG-YC011	52.5	4.2	1.30	2.8±0.4	@air,lp=4.0mA
AT-YHG-YC012	52.5	4.2	1.30	2.8±0.4	@air,lp=6.0mA
AT-YHG-YC013	59.6	4.4	1.30	3.1±0.4	@air,lp=4.0mA
AT-YHG-YC014	59.6	4.4	1.30	3.0±0.4	@air,lp=4.0mA
AT-YHG-YC015	55.0	4.25	1.30	3.0±0.4	@air,lp=4.0mA
AT-YHG-YC016	55	4.25	1.30	3.0±0.4	@air,lp=4.0mA
AT-YHG-YC017	52.0	4.2	1.30	3.4±0.5	@air,lp=6.0mA

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Check the zirconia oxygen sensor chip before assembly, the surface should be smooth, and the porosity is not blocked;

2. Pay attention to the strength during assembly, prohibit violent impact to prevent breakage;

3. The wiring needs to follow the defined specification to prevent mis-connection or omissions;

4. When test gas sensitivity, test it in a clean atmosphere to prevent large particles of dust or debris from blocking the sampling pores;

5. Check and maintain the oxygen sensor regularly, replace the oxygen sensor in time when it fails or reaches the replacement period.

Valuable Information

Machining Precision

1. Length tolerance: ±0.5mm

2. Width tolerance: ±0.1mm

3. Thickness tolerance: ±0.1mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
