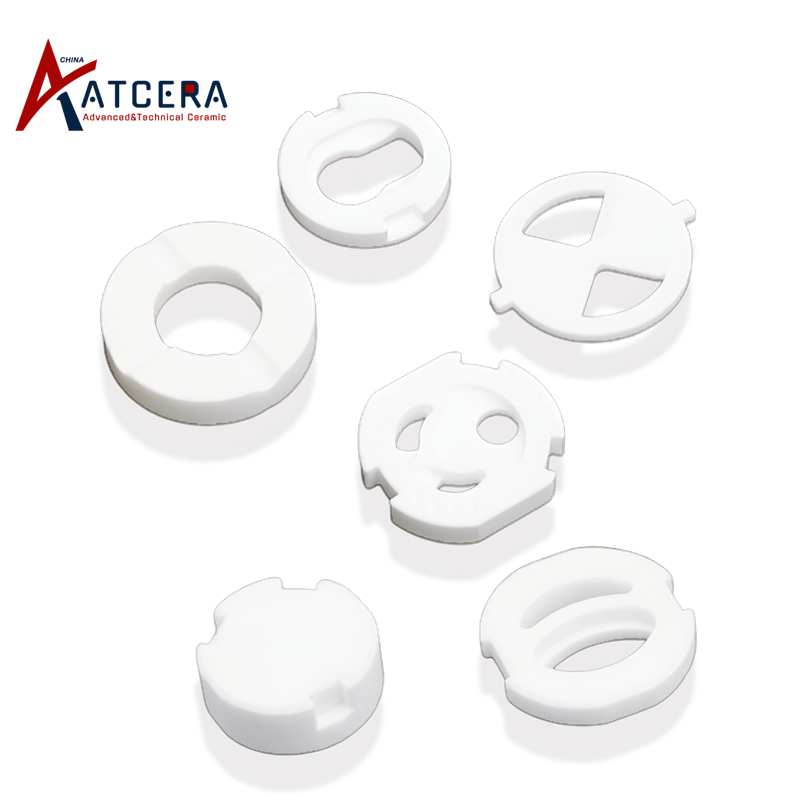

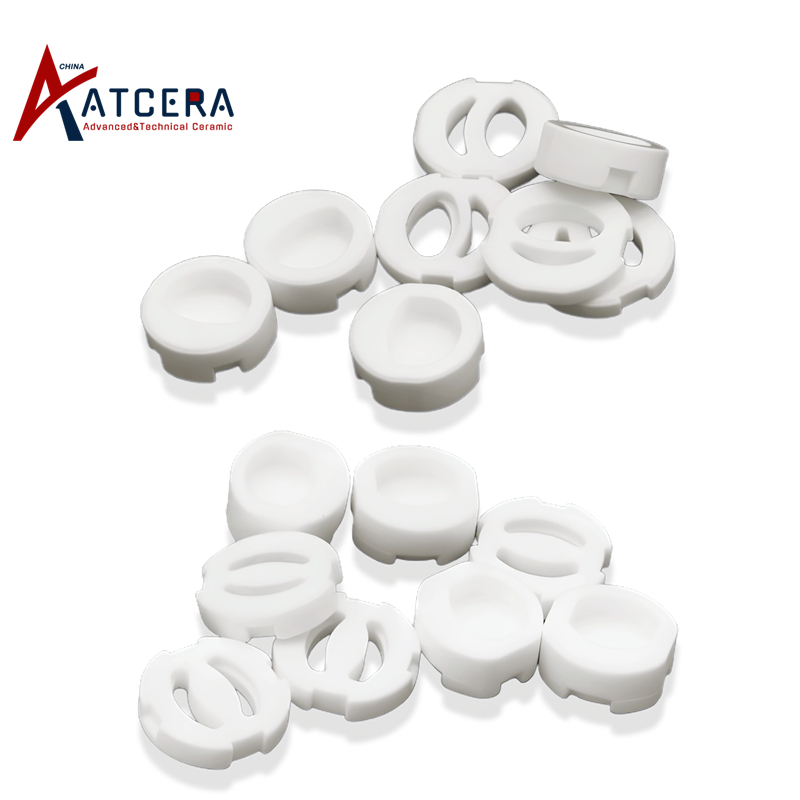

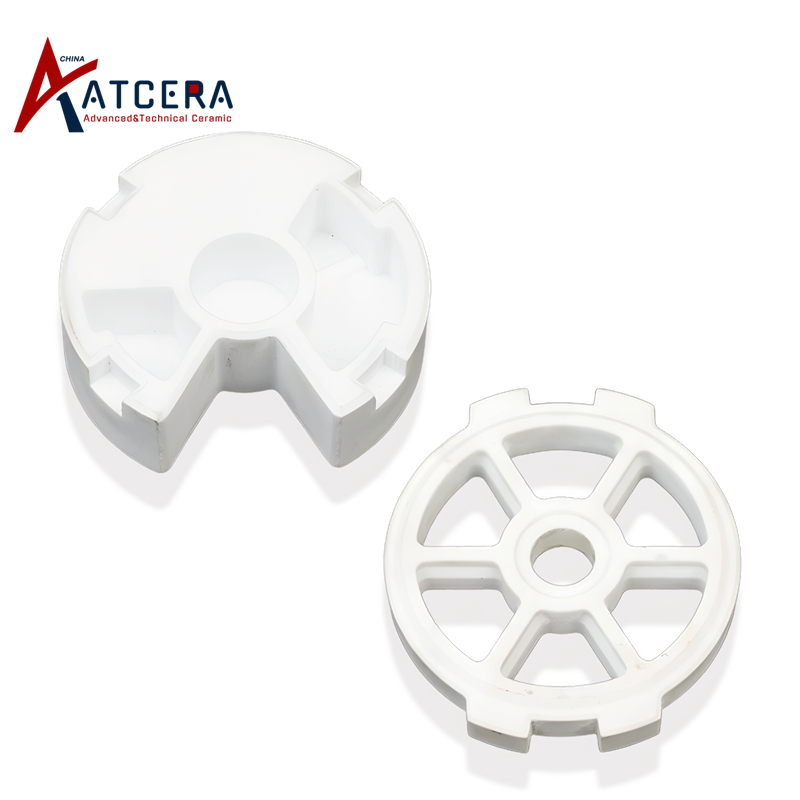

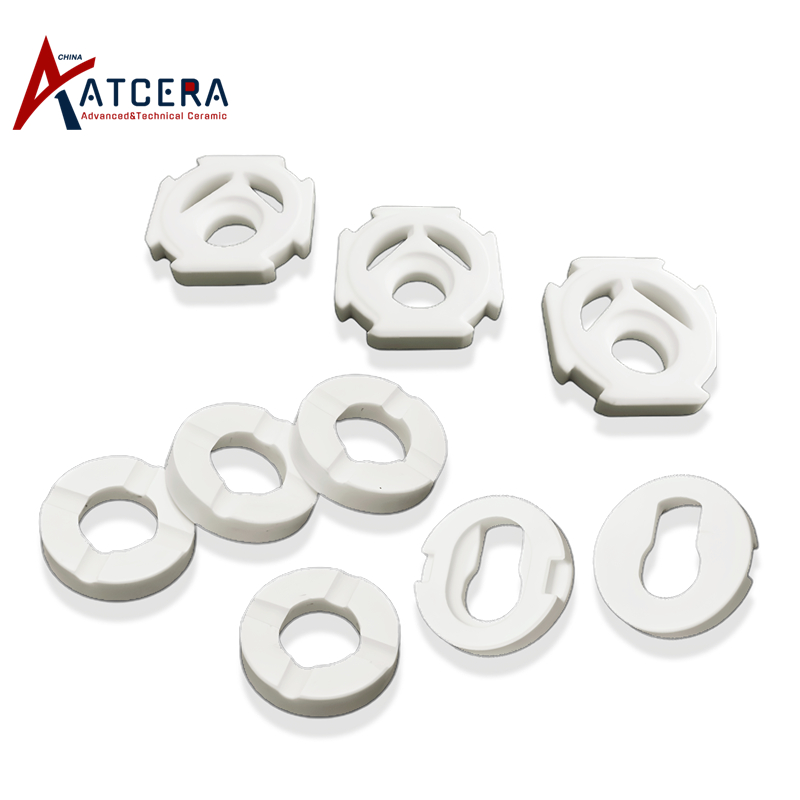

Zirconia Ceramic Valve Disc Ceramic Cartridge

Zirconia ceramic water valve disc is the main component of zirconia water valve, zirconia powder as the main raw material processed by special forming and sintering technology, the mirror processing to the surface for better adsorption capacity and good sealing performance, it can effectively control the water flow, with good wear resistance, long service life and reliable cut off function.

Brand:
ATCERA
Item NO.:
AT-YHG-SF001

Materials
Zirconia
Shapes
Plate
Applications
Mechanical Parts , Petrochemical Industry , Food Processing

Inquire Now

Properties of ZrO₂ Ceramic Valve Disc

1.Long service life

Water valve installed with zirconia ceramic valve disc is very durable, swithing life can be more than one million times;

2. Excellent sealing

zirconia ceramic valve disc surface finish is high, flatness is good, no additional sealing ring is required, no leakage risk of faucet;

3. Good wear resistance

zirconia ceramics have high hardness, good wear resistance, and are not affected by the wear of impurities such as sediment in water;

4. Good corrosion resistance

Using high purity zirconia as raw material, excellent corrosion resistance, suitable for various water quality, also applicable for other liquids；

5. Good biocompatibility

zirconia material is non-toxic, harmless and pollution-free, and can be applied to liquids in direct contact with the human body, including drinking water.

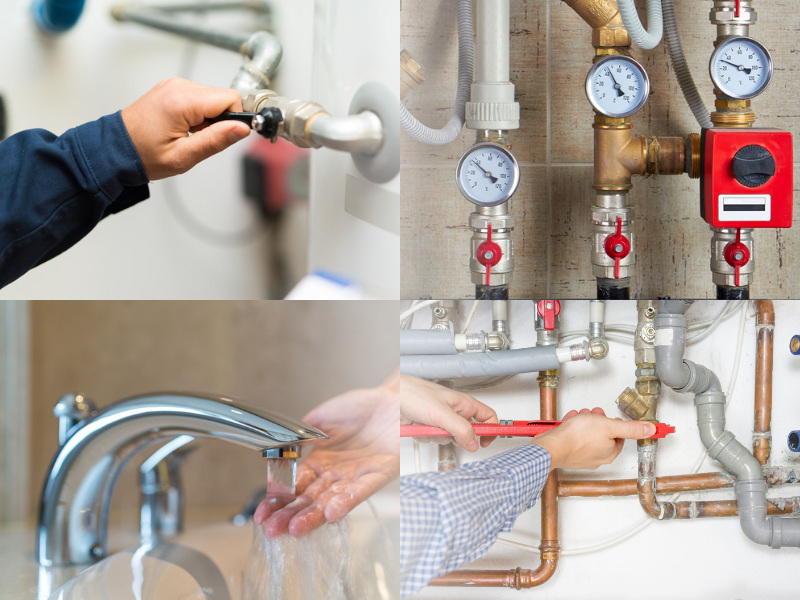

Applications of zirconia Ceramic Valve Disc

Applications of Zirconium Oxide Ceramic Valve Disc

Zirconia ceramic valve disc has the advantages of high density, high hardness, wear resistance, high pressure resistance, non-toxic, no pollution, acid and alkali resistance, good sealing performance, long service life, environmental protection and energy saving.

ZrO2 ceramic valve disc can be used in various water valves, like household faucet, heating water system, sanitary hot water system, air conditioning system, and drinking water system, also can be used on gas supply pipeline.

Size Chart of Zirconia Ceramic Valve Disc

We are committed to delivering superb zirconia ceramic valve disc tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Drawing and specification(including materials, etc.) requirement shall be provided if customized request.

Send Requirements for Custom Design

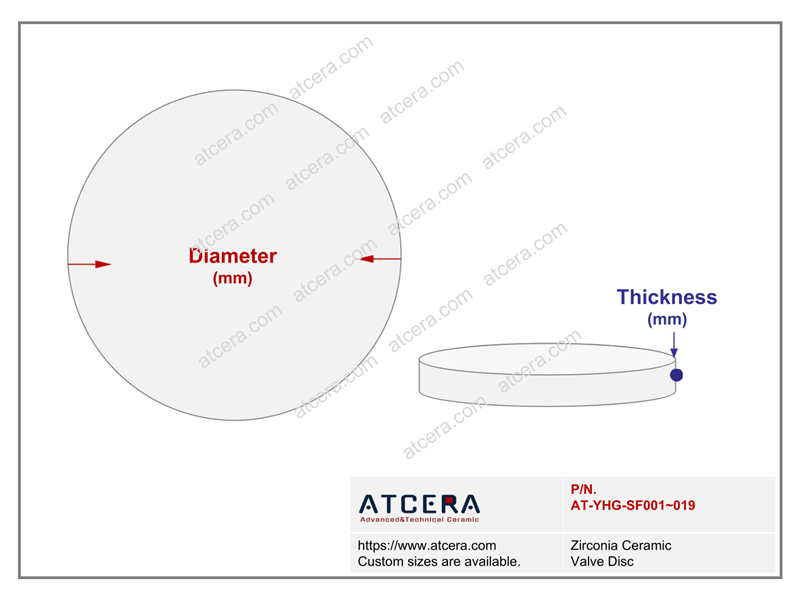

Drawing of Zirconia Ceramic Valve Disc

Zirconia Ceramic Valve Disc
Item NO.	Diameter (mm)	Thickness (mm)	ZrO₂'s Purity (%)
AT-YHG-SF001	14.5	4	95
AT-YHG-SF002	15.5	4	95
AT-YHG-SF003	16	4	95
AT-YHG-SF004	16	6	95
AT-YHG-SF005	16	7	95
AT-YHG-SF006	17	3.5	95
AT-YHG-SF007	27	7	95
AT-YHG-SF008	27	7.5	95
AT-YHG-SF009	28	4	95
AT-YHG-SF010	30.5	7.5	95
AT-YHG-SF011	31.5	5.5	95
AT-YHG-SF012	33	6	95
AT-YHG-SF013	35.5	6.5	95
AT-YHG-SF014	40.5	7	95
AT-YHG-SF015	45.5	7	95
AT-YHG-SF016	51.5	7.5	95
AT-YHG-SF017	58	7.5	95
AT-YHG-SF018	58	9	95
AT-YHG-SF019	60	10	95

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Be careful when install the zirconia ceramic valve disc, because the surface of the zirconia water valve is very smooth, and any scratches or damage need to be avoided, so as not to affect its sealing performance;

2. Avoid using any corrosive chemicals to clean the ceramic valve disc, so as not to cause damage to it;

3. During installation and operation, keep the system clean to prevent any impurities or contaminants from entering the system, to not affect the sealing perfromance.on or collision with other items, so as not to scratch or damage the surface of the crucible.

Valuable Information

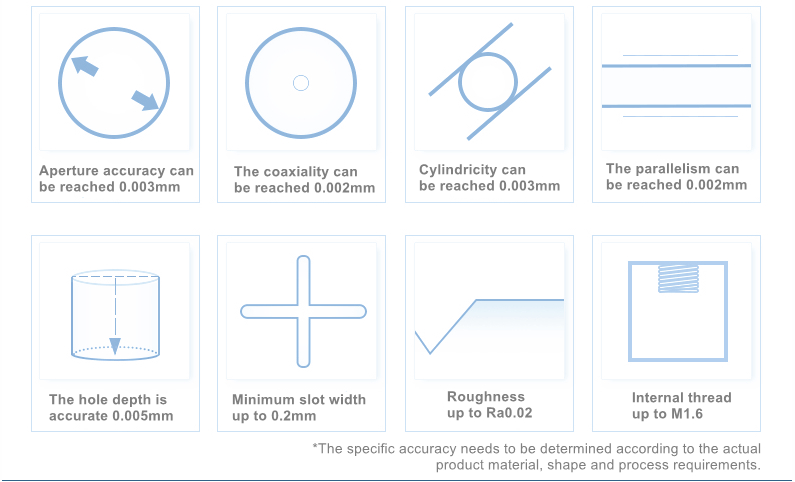

Machining Precision

1. Diameter Tolerance: ±0.003mm

2. Hole Depth Tolerance: ±0.005mm

3. Surfance Roughness: Ra0.02

4. Cylindricity: ±0.003mm

5. Concentricity: ±0.002mm

6. Parallelism: ±0.002mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
