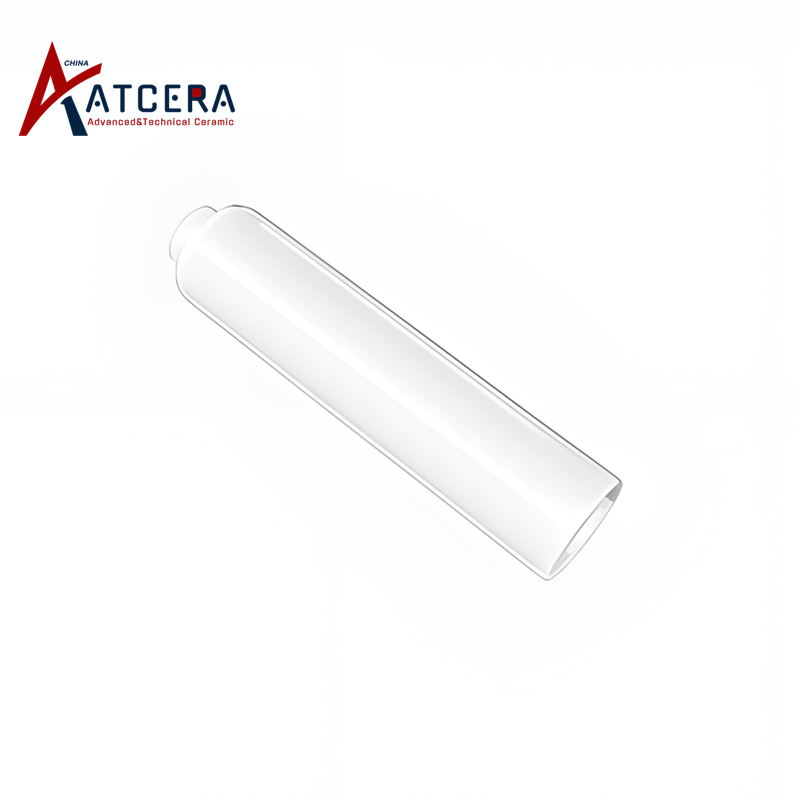

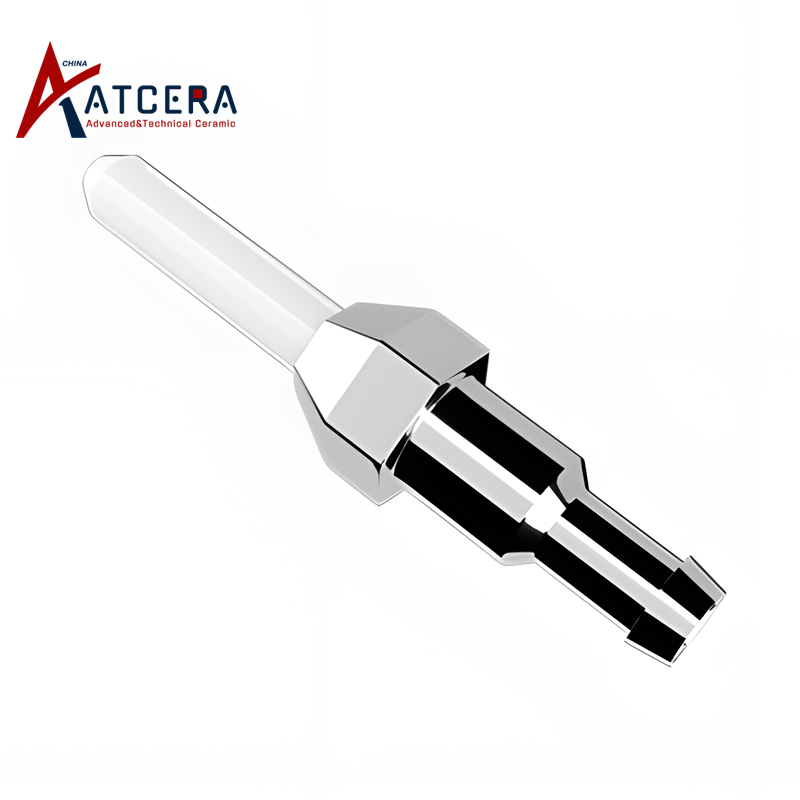

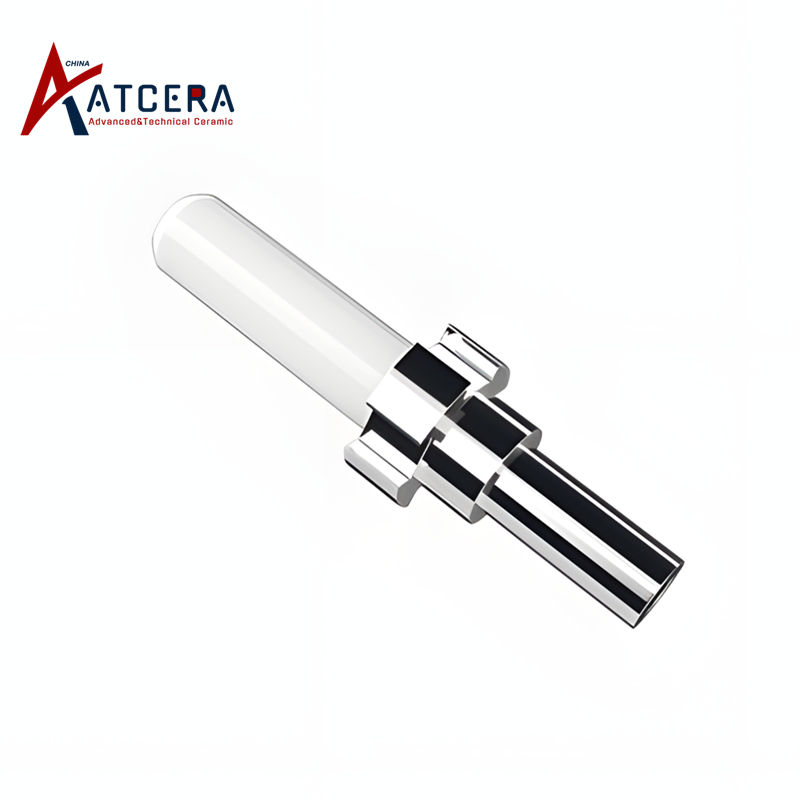

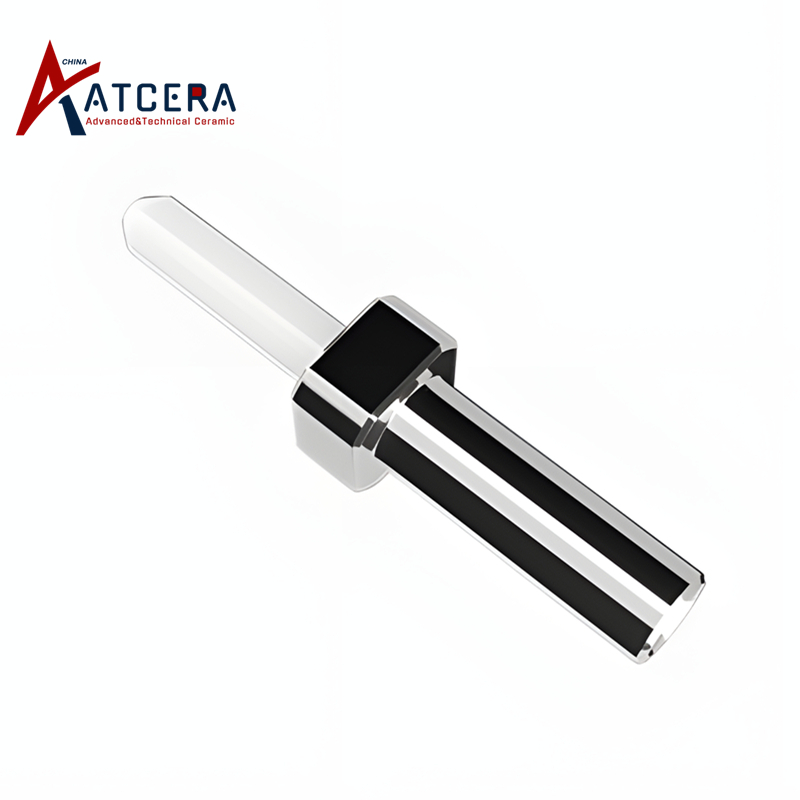

Zirconia Ceramic Ferrule Ceramic Optical Fiber Ferrule

Zirconia ceramic ferrule is a kind of optical fiber ferrule, which is made of zirconia ceramic cylindrical tube, with hard texture and high dimension precision. It is mainly used to fabricate optical fiber connectors, attenuators and fiber stubs, to proivde precision positioning and conncetion in optical fiber communication networks.

Brand:
ATCERA
Item NO.:
AT-YHG-CX001

Materials
Zirconia
Shapes
Mechanical Parts
Applications
Communications

Inquire Now

Advantages of Zirconia Ceramic Ferrule

Zirconia ceramic ferrule has the advantages of high hardness, good wear resistance, high machining precision and good thermal stability, acid & alkali and chemical corrosion resistance, good electrical insulation.

1. Zirconia ceramic ferrule processing precision is high, to ensure that the alignment of two optical fibers is accurate, can effectively reduce the alignment loss and back reflection;

2. Zirconia ceramic material has good wear resistance and anti-aging, optical fiber connectors with zirconia ferrule can be repeatedly inserted and pulled, and the service life can reach more than 30 years;

3. The end is easy to process, can be processed into a variety of end faces, including spherical, oblique spherical, cone, etc.;

4. The zirconia material thermal expansion is small, so the environmental adaptability is very good.

Applications of Ceramic Optical Fiber Ferrule

Zirconia ceramic ferrule is used for optical fiber connectors to realize the physical connection of optical fibers.

Zirconia ceramic ferrule is used in optical fiber connectors to realize the physical connection of optical fibers, therefore it has an irreplaceable role in optical communication, medical treatment, industrial automation, optical detection and other applications.

Size Chart of Zirconia Ceramic Ferrule

Committed to providing prime zirconia ceramic ferrule customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Provide drawing and specification requirements, available dimension range as following:

1. External Diameter: 0.5-3.2mm

2. Inner Diameter: 0.06-0.8mm

3. Length: 2.5-33mm

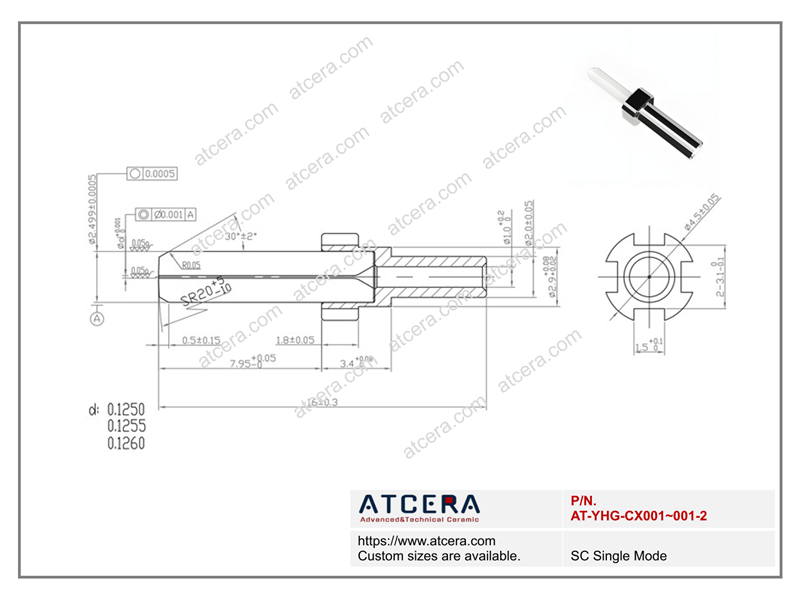

Drawing of SC Single Mode

SC Single Mode
Item No.	Outer Diameter (mm)	Inner Diameter (mm)	Concentricity (mm)	Flexural Strength (mpa)	Hardness (HV)
AT-YHG-CX001	2.499±0.0005	d（0.1250）+0.001	≤0.001	≥1200	≥1200
AT-YHG-CX001-1	2.499±0.0005	d（0.1255）+0.001	≤0.001	≥1200	≥1200
AT-YHG-CX001-2	2.499±0.0005	d（0.1260）+0.001	≤0.001	≥1200	≥1200

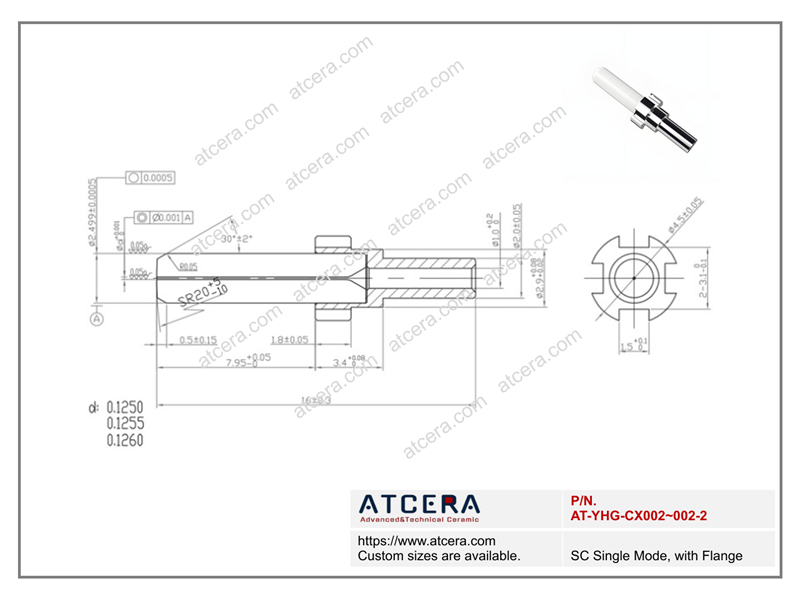

Drawing of SC Single Mode, with Flange

SC Single Mode, with Flange
Item No.	Outer Diameter (mm)	Inner Diameter (mm)	Concentricity (mm)	Flexural Strength (mpa)	Hardness (HV)
AT-YHG-CX002	2.499±0.0005	d（0.1250）+0.001	≤0.001	≥1200	≥1200
AT-YHG-CX002-1	2.499±0.0005	d（0.1255）+0.001	≤0.001	≥1200	≥1200
AT-YHG-CX002-2	2.499±0.0005	d（0.1260）+0.001	≤0.001	≥1200	≥1200

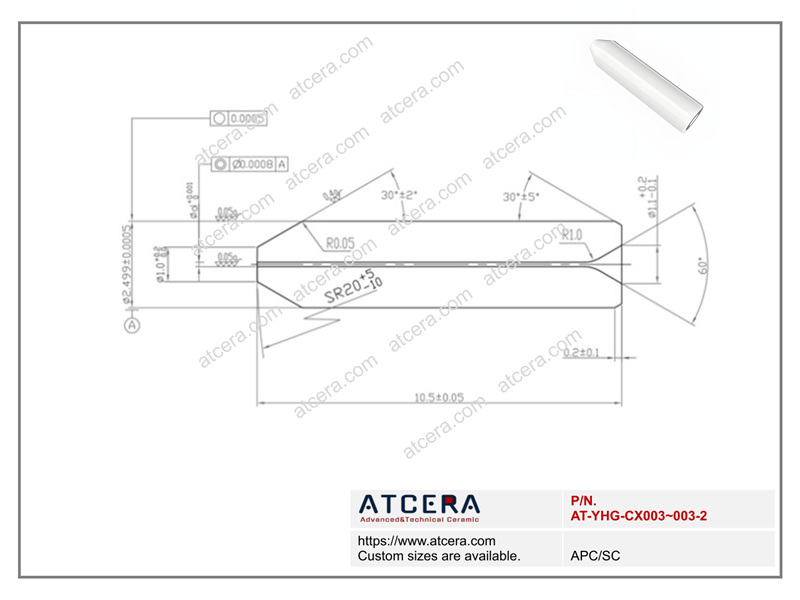

Drawing of APC SC

APC/SC
Item No.	Outer Diameter (mm)	Inner Diameter (mm)	Concentricity (mm)	Flexural Strength (mpa)	Hardness (HV)
AT-YHG-CX003	2.499±0.0005	d（0.1250）+0.001	≤0.0008	≥1200	≥1200
AT-YHG-CX003-1	2.499±0.0005	d（0.1255）+0.001	≤0.0008	≥1200	≥1200
AT-YHG-CX003-2	2.499±0.0005	d（0.1260）+0.001	≤0.0008	≥1200	≥1200

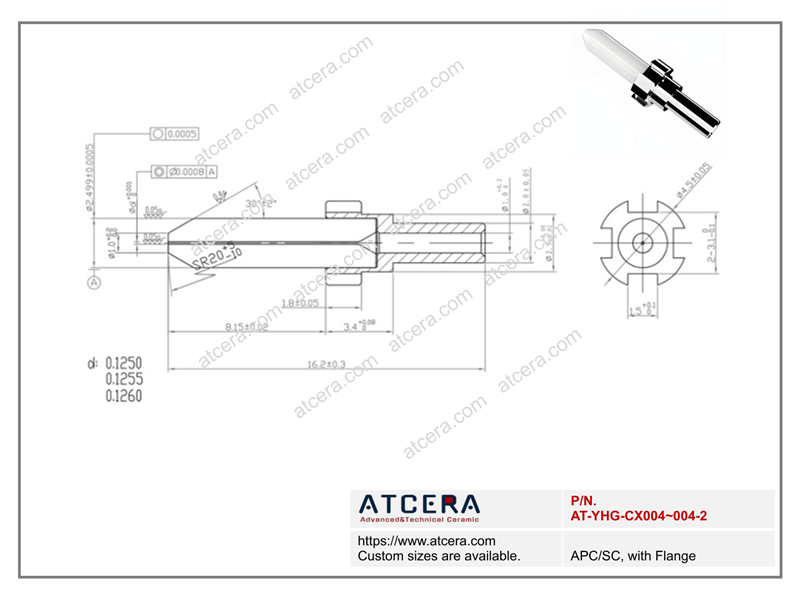

Drawing of APC SC, with Flange

APC/SC, with Flange
Item No.	Outer Diameter (mm)	Inner Diameter (mm)	Concentricity (mm)	Flexural Strength (mpa)	Hardness (HV)
AT-YHG-CX004	2.499±0.0005	d（0.1250）+0.001	≤0.0008	≥1200	≥1200
AT-YHG-CX004-1	2.499±0.0005	d（0.1255）+0.001	≤0.0008	≥1200	≥1200
AT-YHG-CX004-2	2.499±0.0005	d（0.1260）+0.001	≤0.0008	≥1200	≥1200

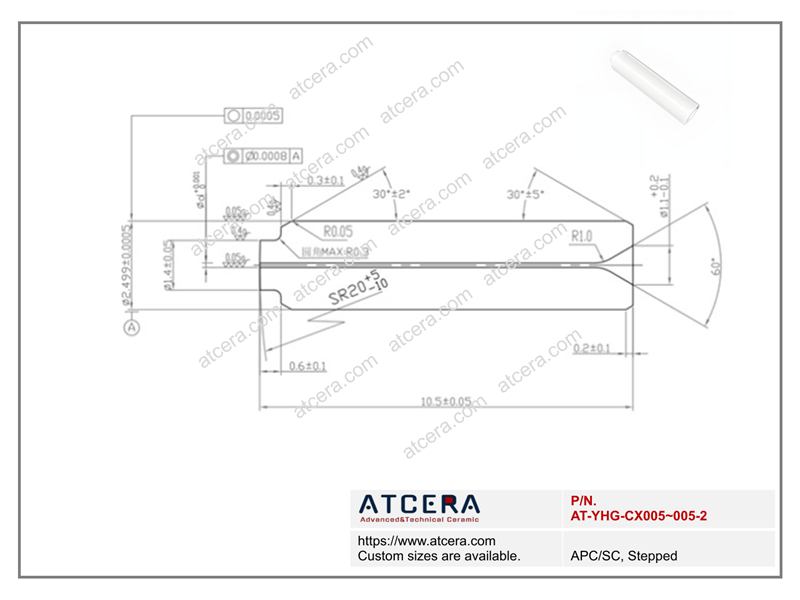

Drawing of APC SC, Stepped

APC/SC, Stepped
Item No.	Outer Diameter (mm)	Inner Diameter (mm)	Concentricity (mm)	Flexural Strength (mpa)	Hardness (HV)
AT-YHG-CX005	2.499±0.0005	d（0.1250）+0.001	≤0.0008	≥1200	≥1200
AT-YHG-CX005-1	2.499±0.0005	d（0.1255）+0.001	≤0.0008	≥1200	≥1200
AT-YHG-CX005-2	2.499±0.0005	d（0.1260）+0.001	≤0.0008	≥1200	≥1200

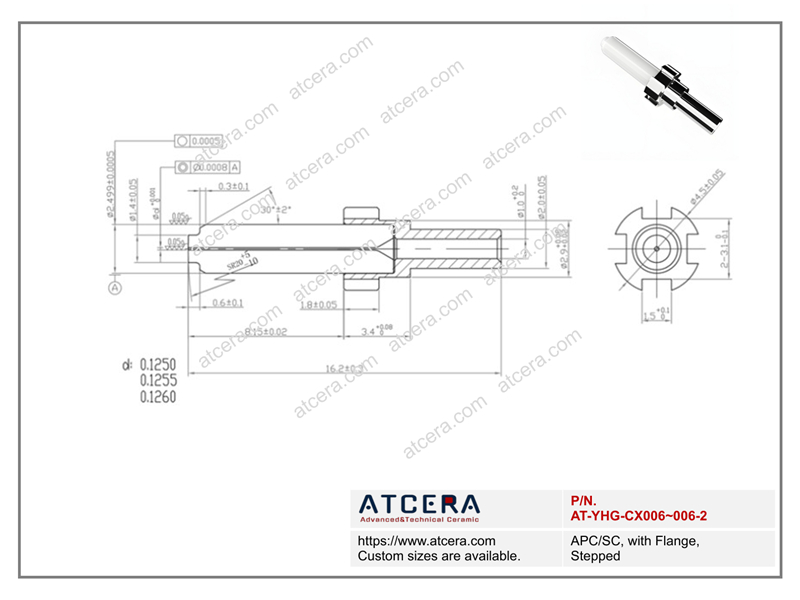

Drawing of APC SC, with Flange, Stepped

APC/SC, with Flange, Stepped
Item No.	Outer Diameter (mm)	Inner Diameter (mm)	Concentricity (mm)	Flexural Strength (mpa)	Hardness (HV)
AT-YHG-CX006	2.499±0.0005	d（0.1250）+0.001	≤0.0008	≥1200	≥1200
AT-YHG-CX006-1	2.499±0.0005	d（0.1255）+0.001	≤0.0008	≥1200	≥1200
AT-YHG-CX006-2	2.499±0.0005	d（0.1260）+0.001	≤0.0008	≥1200	≥1200

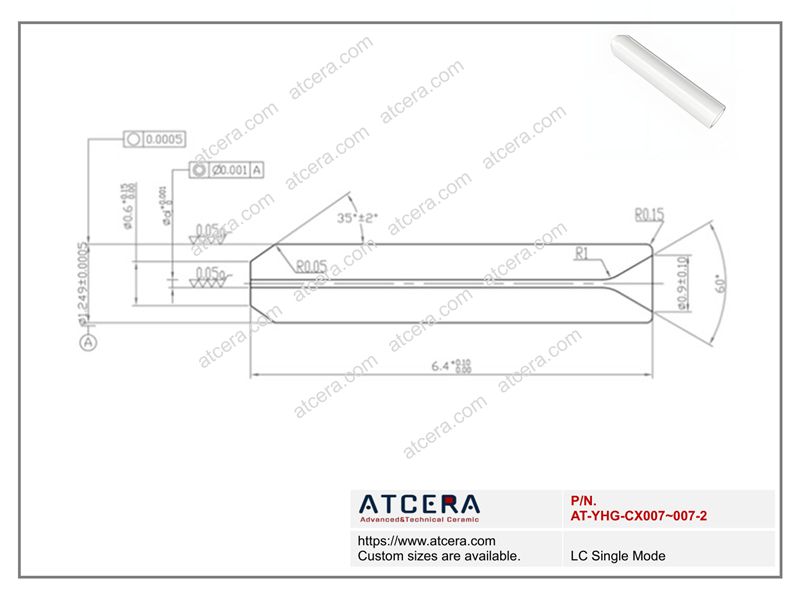

Drawing of LC Single Mode

LC Single Mode
Item No.	Outer Diameter (mm)	Inner Diameter (mm)	Concentricity (mm)	Flexural Strength (mpa)	Hardness (HV)
AT-YHG-CX007	1.249±0.0005	d（0.1250）+0.001	≤0.001	≥1200	≥1200
AT-YHG-CX007-1	1.249±0.0005	d（0.1255）+0.001	≤0.001	≥1200	≥1200
AT-YHG-CX007-2	1.249±0.0005	d（0.1260）+0.001	≤0.001	≥1200	≥1200

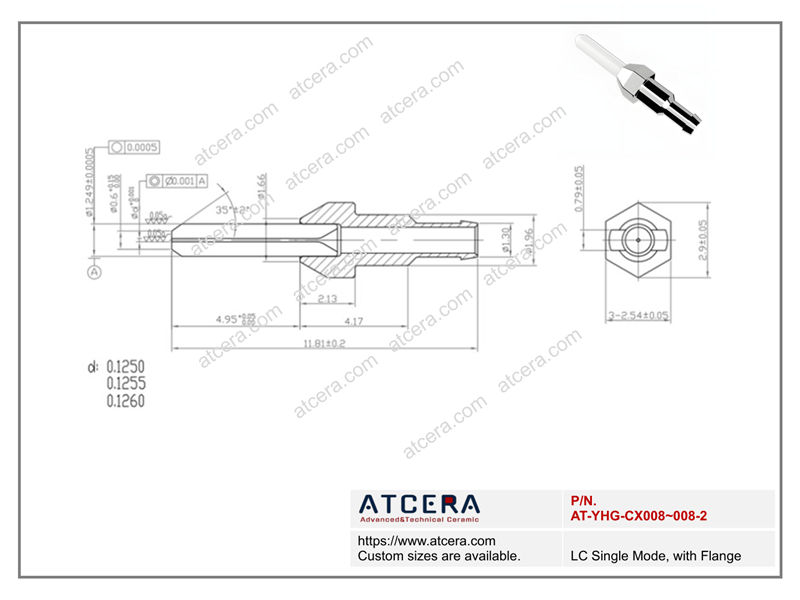

Drawing of LC Single Mode, with Flange

LC Single Mode, with Flange
Item No.	Outer Diameter (mm)	Inner Diameter (mm)	Concentricity (mm)	Flexural Strength (mpa)	Hardness (HV)
AT-YHG-CX008	1.249±0.0005	d（0.1250）+0.001	≤0.001	≥1200	≥1200
AT-YHG-CX008-1	1.249±0.0005	d（0.1255）+0.001	≤0.001	≥1200	≥1200
AT-YHG-CX008-2	1.249±0.0005	d（0.1260）+0.001	≤0.001	≥1200	≥1200

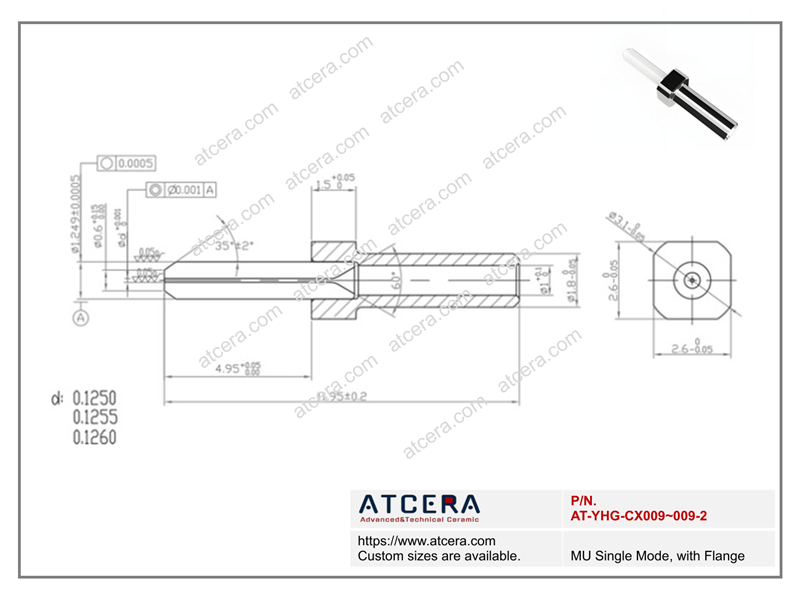

Drawing of MU Single Mode, with Flange

MU Single Mode, with Flange
Item No.	Outer Diameter (mm)	Inner Diameter (mm)	Concentricity (mm)	Flexural Strength (mpa)	Hardness (HV)
AT-YHG-CX009	2.499±0.0005	d（0.1250）+0.001	≤0.001	≥1200	≥1200
AT-YHG-CX009-1	2.499±0.0005	d（0.1255）+0.001	≤0.001	≥1200	≥1200
AT-YHG-CX009-2	2.499±0.0005	d（0.1260）+0.001	≤0.001	≥1200	≥1200

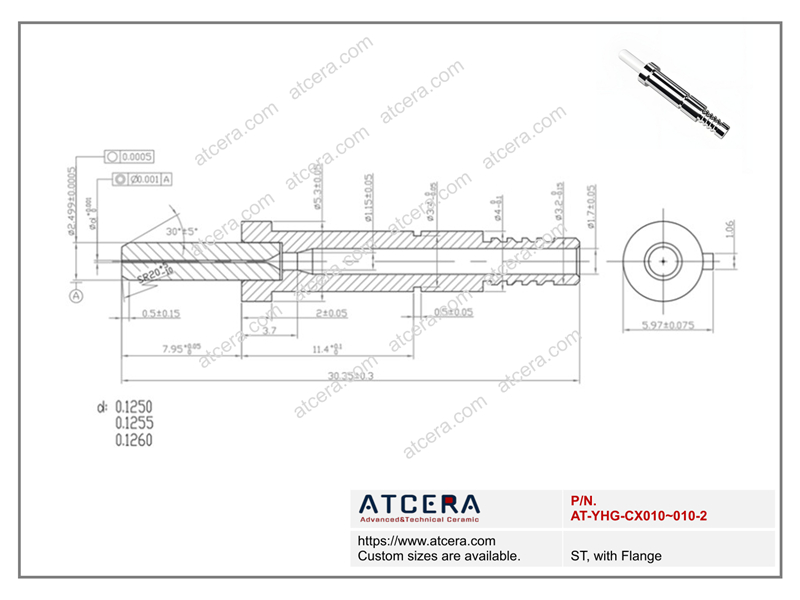

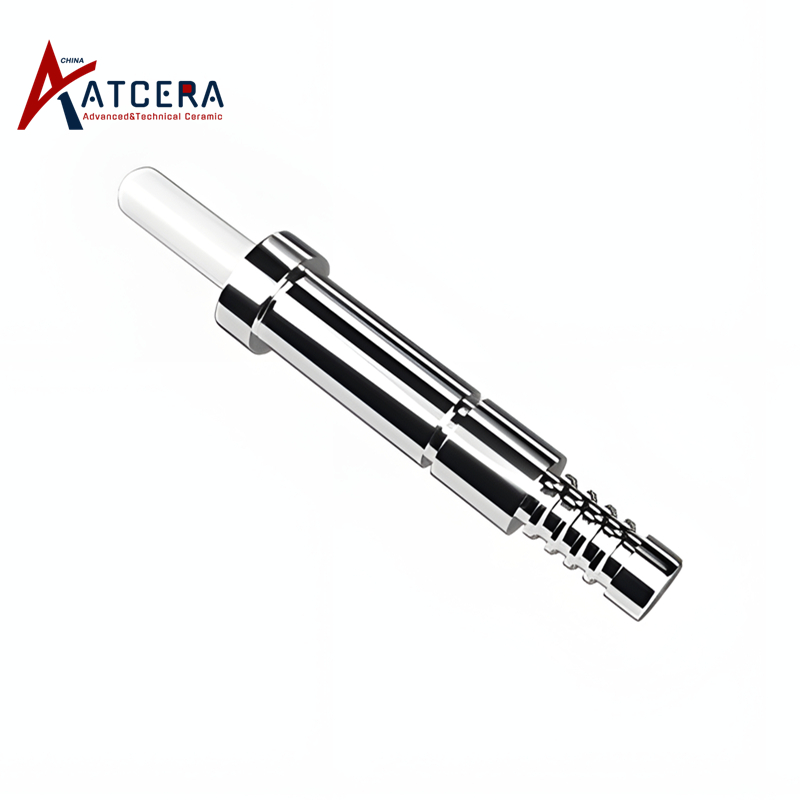

Drawing of ST, with Flange

ST, with Flange
Item No.	Outer Diameter (mm)	Inner Diameter (mm)	Concentricity (mm)	Flexural Strength (mpa)	Hardness (HV)
AT-YHG-CX010	2.499±0.0005	d（0.1250）+0.001	≤0.001	≥1200	≥1200
AT-YHG-CX010-1	2.499±0.0005	d（0.1255）+0.001	≤0.001	≥1200	≥1200
AT-YHG-CX010-2	2.499±0.0005	d（0.1260）+0.001	≤0.001	≥1200	≥1200

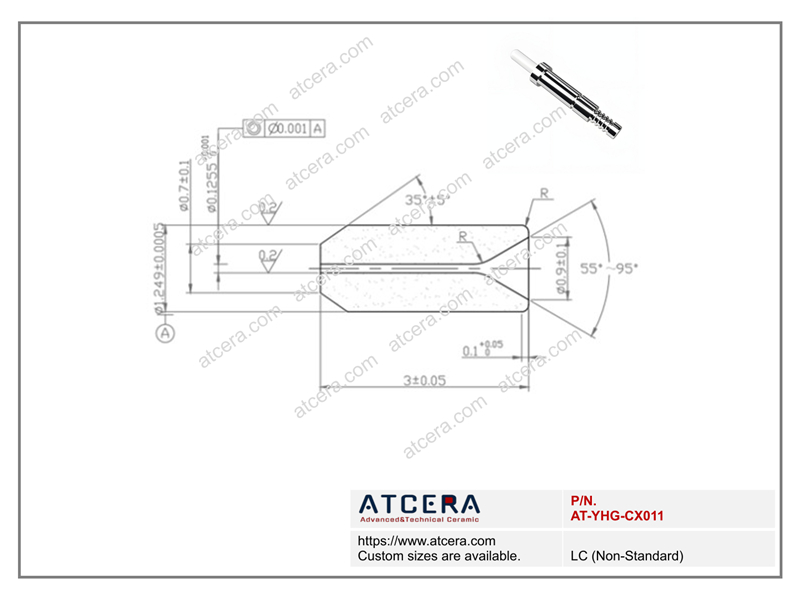

LC (Non-Standard)

LC (Non-Standard)
Item No.	Outer Diameter (mm)	Inner Diameter (mm)	Concentricity (mm)	Flexural Strength (mpa)	Hardness (HV)
AT-YHG-CX011	0.5-3.2	0.06-0.8	2.5-33	≥1200	≥1200

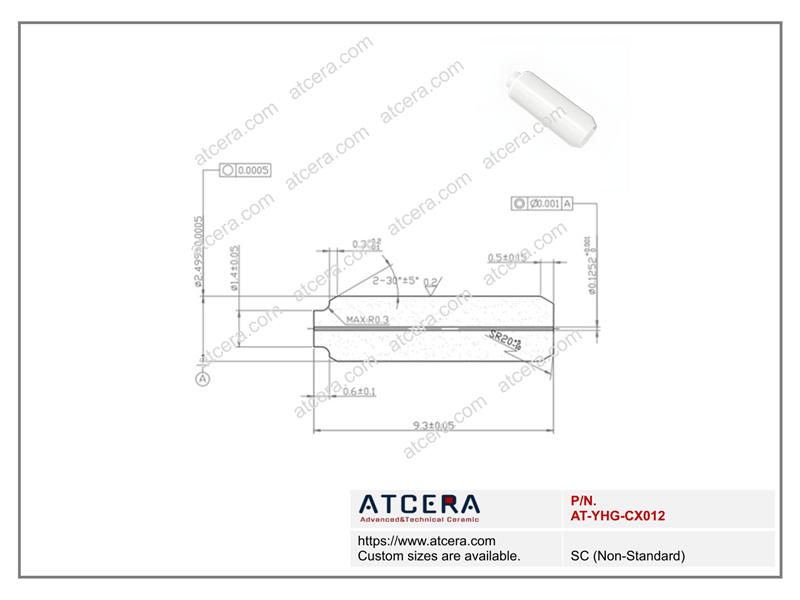

Drawing of SC (Non-Standard)

SC (Non-Standard)
Item No.	Outer Diameter (mm)	Inner Diameter (mm)	Concentricity (mm)	Flexural Strength (mpa)	Hardness (HV)
AT-YHG-CX012	0.5-3.2	0.06-0.8	2.5-33	≥1200	≥1200

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Keep clean: the surface of zirconia ceramic ferrule should be kept clean before and during use to avoid oil, dust and other impurities affecting its performance.

2. Select appropriate size: appropriate size and specification of zirconia ceramic ferrule should be selected according to the requirements.

3. Avoid contact with corrosive substances: Zirconia ceramic core should avoid contact with corrosive chemicals during use, so as not to cause damage to it.

4. Regular inspection: the status and use of zirconia ceramic ferrule should be regularly checked after installation, it should be processed and replaced in time if any abnormality.

Valuable Information

Machining Precision

1. Diameter Tolerance: ±0.003mm

2. Hole Depth Tolerance: ±0.005mm

3. Surfance Roughness: Ra0.02

4. Cylindricity: ±0.002mm

5. Concentricity: ±0.002mm

6. Parallelism: ±0.002mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
