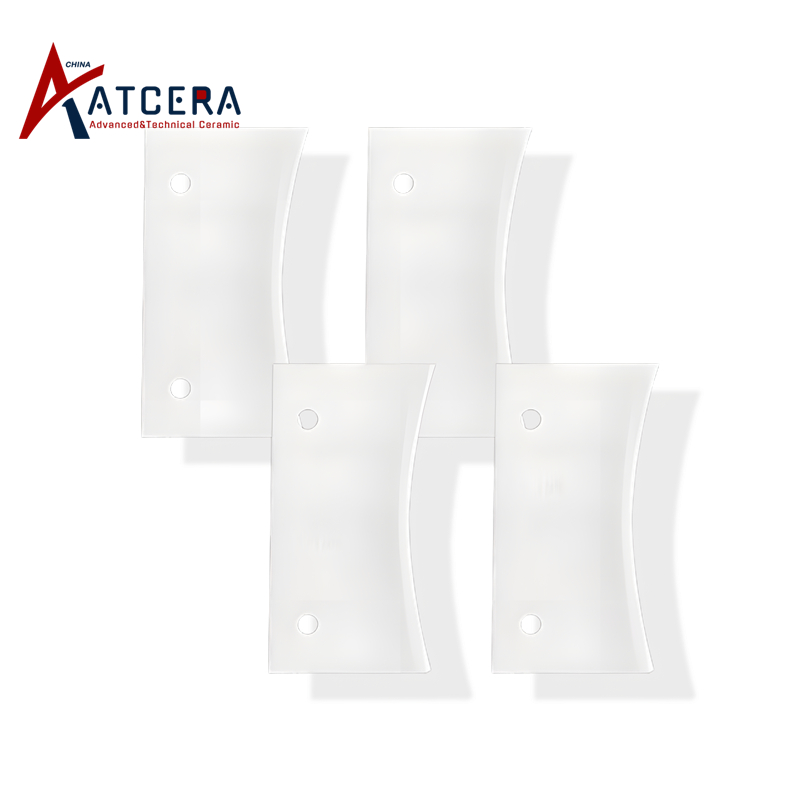

Zirconia Ceramic Blade Ceramic Cutting Blade

Zirconia ceramic blade is made from high purity zirconia powder and stabilizer as raw materials, through high pressure forming, sintering, grinding, cutting and other processes , it is very sharp and durable, with characteristics of high temperature resistance, corrosion resistance, oxidation resistance and magnetization, good insulation, etc.

Brand:
ATCERA
Item NO.:
AT-YHG-D001

Materials
Zirconia
Shapes
Mechanical Parts
Applications
Semiconductor , Mechanical Parts , Petrochemical Industry , Photovoltaic Cell Industry

Inquire Now

Properties of Zirconia Ceramic Blade

1. Good wear resistance

Zirconia ceramic has high hardness and excellent wear resistance, and their service life is more than 10 times that of tungsten carbide blades, and more than 100 times that of high-speed steel blades.

2. High toughness

Zirconia material has high toughness, not easy to fracture, high compressive strength and bending strength;

3. Corrosion resistance

Zirconia cutter has good corrosion resistance, can be in direct contact with various acids, bases, salts and other chemical reagents, without corrosion risk;

4. High temperature resistance

Zirconia cutter is resistant to high temperature, the maximum working temperature can reach higher than 1000℃;

5. Diamagnetization and good insulation

Zirconia blade is non-conductive, non-magnetic,and with smooth surface, does not adsorb dust particles;

6. Good chemical and biological inertia

Zirconia material is chemically inert, does not pollute the cutting object.With biological compatibility, non-toxic and harmless to the human body.

Applications of Zirconia Ceramic Cutting Blade

Zirconia blade is widely used in chemical, medical equipment, biopharmaceutical, food processing, photovoltaic, electronics, paper manufactuer, mechanical engineering and other industries and fields.

1. Chemical industry

Zirconia blade has good wear resistance, sharp and durable, good corrosion resistance, and can be used for cutting rubber, plastic, glass fiber, resin and other materials in the chemical industry;

2. Medical and biopharmaceutical

Zirconia blade has good biological compatibility, no pollution to the cutting material, non-toxic and harmless to the human body, can be used as medical equipment, as well as pharmaceutical production of capsules and other drugs for cutting operation;

3. Photovoltaic and electronics industry

Zirconia cutter hardness, good wear resistance, and non-conductive, diamagnetization, can be used in the photovoltaic and electronics industry to cut the battery cell, PCB board operation;

4. Mechanical engineering industry

Zirconia blade can withstand the high temperature of more than 1000℃, oxidation resistance, can be used for cutting operations under high temperature conditions, performance is stable.

Size Chart of Zirconia Ceramic Cutting Blade

We are committed to delivering optimal zirconia ceramic cutting blade tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and specification requirement shall be provided if customized request.

Send Requirements for Custom Design

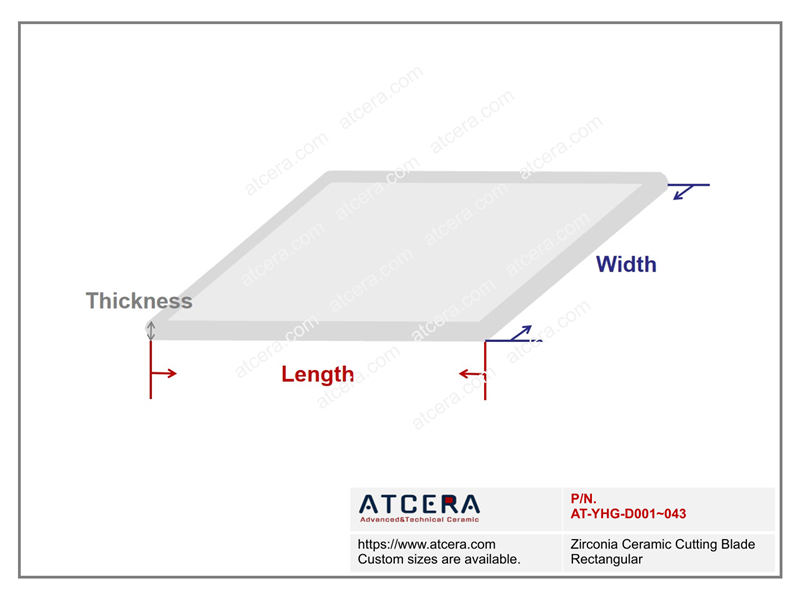

Drawing of Zirconia Ceramic Cutting Blade Rectangular

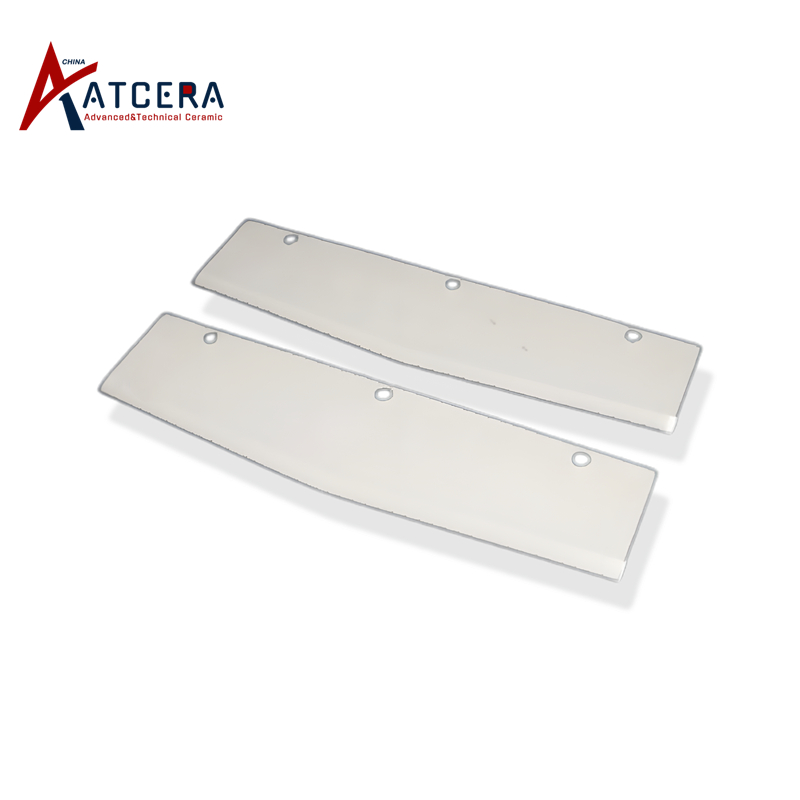

Zirconia Ceramic Cutting Blade Rectangular
Item NO.	Length (mm)	Width (mm)	Thickness (mm)	Cutting Edge	ZrO₂'s Purity (%)
AT-YHG-D001	43	22	0.2	One-sided	95
AT-YHG-D002	22	10	0.7	One-sided	95
AT-YHG-D003	38	8	0.3	One-sided	95
AT-YHG-D004	47	10	0.5	One-sided	95
AT-YHG-D005	75	10	0.5	One-sided	95
AT-YHG-D006	85	10	0.9	One-sided	95
AT-YHG-D007	90	15	0.9	One-sided	95
AT-YHG-D008	125	10	0.5	One-sided	95
AT-YHG-D009	131	10	0.5	One-sided	95
AT-YHG-D010	135	8	0.3	One-sided	95
AT-YHG-D011	151	10	0.13	One-sided	95
AT-YHG-D012	152.8	10	0.5	One-sided	95
AT-YHG-D013	152.8	8	0.9	One-sided	95
AT-YHG-D014	190	10	0.5	One-sided	95
AT-YHG-D015	210	10	0.5	One-sided	95
AT-YHG-D016	244	10	0.5	One-sided	95
AT-YHG-D017	310	10	0.5	One-sided	95
AT-YHG-D018	311	10	0.5	One-sided	95
AT-YHG-D019	38.5	19	0.25	One-sided	95
AT-YHG-D020	38.5	19	0.35	One-sided	95
AT-YHG-D021	43	22	0.25	One-sided	95
AT-YHG-D022	100	18	0.5	One-sided	95
AT-YHG-D023	80	9.2	0.4	One-sided	95
AT-YHG-D024	60	12	0.5	One-sided	95
AT-YHG-D025	57	18	0.2-0.6	One-sided	95
AT-YHG-D026	58	13	0.2	One-sided	95
AT-YHG-D027	100	22	0.2	One-sided	95
AT-YHG-D028	100	22	0.4	One-sided	95
AT-YHG-D029	51	10	0.6	One-sided	95
AT-YHG-D030	60	33	0.5	One-sided	95
AT-YHG-D031	56	8	0.2-0.6	One-sided	95
AT-YHG-D032	46	13	0.9	One-sided	95
AT-YHG-D033	45	31	0.7	One-sided	95
AT-YHG-D034	25	7.1	0.25	One-sided	95
AT-YHG-D035	122	19	0.5	One-sided	95
AT-YHG-D036	39	25	0.4	One-sided	95
AT-YHG-D037	44	13	0.8	One-sided	95
AT-YHG-D038	48	26	0.9	One-sided	95
AT-YHG-D039	50	19	0.6	One-sided	95
AT-YHG-D040	60	22	0.2-0.6	One-sided	95
AT-YHG-D041	43	22	0.2-0.6	One-sided	95
AT-YHG-D042	43	22	0.3	One-sided	95
AT-YHG-D043	43	22	0.15-0.5	One-sided	95

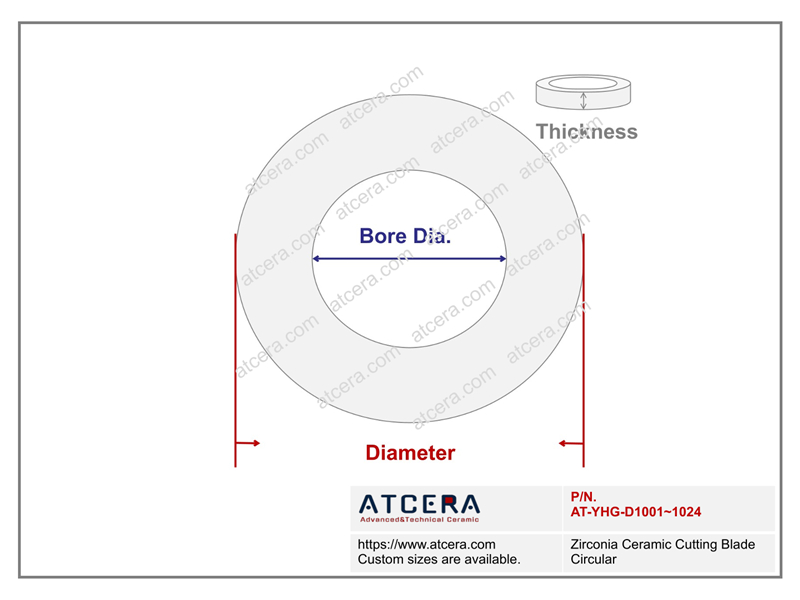

Drawing of Zirconia Ceramic Cutting Blade Circular

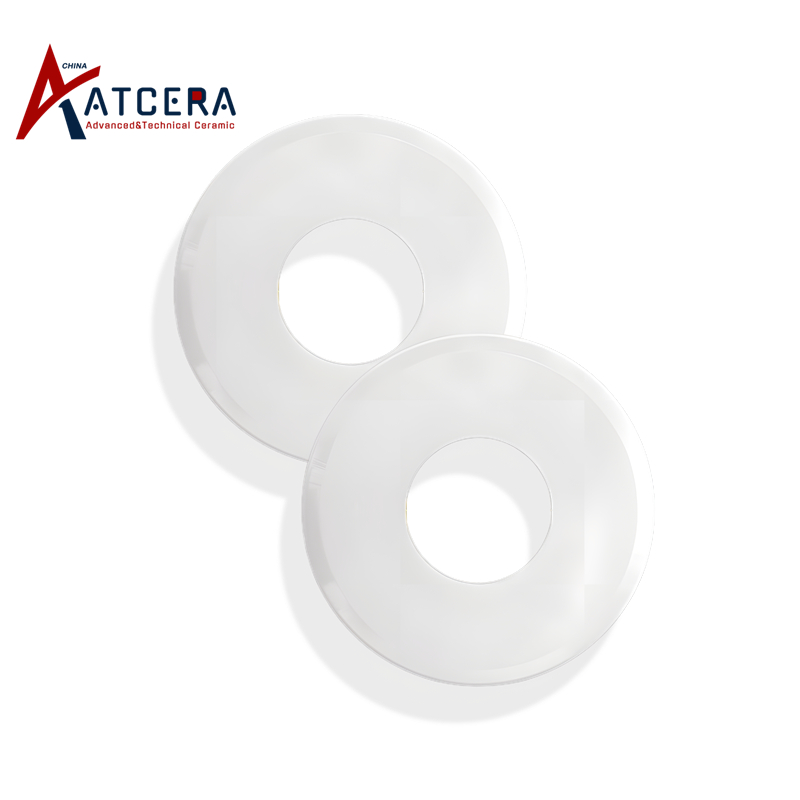

Zirconia Ceramic Cutting Blade Circular
Item NO.	Diameter (mm)	Bore Dia. (mm)	Thickness (mm)	ZrO₂'s Purity (%)
AT-YHG-D1001	65	10	0.5	95
AT-YHG-D1002	45	8	0.3	95
AT-YHG-D1003	50	15	0.6	95
AT-YHG-D1004	52	10	1	95
AT-YHG-D1005	60	12	0.5	95
AT-YHG-D1006	60	12	1	95
AT-YHG-D1007	63	8	0.5	95
AT-YHG-D1008	63	8	1	95
AT-YHG-D1009	65	20	0.8	95
AT-YHG-D1010	25	8	0.63	95
AT-YHG-D1011	28	8	0.6	95
AT-YHG-D1012	32	8	0.6	95
AT-YHG-D1013	34	8	0.63	95
AT-YHG-D1014	36	8	0.63	95
AT-YHG-D1015	38	8	0.63	95
AT-YHG-D1016	40	8	0.63	95
AT-YHG-D1017	45	8	0.63	95
AT-YHG-D1018	20	12	0.6	95
AT-YHG-D1019	28	8	0.5	95
AT-YHG-D1020	65	8	0.63	95
AT-YHG-D1021	28	8	0.63	95
AT-YHG-D1022	32	8	0.63	95
AT-YHG-D1023	65	10	0.4	95
AT-YHG-D1024	45	8	0.5	95

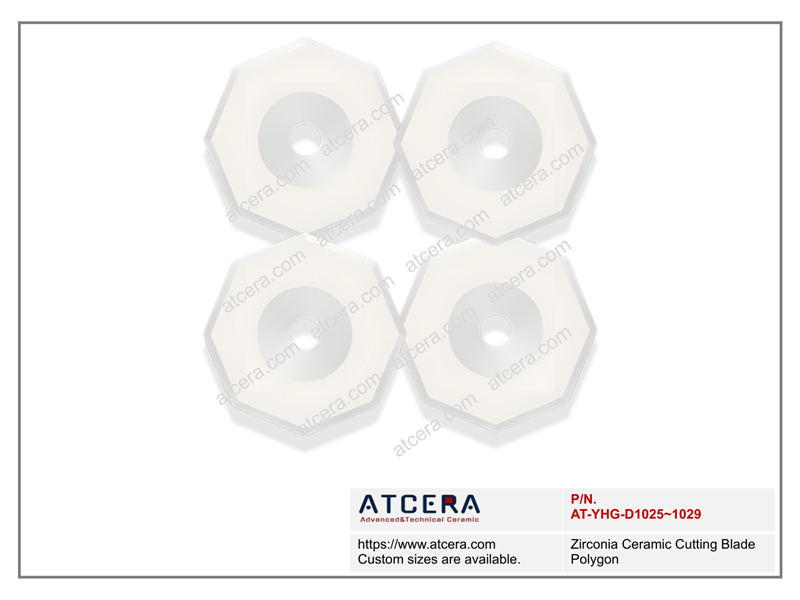

Drawing of Zirconia Ceramic Cutting Blade Polygon

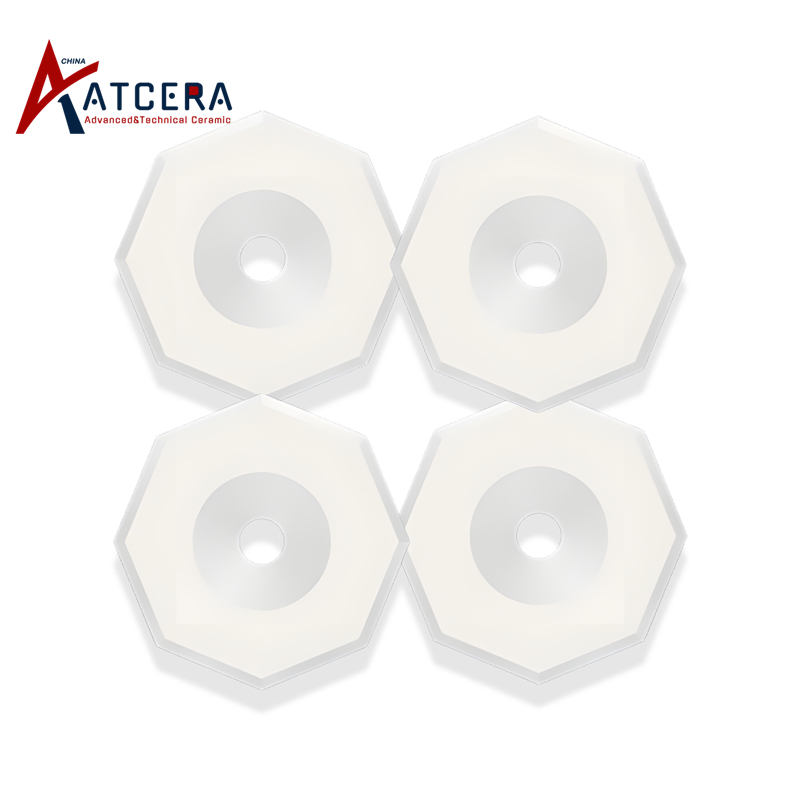

Zirconia Ceramic Cutting Blade Polygon
Item NO.	Diameter (mm)	Bore Dia. (mm)	Thickness (mm)	ZrO₂'s Purity (%)	Note
AT-YHG-D1025	68	10	0.5	95	Octagon
AT-YHG-D1026	68	10	1	95	Octagon
AT-YHG-D1027	70	16.5	0.5	95	Octagon
AT-YHG-D1028	28	8	0.63	95	Decagon
AT-YHG-D1029	25	8	0.63	95	Hexadecagon

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Zirconia blade is extremely sharp, need to be kept well, can not be placed at will, need to pay attention when using, to prevent scratching the human body or other substances;

2. Clean the blade surface dust and other impurities before use, dry it and then put into use;

3. When installing or using, do not knock or impact the blade body to prevent fragmentation;

4. Check the status of the cutter regularly and replace it in time if there any gaps on edge or cracks on the blade surface.

Valuable Information

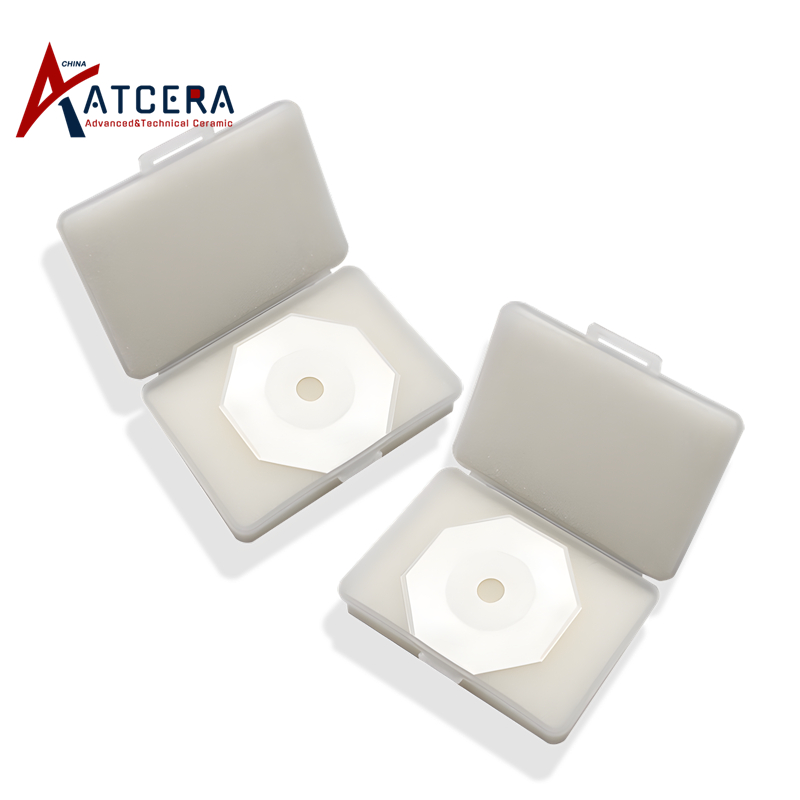

Zirconia Ceramic Cutting Blade Packing

Zirconia ceramic cutting blades are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
