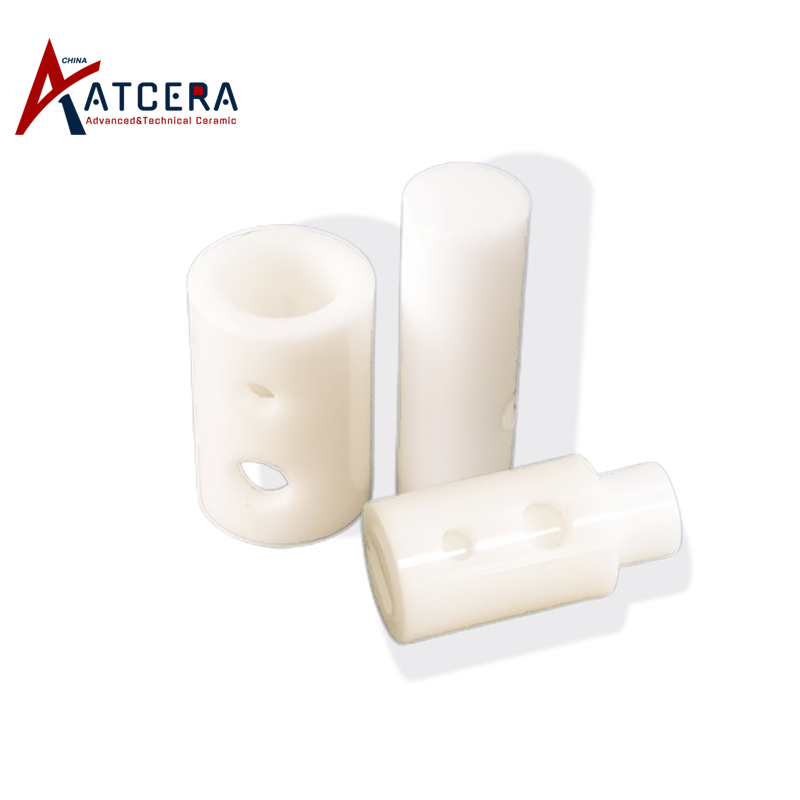

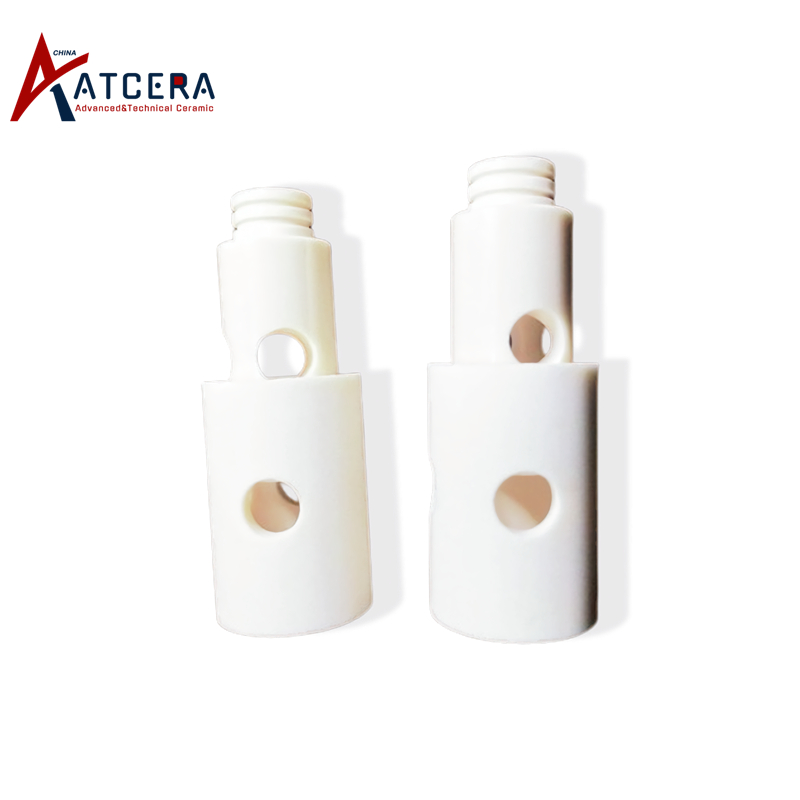

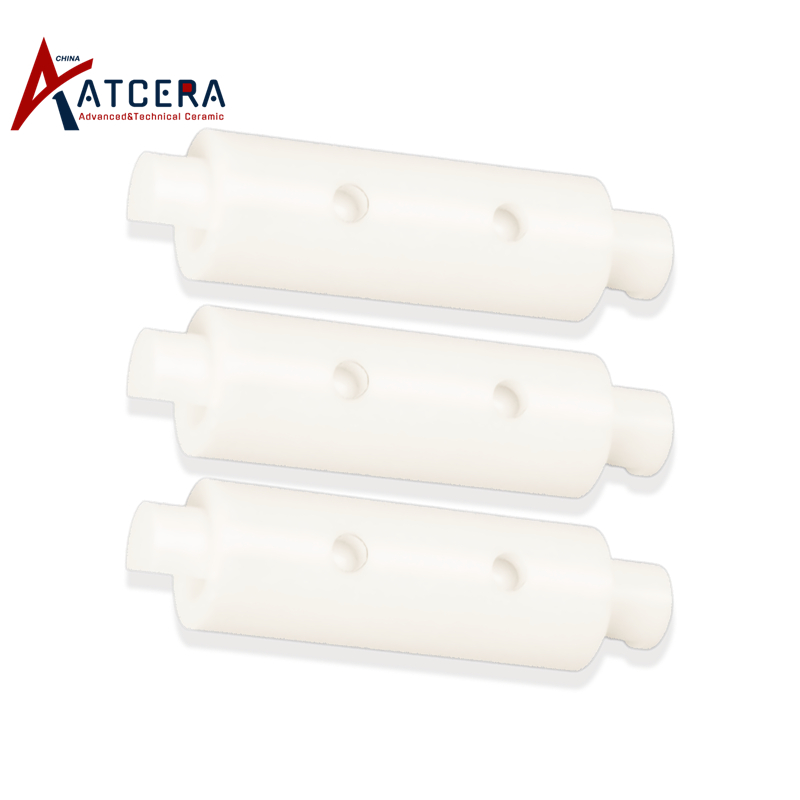

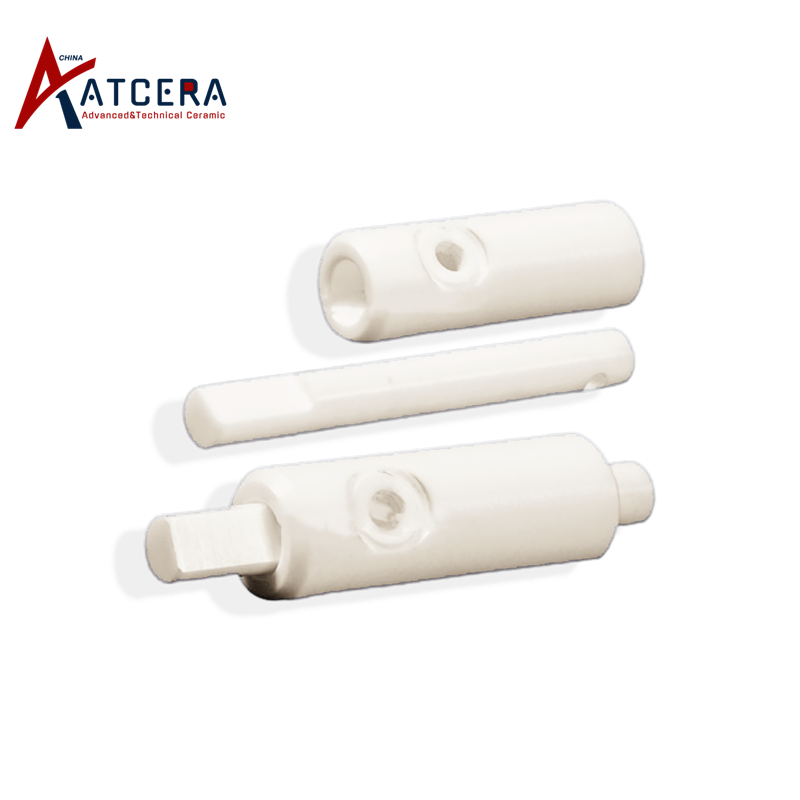

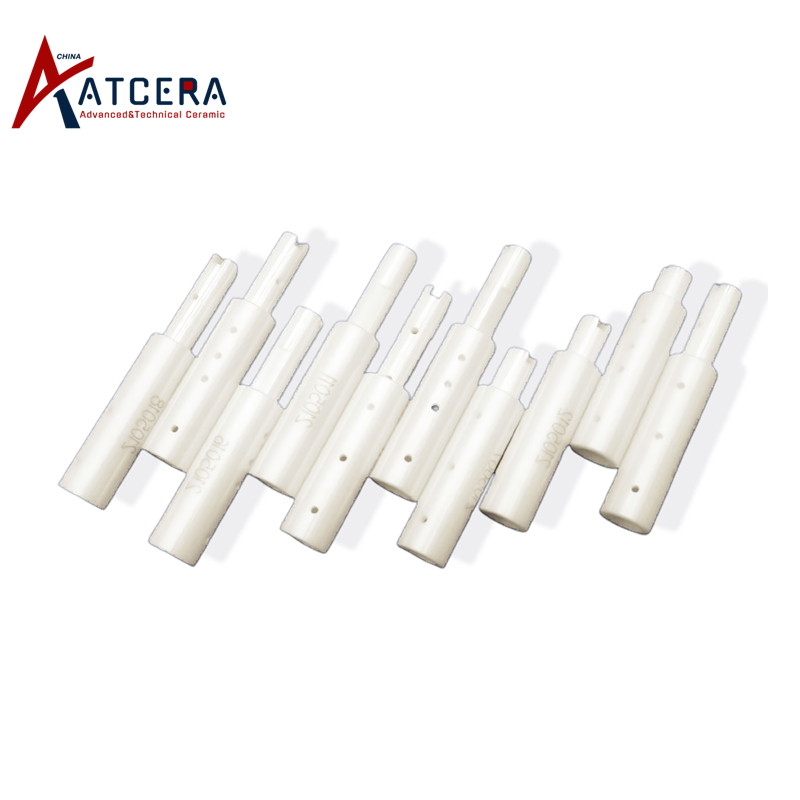

Alumina Ceramic Dispensing Valve

The alumina ceramic dispensing valve is crafted from high-purity alumina and primarily consists of a valve body and a plunger. It is designed to be mounted on dispensing machines for the purpose of precisely applying droplets or coatings of adhesives, paints, and other fluids onto the surface or interior of products.

Brand:
ATCERA
Item NO.:
AT-YHL-DJF001

Materials
Alumina
Shapes
Valve
Applications
Electronics and Electricity

Inquire Now

Advantages of Alumina Ceramic Dispensing Valve

1. The alumina dispensing valve exhibits exceptional hardness, wear resistance, and corrosion resistance, rendering it suitable for a wide range of adhesives and paints. It poses no contamination risk to the medium and enjoys a long service life.

2. Boasting high precision in manufacturing and excellent airtightness, the alumina dispensing valve ensures no leakage during operation.

3. The valve demonstrates exceptional resistance to high temperatures, with a low thermal expansion coefficient. Its airtightness remains unaffected under high-temperature conditions, enabling seamless operation.

4. Alumina ceramic possesses a higher modulus of elasticity than steel, making it less prone to deformation under stress and thereby enhancing the bearing's load-carrying capacity.

Applications of Alumina Dispensing Valve

The alumina ceramic dispensing valve is integrated into automatic dispensing machines and utilized in the production lines of various industries, including electronics, automobiles, and home furnishings, for the processes of adhesive dispensing and paint spraying.

Size Chart of Alumina Ceramic Dispensing Valve

We are committed to delivering high-quality alumina ceramic dispensing valves tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide specific product dimensions and parametric requirements for customization.

Alumina Ceramic Dispensing Valve
Item NO.	Dimension (mm)	Diameter (mm)	Length (mm)	Al2O3's Purity (%)
AT-YHL-DJF001	5*70	5	70	99
AT-YHL-DJF002	23*85	23	85	99
AT-YHL-DJF003	25*105	25	105	99
AT-YHL-DJF004	30*120	30	120	99
AT-YHL-DJF005	40*120	40	120	99
AT-YHL-DJF006	50*150	50	150	99
AT-YHL-DJF007	80*200	80	200	99
AT-YHL-DJF008	100*220	100	220	99

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Before use, it is imperative to thoroughly clean the alumina ceramic dispensing valve to ensure the absence of impurities or residues.

2. Follow the installation guide provided by the manufacturer to correctly mount the alumina dispensing valve onto the equipment and ensure that all fasteners are securely in place.

3. Regularly inspect the wear condition of the dispensing valve and promptly replace worn-out components. Regular cleaning and maintenance are essential to maintain its normal operation.

4. When the alumina dispensing valve is not in use, it should be properly stored and safeguarded to prevent dust or impurities from entering, which may compromise its performance and lifespan.

Valuable Information

Alumina Ceramic Dispensing Valve Packing

Alumina ceramic dispensing valves are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology

In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...

Exploration Of Laser Processing Technology Of AlN Substrate To Realize High Quality Flat Machining Surface

With the rapid development of electronic technology, the integration and performance requirements of large-scale integrated circuits are increasing day by day. As a key supporting material, aluminum nitride ceramics have become an ideal cooling substrate and packaging material because of their excellent thermal conductivity, mechanical strength, corrosion resistance and excellent electrical proper...

ELID Grinding Process Of AlN Substrate: Solving The Difficult Problem Of Machining High-hardness Brittleness

With the rapid development of microelectronics technology, the requirements for electronic packaging materials are increasingly stringent. Aluminum nitride ceramics, with its excellent thermal conductivity, excellent mechanical properties, corrosion resistance and excellent electrical properties, become the leader of large-scale integrated circuit cooling substrate and packaging materials. However...

AlN Ceramic Magnetorheological Polishing Process Achieves High-Quality Surface For AlN Substrate

Today, with the rapid development of the electronics industry, aluminum nitride ceramics have become the first choice for large-scale integrated circuit cooling substrates and packaging materials because of their excellent thermal conductivity, excellent mechanical properties, corrosion resistance and good electrical properties. Especially in the pursuit of miniaturization and high performance int...

Chemical Mechanical Polishing Of AlN Substrate: The Key Path To Overcome Micro-cracks And Subsurface Damage

In the field of microelectronic packaging, aluminum nitride ceramics are gradually becoming the preferred material for high-performance chip cooling substrates due to their excellent thermal conductivity, mechanical strength and electrical properties. However, its high hardness and high brittleness can easily cause surface micro-cracks and sub-surface damage during processing, which directly affec...

Study On Thermal Conductivity Of Aluminum Nitride Substrate And Analysis Of Influence Of Oxygen Impurity

For a long time, most of the substrate materials of high-power hybrid integrated circuits have been using Al2O3 and BeO ceramics, but the thermal conductivity of the Al2O3 substrate is low, and the thermal expansion coefficient is not well matched with Si. Although the comprehensive performance of BeO is excellent, its high production cost and highly toxic shortcomings limit its application and pr...

Evolution Of Ceramic Substrate Materials: Breakthroughs From Alumina To Aluminum Nitride And Silicon Nitride

In today's rapidly changing electronics industry, ceramic substrate materials as a key basis for supporting high-performance electronic devices, its performance and characteristics directly affect the overall performance and reliability of electronic products. From the early alumina ceramics to the later aluminum nitride, silicon nitride and other new materials, the development of ceramic substrat...

The Applicability of Aluminum Nitride Substrate as a Packaging Material for Enhancing Heat Dissipation in Power Devices

With the rapid development of electronic technology, the comprehensive performance of electronic chips is improving day by day, but the overall size is shrinking. This trend brings significant performance improvements, but it also comes with a serious challenge - a dramatic increase in heat flux. For electronic devices, even a small increase in temperature can have a significant impact on their pe...

Thermal Conductivity Improvement of Silicon Nitride Substrate

In the field of advanced ceramic materials, silicon nitride (Si3N4) has attracted much attention for its excellent mechanical strength, chemical stability and high temperature properties. However, the thermal conductivity of silicon nitride ceramics, as one of the key factors affecting its wide application, has been an important subject in materials science research. This paper aims to investigate...

Exploring Lattice Vibration Mechanism And Sintering Assistant Strategy Of Silicon Nitride Substrates

In cutting-edge technologies such as high-performance electronic packaging, aerospace and energy conversion, silicon nitride (Si3N4) substrate materials are highly regarded for their excellent mechanical properties, chemical stability and high temperature resistance. However, the thermal conductivity of silicon nitride, as one of the key factors affecting its wide application, has always been...

Alumina Ceramic Lining Ball Valve

Ceramic Lined Knife Gate Valve Alumina Gate Valve

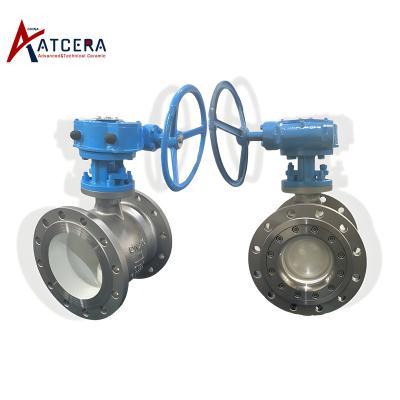

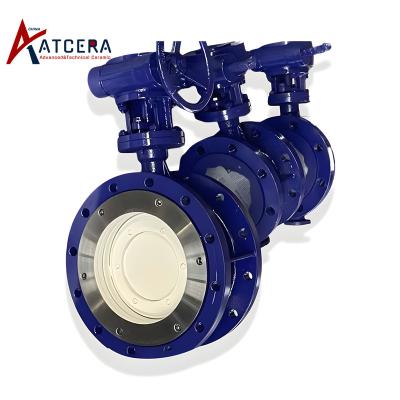

Alumina Ceramic Lined Butterfly Valve Alumina Valve

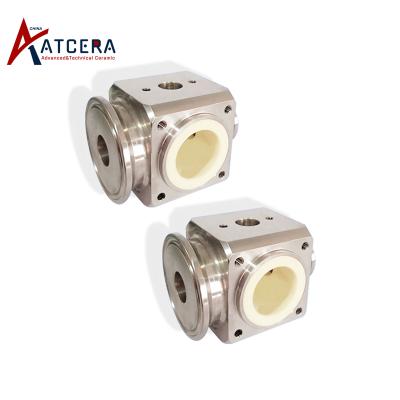

Alumina Ceramic Filling Valve
