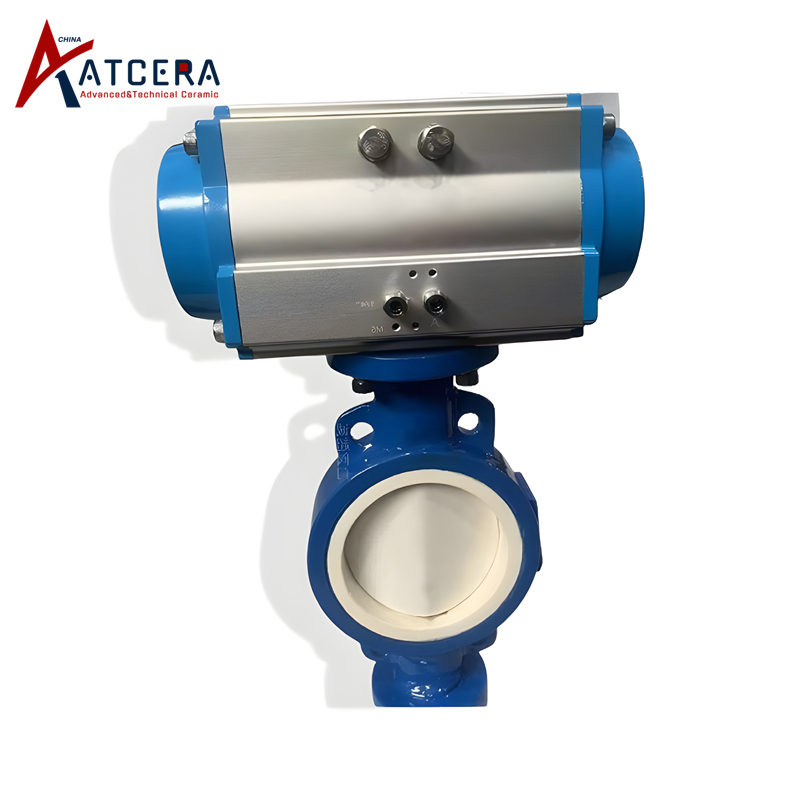

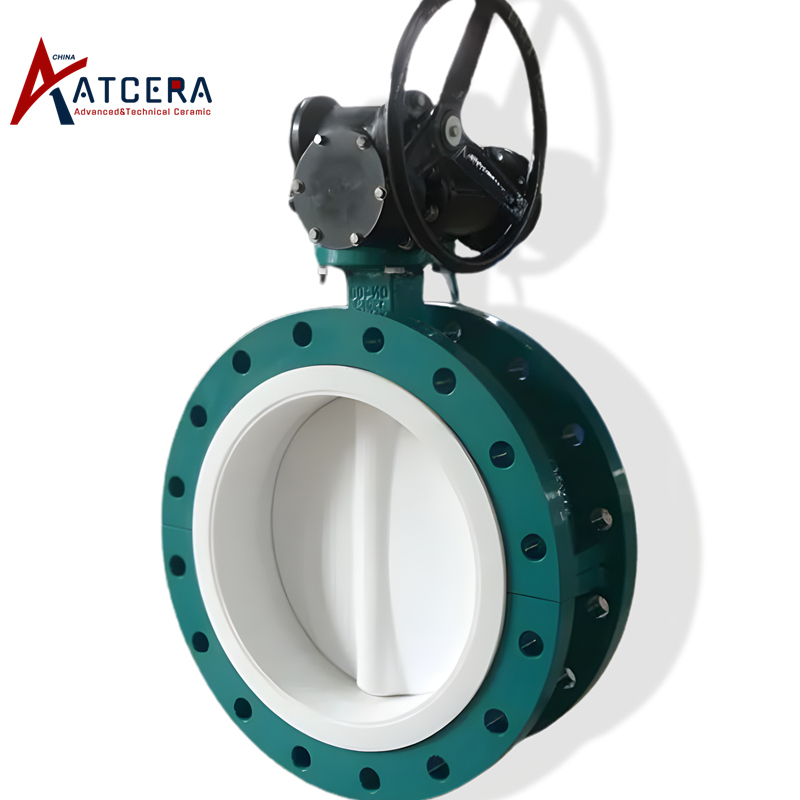

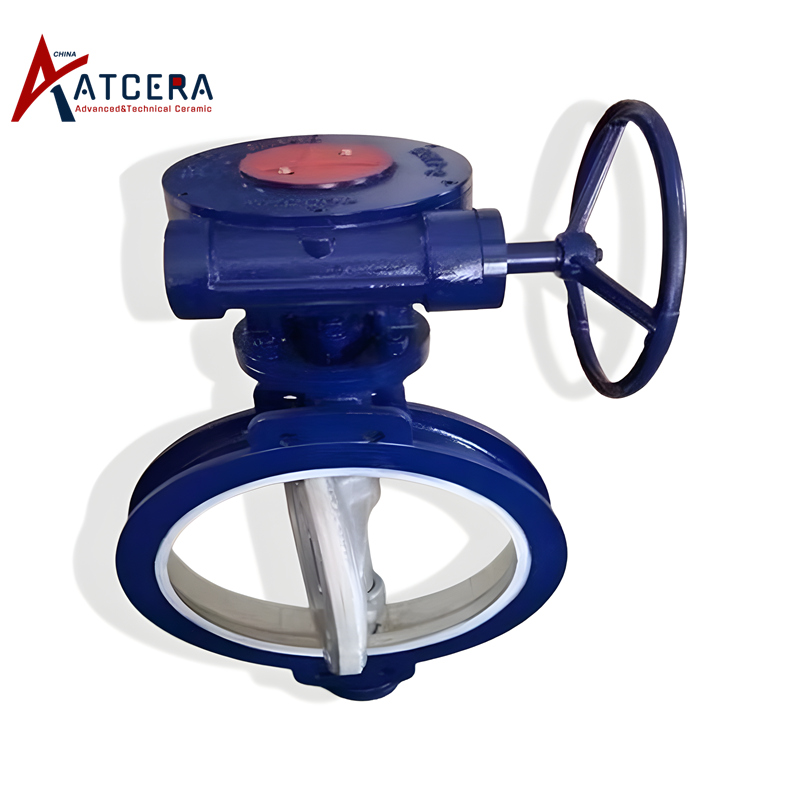

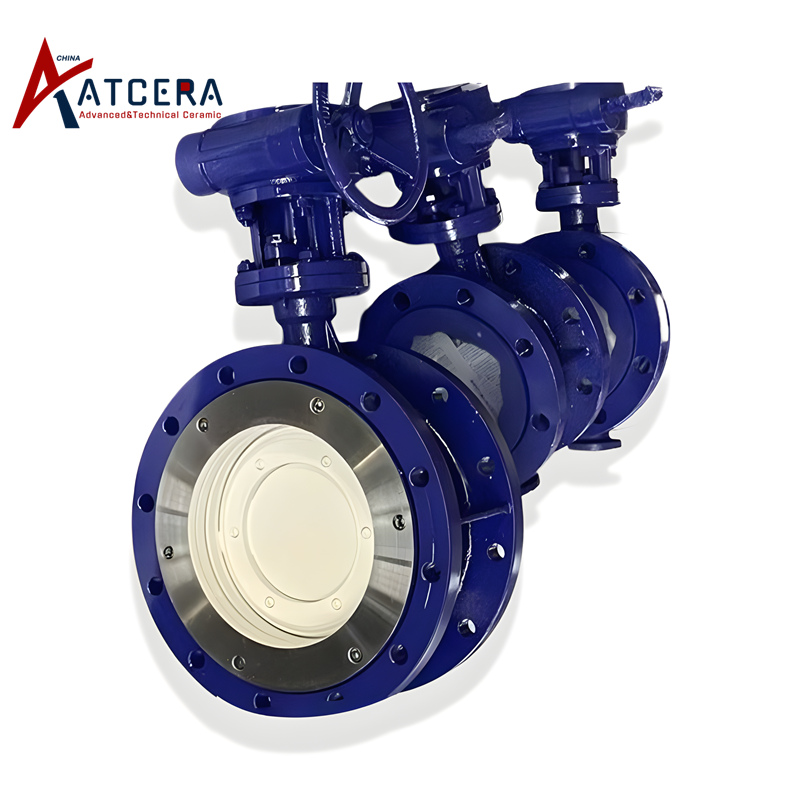

Alumina Ceramic Lined Butterfly Valve Alumina Valve

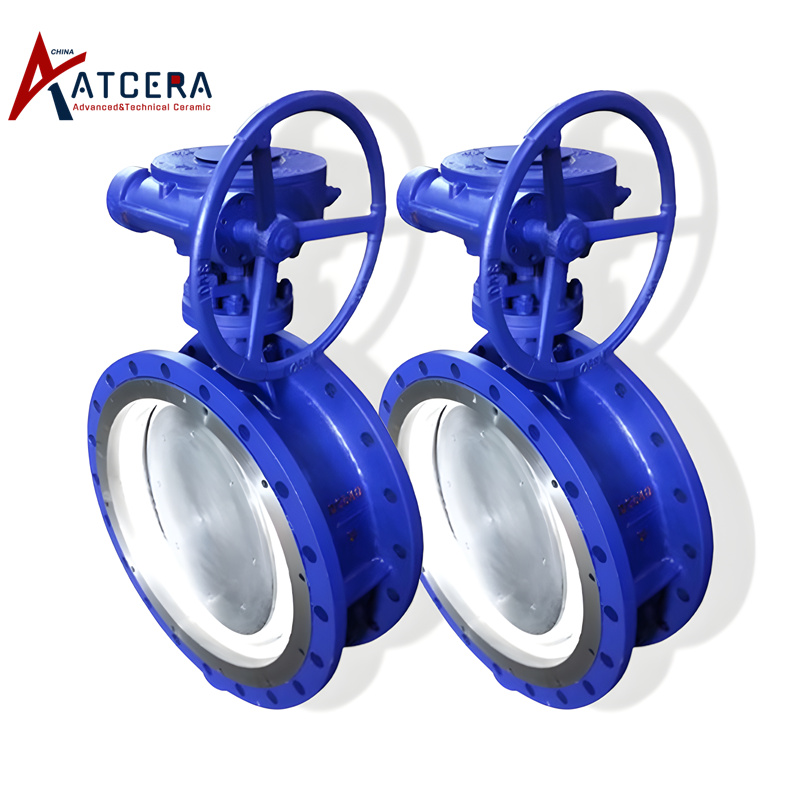

Closing part of alumina ceramic butterfly valve is a butterfly plate, which rotates with the valve stem. It is generally used for the switch control and flow rate ajustment of medium in low pressure fluid pipeline system.

  • Brand:

    ATCERA
  • Item NO.:

    AT-CVD-001
  • Materials

    Alumina
  • Shapes

    Valve
  • Applications

    Mechanical Parts , Petrochemical Industry , Food Processing
Alumina ceramic butterfly valve

Properties of Al2O3 Ceramaic Lined Butterfly Valve



⩟ The sealing ring, sealing pair and butterfly plate are made of alumina ceramic, corrosion resistance, high temperature resistance, wear resistance and erosion resistance are excellent, available for a variety of harsh conditions and with long service life.



⩟  Compact structure, easy installation, can be installed at any angle.



⩟ Alumina ceramic butterfly valve sealing is good, can minimize leakage in pipeline system.

Applications of Alumina Ceramic Lined Butterfly Valve

Applications of Alumina Ceramic Lined Butterfly Valve





Alumina ceramic butterfly valve can be widely used in petrochemical, metallurgy, paper making, power station, oil refining, coal and other industries of all kinds of acid, alkali and salt gas, liquid, high temperature steam, mud and ash conveying system to adjust the flow or cut off the medium.



⩟ Petrochemical

Alumina ceramic lined butterfly valve has good corrosion resistance, and can be used for flow control and regulation of crude oil, refined oil, chemical liquids and other fluids, as well as transportation of various powder and slurry;

⩟ Power Station

Ceramic lining butterfly valve has long life time, high temperature resistance, can be used for steam flow control in power generation and other industries, as well as transportation of solid powder and slurry, including pulverized coal, lime slurry, etc.

⩟ Paper industry

Alumina butterfly valve wear resistance and corrosion resistance is good, can be used for pulp, filtrate, powder, waste water and other materials transportation pipeline;

⩟ Water supply and HVAC

Aluminum oxide ceramic lined butterfly valve has good wear resistance and long life, and is widely used in urban water supply, air conditioning water and cooling water systems.



Size Chart for Alumina Ceramic Lining Ball Valve



Dedicated to delivering high-quality ceramic lined butterfly valve and ceramic lining knife gate valve customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of tailor-made sizes to meet your unique requirements.



Drawing and specification(including materials, etc.) requirement shall be provided if customized request.





Alumina Ceramic Lined Butterfly Valve
Item NO. DN PN(MPa) L D D1 D2 H H1 z-d
AT-CVD-001 50 1.0  108 140 125 100 254 85  4-18
AT-CVD-002 65 1.0  112 160 145 120 278 95  4-18
AT-CVD-003 80 1.0  114 185 160 135 312 106  4-18
AT-CVD-004 100 1.0  127 205 180 155 330 114  8-18
AT-CVD-005 125 1.0  140 235 210 185 365 130  8-18
AT-CVD-006 150 1.0  140 260 240 210 404 148  8-23
AT-CVD-007 200 1.0  152 315 295 265 496 176  8-23
AT-CVD-008 250 1.0  165 370 350 320 538 210  8-23
AT-CVD-009 300 1.0  178 435 400 368 632 238  8-23









Specification of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions



1. According to the composition of the fluid, temperature, pressure, flow and other parameters to select the appropriate alumina valve type and specifications, to ensure that the selected valve meets the design parameters, to avoid overload operation;

2. The alumina butterfly valve should be cleaned before installation, remove dirt and impurities. Check whether the appearance of the valve is normal, and confirm whether the components are intact;

3. During the installation process, to ensure the installation of the valve firmly, to avoid the valve by violent impact and vibration;

4, The valve should be regularly checked whether the valve parts loose, sealing performance is intact. If any abnormal situation occurs, it should be handled in time to ensure the safety and reliability of the valve.

Valuable Information

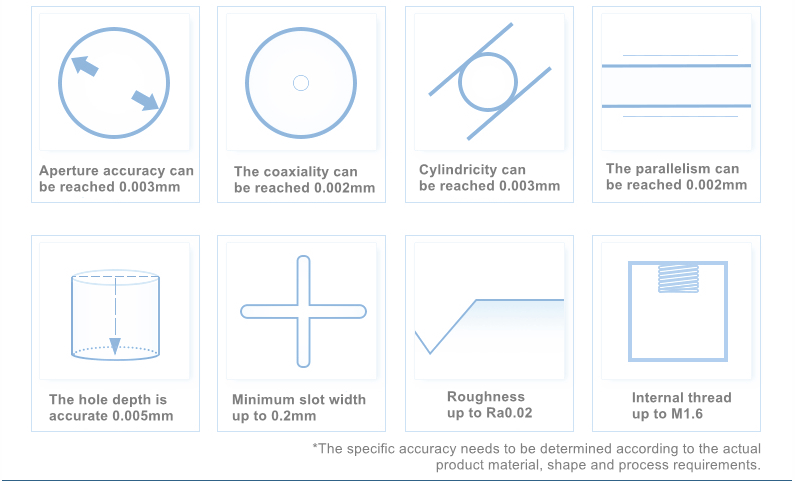

Machining Precision

Machining Precision

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
