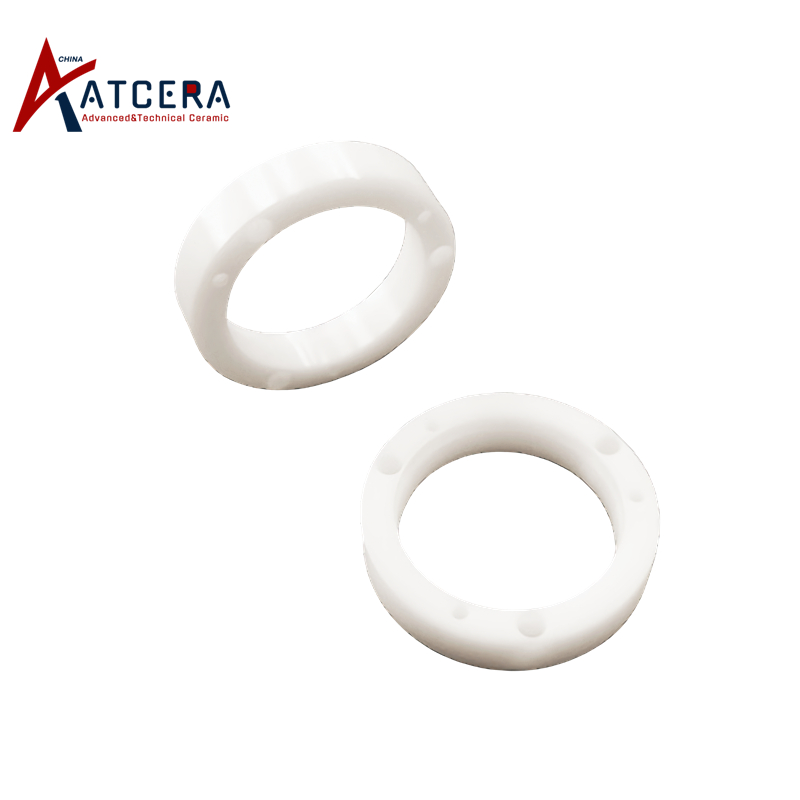

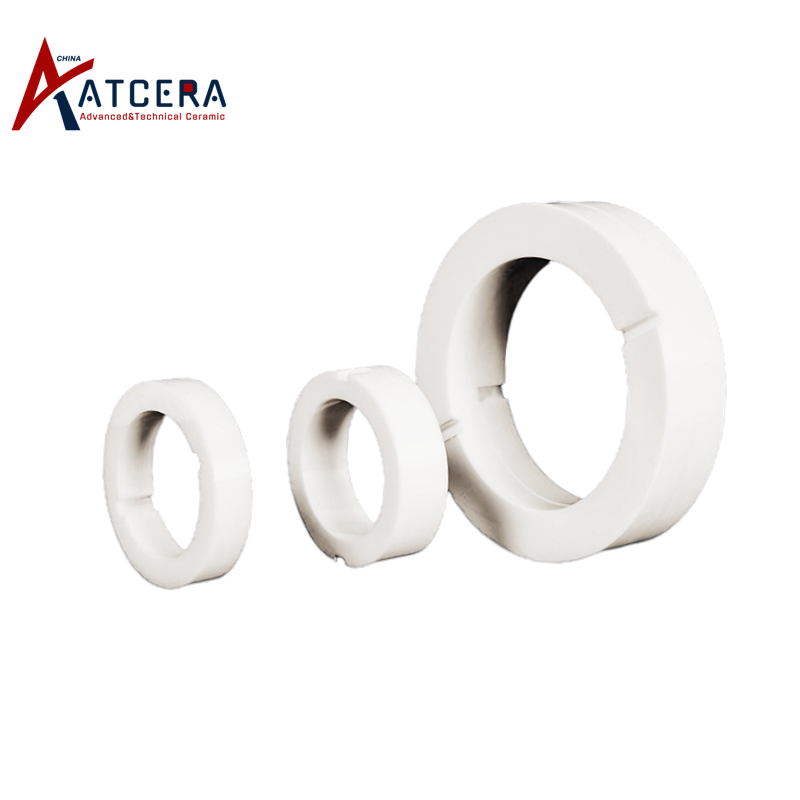

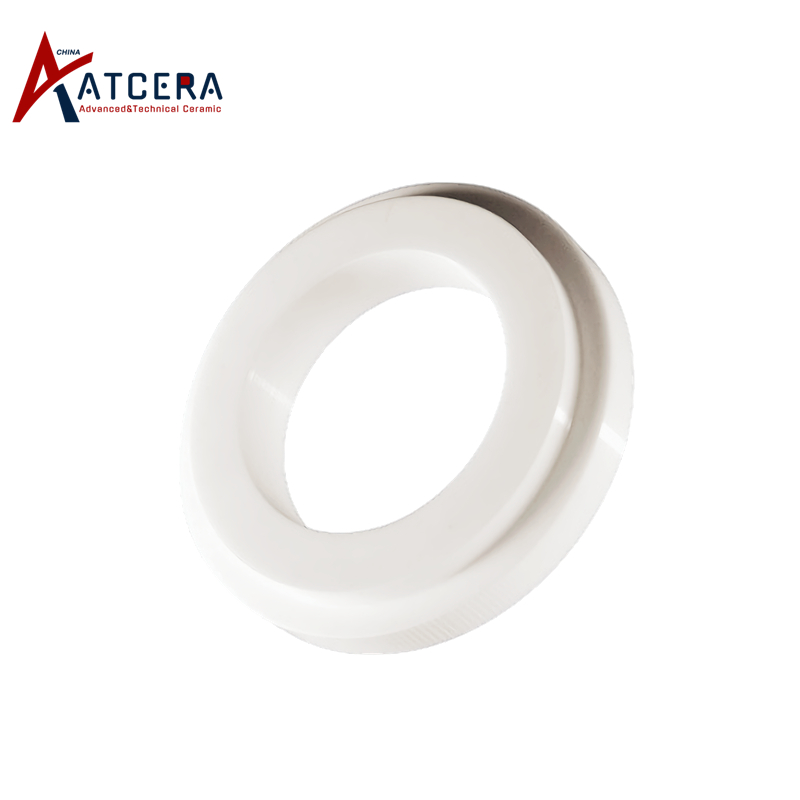

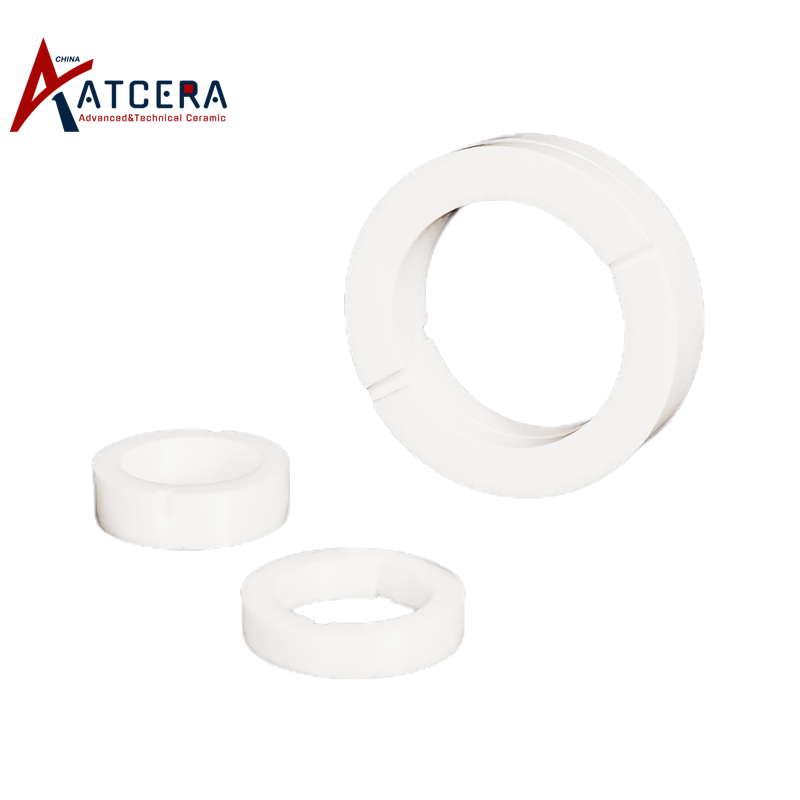

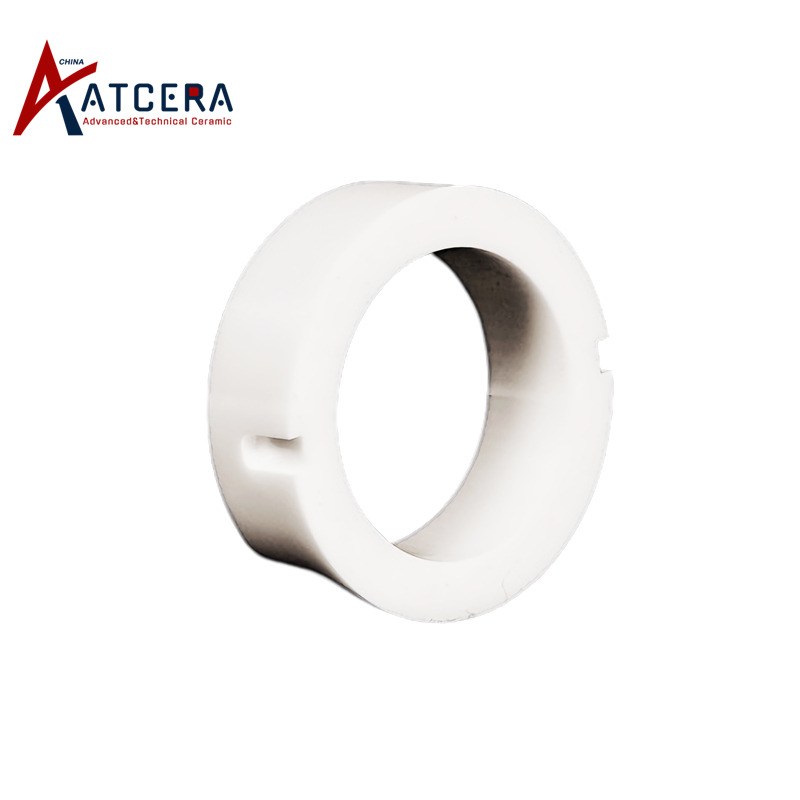

Zirconia Ceramic Sealing Ring

Zirconia ceramic sealing rings exhibit excellent resistance to high temperatures and thermal shock, coupled with robust abrasion and corrosion resistance. They are extensively utilized in sealing connections between various mechanical equipment and pipelines to prevent gas or liquid leaks.

Brand:
ATCERA
Item NO.:
AT-YHG-M1001

Materials
Zirconia
Shapes
Mechanical Parts
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Zirconia Ceramic Sealing Ring

1. Excellent Corrosion Resistance

Zirconia sealing rings possess remarkable resistance to acids, alkalis, and other chemicals, enabling their usage in environments with corrosive media.

2. Superior Abrasion Resistance

The high hardness and abrasion resistance of zirconia ceramic material ensure long service life for the sealing rings.

3. High-Temperature Resistance

Zirconia sealing rings demonstrate exceptional high-temperature tolerance, withstanding temperatures exceeding 1000°C and exhibiting good oxidation resistance under such conditions.

Applications of Zirconia Sealing Ring

Zirconia sealing rings are installed at the interfaces of pipes, pumps, valves, and other equipment to seal containers or equipment ends, inlets/outlets, and on both sides of transmission shaft bearings. They primarily serve to prevent leaks of water, oil, chemicals, or gases and are widely used in medical devices, optical instruments, printing machinery, chemical equipment, food processing machinery, and numerous other applications.

Size Chart of Zirconia Ceramic Sealing Ring

We are committed to delivering optimal zirconia sealing rings tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parametric specifications for customization.

Machining Tolerance:

Dimensional Accuracy: Up to 0.001mm

Surface Finish: Up to mirror-like finish

Concentricity: Up to 0.003mm

Parallelism: Up to 0.002mm

Inner Bore Tolerance: Minimum processable tolerance of 0.005mm

Straight Slots: Narrowest processable slot width of 0.1×100mm

Thickness: Minimum processable thickness of 0.02mm

Threads: Minimum processable internal thread of M2, external threads not limited

Cylindricity: Up to 0.004mm

Linear Tolerance: Up to 0.001mm

Minimum Bore Diameter: Minimum processable diameter of 0.07mm

Zirconia Ceramic Sealing Ring
Item no.	Outer Dia. (mm)	Inner Dia. (mm)	Height (mm)
AT-YHG-M1001	10.00	7.50	1.00
AT-YHG-M1002	24.00	10.50	5.10
AT-YHG-M1003	25.00	15.00	2.00
AT-YHG-M1004	31.00	17.00	3.00
AT-YHG-M1005	40.00	30.00	20.00
AT-YHG-M1006	41.12	29.92	5.60
AT-YHG-M1007	50.00	30.00	5.00
AT-YHG-M1008	50.00	46.00	5.00
AT-YHG-M1009	60.17	46.03	7.07
AT-YHG-M1010	62.00	50.00	5.50
AT-YHG-M1011	63.35	49.20	7.08
AT-YHG-M1012	69.70	55.86	6.92
AT-YHG-M1013	72.87	59.03	6.92
AT-YHG-M1014	76.05	62.21	6.92
AT-YHG-M1015	79.22	65.38	6.92
AT-YHG-M1016	82.40	68.63	6.89
AT-YHG-M1017	85.57	71.81	6.88
AT-YHG-M1018	89.00	65.00	5.30
AT-YHG-M1019	90.00	55.00	16.00
AT-YHG-M1020	100.00	80.00	15.00
AT-YHG-M1021	115.00	80.00	15.00
AT-YHG-M1022	1-150	0.5-140	1-50

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Choose the appropriate zirconia sealing ring based on the design dimensions and working environment to avoid premature aging and reduce its service life.

2. Clean the zirconia sealing ring and installation surface of dust and impurities during installation to ensure the sealing component's longevity.

3. Install the sealing ring in the correct direction to avoid compromised sealing performance.

4. Ensure that the operating temperature of the zirconia sealing ring does not exceed its maximum usage temperature, as excessive heat can accelerate aging and shorten its service life.

Valuable Information

Zirconia Ceramic Sealing Ring Packing

Zirconia ceramic sealing rings are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
