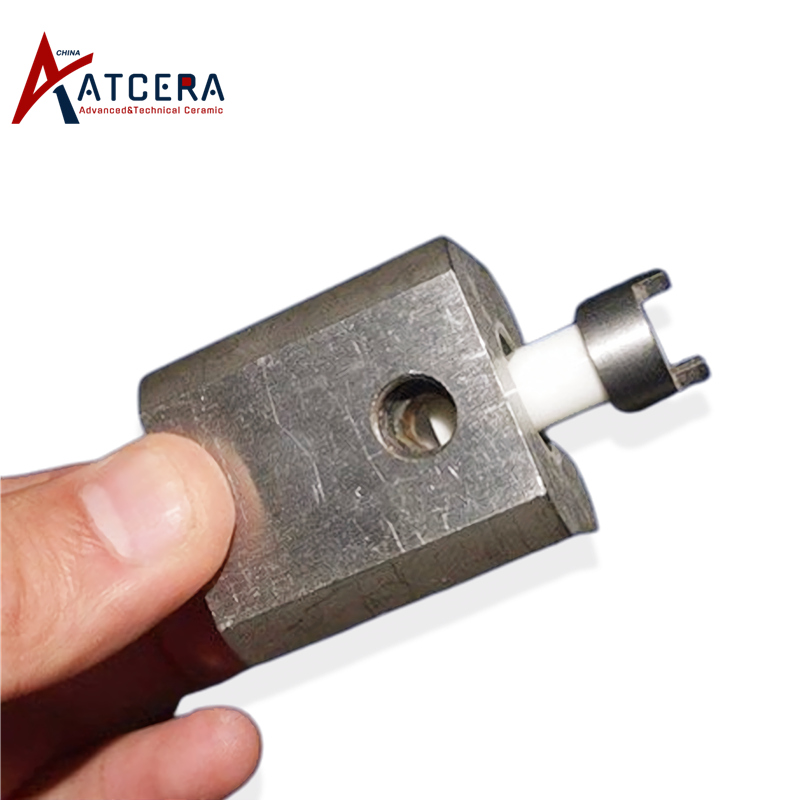

Alumina Ceramic Filling Valve

The alumina ceramic filling valve is fabricated through processes such as shaping and sintering using high-purity alumina powder. It is designed for use in automatic filling machines, regulating and controlling flow rates to achieve automated filling operations.

Brand:
ATCERA
Item NO.:
AT-YHL-GZF001

Materials
Alumina
Shapes
Valve
Applications
Petrochemical Industry , Food Processing , Biology and Medicine

Inquire Now

Advantages of Alumina Ceramic Filling Valve

1. The alumina filling valve boasts a high degree of hardness, wear resistance, and corrosion resistance, making it suitable for filling liquids of various compositions. It poses no contamination to the liquid and enjoys a long service life.

2. The alumina filling valve exhibits precise machining accuracy, excellent airtightness, and zero leakage.

3. The valve is capable of withstanding high temperatures with a low thermal expansion coefficient, ensuring unimpaired airtightness and normal operation under high-temperature conditions.

Applications of Alumina Filling Valve

1. Food Processing

Used for quantitative filling of liquids such as beverages, dairy products, and condiments. It offers high filling accuracy without compromising product quality or taste.

2. Pharmaceutical Industry

The alumina material exhibits good biocompatibility, making the alumina filling valve suitable for metering and filling various liquid medications and biological agents. It meets the high standards of drug safety and stability in the biomedical field.

3. Cosmetics Industry

Used for filling various liquid cosmetics such as perfumes and lotions, achieving high precision and efficiency.

4. Chemical Industry

With its excellent chemical inertness and corrosion resistance, the alumina material is suitable for precise filling of various chemical liquids, including chemical reagents and battery electrolytes.

Customized Design for Alumina Filling Valve

We are committed to delivering optimal alumina filling valves tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide specific product dimensions and parametric requirements for customization.

ceramic filling valve

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Before using the alumina ceramic filling valve, ensure it is thoroughly cleaned to remove any impurities or residues.

2. Install the alumina filling valve correctly on the filling equipment according to the manufacturer's installation guidelines, ensuring that all fasteners are in the appropriate positions.

3. Regularly inspect the wear condition of the filling valve, perform regular cleaning and maintenance, and replace worn parts promptly to ensure its normal operation.

4. When the alumina filling valve is not in use, store and safeguard it properly to prevent dust or impurities from entering, which may affect its performance and lifespan.

Valuable Information

Alumina Filling Valve Packing

Alumina filling valves are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
