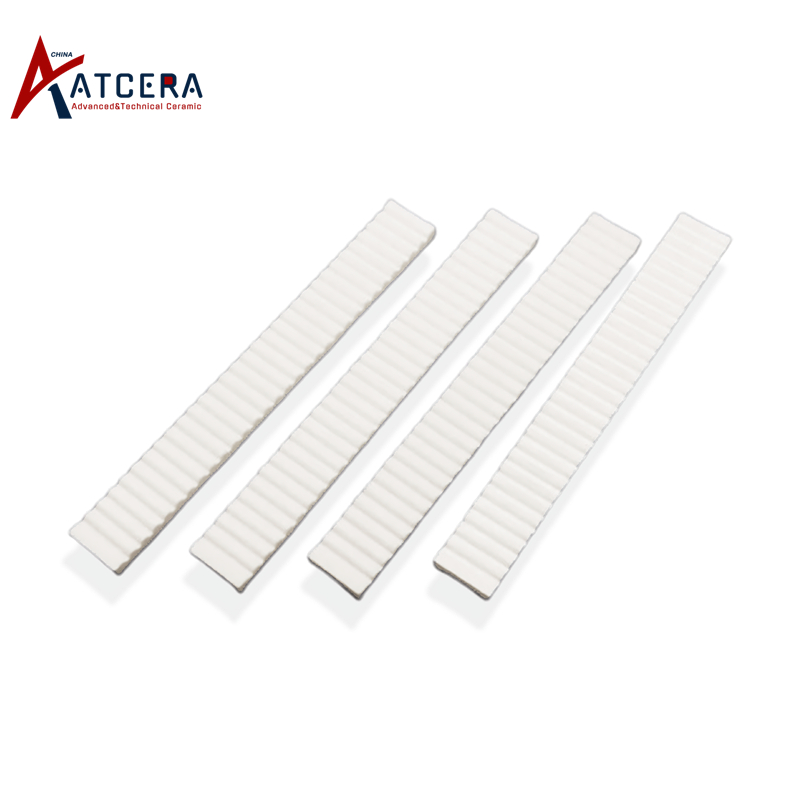

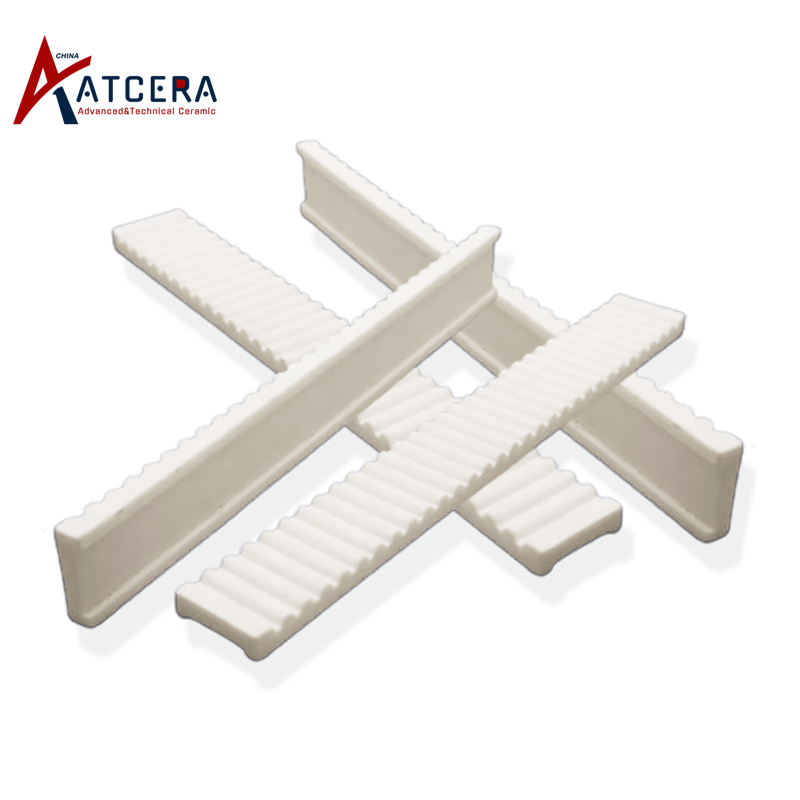

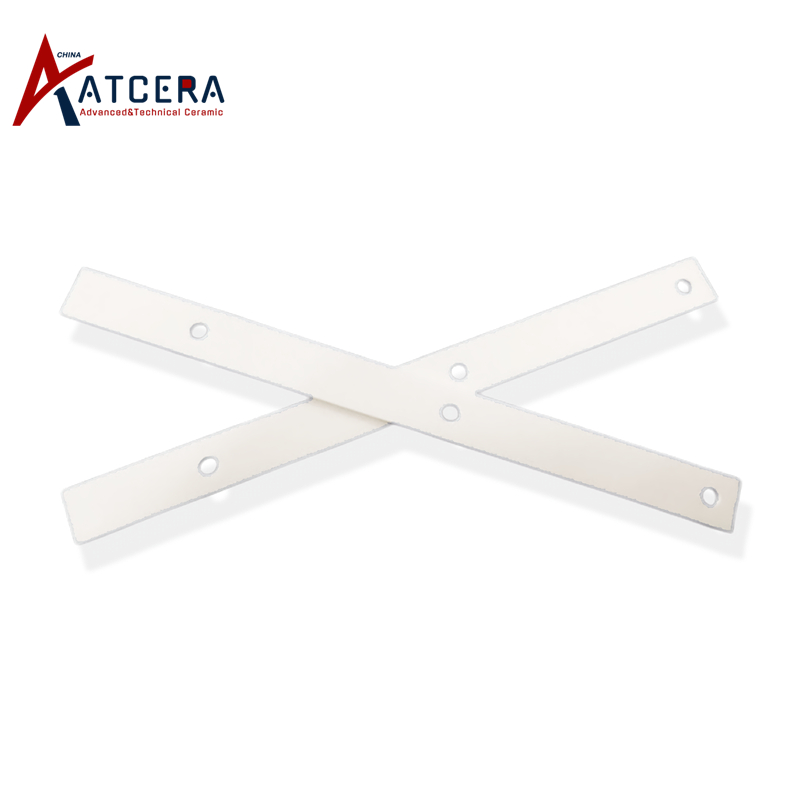

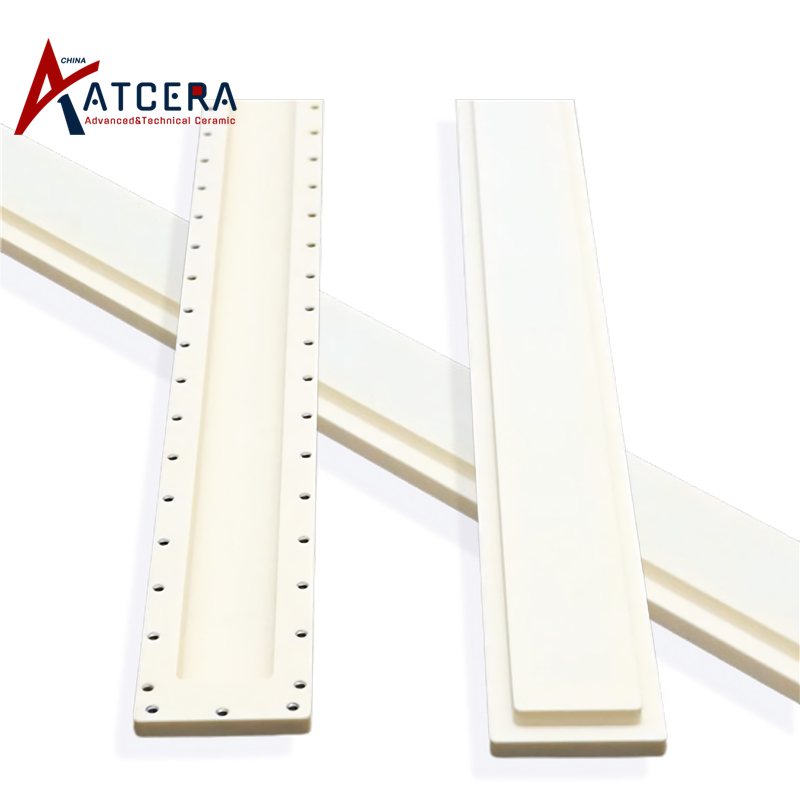

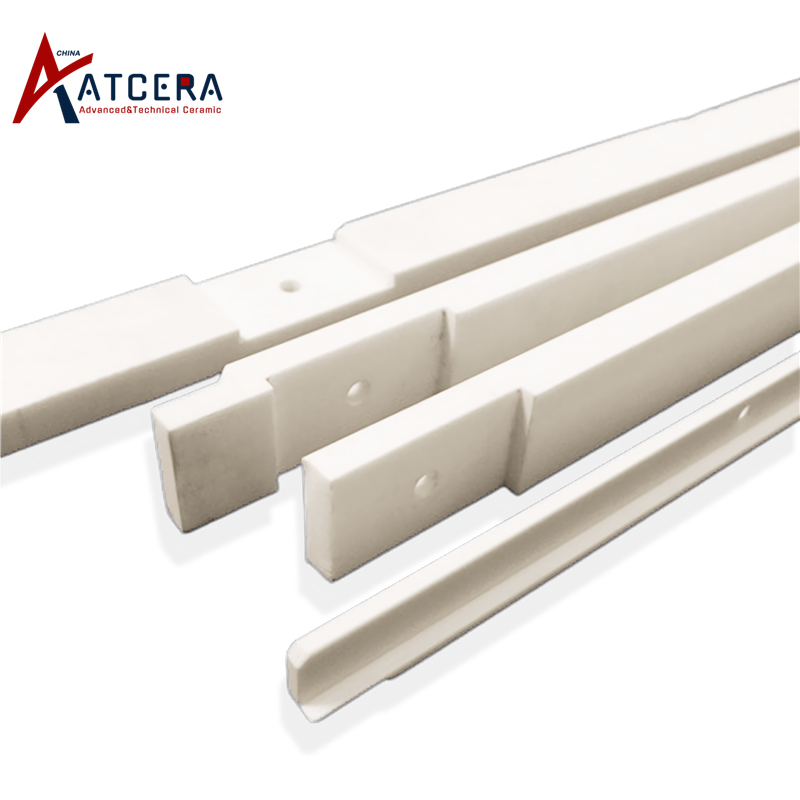

Alumina Ceramic Insulation Plate for Electromagnetic Shielding and Mechanical Protection

The alumina ceramic insulation plate is crafted from high-purity alumina (Al2O3), boasting exceptional electromagnetic shielding properties and mechanical strength. It primarily serves the purpose of electromagnetic shielding and mechanical protection in electronic and electrical equipment.

Brand:
ATCERA
Item NO.:
AT-PBK-001

Materials
Alumina
Shapes
Mechanical Parts
Applications
Electronics and Electricity

Inquire Now

Properties of Alumina Insulation Plate

1. The alumina ceramic insulation plate excels in electromagnetic shielding, mechanical strength, abrasion resistance, and corrosion resistance.

2. Possessing high temperature resistance, excellent thermal stability, and a low thermal expansion coefficient, it can operate normally in environments with high temperatures and drastic temperature variations.

3. It is easily processable, facilitating the fabrication of various sizes and shapes that align seamlessly with electronic and electrical equipment.

Applications of Alumina Insulation Plate

The alumina ceramic insulation plate finds its primary use in electronic and electrical equipment, fulfilling the dual role of electromagnetic shielding and mechanical protection. It is widely employed in production lines across industries such as chemicals, machinery, and pharmaceuticals.

Custom Design for Alumina Insulation Plate

We are committed to delivering optimal alumina nsulation plates tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parameter specifications if customization requirements needed.

alumina insulation plate

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. During handling and installation, handle the alumina insulation plate with care to avoid collisions and drops, which could result in damage or deformation.

2. Prior to installation, carefully verify the dimensions and specifications of the insulation plate to ensure they align with your actual requirements, preventing issues caused by mismatched installations.

3. Regular inspections should be conducted to clean the surface of oil stains and impurities. Prompt replacement is necessary upon discovering cracks or damage, lest it compromises the shielding and protective performance.

Valuable Information

Alumina Insulation Plate Packing

Alumina insulation plates are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
