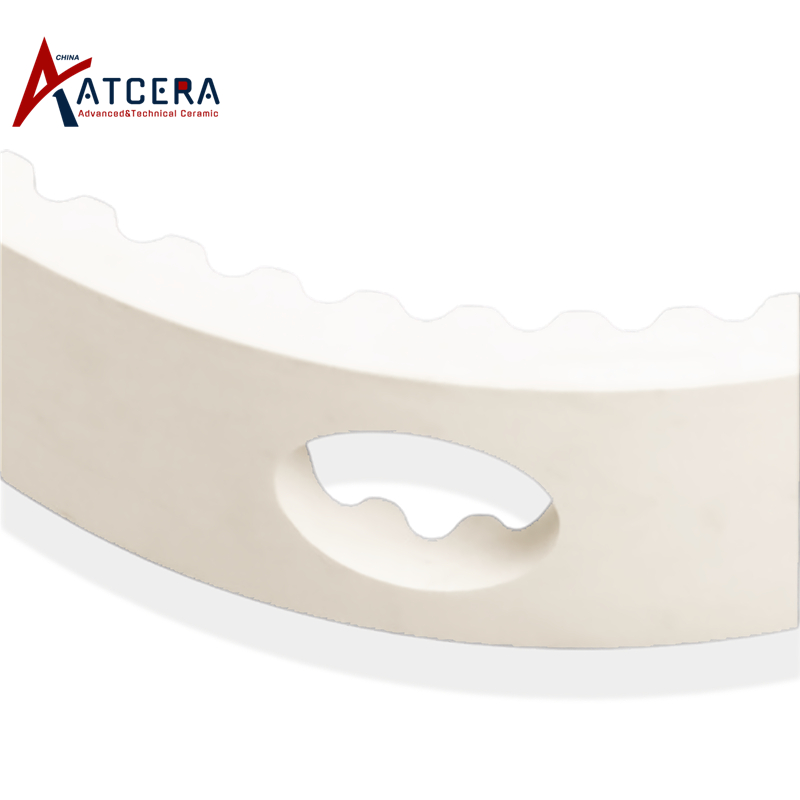

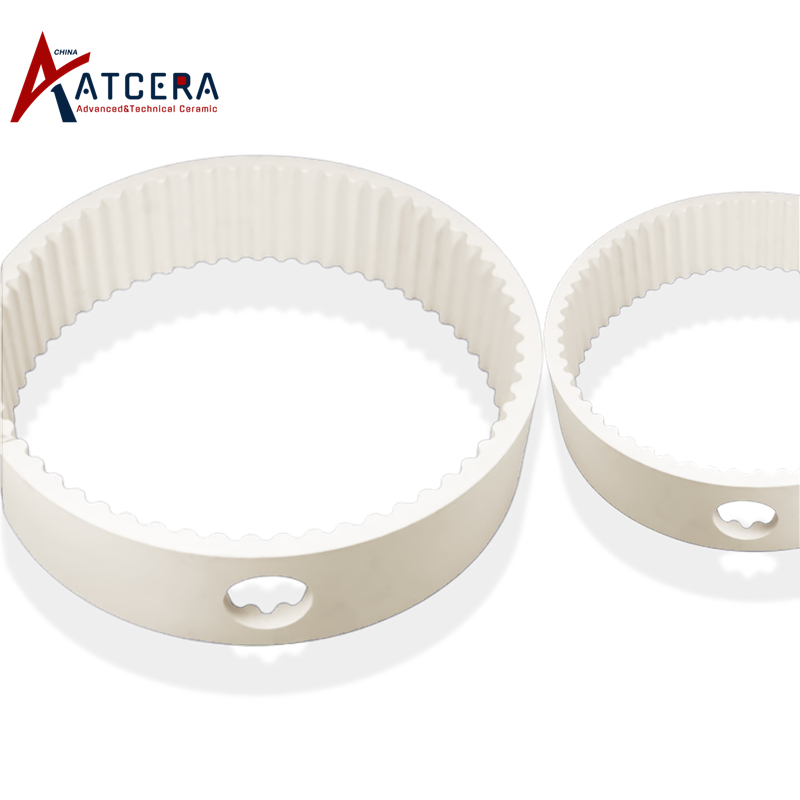

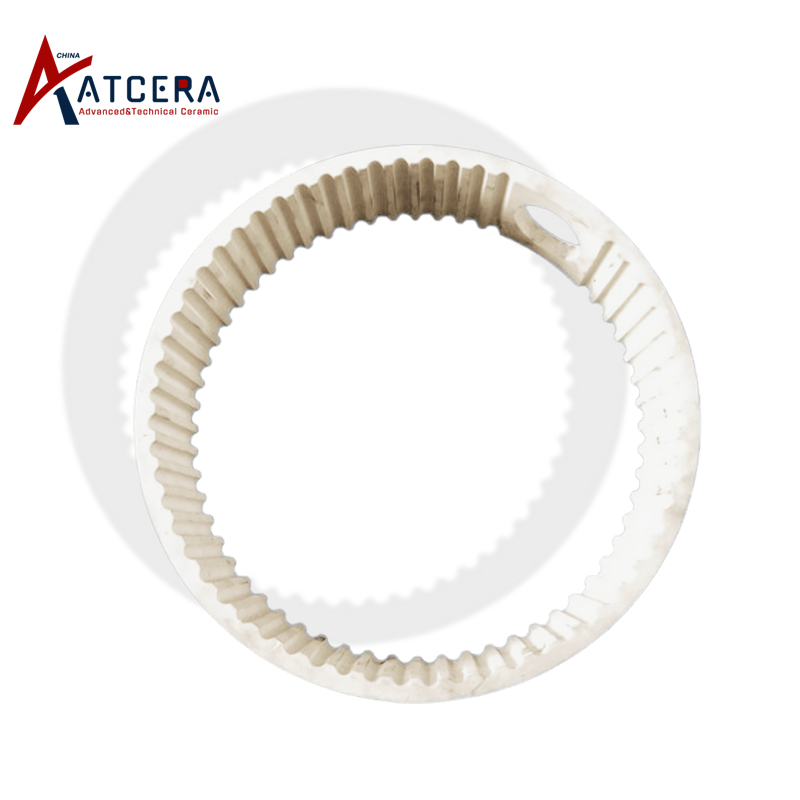

Alumina Ceramic Internal Geared Ring for Pneumatic Pulverizers

The alumina ceramic gear ring, crafted from high-purity alumina, serves as a pivotal component in pneumatic pulverizers. Typically positioned at the inlet of the pulverizer, it plays a crucial role in facilitating the breaking down and grinding of materials.

Brand:
ATCERA
Item NO.:
AT-SM-C001

Materials
Alumina
Shapes
Mechanical Parts
Applications
Petrochemical Industry , Food Processing , Metallurgy Industry , Biology and Medicine

Inquire Now

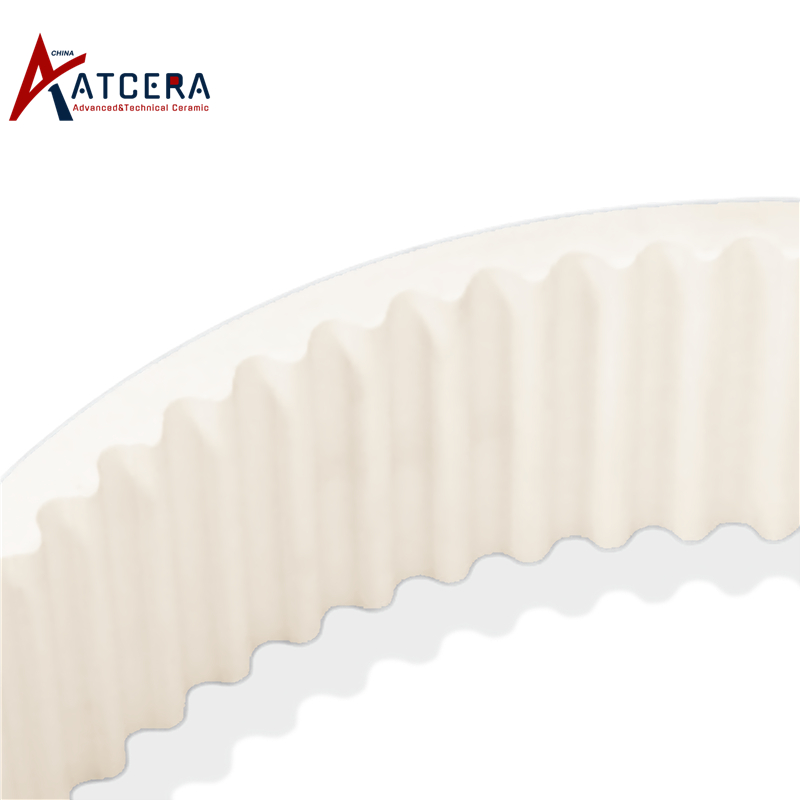

al2o3 internal geared ring for pneumatic pulverizers

Properties of Alumina Internal Geared Ring

1. The alumina ceramic internal geared ring boasts exceptional hardness, superb wear resistance, significant mechanical strength, corrosion resistance, and a prolonged service life.

2. With its low density and lightweight construction, it reduces the equipment's load, ensuring ease of operation and maintenance.

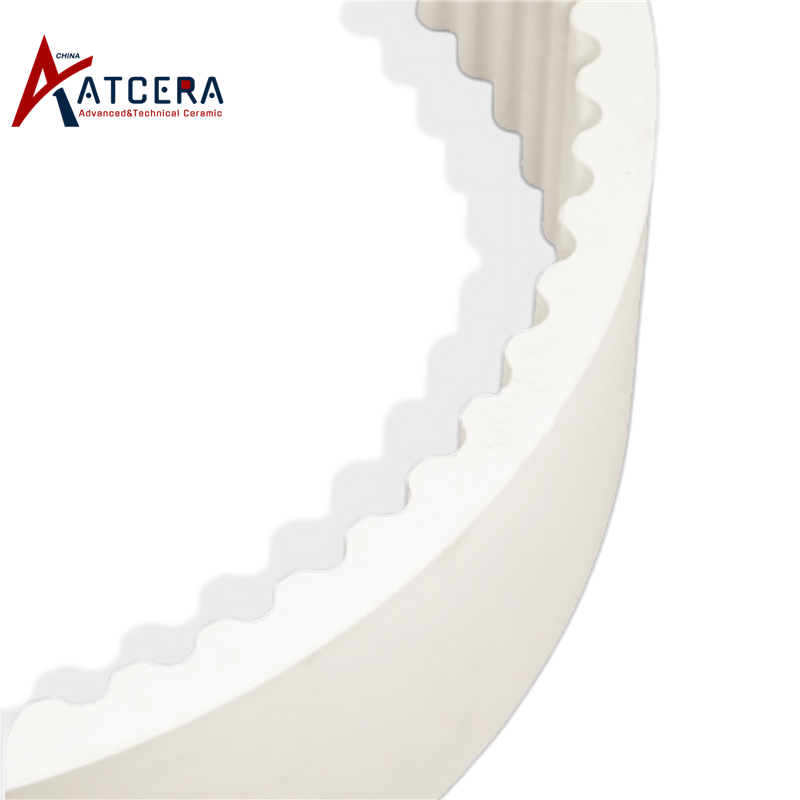

aluminum oxide internal geared ring for pneumatic pulverizers

Applications of Alumina Internal Geared Ring

The alumina ceramic internal geared ring, as a critical component in pneumatic pulverizers, is utilized for material crushing and grinding in industries such as chemicals, pharmaceuticals, food processing, metallurgy, coal power, and more.

Size Chart for Alumina Internal Geared Ring for Pneumatic Pulverizers

We are committed to delivering optimal alumina internal geared rings tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parameter specifications if customization requirements needed.

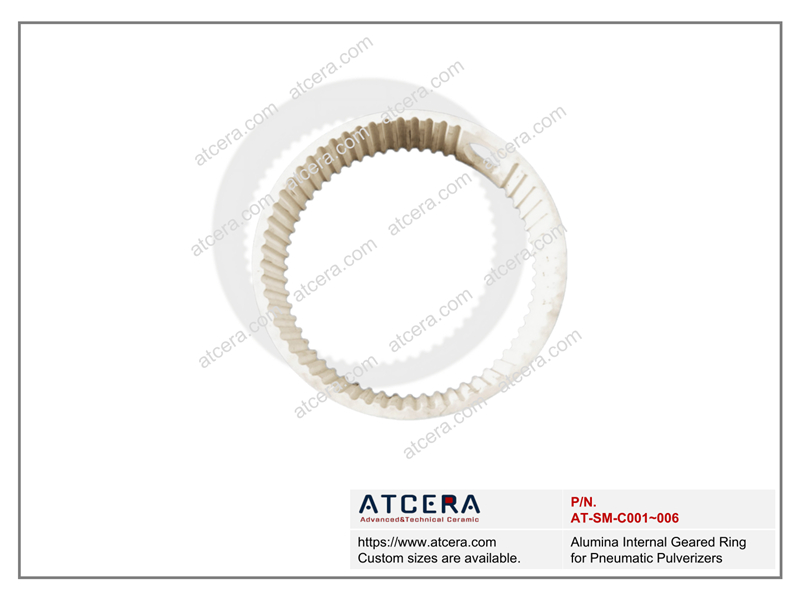

Drawing of Alumina Internal Geared Ring for Pneumatic Pulverizers

Alumina Internal Geared Ring for Pneumatic Pulverizers
Item NO.	Outer Diameter (mm)	Inner Diameter (mm)	Thickness (mm)	Height (mm)	Number of gears (pcs)	Al2O3's Purity
AT-SM-C001	360	334	13	65	80	95-99
AT-SM-C002	460	420	20	100	70	95-99
AT-SM-C003	490	440	25	120	80	95-99
AT-SM-C004	500	450	25	120	140	95-99
AT-SM-C005	640	600	20	136	200	95-99
AT-SM-C006	700	650	25	157	220	95-99

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Prior to installation, inspect the radial runout and end face swing of the alumina internal geared ring to ensure compliance with specifications. If deviations are detected, adjustments should be made accordingly.

2. During installation, maintain the cleanliness of the alumina internal geared ring to prevent debris and dust from adhering to its surface.

3. Avoid contact between metal or hard objects and the alumina internal geared ring during operation to prevent cracking or damage.

4. Regularly inspect the wear condition of the alumina internal geared ring. In case of severe wear or cracks, prompt replacement is necessary.

Valuable Information

Alumina Internal Geared Ring Packing

Alumina internal geared rings are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
