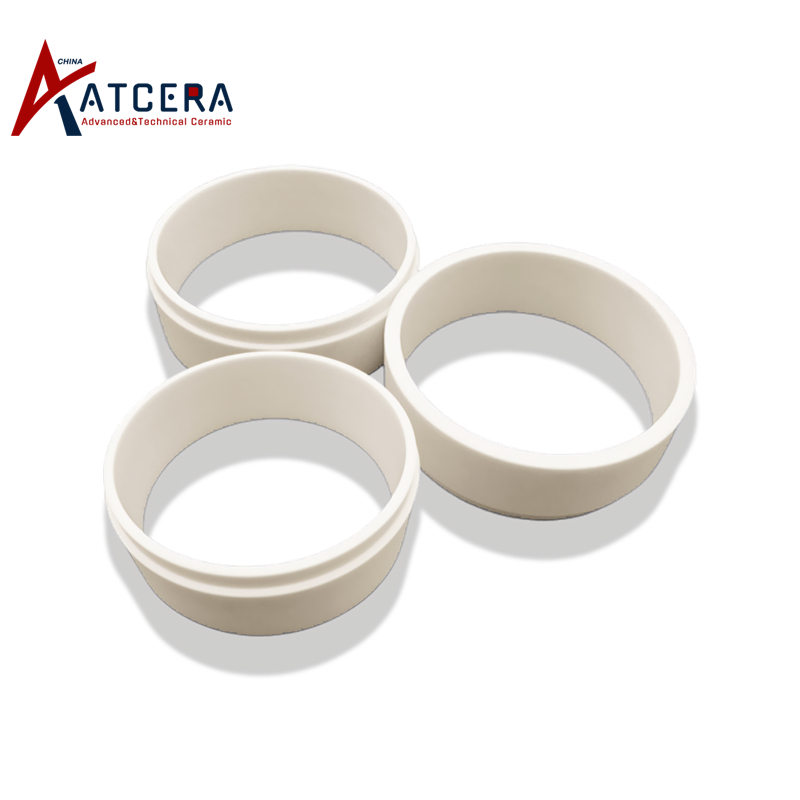

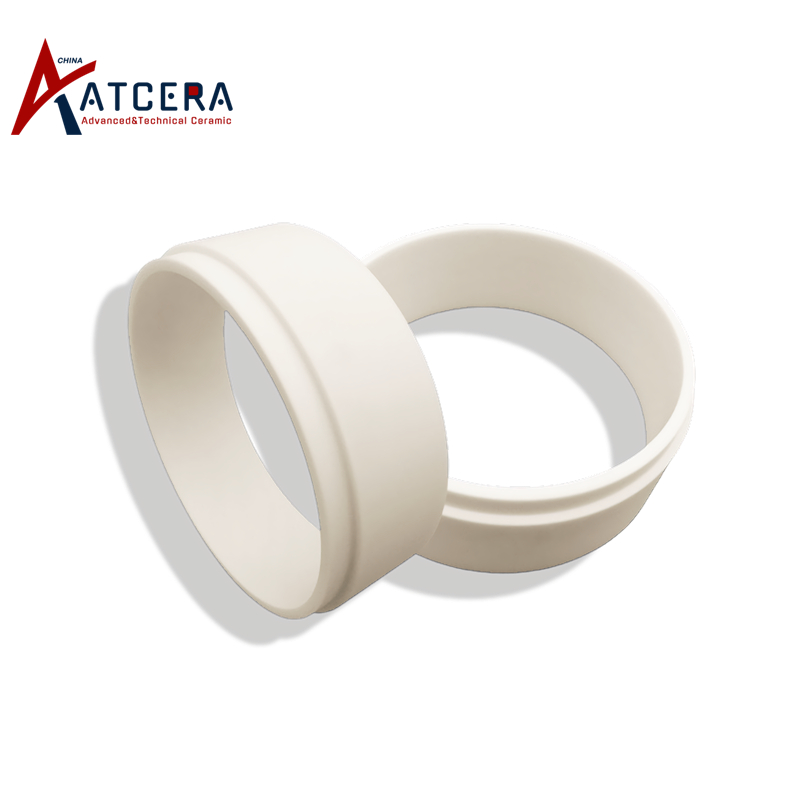

Alumina Ceramic Thrust Ring

The alumina thrust ring is made of high-purity alumina, exhibiting exceptional compressive strength and corrosion resistance. It serves as a crucial structural component in mechanical equipment, primarily utilized for axial positioning and fixation of components, preventing their axial movement.

  • Brand:

    ATCERA
  • Item NO.:

    AT-YHL-ZTH001
  • Materials

    Alumina
  • Shapes

    Ring
  • Applications

    Mechanical Parts
al2o3 fixing ring

Advantages of Alumina Thrust Ring



1. The alumina ceramic thrust ring demonstrates exceptional heat resistance, with a maximum operating temperature exceeding 1500℃. It exhibits superior thermal stability and minimal thermal expansion coefficient, enabling its prolonged use in high-temperature environments.



2. The alumina ceramic thrust ring boasts remarkable corrosion resistance, capable of direct contact with most acids, alkalis, and other chemicals. It maintains stable performance in high-humidity environments, adapting to various harsh working conditions.



3. The alumina thrust ring possesses significant compressive strength, fulfilling the requirements for heavy loads.

al2o3 ceramic thrust ring

Applications of Alumina Thrust Ring







The alumina thrust ring is employed for axial positioning and fixation of mechanical components, limiting their axial movement. It finds widespread application in various machine tools, transmission systems, hydraulic systems, and more.





















Customized Design for Alumina Thrust Ring



We are committed to delivering optimal alumina thrust rings tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Please provide drawings and parameter specifications if customization requirements needed.



aluminum oxide thrust ring



Technical Data of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions



1. Select the appropriate specification of alumina thrust ring based on the equipment's dimensions and working environment.

2. Follow the equipment manufacturer's guidelines and installation instructions to correctly install the alumina thrust ring, ensuring proper coordination between the fixing ring and other equipment components.

3. Regularly inspect the alumina thrust ring to ensure its integrity. In case of loosening or damage, prompt maintenance or replacement is recommended.

Valuable Information



Alumina Fixing Ring Packing

Alumina Thrust Ring Packing



Alumina thrust rings are carefully packaged in appropriate containers to avoid any potential damage.























Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
