Alumina Insulation Structural Parts Ceramic Insulating Mechanical Parts

The alumina ceramic insulating structural parts, primarily composed of alumina and silicate, are sintered after molding and can be conveniently fabricated into various shapes. It possesses exceptional electrical insulation properties and high-temperature resistance, thus extensively utilized as an insulating component in electronics, power, aerospace, and other fields.

Brand:
ATCERA
Item NO.:
AT-AM1-001

Materials
Alumina
Shapes
Mechanical Parts
Applications
Electronics and Electricity

Inquire Now

Properties of Insulation Structural Parts

1. The alumina insulating structural part boasts high mechanical strength, capable of enduring significant pressure and mechanical impact, rendering it resistant to deformation or damage.

2. With its high resistivity, the alumina insulating structural part exhibits superior electrical insulation properties, effectively isolating electrical contacts and ensuring the smooth operation of equipment.

3. The alumina insulating structural part is resistant to high temperatures and corrosion, maintaining stable performance under conditions of elevated temperatures and corrosive substances, allowing for normal usage.

Applications of Insulation Structural Parts

The alumina ceramic insulating structural part primarily functions to achieve electrical insulation, mechanical support, and protection, ensuring the proper operation of equipment. It is widely used in devices across the electronics, electrical, petrochemical, automotive, and other industries.

Size Chart for Alumina Insulation Structural Parts

We are committed to delivering optimal alumina insulation structural parts tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parameter specifications if customization requirements needed.

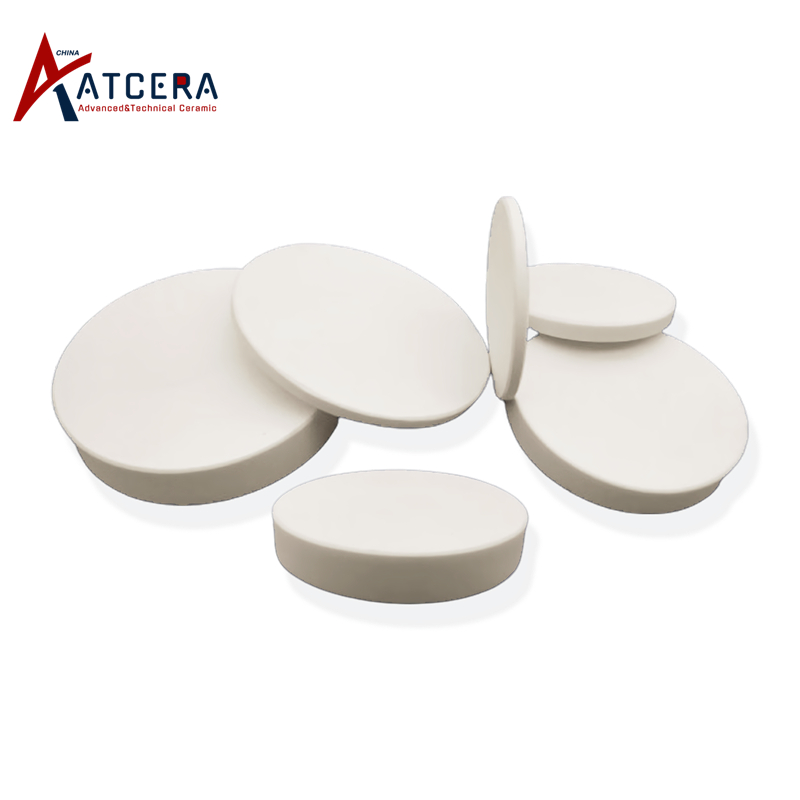

Item no.	Diameter (mm)	Thickness (mm)	Al2O3's Purity
AT-AM1-001	100	20	96%-99%
AT-AM1-002	90	5.5	96%-99%
AT-AM1-003	80	14.5	96%-99%
AT-AM1-004	70	7.5	96%-99%
AT-AM1-005	60	4.5	96%-99%
AT-AM1-006	50	6	96%-99%
AT-AM1-007	40	5	96%-99%
AT-AM1-008	30	4	96%-99%
AT-AM1-009	20	3	96%-99%

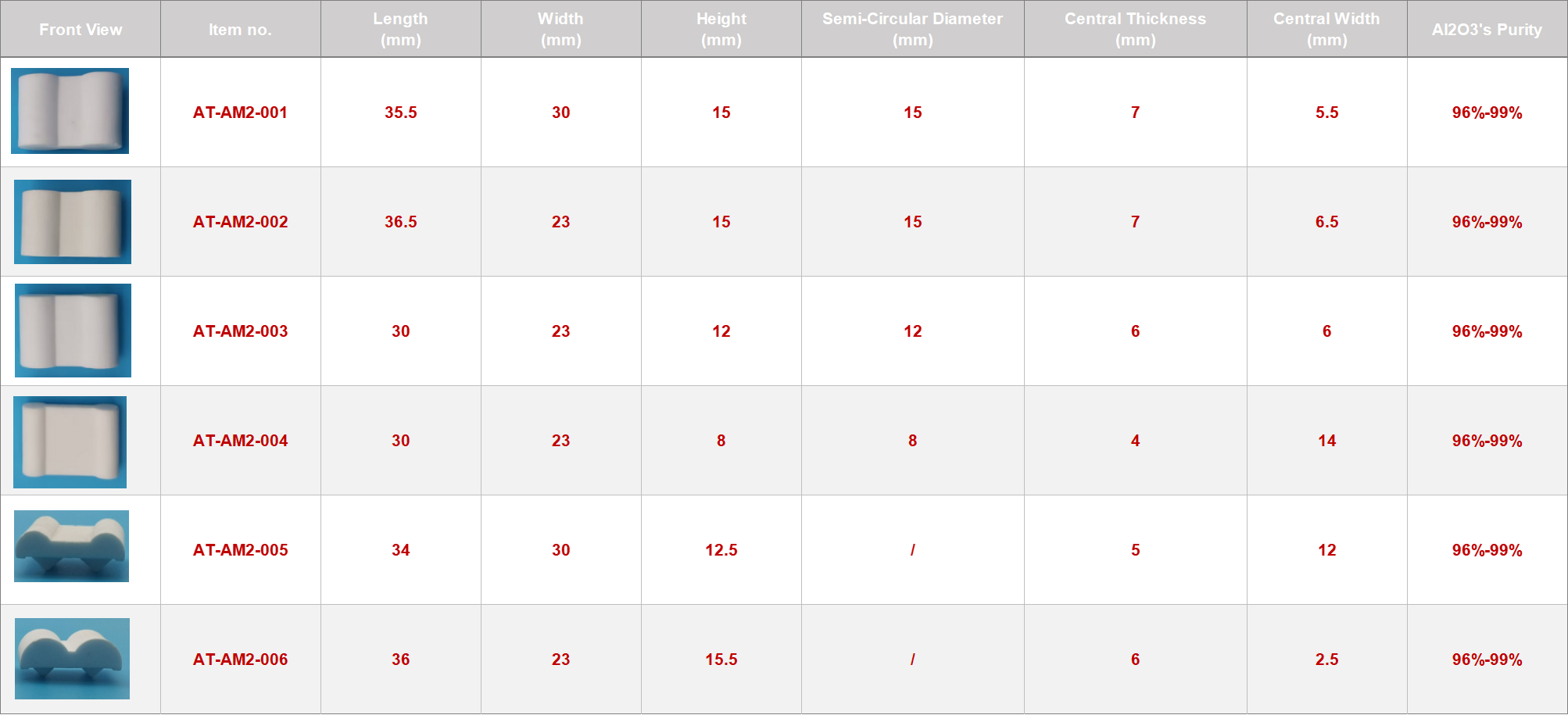

AT-AM2-001~006

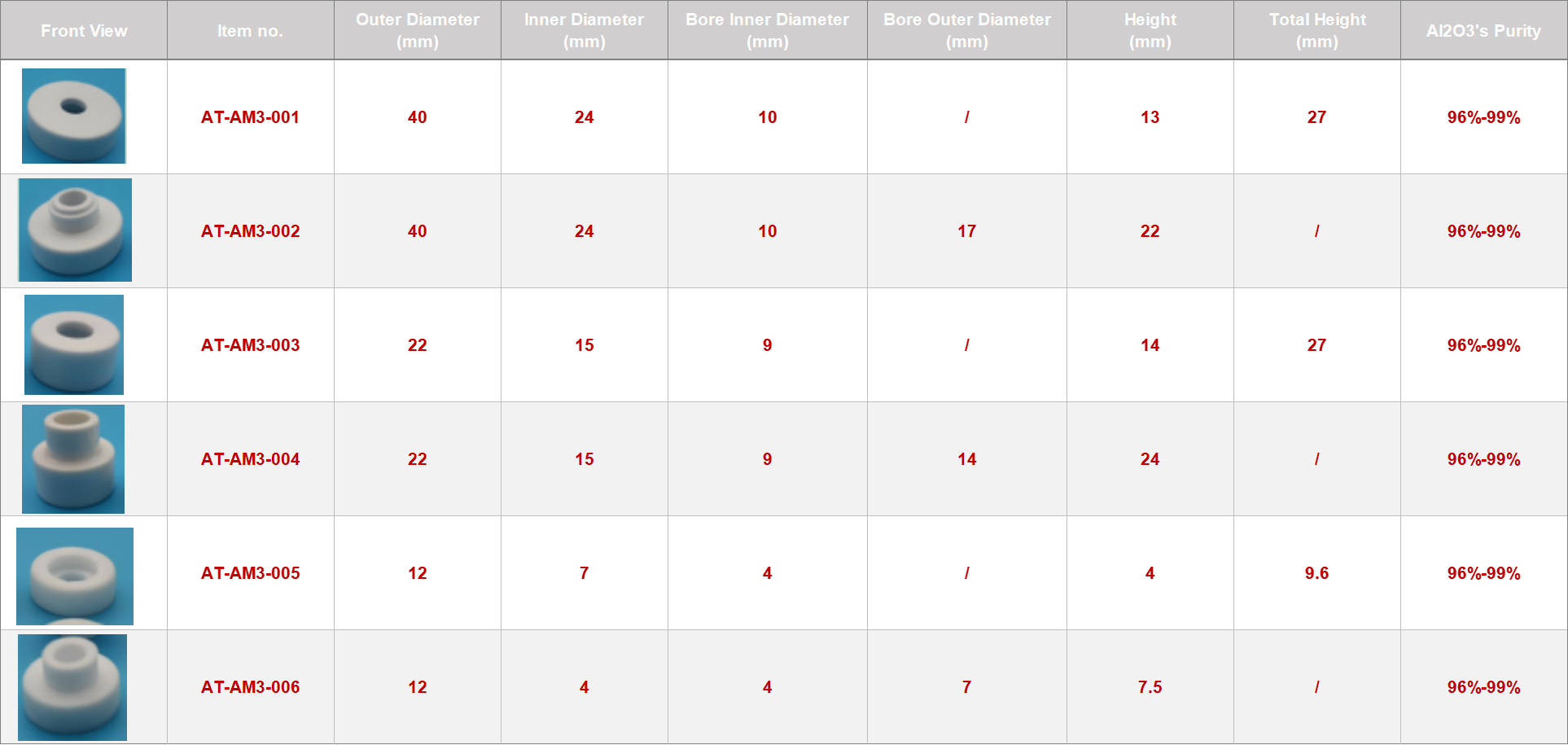

AT-AM3-001~006

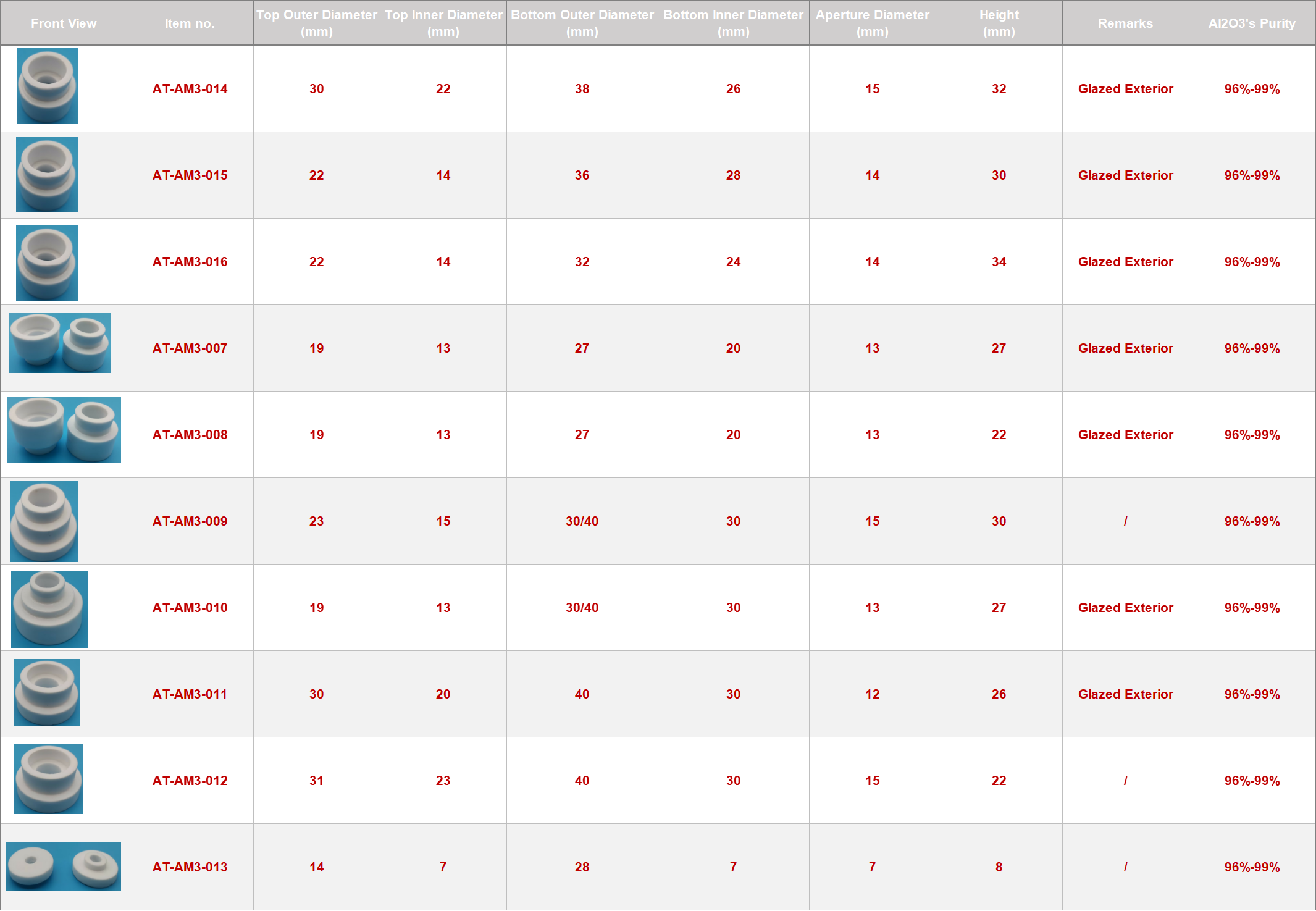

AT-AM3-007~016

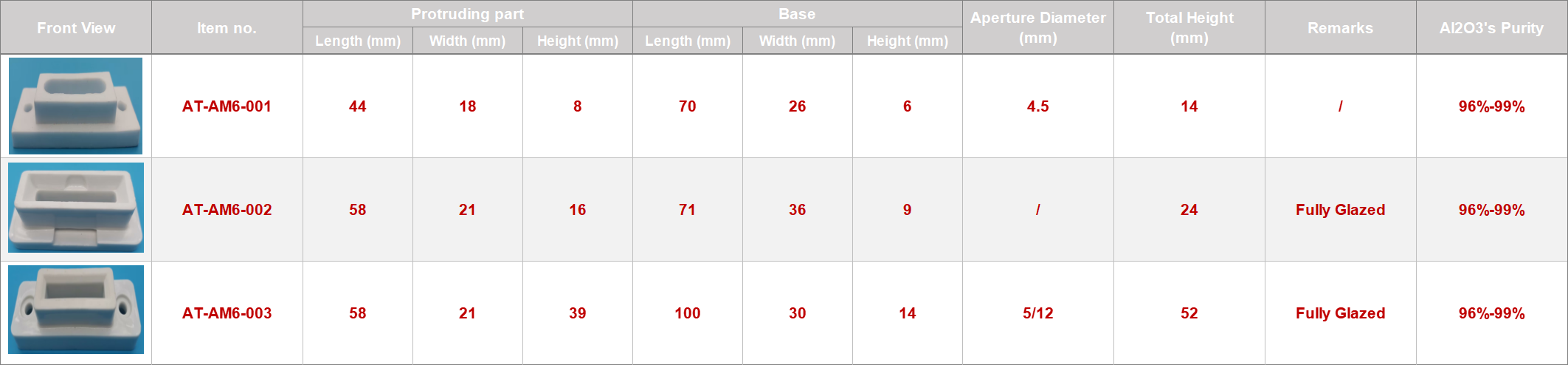

AT-AM6-001~003

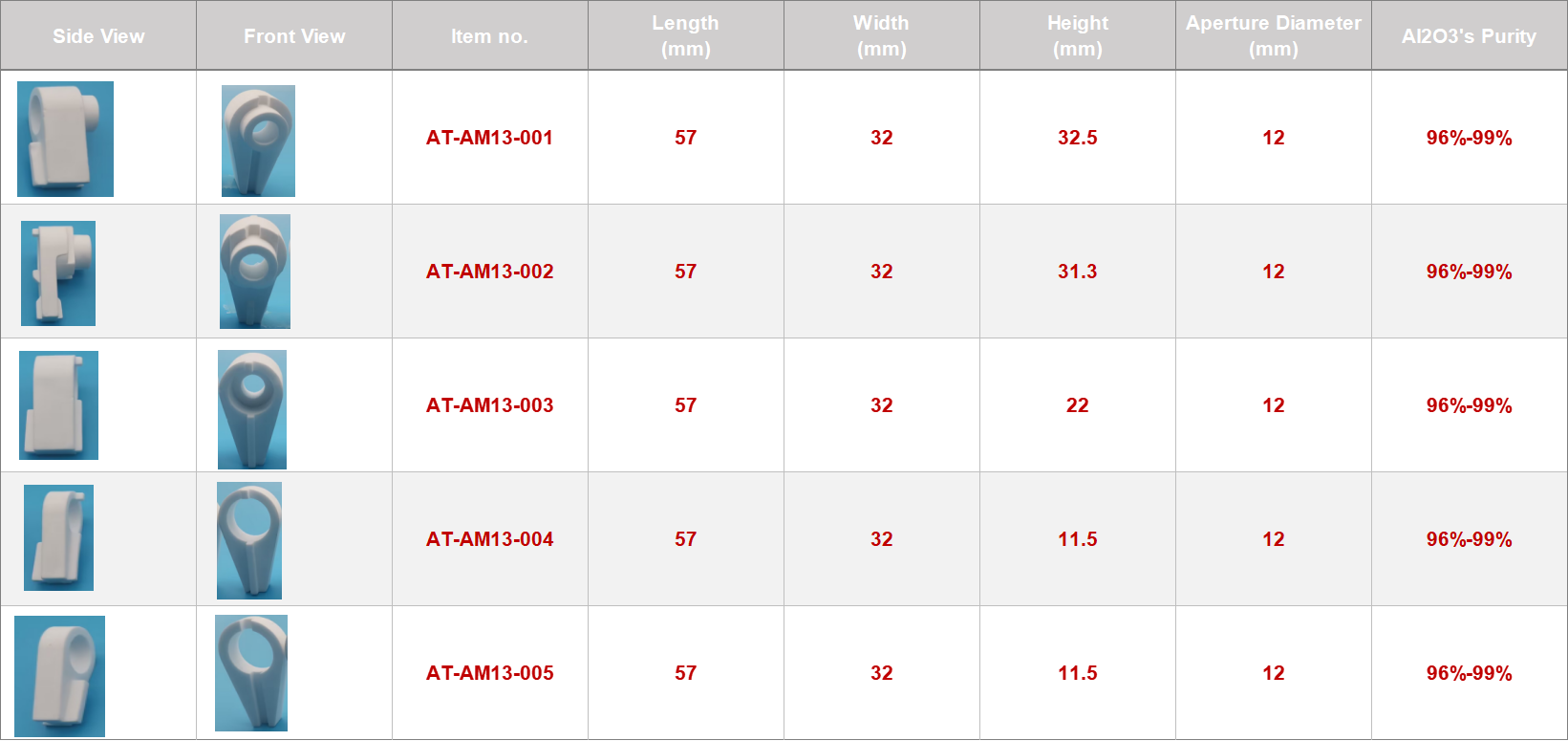

AT-AM13-001~005

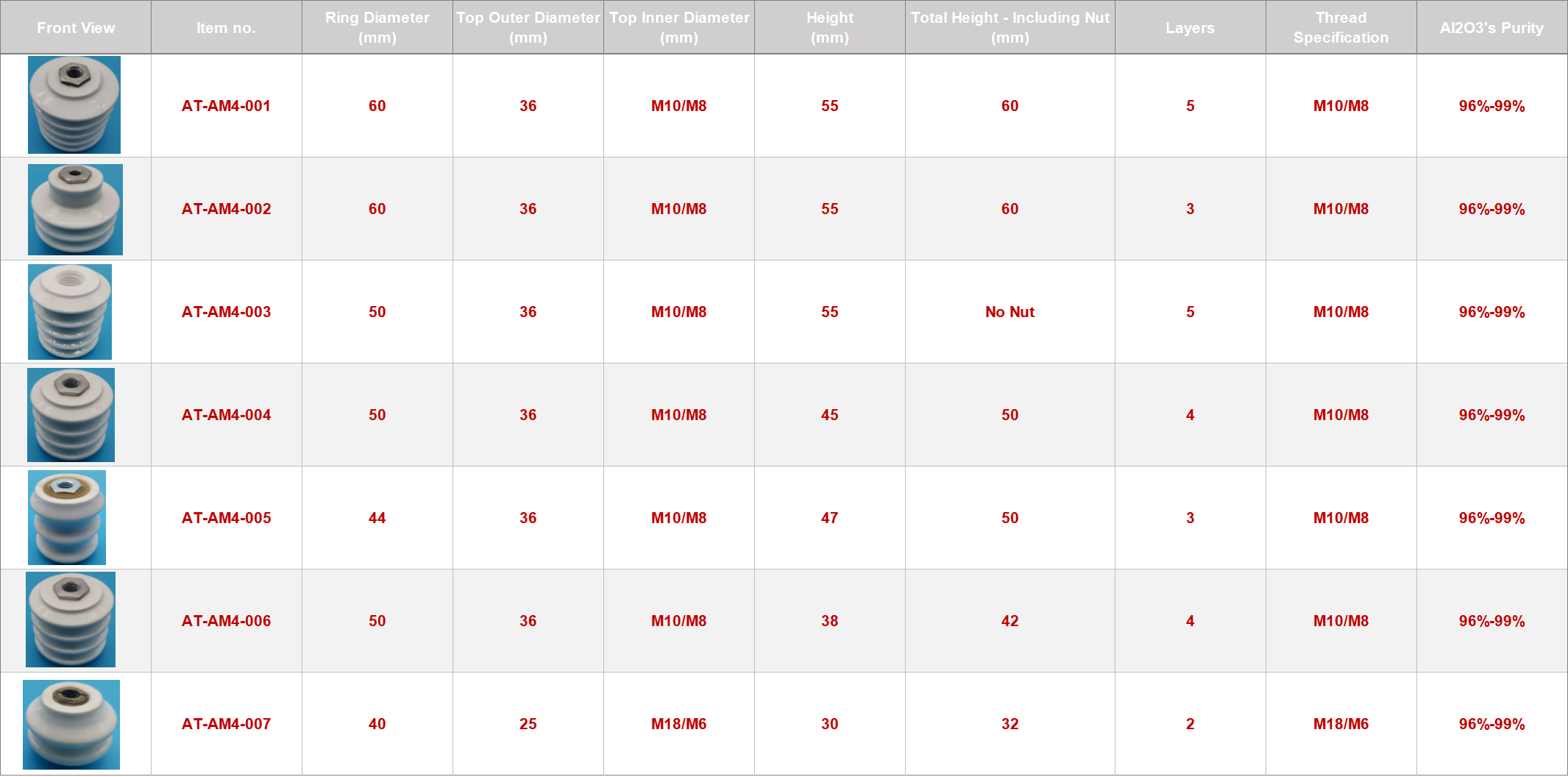

AT-AM4-001~007

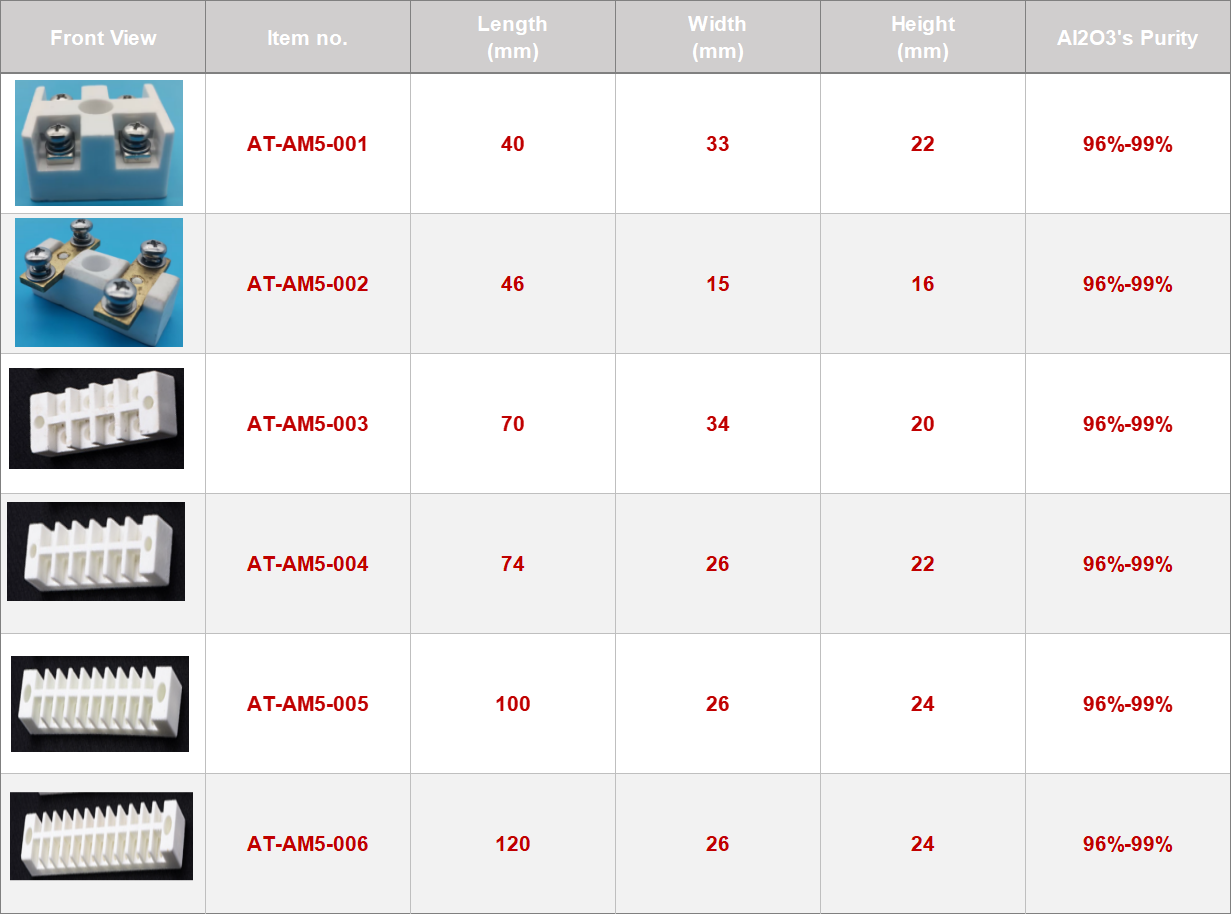

AT-AM5-001~006

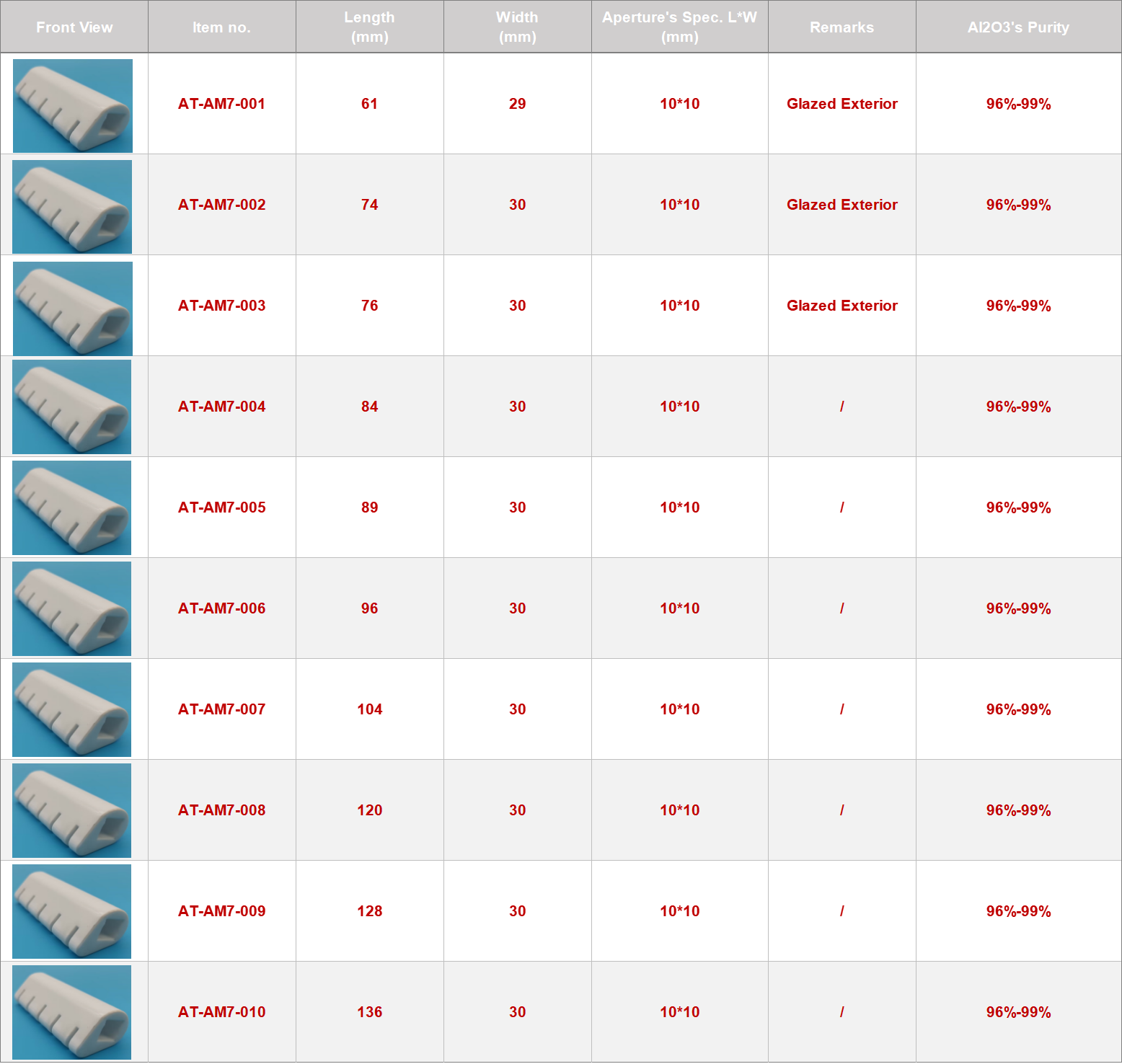

AT-AM7-001~010

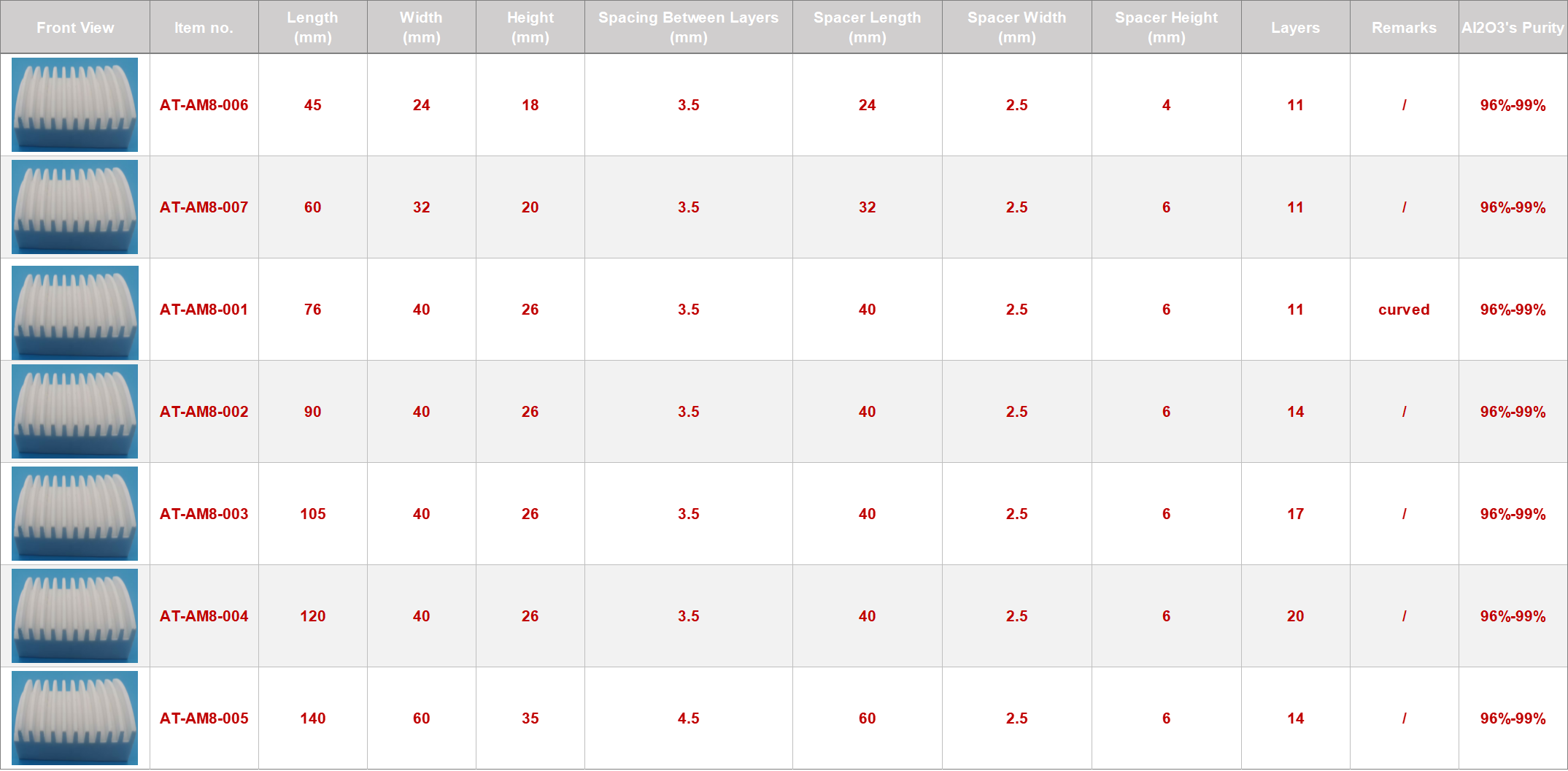

AT-AM8-001~007

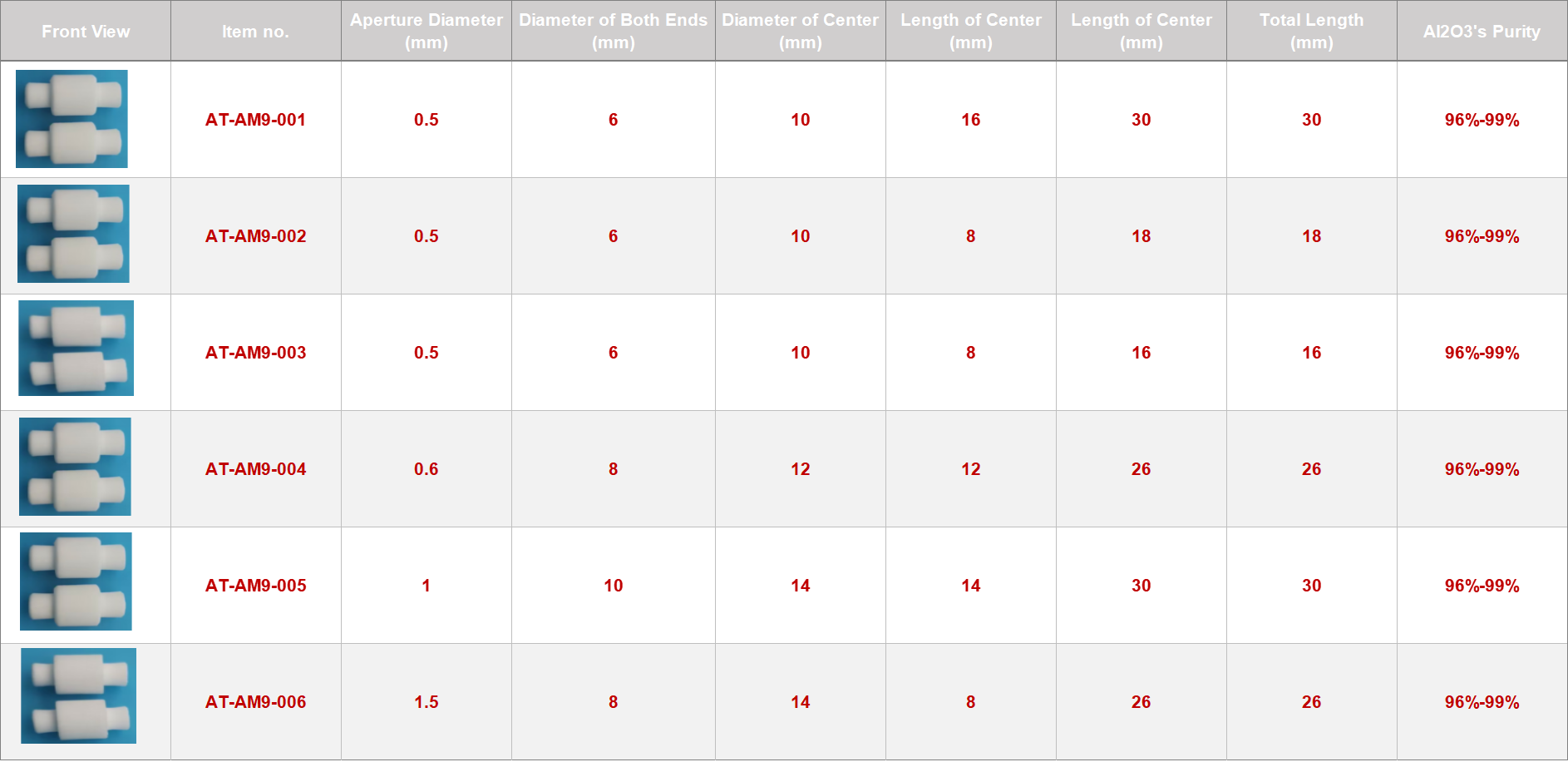

AT-AM9-001~006

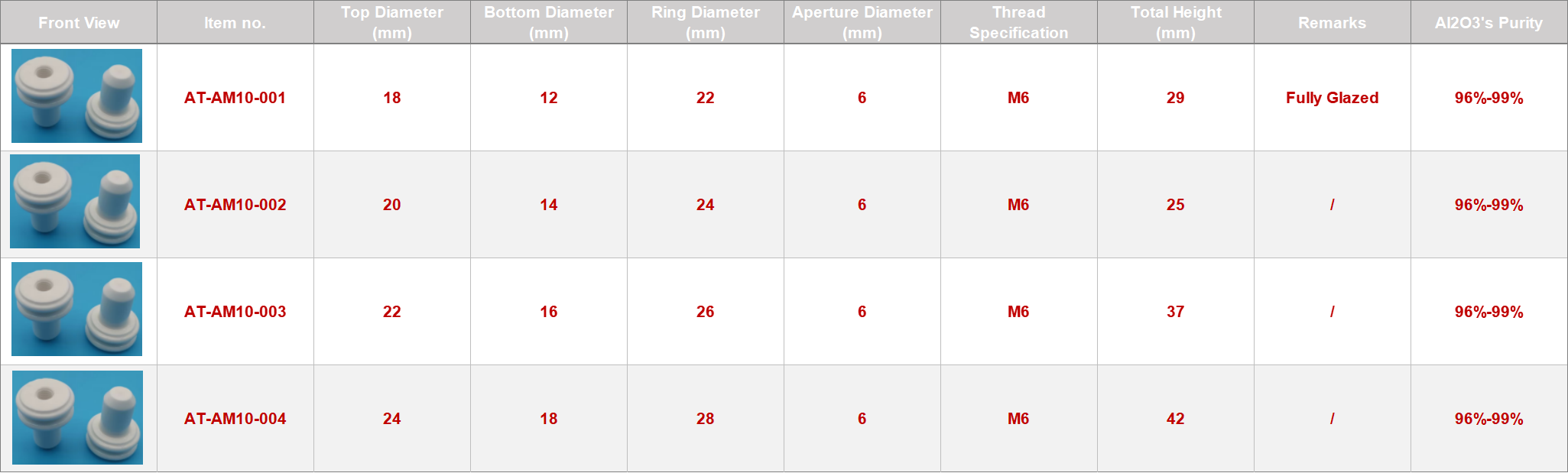

AT-AM10-001~004

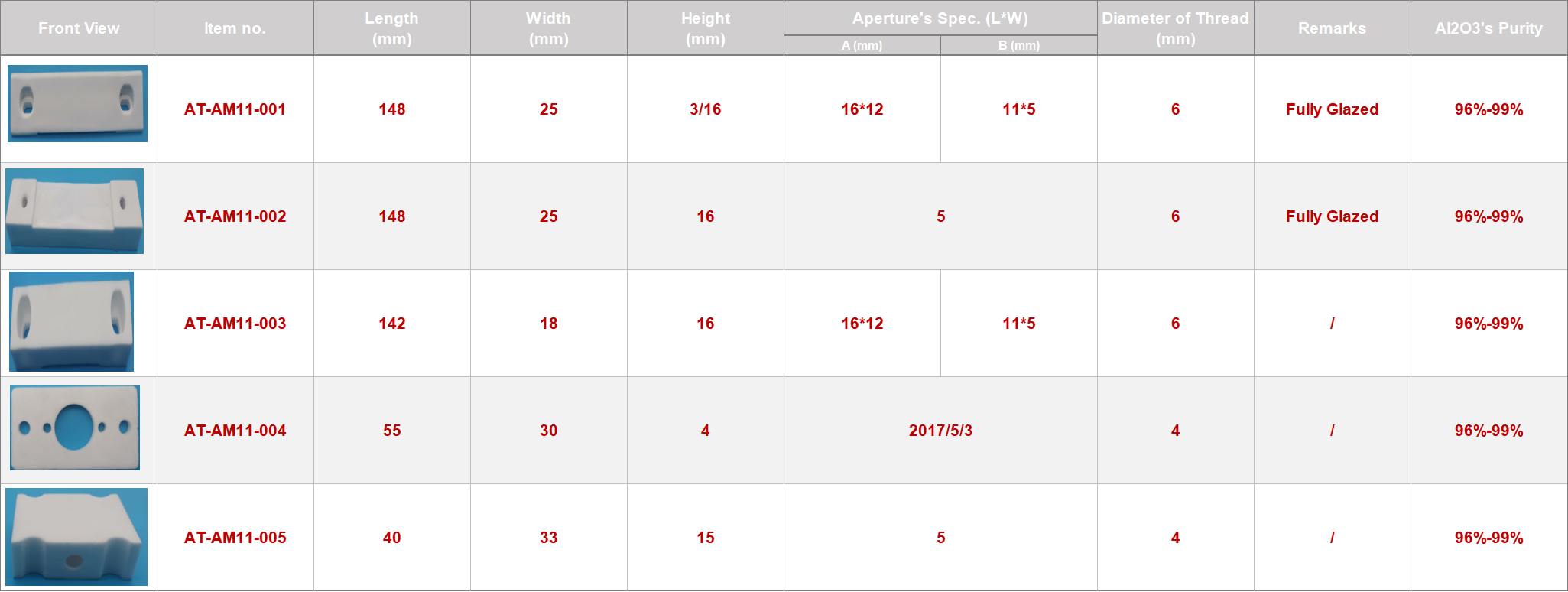

AT-AM11-001~005

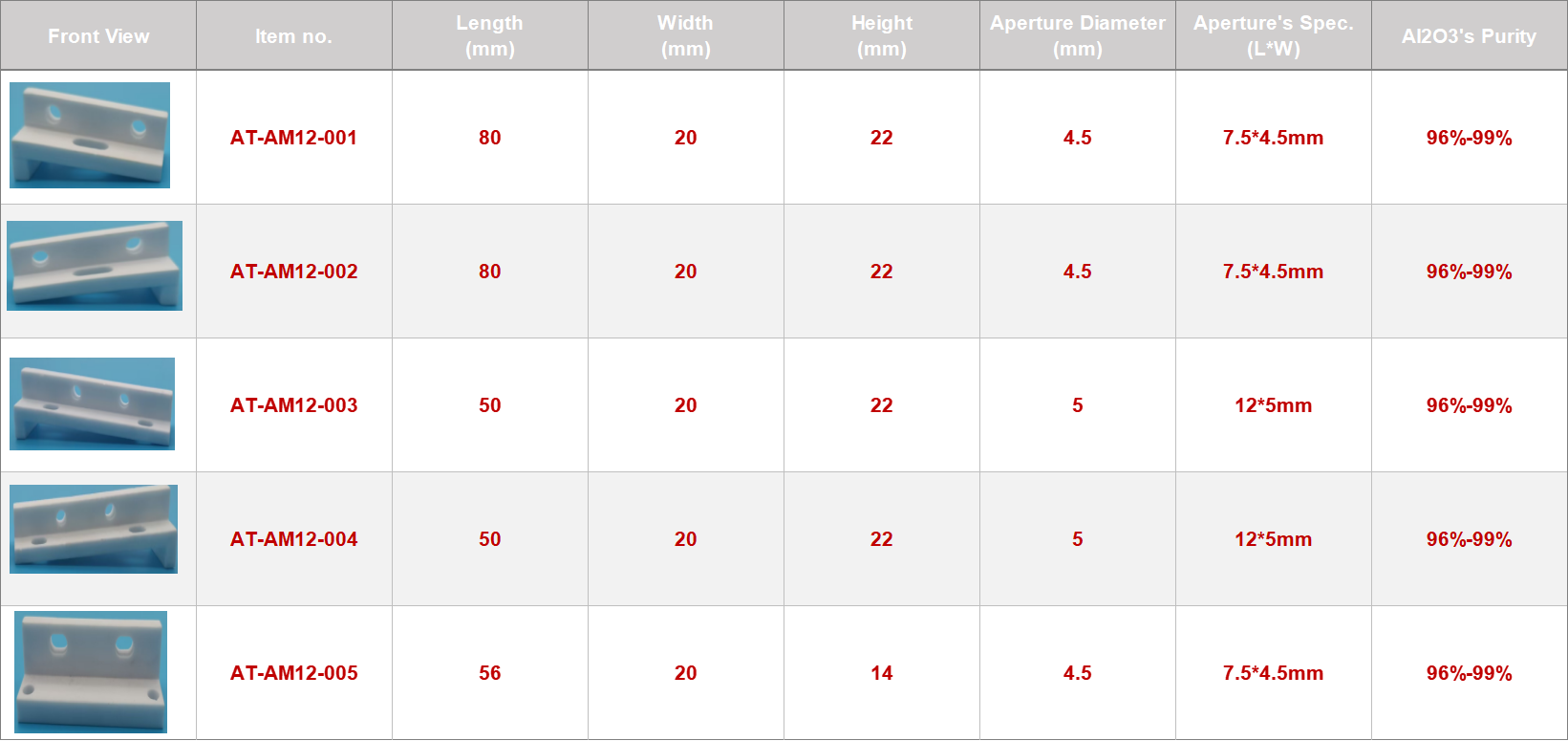

AT-AM12-001~005

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. As the alumina insulating structural part is relatively brittle, it requires careful handling during transportation, installation, and usage to avoid collisions and compression, thus preventing damage.

2. During installation, ensure that the alumina insulating structural part is securely connected and tightly sealed to prevent issues such as electrical leakage due to poor contact.

3. Regularly inspect and maintain the alumina insulating structural part, promptly clearing away oil stains and impurities on its surface. If any signs of aging, wear, or damage are observed, replace it immediately.

Valuable Information

Alumina Insulation Structural Parts Packing

Alumina insulation structural parts are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
