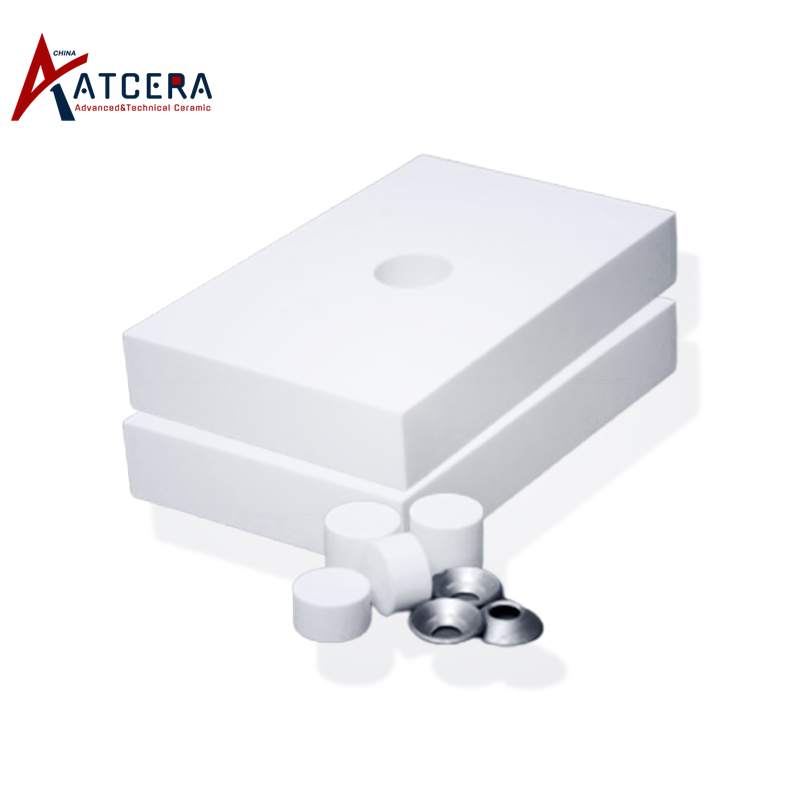

Alumina plate

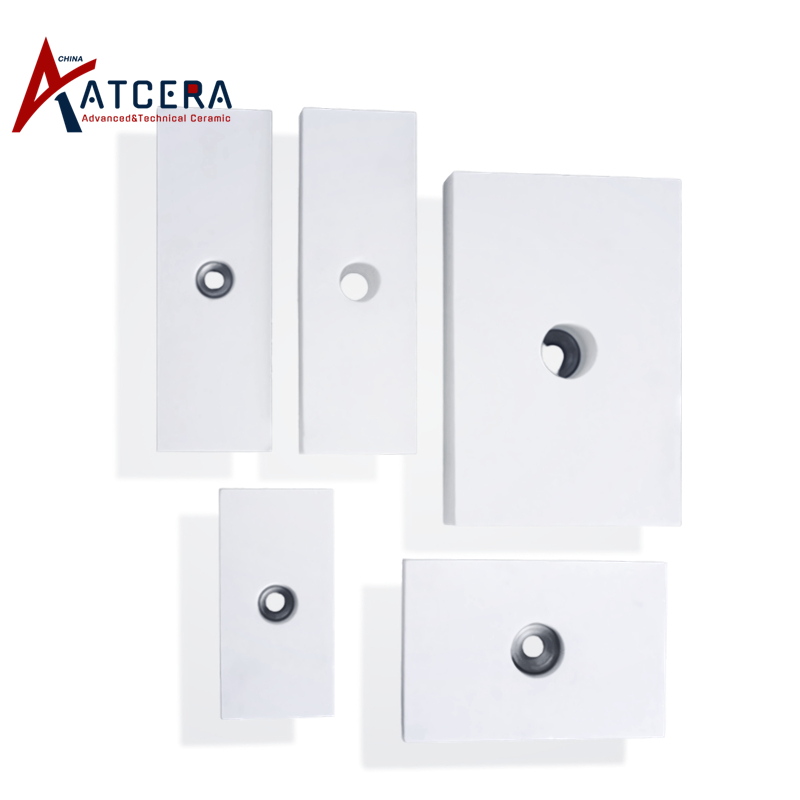

Alumina plate

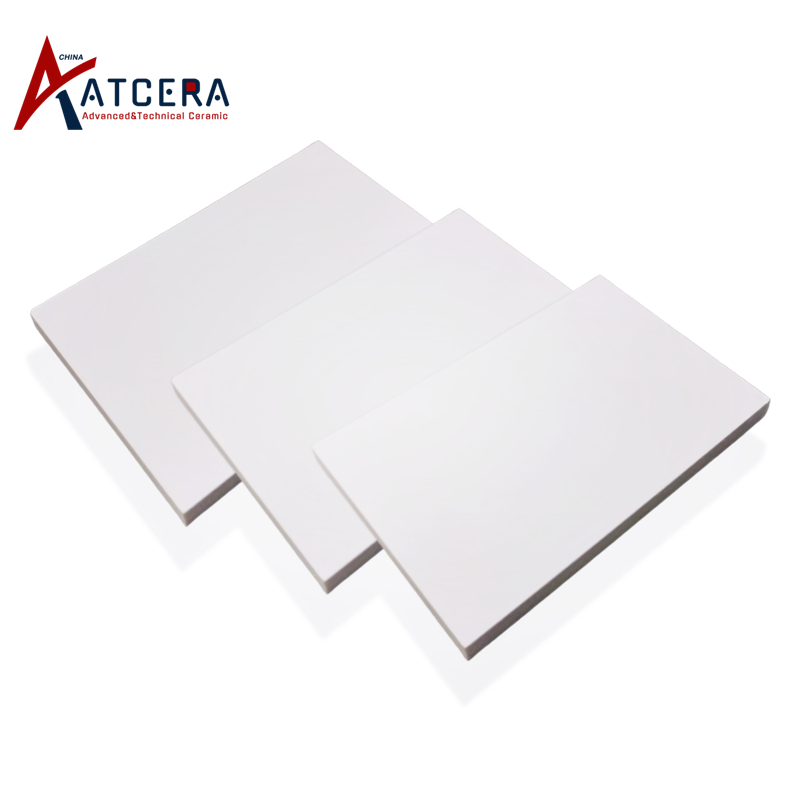

Alumina plate

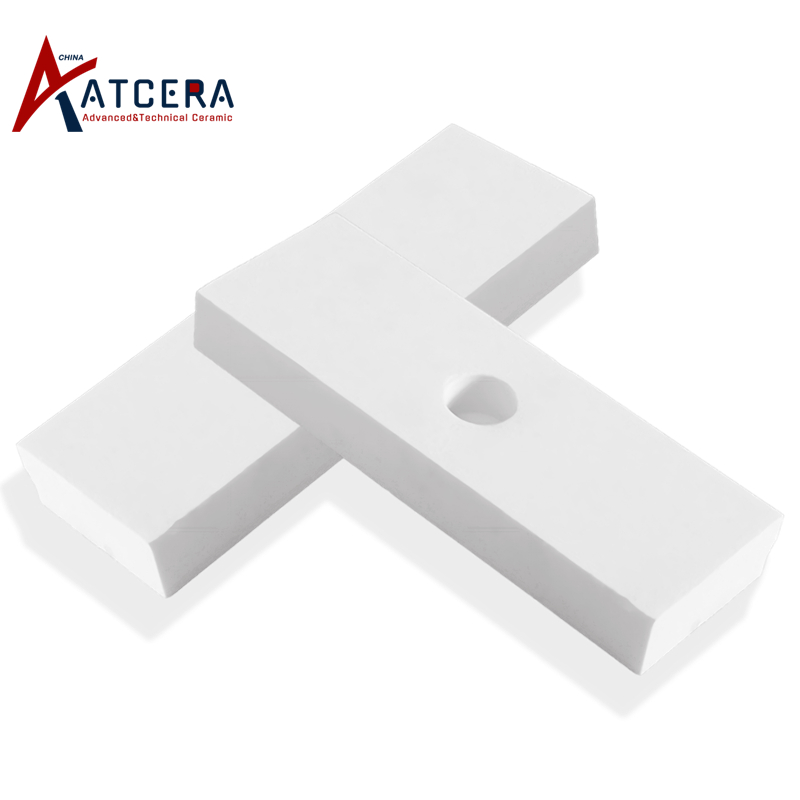

Alumina plate

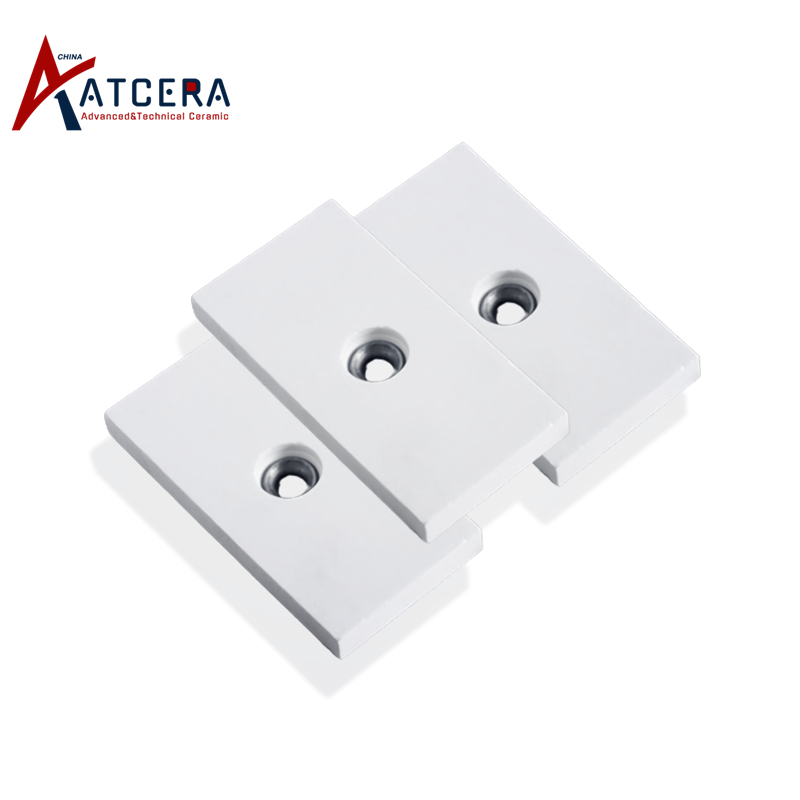

Alumina plate

Alumina Lining Board Aluminum Oxide Wear Resistant Liner Plate

Alumina plate with its excellent thermal conductivity and insulation, as well as with high mechanical strength and hardness, good heat shock performance characteristics, widely used in high temperature refractory, mechanical engineering, chemical industry, power generation, metallurgical industry, etc.

  • Brand:

    ATCERA

  • Item NO.:

    TE-J-1

  • Materials

    Alumina

  • Shapes

    Plate
Inquire Now
alumina liner plate

Properties of Alumina Lining Plate



1. Good smoothness, flatness with less porosity.



2. Small variance in outline, plate thickness, and slit pitch, mininmal warpage, bending, and undulation.



3. Superior mechanical strength, good pressure and impact resistance, not easy to break or wear.



4. Excellent in thermal shock resistance, high thermal conductivity.



5. Excellent oil and chemical resistance.



6. Excellent in insulation properties, high breakdown voltage,  and small dielectric constant.

ceramic plate

Applications of Alumina Liner Plate



1. Metallurgy and Coal Power Industry

Alumina liner plate has high hardness, good wear resistance, and can withstand high temperature working environment, it can be used as pipe liner for conveying powder, and service life of the pipeline can be significantly extended.



2. Chemical Industry

Alumina lining plate has very good corrosion resistance and high temperature resistance, can meet the requirements of various chemical media, while the surface finish of the ceramic substrate is high, help to reduce the resistance of electrochemical reaction, the application in the chemical industry is mainly used for electrochemical production, and the manufacture of sewage treatment, metal electrolysis, electroplating and other equipment components.



3. Machinery Industry and High Temperature Refractory

Alumina wear resistant liner plate has high compressive strength, good wear resistance, stable performance at high temperature, good air tightness, and can be used to process high temperature mechanical structure components, and as gaskets, seals, heat dissipation plate, burning plates, etc.

Size Chart of Alumina Lining Plate



We are committed to delivering optimal alumina wear resistant liner plate tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design



Please provide drawings and parameter specifications if customization requirements needed.





Alumina Liner Plate Square
Item NO. L*W*Thickness -T
(mm)		 Item NO. L*W*Thickness -H
(mm)		 Item NO. L*W*Thickness -H
(mm)		 Item NO. L*W*Thickness -H
(mm)		 Item NO. L*W*Thickness -H
(mm)
TE-J-1 L10*W2,4*T2 TE-J-36 17*22*1 H3.7 TE-J-71 20*25*2 H3.8 TE-J-106 24*104*1 TE-J-141 35*35*20mm
TE-J-2 10*2.4*1.5 TE-J-37 17*22*0.6 H3.7 TE-J-72 20*28*0.6 TE-J-107 25*34*0.6 TE-J-142 38.5*41*1
TE-J-3 10*15*0.6 H4 TE-J-38 17*22*0.6 TE-J-73 20*28*2 TE-J-108 25*40*1 TE-J-143 39*91*0.6
TE-J-4 10*16*1.5 H3.5 TE-J-39 17*22*1.5 TE-J-74 20*31.85*1 H3.85 TE-J-109 25*40*0.6 TE-J-144 40*30*1 H3.5
TE-J-5 10*20*1.6 TE-J-40 17*22*1 TE-J-75 20*32.1*1 H3.85 TE-J-110 25*110*0.6 TE-J-145 40*56*1
TE-J-6 10*16*6 TE-J-41 17*37.1*1 TE-J-76 20*35*1 TE-J-111 26*30*1 H3.2 TE-J-146 40*43*0.6
TE-J-7 10*10*2 TE-J-42 17*25*1 TE-J-77 21.5*34.5*1.5 H3.5 TE-J-112 26*31*1 H3.5 TE-J-147 40*105*0.635
TE-J-8 10*14*2 TE-J-43 17.8*26*1 H3 TE-J-78 21*28*0.6 TE-J-113 26*35*1 TE-J-148 40*140*0.6
TE-J-9 10.4*18*1 H3.8 TE-J-44 17.8*21.5*1.5 H3.5 TE-J-79 21*28*0.8 TE-J-114 27*60*0.6 TE-J-149 40*150*1
TE-J-10 10.6*17*1 H3.8 TE-J-45 18*19*1.5 TE-J-80 21*28*1 TE-J-115 27*90*0.6 TE-J-150 40*260*1mm
TE-J-11 11*11*1 TE-J-46 18*23*2 H3 TE-J-81 21.8*30*1 H3 TE-J-116 27*48*1 H5 TE-J-151 44*16*1
TE-J-12 11*17*1 TE-J-47 18*24*0.6 TE-J-82 21.8*30*0.6 H3 TE-J-117 27.5*4.2*2.5 TE-J-152 44*28*0.6 H6
TE-J-13 11*7*1.5 TE-J-48 18*25.3*1.3 H3.2 TE-J-83 21.8*30*1 TE-J-118 28*40*1 TE-J-153 50*50*1
TE-J-14 11*18*1-H4 TE-J-49 18*25.3*1 H3.5 TE-J-84 21.8*30*0.6 TE-J-119 28*42*0.6 TE-J-154 50*50*3mm
TE-J-15 12*18.5*0.6-H3.8 TE-J-50 18*29*1 H3.5 TE-J-85 22*30*2 TE-J-120 28*44*0.6 H6 TE-J-155 55*18*2
TE-J-16 12*18*0.6-H3.8 TE-J-51 18*29.5*1 H3 TE-J-86 22*28*1 H3.4 TE-J-121 28*64*1 TE-J-156 75*18*2
TE-J-17 12*18.5*1 TE-J-52 18*26*1 H3 TE-J-87 22*28*0.6 H3.4 TE-J-122 28*72*1 TE-J-157 100*100*1
TE-J-18 12*18.5*0.6 TE-J-53 18*26*0.6 H3 TE-J-88 22*28*1 TE-J-123 29*33*1.3 TE-J-158 100*100*2
TE-J-19 12.7*16.5*1.8 H-3.8 TE-J-54 18*26*0.6 H3.5 TE-J-89 22*28*0.6 TE-J-124 30*38*1 H3.5 TE-J-159 100*100*3
TE-J-20 13*19*0.6 TE-J-55 18.5*25*0.6 H3.8 TE-J-90 22*25*1 H3.6 TE-J-125 30*40*1 H3.5 TE-J-160 120*160*2mm
TE-J-21 14*18*3 H-3.4 TE-J-56 18.5*27*0.6 H3.8 TE-J-91 22*25*0.6 H3.1 TE-J-126 30*43*0.6 H4.5 TE-J-161 120*160*3mm
TE-J-22 14*19*2 H3.5 TE-J-57 19*23*2 H3.7 TE-J-92 22*25*1 H3.1 TE-J-127 32*50*1 TE-J-162 120*160*4mm
TE-J-23 14*20*1H3.2/3.5 TE-J-58 20*23*0.6 TE-J-93 22*22*0.6 H3 TE-J-128 32*60*1 TE-J-163 120*160*6mm
TE-J-24 14*20*0.6H-3.2 TE-J-59 20*26*1 H3.3 TE-J-94 22*35*1 TE-J-129 33*53*1.3 TE-J-164 160*160*1
TE-J-25 14*20*1 TE-J-60 20*2*1 H4 TE-J-95 22*35*1.5 H3.5 TE-J-130 33*73*1.3 TE-J-165 160*160*0.6
TE-J-26 14*20*0.6 TE-J-61 20*26*1 TE-J-96 23*34*1 H3.2 TE-J-131 33.6*51.4*0.8 H5 TE-J-166 D50*2mm-circle
TE-J-27 14*20*2 TE-J-62 20*26*0.6 TE-J-97 24*30*1 TE-J-132 33.6*51.4*2 H5 TE-J-167 D50*2.5mm-circle
TE-J-28 14*20*2 H3.2 TE-J-63 20*25*1 H4 TE-J-98 24*35.5*1 TE-J-133 34*64*0.6 TE-J-168 50*3mm-circle
TE-J-29 15*19.5*1 H3.8 TE-J-64 20*25*0.6 H4 TE-J-99 24*40*0.6 TE-J-134 34*39*0.6
TE-J-30 15*2*2.4 TE-J-65 20*25*1 H3.8 TE-J-100 24*60*1 TE-J-135 35*48*1 H5.5
TE-J-31 16*21*2.5 H3.5 TE-J-66 20*25*0.6 H3.8 TE-J-101 24*70*0.6 TE-J-136 35*68*1
TE-J-32 16*22*0.6 H3.3 TE-J-67 20*25*1 H3.2 TE-J-102 24*72*1 TE-J-137 35*45*1
TE-J-33 16*22*0.6 H4 TE-J-68 20*25*1 TE-J-103 24*90*0.6 TE-J-138 35*85*0.6
TE-J-34 16*22*0.6 H3.7 TE-J-69 20*25*0.6 TE-J-104 24*95*1 TE-J-139 38*38*0.6
TE-J-35 16*46*1 TE-J-70 20*25*2 TE-J-105 24*125*1 TE-J-140 38*50*0.6



Alumina Lining Board Square
Item NO. Length (mm) Width (mm) Thickness (mm) Al2O3's Purity
TE-J-169 10 10 0.25 96-99.8%
TE-J-170 10 10 0.5 96-99.8%
TE-J-171 10 10 0.635 96-99.8%
TE-J-172 10 10 1 96-99.8%
TE-J-173 20 20 1 96-99.8%
TE-J-174 20 20 2 96-99.8%
TE-J-175 25 25 1 96-99.8%
TE-J-176 30 30 0.635 96-99.8%
TE-J-177 30 30 1 96-99.8%
TE-J-178 30 30 2 96-99.8%
TE-J-179 35 35 1 96-99.8%
TE-J-180 40 40 1 96-99.8%
TE-J-181 40 40 5 96-99.8%
TE-J-182 50 50 0.5 96-99.8%
TE-J-183 50 50 0.635 96-99.8%
TE-J-184 50 50 1.5 96-99.8%
TE-J-185 50 50 5 96-99.8%
TE-J-186 50 50 6 96-99.8%
TE-J-187 50 50 7 96-99.8%
TE-J-188 50 50 8 96-99.8%
TE-J-189 50 50 10 96-99.8%
TE-J-190 50 50 15 96-99.8%
TE-J-191 60 60 1 96-99.8%
TE-J-192 65 74 0.2 96-99.8%
TE-J-193 65 74 0.28 96-99.8%
TE-J-194 70 70 2 96-99.8%
TE-J-195 70 70 3 96-99.8%
TE-J-196 76.2 76.2 0.75 96-99.8%
TE-J-197 80 80 3 96-99.8%
TE-J-198 80 80 5 96-99.8%
TE-J-199 80 110 5 96-99.8%
TE-J-200 84 84 0.8 96-99.8%
TE-J-201 100 100 0.5 96-99.8%
TE-J-202 100 100 0.635 96-99.8%
TE-J-203 100 100 1.2 96-99.8%
TE-J-204 100 100 1.5 96-99.8%
TE-J-205 100 100 2.2 96-99.8%
TE-J-206 100 100 2.5 96-99.8%
TE-J-207 100 100 3.5 96-99.8%
TE-J-208 100 100 0.25 96-99.8%
TE-J-209 100 100 1.055 96-99.8%
TE-J-210 100 100 0.25 96-99.8%
TE-J-211 100 100 0.35 96-99.8%
TE-J-212 100 100 0.5 96-99.8%
TE-J-213 100 100 0.6 96-99.8%
TE-J-214 100 100 0.7 96-99.8%
TE-J-215 100 100 1.5 96-99.8%
TE-J-216 100 100 2.335 96-99.8%
TE-J-217 100 100 2.5 96-99.8%
TE-J-218 100 100 3.2 96-99.8%
TE-J-219 100 100 3.5 96-99.8%
TE-J-220 100 100 4 96-99.8%
TE-J-221 100 100 5 96-99.8%
TE-J-222 100 100 8 96-99.8%
TE-J-223 100 100 10 96-99.8%
TE-J-224 100 100 12 96-99.8%
TE-J-225 100 100 15 96-99.8%
TE-J-226 100 100 20 96-99.8%
TE-J-227 109 109 1 96-99.8%
TE-J-228 110 110 5 96-99.8%
TE-J-229 114 114 1 96-99.8%
TE-J-230 114 114 0.38 96-99.8%
TE-J-231 114 114 0.5 96-99.8%
TE-J-232 114 114 0.65 96-99.8%
TE-J-233 115 115 0.12 96-99.8%
TE-J-234 115 115 0.125 96-99.8%
TE-J-235 120 120 0.25 96-99.8%
TE-J-236 120 120 0.38 96-99.8%
TE-J-237 120 120 0.5 96-99.8%
TE-J-238 120 120 0.635 96-99.8%
TE-J-239 120 120 0.8 96-99.8%
TE-J-240 120 120 0.25 96-99.8%
TE-J-241 120 120 1 96-99.8%
TE-J-242 120 120 3 96-99.8%
TE-J-243 125 125 2 96-99.8%
TE-J-244 127 127 1 96-99.8%
TE-J-245 127 127 1.5 96-99.8%
TE-J-246 138 190 0.25 96-99.8%
TE-J-247 138 190 0.38 96-99.8%
TE-J-248 138 190 0.32 96-99.8%
TE-J-249 138 190 0.5 96-99.8%
TE-J-250 138 190 0.8 96-99.8%
TE-J-251 138 190 0.65 96-99.8%
TE-J-252 138 190 1 96-99.8%
TE-J-253 138 190 0.38 96-99.8%
TE-J-254 138 190 0.5 96-99.8%
TE-J-255 138 190 0.635 96-99.8%
TE-J-256 138 190 1 96-99.8%
TE-J-257 150 150 1.8 96-99.8%
TE-J-258 150 150 1 96-99.8%
TE-J-259 150 150 1.5 96-99.8%
TE-J-260 150 150 2 96-99.8%
TE-J-261 150 150 3 96-99.8%
TE-J-262 150 150 5 96-99.8%
TE-J-263 150 150 8 96-99.8%
TE-J-264 152 152 0.635 96-99.8%
TE-J-265 160 170 2.5 96-99.8%
TE-J-266 180 180 2 96-99.8%
TE-J-267 180 180 3 96-99.8%
TE-J-268 180 180 5 96-99.8%
TE-J-269 200 200 2 96-99.8%
TE-J-270 200 200 3 96-99.8%
TE-J-271 200 200 5 96-99.8%
TE-J-272 220 220 2 96-99.8%
TE-J-273 230-800 230-800 5-50 96-99.8%



Alumina Liner Plate Round
Item NO. Diameter (mm) Thickness (mm) Al2O3's Purity
TE-AD-002 3.5 1 96-99.8%
TE-AD-003 5 1 96-99.8%
TE-AD-004 6 0.25 96-99.8%
TE-AD-005 6 0.5 96-99.8%
TE-AD-006 6 0.635 96-99.8%
TE-AD-007 6 1 96-99.8%
TE-AD-008 8 0.25 96-99.8%
TE-AD-009 8 0.5 96-99.8%
TE-AD-010 8 0.635 96-99.8%
TE-AD-011 8 1 96-99.8%
TE-AD-012 10 0.25 96-99.8%
TE-AD-013 10 0.38 96-99.8%
TE-AD-014 10 0.5 96-99.8%
TE-AD-015 10 0.635 96-99.8%
TE-AD-016 10 1 96-99.8%
TE-AD-017 12 0.25 96-99.8%
TE-AD-018 12 0.5 96-99.8%
TE-AD-019 12 0.635 96-99.8%
TE-AD-020 12 1 96-99.8%
TE-AD-021 16 0.25 96-99.8%
TE-AD-022 16 0.5 96-99.8%
TE-AD-023 16 0.635 96-99.8%
TE-AD-024 16 1 96-99.8%
TE-AD-025 18 0.5 96-99.8%
TE-AD-026 18 0.635 96-99.8%
TE-AD-027 18 1 96-99.8%
TE-AD-028 20 0.25 96-99.8%
TE-AD-029 20 0.5 96-99.8%
TE-AD-030 20 0.635 96-99.8%
TE-AD-031 20 1 96-99.8%
TE-AD-032 25 0.5 96-99.8%
TE-AD-033 25 0.65 96-99.8%
TE-AD-034 25 1 96-99.8%
TE-AD-035 30 0.5 96-99.8%
TE-AD-036 30 0.635 96-99.8%
TE-AD-037 30 1 96-99.8%
TE-AD-038 33 1 96-99.8%
TE-AD-039 35 1 96-99.8%
TE-AD-040 35 2 96-99.8%
TE-AD-041 36 4 96-99.8%
TE-AD-042 40 1 96-99.8%
TE-AD-043 40 1.5 96-99.8%
TE-AD-044 42 2 96-99.8%
TE-AD-045 50 0.5 96-99.8%
TE-AD-046 50 0.635 96-99.8%
TE-AD-047 50 1 96-99.8%
TE-AD-048 50 2 96-99.8%
TE-AD-049 55 0.5 96-99.8%
TE-AD-050 60 10 96-99.8%
TE-AD-051 65 0.5 96-99.8%
TE-AD-052 75 1 96-99.8%
TE-AD-053 82 6 96-99.8%
TE-AD-054 89 5.5 96-99.8%
TE-AD-055 100 0.5 96-99.8%
TE-AD-056 100 0.635 96-99.8%
TE-AD-057 100 1 96-99.8%
TE-AD-058 101.6 0.5 96-99.8%
TE-AD-059 101.6 1 96-99.8%
TE-AD-060 120 2 96-99.8%
TE-AD-061 125 6 96-99.8%
TE-AD-062 130-800 5-50 96-99.8%





Technical Data of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions



1. During installation, it is crucial to ensure a good fit between the lining plate and the surface of the equipment, avoiding any gaps or looseness.

2. Regular inspections should be conducted to assess the wear and tear of the ceramic lining plates, and worn-out parts should be promptly replaced to maintain their effectiveness.

3. Prolonged exposure of ceramic lining plates to corrosive media should be avoided to prevent any negative impact on their corrosion resistance properties.

4. Attention should be paid to the operating temperature range of the ceramic lining plates to avoid exceeding their thermal endurance limits.

Valuable Information



ceramic liner plate

Properties of Alumina Liner Plate



1. Material: 96% alumina (AL2O3) white

2. Thermal conductivity: 21.0w/m.k

3. Electrical insulation ≤22.5KV, temperature resistance up to 1600℃

4. Density: 3.68g/cm3

5, Thermal expansion coefficient: 0.000007/℃

6. Bending strength (at room temperature): 300MPa

7. Compressive strength (at room temperature): 2000MPa

8. Hardness (Hv): 1380

9. Fracture toughness: 4.2MPa*m1/2

10. Hazardous Substances: in compliance with EU ROHS standards















Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
Related Blog
Could Hot Press Sintering Be the Future of High-Performance Transparent Ceramic Production?
As a new inorganic nonmetallic material with high performance and multiple functions, transparent ceramics show great application potential in optics, electronics, aerospace and other fields because of its excellent light transmission, high strength, high hardness and good thermal and chemical stability. Among the many methods to prepare transparent ceramics, hot pressing sintering has become one ...
Read More
How Does Vacuum Sintering Technology Facilitate the Preparation of Transparent Ceramics?
As a kind of high performance material, transparent ceramics show great application potential in the fields of optical window, laser medium and high temperature wave transmittance materials because of its unique optical transparency and excellent mechanical properties. Among the many methods of preparing transparent ceramics, vacuum sintering technology has become one of the most widely resea...
Read More
What Are The Advantages Of Cold Isostatic Pressing In The Preparation Of Transparent Ceramics?
As a kind of high performance material, transparent ceramics show great application potential in optics, electronics, aerospace and other fields because of its excellent light transmission, high hardness, high temperature resistance and other characteristics. However, the preparation process of transparent ceramics is complicated, and the molding technology is one of the key factors to determine i...
Read More
Transparent Ceramics: Basic Principle & Process of Dry Pressing Molding Technology
As a new material with excellent optical properties, transparent ceramics have shown great application potential in optical Windows, laser devices, high temperature sensors and other fields. In the process of its preparation, molding technology is one of the key links, which directly affects the performance and quality of the final product. Among the many molding methods, dry pressing has bec...
Read More
How Do Sintering Process Parameters Affect The Properties Of Alumina Substrate?
As a high-performance material, alumina substrate has been widely used in electronics, aerospace and new energy fields. The preparation process involves many complicated processes, in which casting and drying process are the key links to ensure the quality of the substrate. In this article, the effects of raw material formula, casting film thickness and sintering process parameters on th...
Read More
What Are Future Trends In Alumina Substrate Preparation Process For Enhanced Performance?
Because of its excellent mechanical properties, thermal stability and chemical inertness, alumina substrate has shown wide application potential in electronic packaging, thermal management and high-performance structural parts. The preparation process involves complex process steps, in which casting process, as the core link, plays a decisive role in the performance of the final product. This...
Read More
What Are The Key Factors Influencing Alumina Substrate Performance During Preparation?
In the rapidly developing electronics industry, alumina substrate has become an indispensable substrate for electronic components with its excellent insulation properties, chemical stability, high thermal conductivity and good high-frequency characteristics. It not only provides support for electronic components, but also plays a key role in heat dissipation and insulation. However, the prepa...
Read More
Why Is Process Optimization Crucial for High-Quality Alumina Substrate Preparation?
The preparation of alumina substrate is a multi-step process with high precision, in which the choice of solvent directly affects the homogeneity of slurry, drying efficiency and physical properties of the final product. The solvent must not only be able to quickly dissolve each component to form a stable slurry, but also need to have rapid volatilization characteristics to ensure efficient d...
Read More
How Do Alumina Powder Characteristics Affect Alumina Substrate Casting Process?
In the field of electronics industry, alumina substrate has become an indispensable base material for electronic components because of its excellent insulation, chemical stability, high thermal conductivity and good high-frequency performance. It not only plays the role of support and heat dissipation, but also ensures the insulation performance of electronic components. Alumina casting slurr...
Read More
Technological Advancements To Improve Silicon Carbide Substrate CMP Efficiency
With the continuous progress of semiconductor technology, silicon carbide (SiC), as a high-performance material, has shown great application potential in the field of power electronic devices. However, in the preparation process of silicon carbide substrate, surface quality control is particularly critical, especially after thinning, grinding and polishing and other processes to obtain ultra-...
Read More

Related Products

alumina filtration membrane
Alumina Filtration Plate Ceramic Filter Membrane
Anopore inorganic membranes
Anopore Inorganic Membranes Aluminum Oxide Anodisc Circle
alumina crucible cover
Aluminum Oxide Crucible Lids Customized
Alumina wafer polishing carrier
Alumina wafer polishing carrier
aluminum oxide liner plate
Alumina Mosaic Liner Tiles Ceramic Wear Resistant Liner Plate
alumina vacuum chuck
Microporous Ceramic Vacuum Chuck Alumina Porous Ceramics for Precision Applications
alumina gauge block
Alumina Gauge Blocks Set Ceramic Gage Blocks
aluminum oxide lining brick
Alumina Lining Brick

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.

All FAQs

Send Your inquiry

Subject:
Alumina Lining Board Aluminum Oxide Wear Resistant Liner Plate
Upload
* File ONLY PDF/JPG./PNG. Available.
Submit Now
About My Brand
Products
Resources
Hot Tags

Copyright © 2024 HUNAN ATCERA CO. Ltd. All Rights Reserved.

XML | Privacy Policy IPv6

Contact With Us
Contact With Us
Simply fill out the form below as best you can. And don't sweat the details.
Submit
Looking for Video?
Contact Us #
19311583352

Office Hours

  • Monday to Friday: 9:00 AM - 12:00 PM, 2:00 PM - 5:30 PM

Please note that our office hours are based on Beijing Time, which is eight hours ahead of Greenwich Mean Time (GMT). We appreciate your understanding and cooperation in scheduling your inquiries and meetings accordingly. For any urgent matters or queries outside our regular hours, feel free to contact us via email, and we will get back to you as soon as possible. Thank you for your business, and we look forward to serving you.

Home

Products

whatsApp

contact
