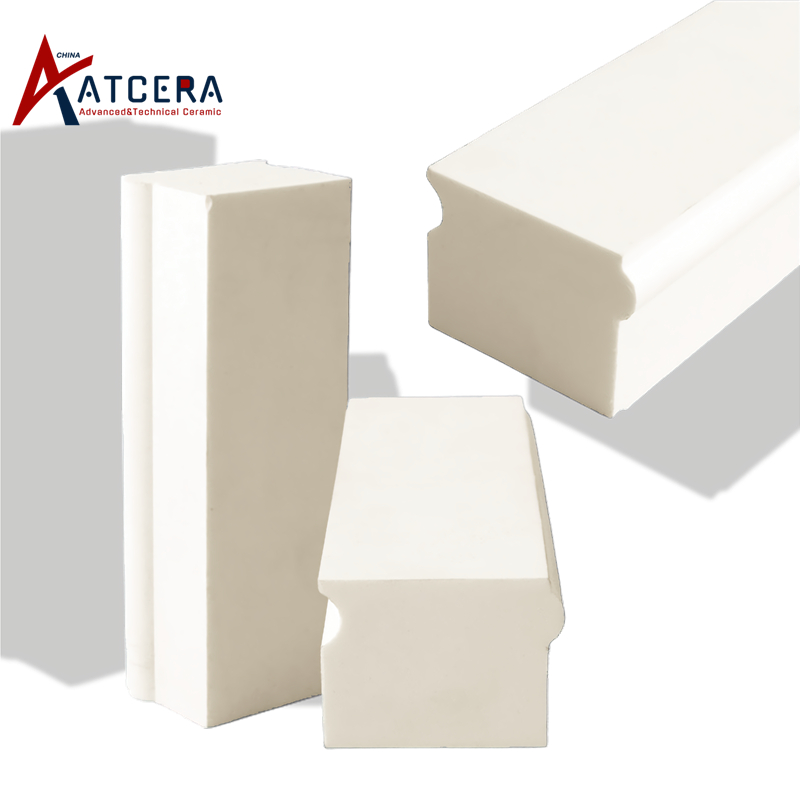

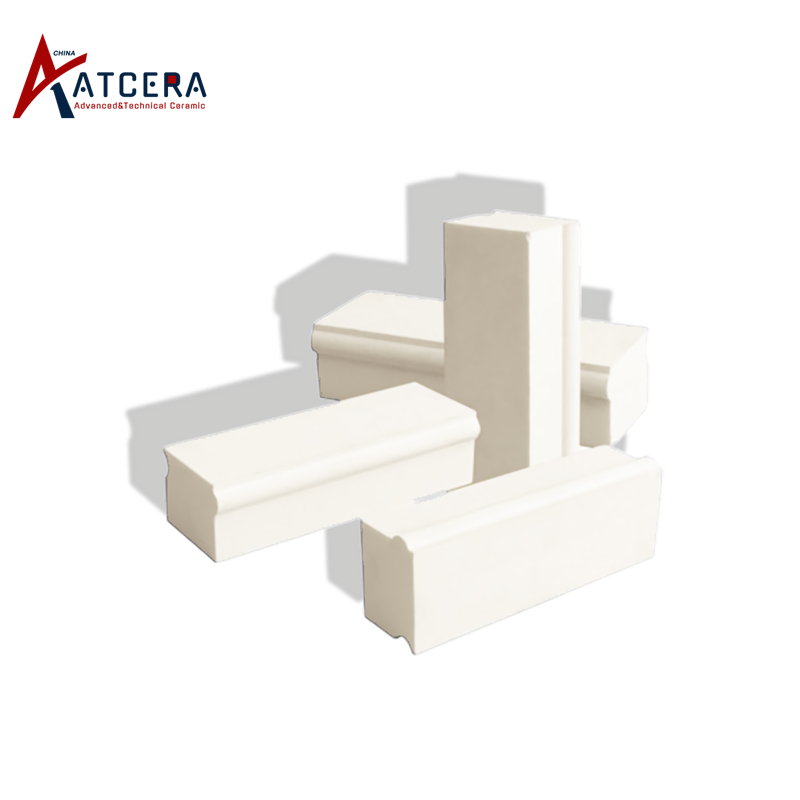

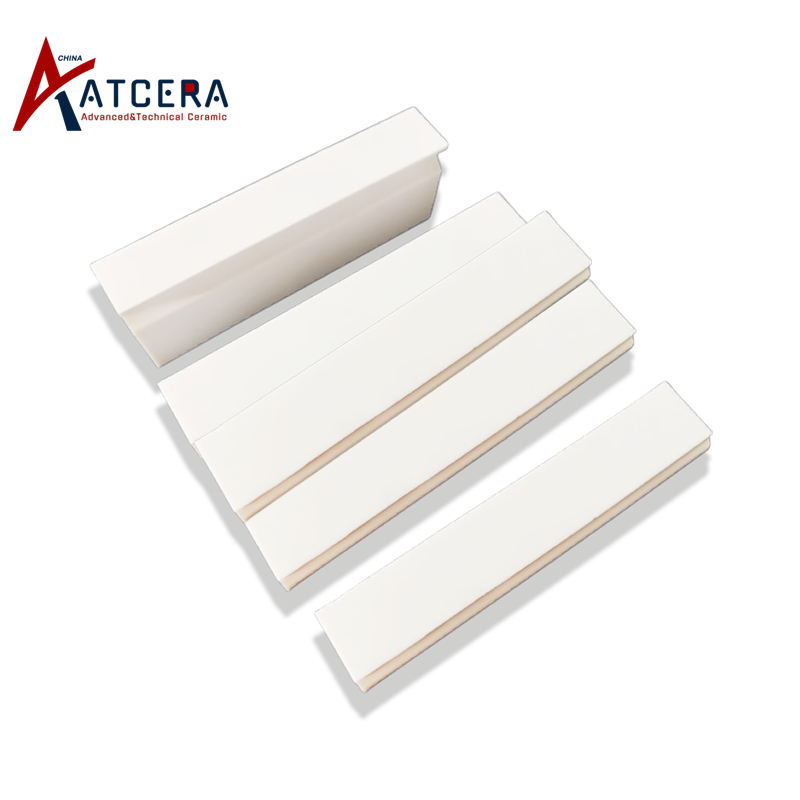

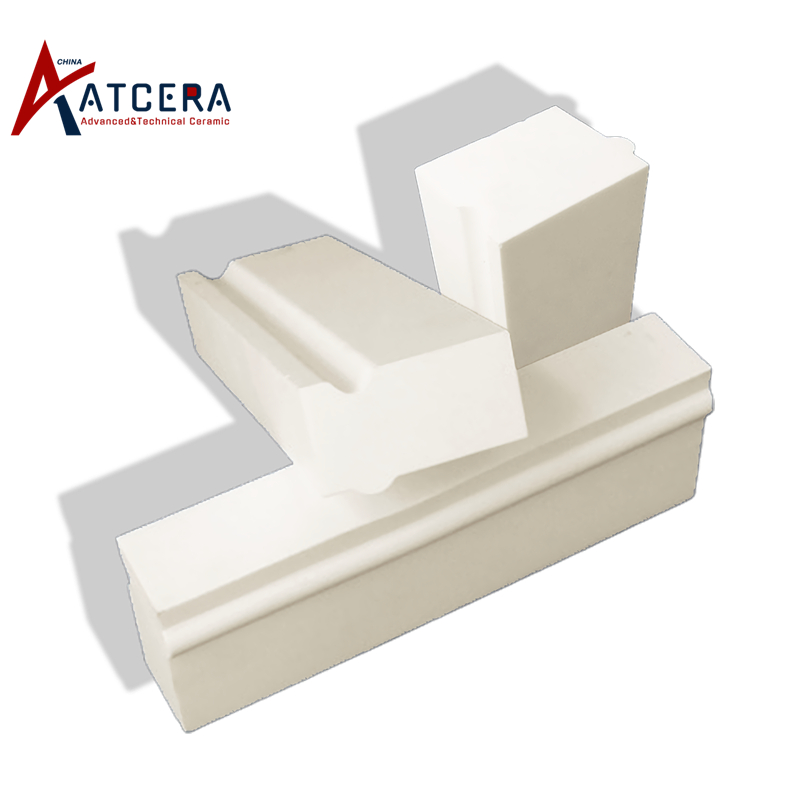

Alumina Lining Brick

Alumina lining bricks are made of alumina raw materials with a purity of over 92%, which are formed and then sintered at high temperatures. These bricks possess high hardness and excellent wear resistance, making them suitable for installation in wear-prone areas of ball mills, material handling equipment, coal preparation plants, and other devices. They serve as the material contact surface, enduring abrasion and impact.

Brand:
ATCERA
Item NO.:
AT-YHL-CZ001

Materials
Alumina
Shapes
Plate
Applications
Mechanical Parts

Inquire Now

Properties of Alumina Lining Brick

1. Good smoothness, flatness with less porosity.

2. Small variance in outline, plate thickness, and slit pitch, mininmal warpage, bending, and undulation.

3. Superior mechanical strength, good pressure and impact resistance, not easy to break or wear.

4. Excellent in thermal shock resistance, high thermal conductivity.

5. Excellent oil and chemical resistance.

6. Excellent in insulation properties, high breakdown voltage, and small dielectric constant.

Applications of Alumina Lining Brick

Alumina lining bricks are installed in wear-prone areas of ball mills, material handling equipment, coal preparation plants, and other devices, serving as the material contact surface to withstand abrasion and impact.

Size Chart of Alumina Lining Brick

We are committed to delivering optimal alumina lining bricks tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parameter specifications if customization requirements needed.

Item NO.	Alumina Lining Brick Non Tapered
AT-YHL-CZ001	Height (mm)	35	40	50	60	70	90
AT-YHL-CZ002	Width (mm)	50	50	50	50	50	50
AT-YHL-CZ003	Length (mm)	150	150	150	150	150	150

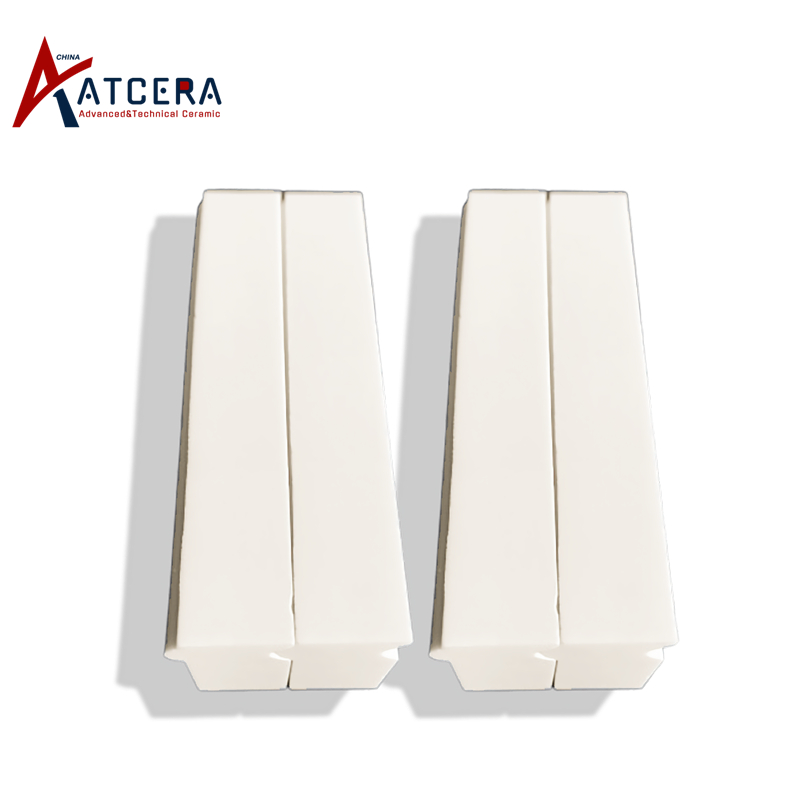

Item NO.	Alumina Lining Brick Tapered
AT-YHL-CZ004	Height (mm)	35	40	50	60	70	90
AT-YHL-CZ005	Top/Bottom Width (mm)	45/50	45/50	45/50	45/50	45/50	45/50
AT-YHL-CZ006	Length (mm)	150	150	150	150	150	150

Item NO.	Alumina Lining Brick Half-Non Tapered
AT-YHL-CZ007	Height (mm)	35	40	50	60	70	90
AT-YHL-CZ008	Width (mm)	50	50	50	50	50	50
AT-YHL-CZ009	Length (mm)	75	75	75	75	75	75

Item NO.	Alumina Lining Brick Half-tapered
AT-YHL-CZ010	Height (mm)	35	40	50	60	70	90
AT-YHL-CZ011	Top/Bottom Width (mm)	45/50	45/50	45/50	45/50	45/50	45/50
AT-YHL-CZ012	Length (mm)	75	75	75	75	75	75

Item NO.	Alumina Lining Brick Thin-Non Tapered
AT-YHL-CZ013	Height (mm)	35	40	50	60	70	90
AT-YHL-CZ014	Width (mm)	25	25	25	25	25	25
AT-YHL-CZ015	Length (mm)	150	150	150	150	150	150

Item NO.	Alumina Lining Brick Thin Tapered
AT-YHL-CZ016	Height (mm)	35	40	50	60	70	90
AT-YHL-CZ017	Top/Bottom Width (mm)	22.5/25	22.5/25	22.5/25	22.5/25	22.5/25	22.5/25
AT-YHL-CZ018	Length (mm)	150	150	150	150	150	150

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Before installing the alumina lining bricks, it is necessary to clean the internal surfaces of the equipment, removing rust, oil stains, dust, and other impurities to ensure strong adhesion and prevent peeling during use.

2. The wear-resistant ceramic adhesive used for installation should be mixed in accordance with the specified ratio, and the application temperature should be maintained within the optimal operating range of the adhesive to guarantee effective bonding.

3. The wear-resistant ceramic adhesive should be applied evenly during installation, and the bricks should be tapped with a rubber mallet to ensure a tighter bond with the equipment.

Valuable Information

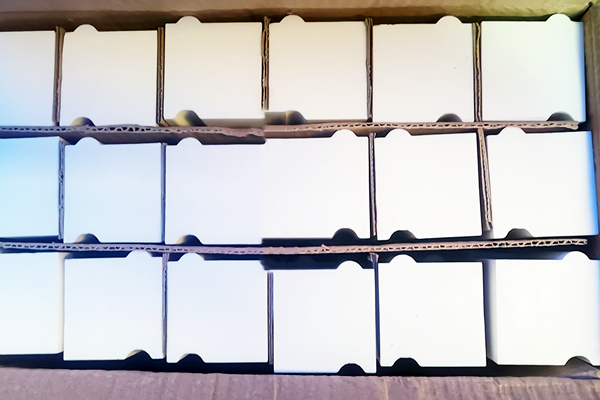

Alumina Lining Brick Packing

Alumina lining bricks are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
