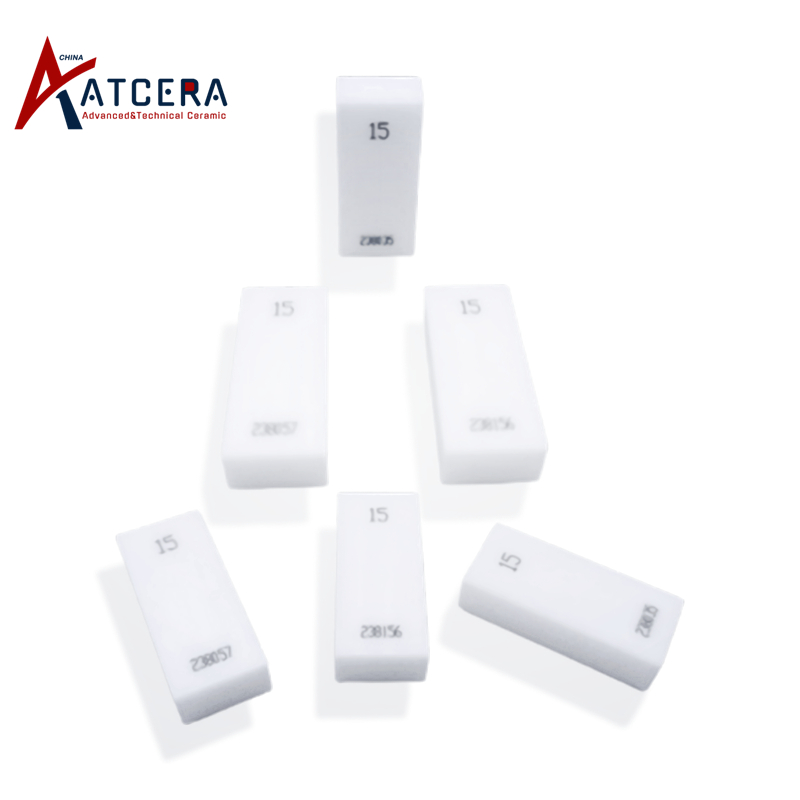

Alumina Gauge Blocks Set Ceramic Gage Blocks

The alumina ceramic guage block is fabricated from alumina material, exhibiting exceptional resistance to high temperatures and chemical corrosion, along with stable performance. It necessitates no painting or protective coating on its surface or cutting edges. This tool is utilized for dimensional measurements of products and equipment, encompassing length, spacing, outer diameter, inner diameter, and other attributes. Additionally, it can be employed for the calibration of other dimensional inspection instruments.

  • Brand:

    ATCERA
  • Item NO.:

    CS-CMT-015
  • Materials

    Alumina
  • Shapes

    Plate
  • Applications

    Mechanical Parts
alumina gauge block

Properties of Alumina Gage Blocks



1. Alumina gauge exhibit high hardness, excellent wear resistance, and a prolonged lifespan, outlasting steel measuring tools by a factor of over 10.



2. These alumina gauge possess exceptional corrosion resistance, allowing direct contact with acids and bases, as well as resilience to high temperatures, ensuring adaptability to various harsh working environments.



3. Alumina gauge blocks are rust-free, eliminating the need for corrosion protection measures and simplifying both maintenance and storage procedures.



4. Characterized by their non-aging, non-magnetic, and non-conductive properties, alumina gauge block offer stable performance and enjoy extended calibration cycles.

gauge blocks

Applications of Alumina Gauge Block













Alumina ceramic gauge is used for accurate length measurement, inner and outer diameter measurement, as well as as a reference for calibration of other high-precision measuring instruments.











Size Chart of Alumina Gage Blocks



We are committed to delivering optimal alumina gauge blocks tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Provide drawings, including dimensions and specifications if customization requirements needed.



Alumina Gage Blocks Individual
Item NO. Gauge Size(mm) Grades of Gauge Blocks Options for Grades Weight (g)
CS-CMT-015 0.5mm 1 1/0/K 10
CS-CMT-016 0.5mm 0 1/0/K 11
CS-CMT-017 25mm 1 1/0/K 26
CS-CMT-018 25mm 0 1/0/K 27
CS-CMT-019 30mm 1 1/0/K 28
CS-CMT-020 30mm 0 1/0/K 29
CS-CMT-021 40mm 1 1/0/K 30
CS-CMT-022 40mm 0 1/0/K 31
CS-CMT-023 41.2mm 1 1/0/K 32
CS-CMT-024 41.2mm 0 1/0/K 33
CS-CMT-025 41.3mm 1 1/0/K 34
CS-CMT-026 41.3mm 0 1/0/K 35
CS-CMT-027 50mm 1 1/0/K 36
CS-CMT-028 50mm 0 1/0/K 37
CS-CMT-029 60mm 1 1/0/K 38
CS-CMT-030 60mm 0 1/0/K 39
CS-CMT-031 70mm 1 1/0/K 40
CS-CMT-032 70mm 0 1/0/K 41
CS-CMT-033 75mm 1 1/0/K 42
CS-CMT-034 75mm 0 1/0/K 43
CS-CMT-035 80mm 1 1/0/K 44
CS-CMT-036 80mm 0 1/0/K 45
CS-CMT-037 81.5mm 1 1/0/K 46
CS-CMT-038 81.5mm 0 1/0/K 47
CS-CMT-039 90mm 1 1/0/K 48
CS-CMT-040 90mm 0 1/0/K 49
CS-CMT-041 100mm 1 1/0/K 50
CS-CMT-042 100mm 0 1/0/K 51
CS-CMT-043 125mm 1 1/0/K 52
CS-CMT-044 125mm 0 1/0/K 53
CS-CMT-045 150mm 1 1/0/K 54
CS-CMT-046 150mm 0 1/0/K 55



Alumina Gage Blocks Set
Item NO. Gauge Size(mm) Increments(mm) Total Blocks Grades of Gauge Blocks Weight (g)
CS-CMT-001 1-1.5mm 0.01 51 1 12
CS-CMT-002 1-1.5mm 0.01 51 0 13
CS-CMT-003 1.6-1.9mm 0.1 4 1 14
CS-CMT-004 1.6-1.9mm 0.01 31 0 15
CS-CMT-005 2-6.5mm 0.5 10 1 16
CS-CMT-006 2-6.5mm 0.5 10 0 17
CS-CMT-007 7-9.5mm 0.5 6 1 18
CS-CMT-008 7-9.5mm 0.5 6 0 19
CS-CMT-009 10-13.5mm 0.5 8 1 20
CS-CMT-010 10-13.5mm 0.5 8 0 21
CS-CMT-011 14-19.5mm 0.5 12 1 22
CS-CMT-012 14-19.5mm 0.5 12 0 23
CS-CMT-013 20-24.5mm 0.5 10 1 24
CS-CMT-014 20-24.5mm 0.5 10 0 25



Detailed Size Reference of Gauge Blocks
Gauge Size(mm) 1-1.5mm 1.6-1.9mm 1.6-1.9mm 2-6.5mm 7-9.5mm 10-13.5 mm 14-19.5  mm 20-24.5 mm
Increments(mm) 0.01 0.1 0.01 0.5 0.5 0.5 0.5 0.5
1 1 1.6 1.6 2 7 10 14 20
2 1.01 1.7 1.61 2.5 7.5 10.5 14.5 20.5
3 1.02 1.8 1.62 3 8 11 15 21
4 1.03 1.9 1.63 3.5 8.5 11.5 15.5 21.5
5 1.04   1.64 4 9 12 16 22
6 1.05   1.65 4.5 9.5 12.5 16.5 22.5
7 1.06   1.66 5   13 17 23
8 1.07   1.67 5.5   13.5 17.5 23.5
9 1.08   1.68 6     18 24
10 1.09   1.69 6.5     18.5 24.5
11 1.1   1.7       19
12 1.11   1.71       19.5
13 1.12   1.72
14 1.13   1.73
15 1.14   1.74
16 1.15   1.75
17 1.16   1.76
18 1.17   1.77
19 1.18   1.78
20 1.19   1.79
21 1.2   1.8
22 1.21   1.81
23 1.22   1.82
24 1.23   1.83
25 1.24   1.84
26 1.25   1.85
27 1.26   1.86
28 1.27   1.87
29 1.28   1.88
30 1.29   1.89
31 1.3   1.9
32 1.31
33 1.32
34 1.33
35 1.34
36 1.35
37 1.36
38 1.37
39 1.38
40 1.39
41 1.4
42 1.41
43 1.42
44 1.43
45 1.44
46 1.45
47 1.46
48 1.47
49 1.48
50 1.49
51 1.5

Technical Data of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions



1. According to the measured size and tolerance, select alumina gauge with appropriate specifications;


2. Check the alumina gauge before using, to ensure that the surface  is clean and free of oil, no dust or other impurities;


3. It is strictly prohibited to force the alumina gauge into the thread to avoid excessive wear, which may affect the accuracy of gauge;


4. Perform regular inspection and calibration of the alumina gauge.

Valuable Information



Alumina Gauge Block Packing

Alumina Gauge Block Packing

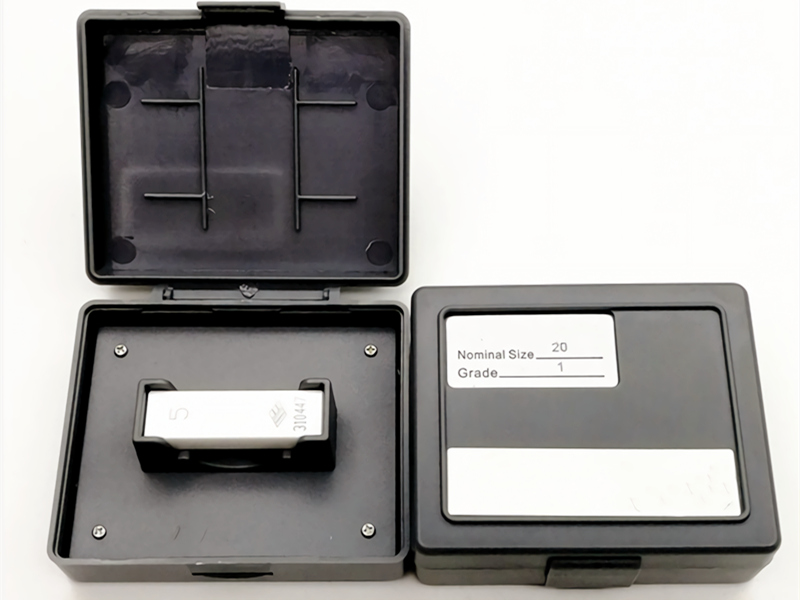

Alumina gauge blocks are carefully packaged in appropriate containers to avoid any potential damage.

























Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
