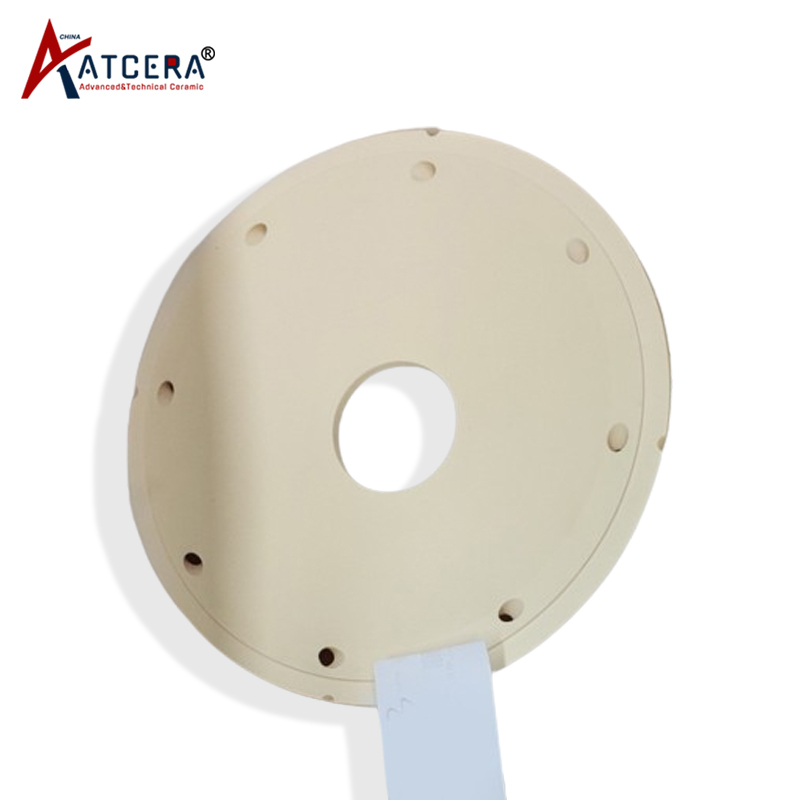

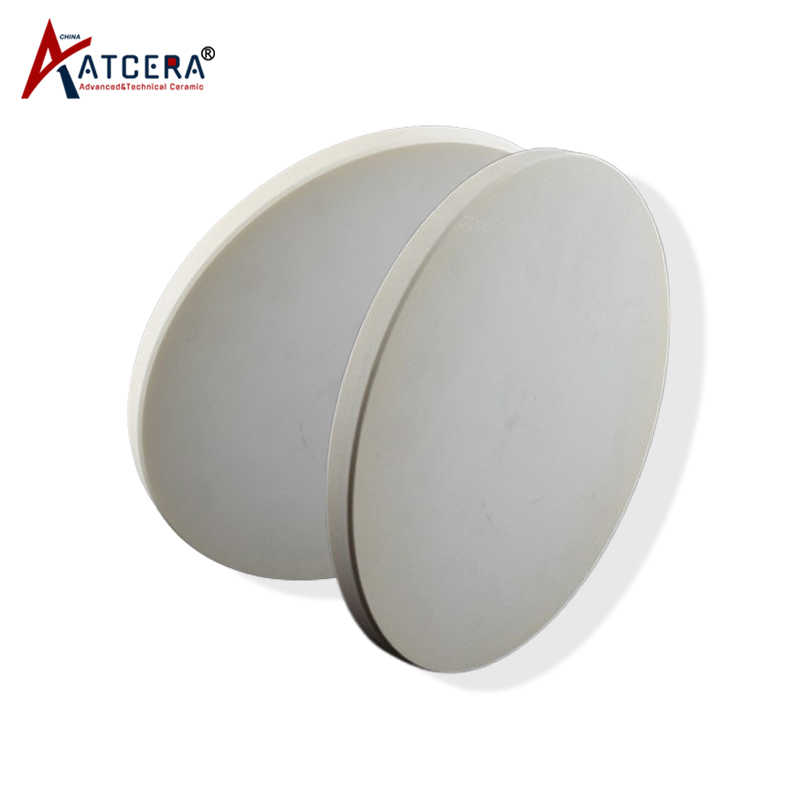

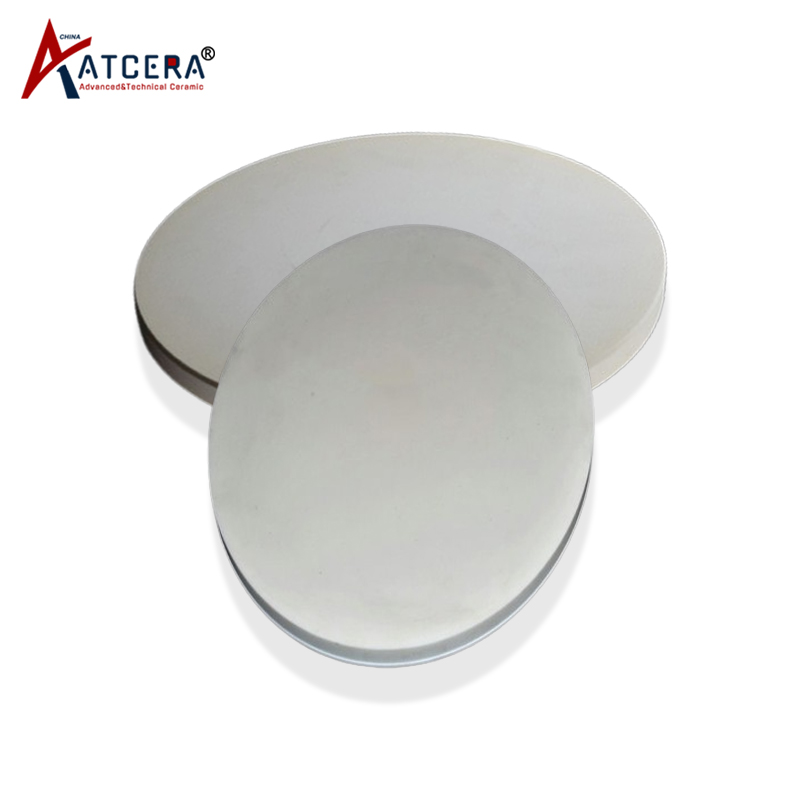

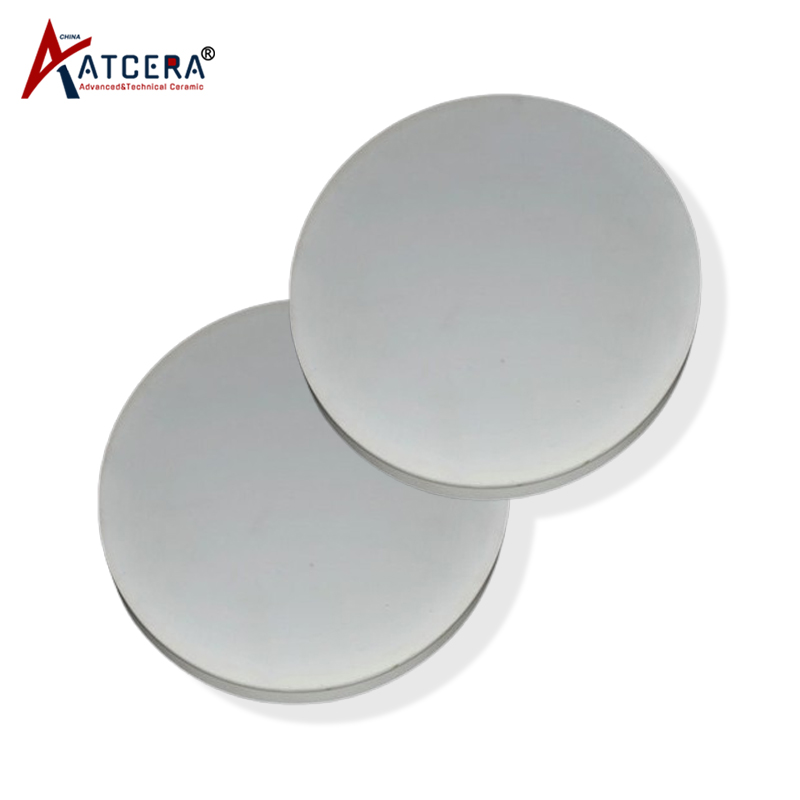

Alumina wafer polishing carrier

Alumina wafer polishing carrier are made of high purity alumina with high surface accuracy and long service life, and can be used as carrier parts in grinding and chemical mechanical polishing (cmp) processes of wafers.

Brand:
ATCERA
Item NO.:
AT-BDT-B001

Materials
Alumina
Shapes
Plate

Inquire Now

Advantages of Alumina Wafer Carrier

· Alumina wafer polishing carrier is made of 99.6% or more high-purity ultra-fine alumina powder, which is fired in a high temperature environment after molding. It is resistant to high temperature, wear and corrosion, and has no pollution to the wafer during grinding.

· The surface accuracy of the alumina wafer polishing carrier is high, and the flatness of the 800mm diameter disk can be controlled within 1.5 microns, which is conducive to improving the polishing accuracy of the wafer.

Applications of Alumina Wafer Carrier

Alumina wafer polishing carrier can be used as a carrier part in thinning, grinding and chemical mechanical polishing (cmp) processes for semiconductor wafers such as silicon wafers, gallium arsenide wafers and silicon carbide wafers

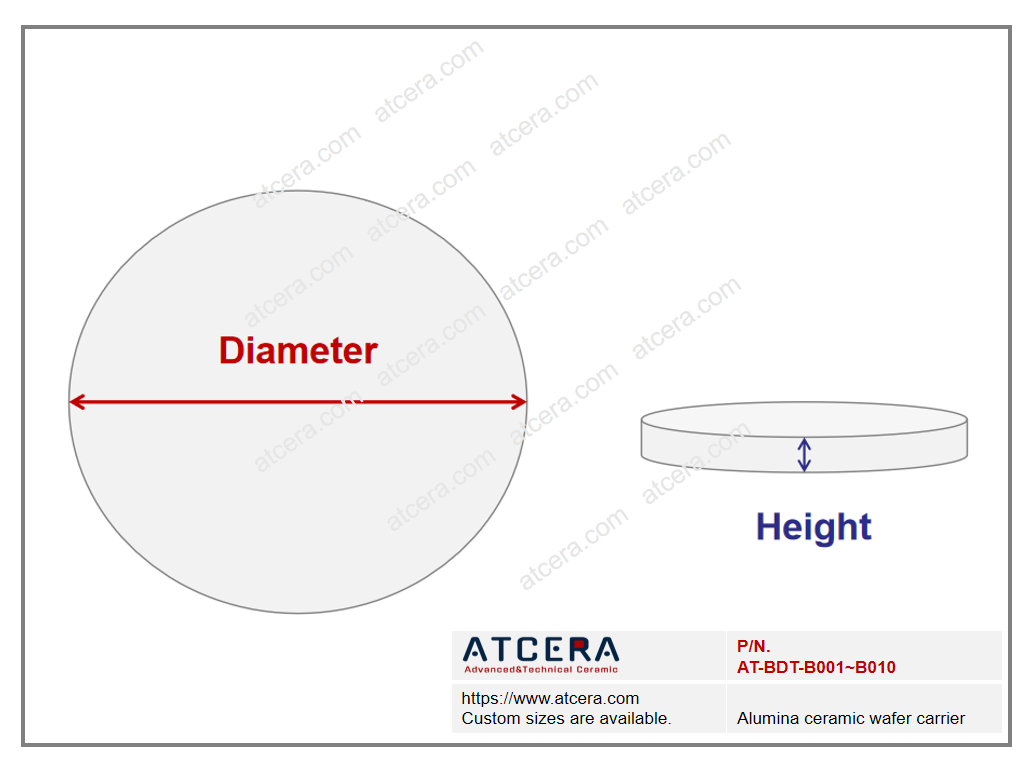

Size Chart of Al2O3 wafer polishing carrier

We are committed to delivering high-quality alumina ceramic wafer polishing carrier tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Alumina Wafer Carrier
Item No.	Diameter (mm)	Height(mm)	Purity(%)	Remark
AT-BDT-B001	240	15	99.5	Evenness and surface roughness are processed as required
AT-BDT-B002	240	25	99.6
AT-BDT-B003	245	25	99.6
AT-BDT-B004	263	25	99.6
AT-BDT-B005	300	20	99.6
AT-BDT-B006	310	20	99.6
AT-BDT-B007	350	15	99.5
AT-BDT-B008	355	16	99.6
AT-BDT-B009	360	16	99.6
AT-BDT-B010	400	15	99

Specification of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Keep the alumina wafer polishing carrier clean before use. Clean it with a soft cloth or sponge. Avoid using hard objects such as brushes to avoid scratching the surface. Do not use cleaners containing abrasive, acid, alkali, organic solvent or other corrosive substances;

2. When the alumina wafer polishing carrier is used, it should be handled gently to avoid falling or being impacted, so as not to cause rupture or deformation;

3. When not used for a long time, the alumina wafer polishing carrier should be stored in a dry and dust-free place to avoid exposure to humid environments and avoid contact with corrosive substances;

4. In the process of use or storage, it is necessary to avoid contact with sharp objects or be cut, scratched and other damage.

Valuable Information

Process for Customized Request

1. Drawing and sample providing

2. Production solution and fabrication method evaluation

3. Calculation and quotation module cost payment

4. Sample delivery

5. Sample evaluation and confirmation

6. Down payment of bulk order

7. Mass production

8. Batch product delivery

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
