Alumina Mosaic Liner Tiles Ceramic Wear Resistant Liner Plate

Alumina mosaic tiles are primarily made from alumina powder through a molding and high-temperature sintering process. These tiles are primarily used in grinding equipment and material transportation pipelines, where they can be adhered to the pipes or grinding equipment, or vulcanized directly with special rubber onto steel plates with bolts to form a wear-resistant and impact-resistant working surface.

Brand:
ATCERA
Item NO.:
AT-YHL-MSK001

Materials
Alumina
Shapes
Plate
Applications
Metallurgy Industry

Inquire Now

Properties of Alumina Mosaic Tiles

Alumina liner tiles exhibit exceptional hardness and wear resistance, withstanding high temperatures and corrosion. Their wear resistance is over 200 times that of manganese steel, significantly enhancing the lifespan of equipment and pipelines. Additionally, their smooth surface minimizes resistance to material flow, ensuring unimpeded material transportation efficiency.

Applications of Alumina Mosaic Tiles

Alumina wear resistant liner tiles are suitable for use in coal transportation, material handling, pulverizing, ash handling, and dust removal systems in industries such as thermal power, steel, metallurgy, coal mining, chemicals, and cement. They protect grinding tanks and pipelines from material wear, extending the service life of grinding equipment and pipelines.

Size Chart of Alumina Mosaic Tiles

We are committed to delivering optimal alumina mosaic tiles tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parameter specifications if customization requirements needed.

Alumina Mosaic Tiles Square
Item NO.	Dimension (mm)	Length (mm)	Width (mm)	Thickness (mm)
AT-YHL-MSK001	10X10	10	10	3-6
AT-YHL-MSK002	17.5X17.5	17.5	17.5	3-16
AT-YHL-MSK003	20X20	20	20	3-18
AT-YHL-MSK004	24X24	24	24	4-10
AT-YHL-MSK005	27X27	27	27	5-18
AT-YHL-MSK006	38X38	38	38	5-18
AT-YHL-MSK007	39X39	39	39	6-18
AT-YHL-MSK008	50X50	50	50	5-16

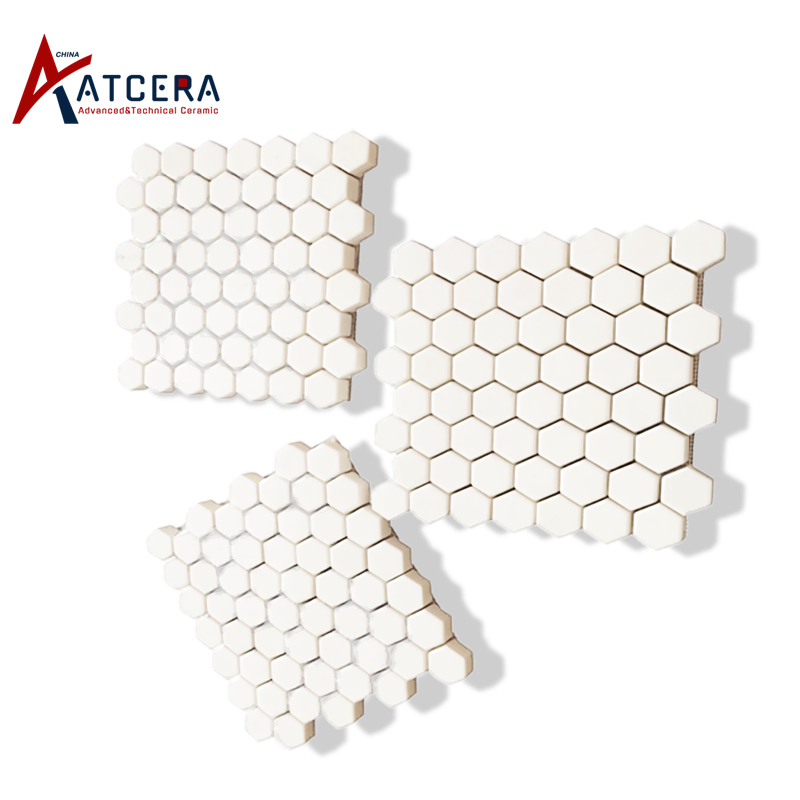

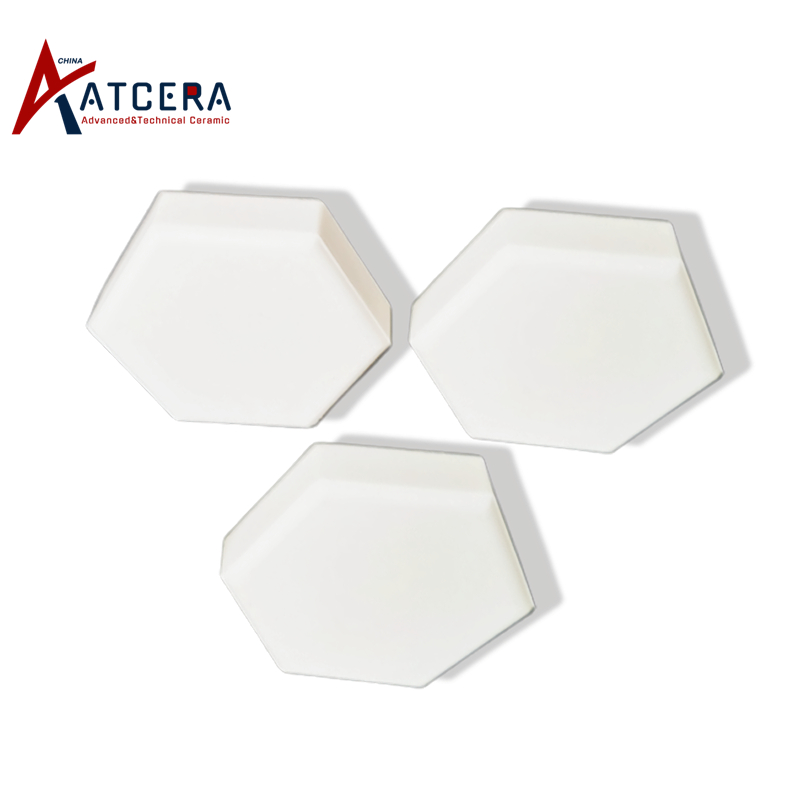

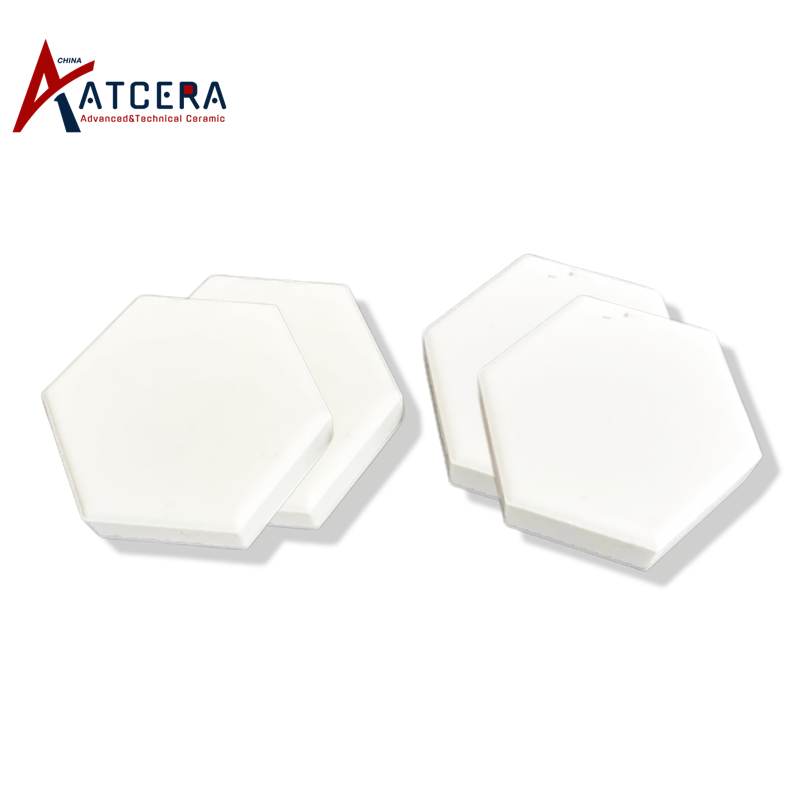

Alumina Mosaic Tiles Hexagon
Item NO.	Dimension (mm)	Side Length (mm)	Thickness (mm)
AT-YHL-MSK009	AF19.5	11.5mm	3-18
AT-YHL-MSK010	AF20	12mm	3-18
AT-YHL-MSK011	AF21	12.5mm	3-18
AT-YHL-MSK012	AF40	23mm	8-35

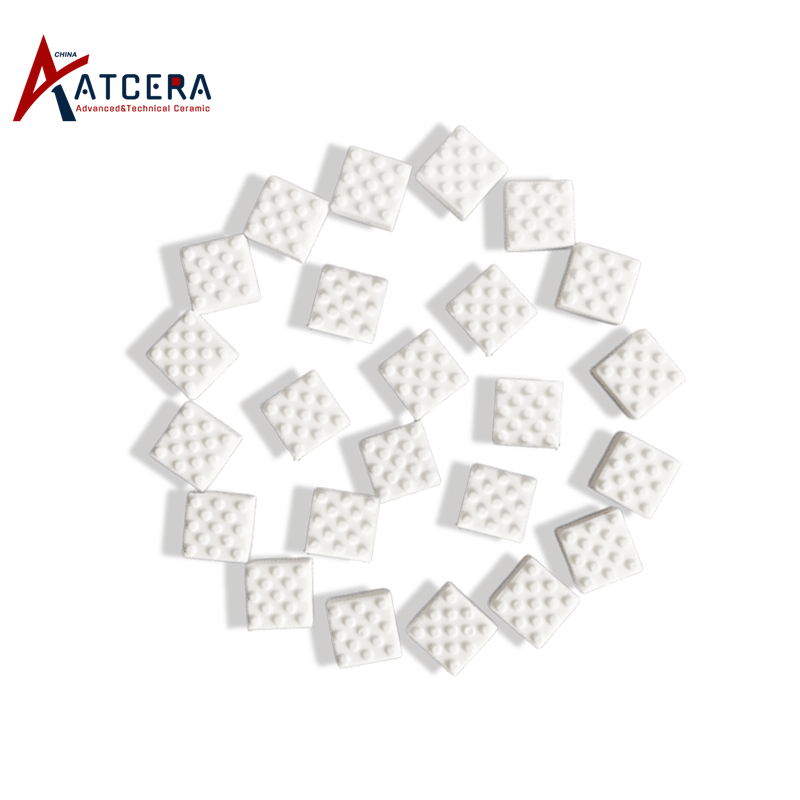

Alumina Mosaic Tiles With Bump
Item NO.	Dimension (mm)	Length (mm)	Width (mm)	Thickness (mm)
AT-YHL-MSK013	20X20	20	20	4+1
AT-YHL-MSK014	20X20	20	20	5+1
AT-YHL-MSK015	20X20	20	20	6+1
AT-YHL-MSK016	20X20	20	20	7+1

Alumina Mosaic Tiles Cylinder
Item NO.	Dimension (mm)	Diameter (mm)	Height (mm)
AT-YHL-MSK017	16*16	16	16
AT-YHL-MSK018	20*20	20	20
AT-YHL-MSK019	21*21	21	21
AT-YHL-MSK020	20*25	20	25
AT-YHL-MSK021	23.5*18	23.5	18
AT-YHL-MSK022	23.5*20	23.5	20
AT-YHL-MSK023	23*23	23	23
AT-YHL-MSK024	23*25	23	25
AT-YHL-MSK025	25*25	25	25
AT-YHL-MSK026	30*30	30	30
AT-YHL-MSK027	31*31	31	31
AT-YHL-MSK028	40*40	40	40
AT-YHL-MSK029	45*45	45	45
AT-YHL-MSK030	50*50	50	50
AT-YHL-MSK031	60*60	60	60

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Before adhering alumina mosaic tiles, it is essential to clean the inner surface of the pipeline, removing rust, oil stains, dirt, and other impurities to prevent decreased adhesion and potential tile detachment during use.

2. The wear-resistant ceramic adhesive used for bonding should be mixed according to the specified ratio, and the application temperature should be maintained within the adhesive's optimal operating range to ensure effective adhesion.

3. When applying the adhesive, it should be evenly spread, and after placing the tiles, they should be tapped with a rubber mallet to ensure a tighter bond with the equipment.

Valuable Information

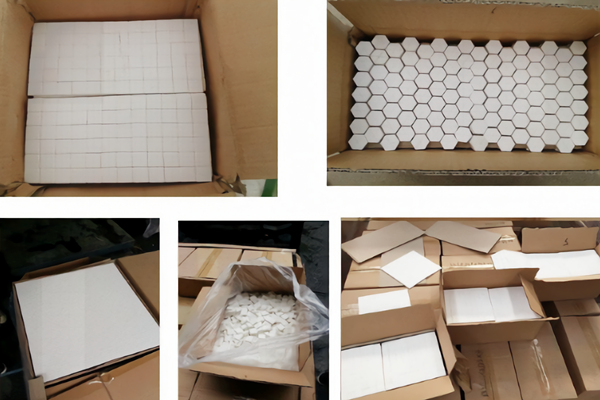

Alumina Mosaic Tiles Packing

Alumina mosaic tiles are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
