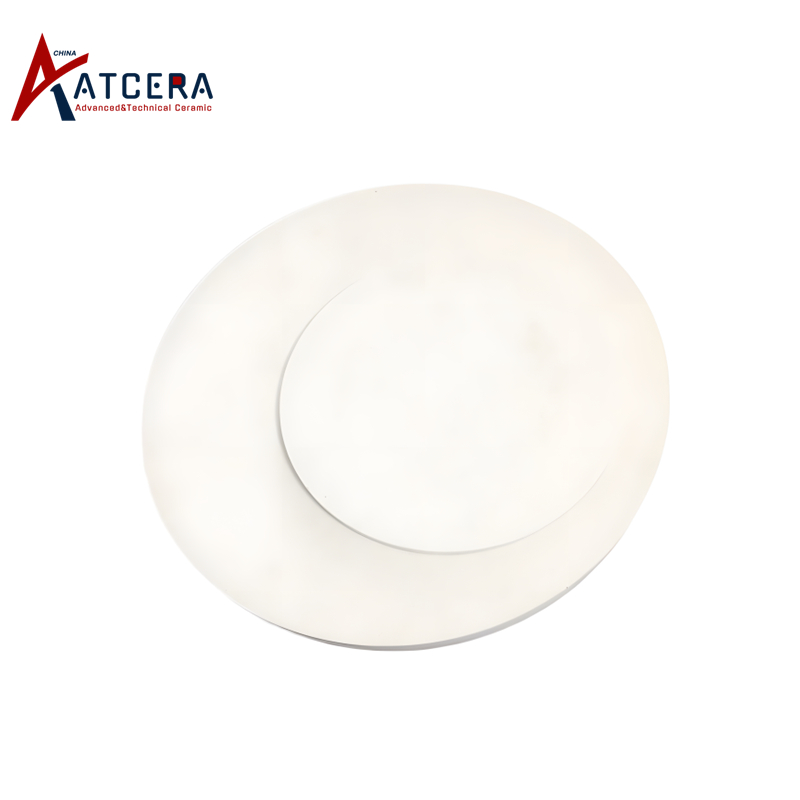

Alumina Filtration Plate Ceramic Filter Membrane

Alumina filtration membrane has good high temperature and corrosion resistance, stable chemical properties, excellent mechanical properties, stable microstructure, easy to clean and regenerate, and is suitable for use in high temperature and other harsh environments.

Item NO.:
AT-FT-5001

Materials
Alumina
Shapes
Plate
Applications
Petrochemical Industry , Food Processing

Inquire Now

Advantages of Alumina Filtration Plate

⩟ High performance

The alumina filtration membrane exhibits effective filtration and rapid filtration speed, efficiently managing a considerable volume of suspended liquids.

⩟ Corrosion resistance

The Al2O3 filtration membrane demonstrates outstanding corrosion resistance and is appropriate for filtering a wide range of corrosive liquids.

⩟ High strength and hardness

Aluminum oxide possesses commendable wear resistance, ensuring a prolonged service life and high mechanical strength that mitigates the likelihood of breakage.

⩟ Environmental protection and energy saving

The use of alumina membrane filters in equipment eliminates the necessity for additional filter cloth or filter screens, resulting in reduced environmental pollution and maintenance costs.

⩟ Reusable

The alumina filtration membrane plate is reusable and easy to clean, leading to a reduction in operating costs.

Applications of Ceramic Filter Membrane Plate

Applications of Alumina Filtration Tube

Alumina membrane filter wall abounds with microholes, the raw material liquid flows in the membrane tube or outside the membrane, small molecular substances (or liquid) through the membrane, macromolecular substances (or solid) are trapped by the membrane, in food and beverage manufacturing, biomedicine, fine chemical industry and many other fields have a very important application, can be used in the process of separation, clarification, purification, concentration, sterilization, desalt, etc.

1. Food and beverage industry

Alumina membrane filter tube can be used in milk filtration, juice concentration, natural plant extract, wine/tea beverage production, etc.

2. Chemical industry

Alumina membrane tubular filter is widely used for solid-liquid separation, gas-solid separation, and organics separation and purification, such as benzene, phenol, alcohol, various pigments.

3. Environmental protection

It is used for purifying oily wastewater, textile wastewater, urban sewage and paper-making wastewater, as well as high temperature waste gas purification.

4. Biomedical field

It can be used to seperate particles, bacteria and macromolecular impurities in the medicine, and decolor medicine, or refine and concentrate medicine liquid, extract the active ingredients, effective monomers, etc.

Size Chart of Alumina Filtration Plate

We are committed to delivering high-quality alumina ceramic tubes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Kindly furnish the necessary customized information listed below for further assistance:

1. Application scenario

2. The liquid and impurity composition to be filtered, impurity particle size

3. Designed fluid flow rate

4. Filtration membrane size and other requirements

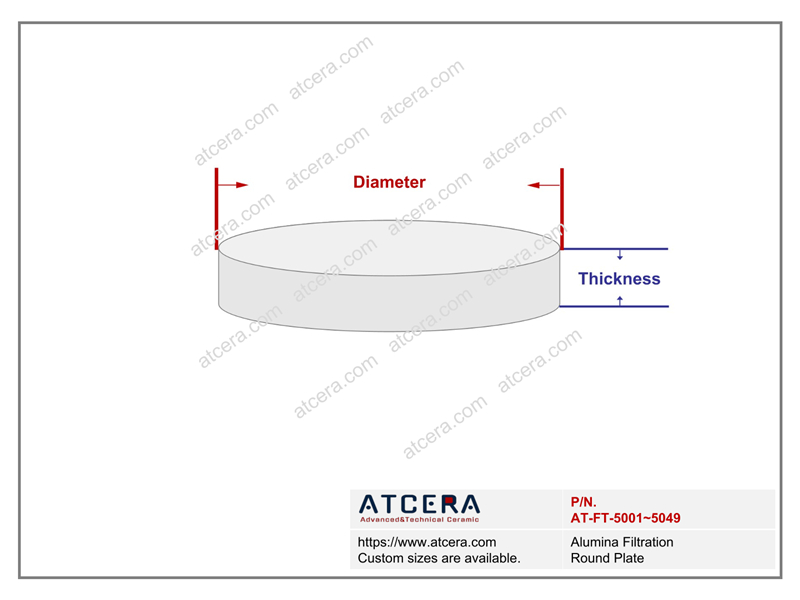

Drawing of Alumina Filtration Round Plate

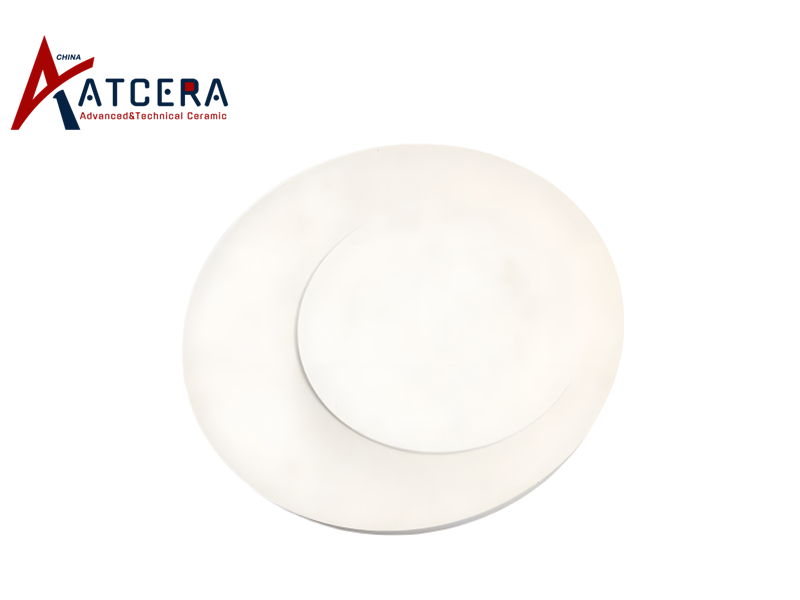

Alumina Filtration Round Plate
Item No.	Diameter (mm)	Thickness (mm)	Pore Size (μm)	Al2O3 Purity (%)
AT-FT-5001	5.5	3	0.1	96
AT-FT-5002	15	3	25	96
AT-FT-5003	15	3	0.2	96
AT-FT-5004	20	2	2	96
AT-FT-5005	20.5	4	0.8	96
AT-FT-5006	21	1	0.2	96
AT-FT-5007	21	1	0.1	96
AT-FT-5008	21	1	1	96
AT-FT-5009	22	2	2	96
AT-FT-5010	22	2	0.1	96
AT-FT-5011	22	2	0.05	96
AT-FT-5012	26.2	3	1	96
AT-FT-5013	28	3	10	96
AT-FT-5014	28	4	1	96
AT-FT-5015	28.5	3	0.8	96
AT-FT-5016	28.5	3	1	96
AT-FT-5017	28.5	5	1	96
AT-FT-5018	29	2	0.8	96
AT-FT-5019	29	3	0.5	96
AT-FT-5020	29	6	0.2	96
AT-FT-5021	31.5	3.5	0.2	96
AT-FT-5022	31.5	4.5	1	96
AT-FT-5023	38	2	2	96
AT-FT-5024	38	2	0.1	96
AT-FT-5025	38	2	0.05	96
AT-FT-5026	38.5	3	1	96
AT-FT-5027	47	5	30	96
AT-FT-5028	47.5	3	0.2	96
AT-FT-5029	47.5	4	30	96
AT-FT-5030	47.7	2.5	0.2	96
AT-FT-5031	47.7	3.5	0.2	96
AT-FT-5032	47.7	4.5	50	96
AT-FT-5033	48.5	3	0.2	96
AT-FT-5034	48.5	5	0.2	96
AT-FT-5035	49.5	4.5	30	96
AT-FT-5036	49.5	4.5	50	96
AT-FT-5037	50	2	0.2	96
AT-FT-5038	52	3	2	96
AT-FT-5039	52	3	0.1	96
AT-FT-5040	52	3	0.05	96
AT-FT-5041	66	3	2	96
AT-FT-5042	66	3	0.1	96
AT-FT-5043	66	3	0.05	96
AT-FT-5044	88	3	2	96
AT-FT-5045	88	3	0.1	96
AT-FT-5046	88	3	0.05	96
AT-FT-5047	108	3.5	2	96
AT-FT-5048	108	3.5	0.1	96
AT-FT-5049	108	3.5	0.05	96

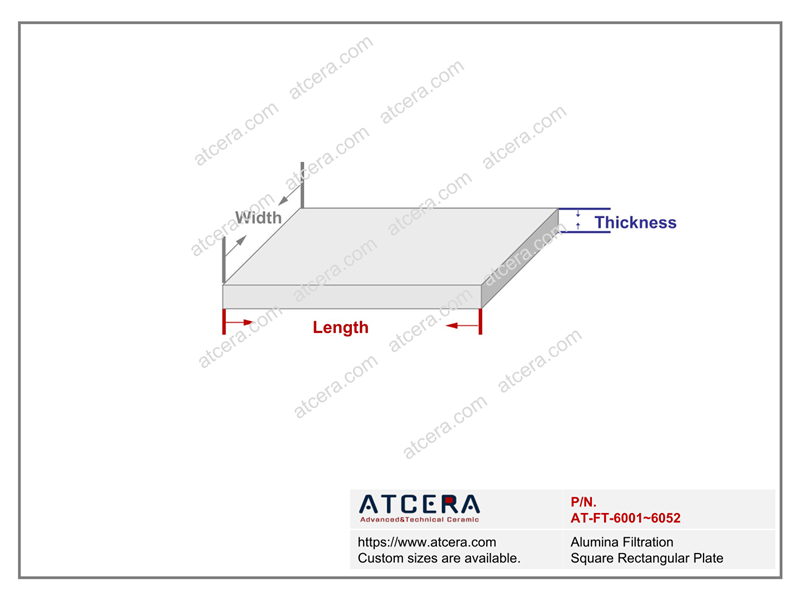

Drawing of Alumina Filtration Square Rectangular Plate

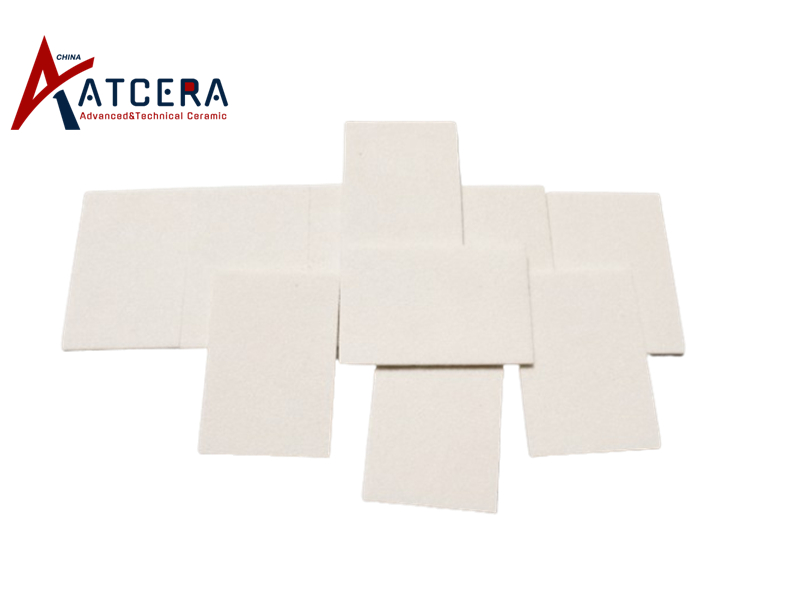

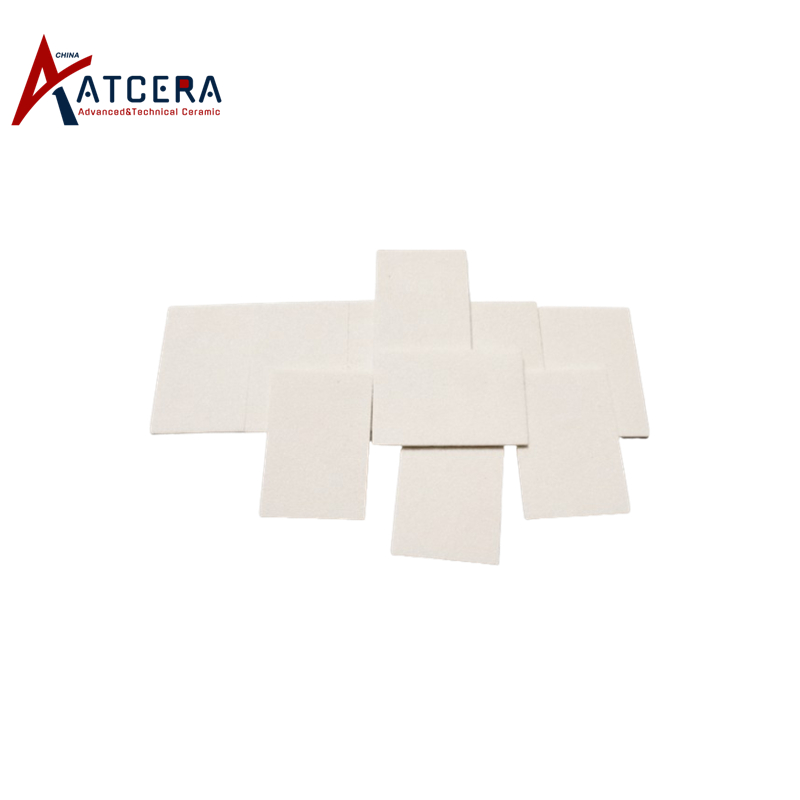

Alumina Filtration Square Rectangular Plate
Item No.	Length (mm)	Width (mm)	Thickness (mm)	Pore Size (μm)	Al2O3 Purity (%)
AT-FT-6001	10	10	1	0.05	96-98
AT-FT-6002	20	20	1	25	96-98
AT-FT-6003	25	25	3	0.2	96-98
AT-FT-6004	30	30	1	2	96-98
AT-FT-6005	30	30	2	0.8	96-98
AT-FT-6006	35	35	1	0.2	96-98
AT-FT-6007	40	40	1	0.1	96-98
AT-FT-6008	40	40	5	1	96-98
AT-FT-6009	50	50	1.5	2	96-98
AT-FT-6010	50	50	5	0.1	96-98
AT-FT-6011	60	60	1	0.05	96-98
AT-FT-6012	70	70	2	1	96-98
AT-FT-6013	70	70	3	10	96-98
AT-FT-6014	80	80	3	1	96-98
AT-FT-6015	80	80	5	0.8	96-98
AT-FT-6016	80	110	5	1	96-98
AT-FT-6017	100	70	1.2	1	96-98
AT-FT-6018	100	84	1.5	0.8	96-98
AT-FT-6019	100	90	2.2	0.5	96-98
AT-FT-6020	100	100	2.5	0.2	96-98
AT-FT-6021	100	100	3.5	0.2	96-98
AT-FT-6022	108	100	1.5	1	96-98
AT-FT-6023	100	100	2.5	2	96-98
AT-FT-6024	100	100	3.2	0.1	96-98
AT-FT-6025	100	100	3.5	0.05	96-98
AT-FT-6026	100	100	4	1	96-98
AT-FT-6027	100	100	5	30	96-98
AT-FT-6028	109	109	1	0.2	96-98
AT-FT-6029	110	80	4	1	98
AT-FT-6030	110	110	5	0.2	96-98
AT-FT-6031	114	114	1	0.2	96-98
AT-FT-6032	120	120	1	0.5	96-98
AT-FT-6033	120	120	3	0.2	96-98
AT-FT-6034	125	125	2	0.2	96-98
AT-FT-6035	127	127	1	0.8	96-98
AT-FT-6036	127	127	1.5	0.8	96-98
AT-FT-6037	138	190	1	0.2	96-98
AT-FT-6038	138	190	1	2	96-98
AT-FT-6039	150	150	1.8	0.1	96-98
AT-FT-6040	150	150	1	0.05	96-98
AT-FT-6041	150	150	1.5	2	96-98
AT-FT-6042	150	150	2	0.1	96-98
AT-FT-6043	150	150	3	0.5	96-98
AT-FT-6044	150	150	5	2	96-98
AT-FT-6045	160	170	2.5	0.1	96-98
AT-FT-6046	180	180	2	0.8	96-98
AT-FT-6047	180	180	3	2	96-98
AT-FT-6048	180	180	5	0.1	96-98
AT-FT-6049	200	140	2	0.5	96-98
AT-FT-6050	200	165	3	30	96-98
AT-FT-6051	200	200	5	50	96-98
AT-FT-6052	220	220	2	1	96-98

Kindly furnish the necessary customized information listed below for further assistance:

1. Application scenario

2. The liquid and impurity composition to be filtered, impurity particle size

3. Designed fluid flow rate

4. Membrane tube size and other requirements

Specification of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Prepare

Before using the alumina membrane tube, it needs to be cleaned and disinfected. Generally use hot water or detergent to clean, and use steam for disinfection. If there is damage or defect, it should be replaced or repaired.

2. Use method

(1) Selection

Choose appropriate alumina membrane tube specification, to get the best filtration accuracy.

(2) Installation

When install alumina membrane tube in the corresponding filter equipment, operation shall be carried out in strict accordance with the instructions.

(3) Starting and closing of the membrane tube

Before starting the membrane tube, make sure it is well connected to pipeline and water pump in the equipment, and be sure to turn on the water pump first, and then start the filter membrane.

After the membrane is closed, it's better to clean it to get the best service life.

3. Maintenance precautions

(1) Check the membrane tube regularly, and deal with problems such as blockage or damage.

(2) Regularly clean and disinfect the filter membrane to ensure its normal operation.

(3) Record maintenance and replancement of the membrane tube, to decide reasonable maintenance cycle and service life.

(4) Replace the membrane tube or filter membrane accessories regularly to ensure its filtration effect and stability.

Valuable Information

Specification of Alumina Filtration Tube

Material	High Purity Al₂O₃
Pore size	1-500μm
Maximum operating pressure	1MPa
Hardness	Mohs hardness 9; Vickers hardness HV1500-1700
Elastic modulus	380GPa
Flexural strength	300Mpa
Compressive strength	2000MPa
Maximum operating temperature	1600℃
Linear expansion coefficient	7.2~8.6X10^-6/℃
In compliance with EU ROHS environmental standards

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
