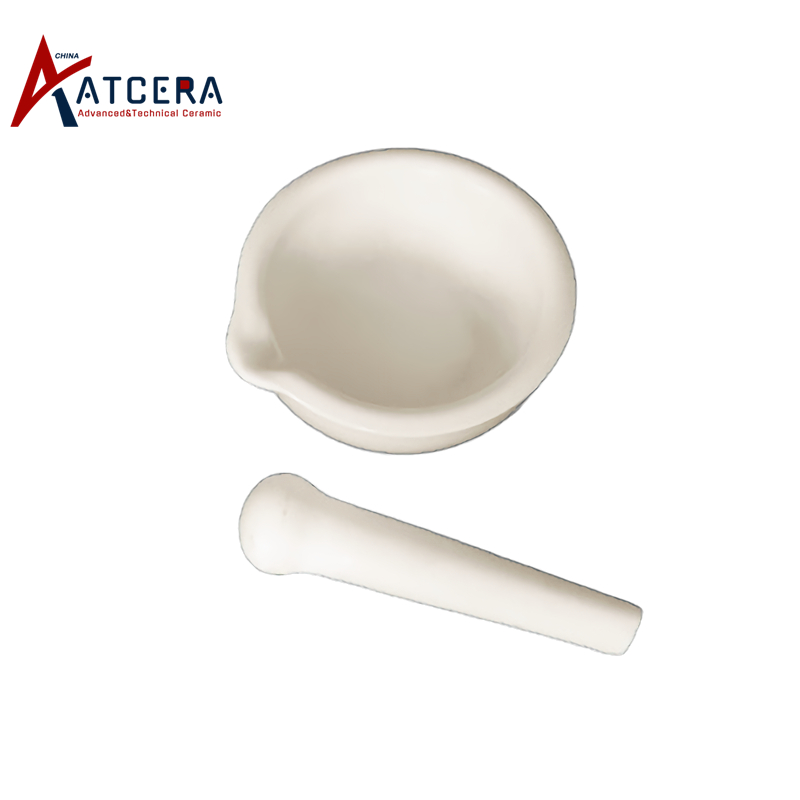

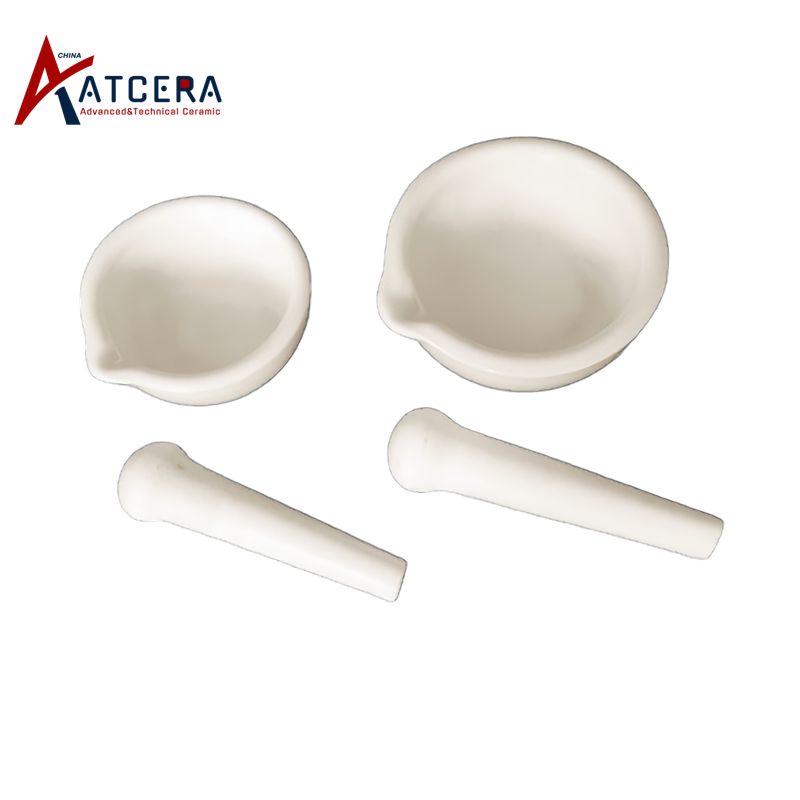

Alumina Mortar and Pestle for Grinding

The alumina mortar is a container used in experiments to grind experimental materials. Paired with an alumina pestle, it is designed to grind solid substances into powders or crush them.

Brand:
ATCERA
Item NO.:
AT-YHL-YB001

Materials
Alumina
Shapes
Mechanical Parts
Applications
Biology and Medicine , Laboratory Equipment and Instruments

Inquire Now

Properties of Alumina Mortar and Pestle

1. The alumina mortar and pestle possess high hardness and excellent wear resistance, offering abrasion and scratch-resistant performance.

2. They are highly corrosion-resistant, suitable for grinding various materials without any contamination.

3. With low density and lightweight construction, the alumina mortar and pestle are easy to handle.

Applications of Alumina Mortar and Pestle

The alumina mortar and pestle are utilized in physical and chemical laboratories and scientific research fields for grinding various high-purity chemical raw materials and pharmaceutical products.

Size Chart of Alumina Mortar and Pestle

We are committed to delivering optimal alumina mortars and pestles tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parameter specifications if customization requirements needed.

Alumina Mortar and Pestle
Item NO.	Outer Diameter (mm)	Inner Diameter (mm)	Bottom Diameter (mm)	Height (mm)	Pestle Length (mm)	Wall Thickness (mm)	Total Weight (kg)	Capacity (ml)
AT-YHL-YB001	60	45	35	28	65	6.5	0.13	18
AT-YHL-YB002	80	60	45	35	92	7.5	0.33	45
AT-YHL-YB003	100	80	63	45	105	8.5	8.5	115
AT-YHL-YB004	130	106	79	60	120	9.5	9.5	280
AT-YHL-YB005	160	125	85	65	165	13	13	450
AT-YHL-YB006	220	175	123	85	195	15	15	1300
AT-YHL-YB007	255	210	135	100	225	17	17	1700
AT-YHL-YB008	305	260	155	125	245	13	13	4000

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Select the appropriate material of the mortar based on the nature of the solid to be ground and the desired fineness of the product.

2. When performing grinding operations, place the mortar on a non-slip surface, and ensure that the pestle remains vertical.

3. Do not heat the mortar, especially if it is made of agate. Avoid placing it in an electric oven for drying.

4. To clean the mortar, rinse it with water first. For acid-resistant mortars, they can be washed with dilute hydrochloric acid.

5. Avoid grinding explosive substances, and ensure that the material does not exceed one-third of the volume capacity.

Valuable Information

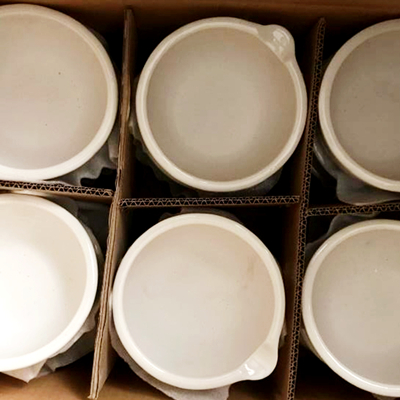

Alumina Mortar and Pestle Packing

Alumina mortars and pestles are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
