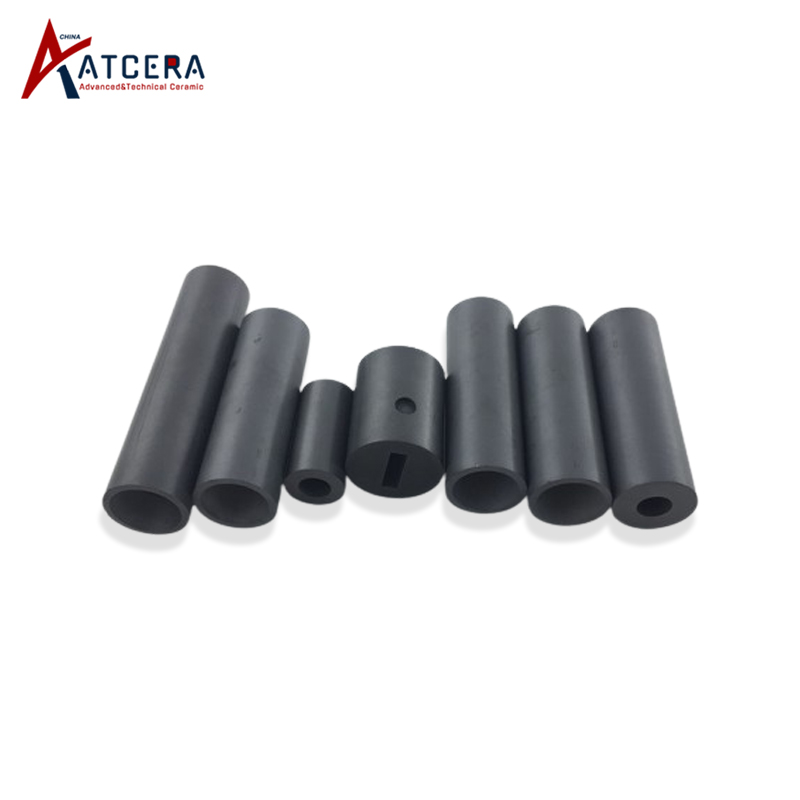

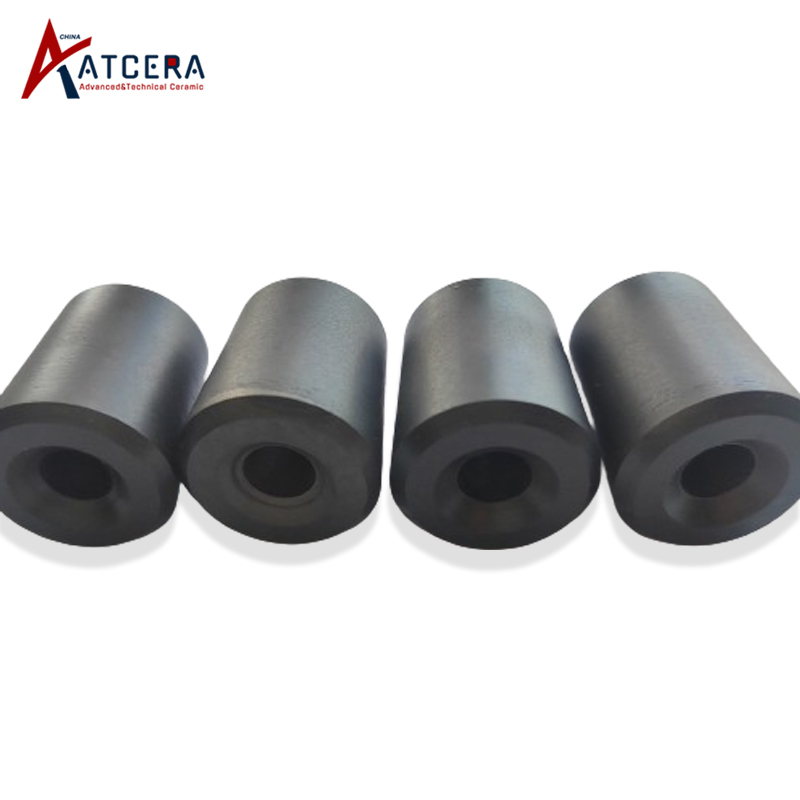

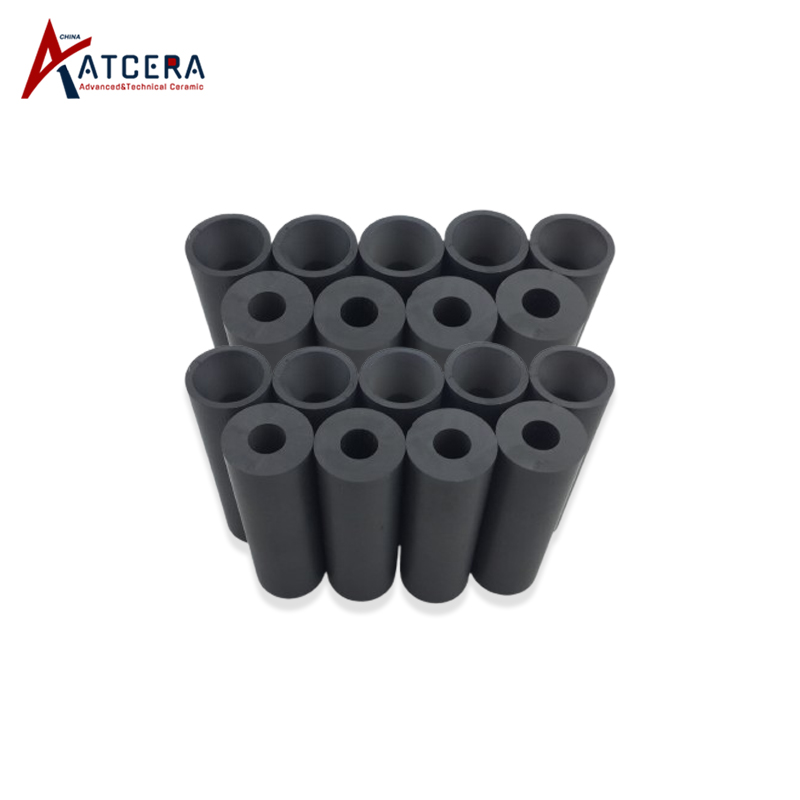

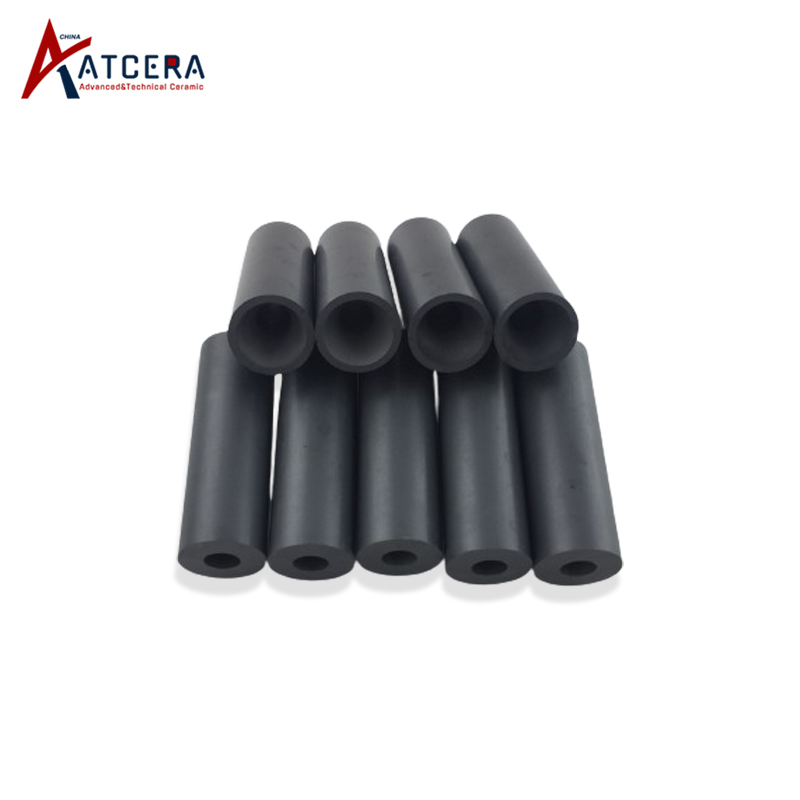

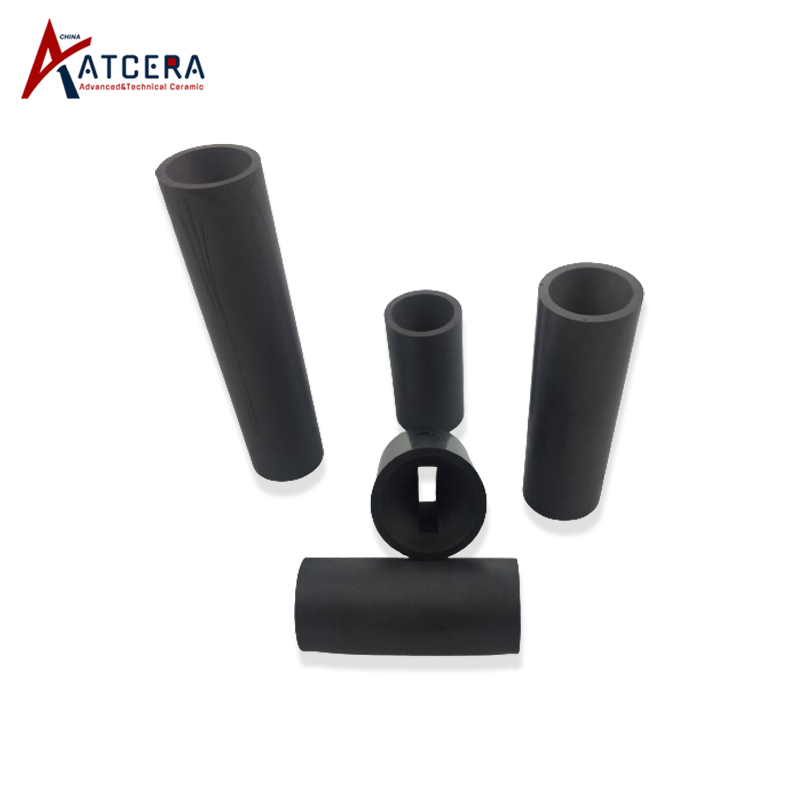

Boron Carbide Sandblasting Nozzle B4C Ceramic Nozzles

Boron carbide sandblasting nozzle is made of boron carbide as raw material after forming and sintering at high temperature, it has high hardness, good wear resistance, high temperature and corrosion resistance, and the main parts of sandblasting machine. It can be applied to various materials of sand, widely used in surface rust and oil removal for steel bridges, railway vehicles, metal containers, machinery and equipment and other metal products, also for non-metal products surface sandblasting treatment.

Brand:
ATCERA
Item NO.:
AT-BC-PZ1001

Materials
B4C
Shapes
Mechanical Parts
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Boron Carbide Sandblasting Nozzle

1. Boron carbide sandblasting nozzle has high hardness, very good wear resistance, low density, light weight, also elastic modulus is large;

2. Boron carbide sandblasting nozzle has good corrosion resistance, good chemical stability；

3. Boron carbide sandblasting nozzle has long service life, which can reach up to longer than 1000 hours.

Applications of Boron Carbide Sandblasting Nozzle

Boron carbide sandblasting nozzle can be applied to various materials of sand, widely used in surface rust and oil removal for steel bridges, railway vehicles, metal containers, machinery and equipment and other metal products, also for non-metal products surface sandblasting treatment.

Product Parameters
Material Parameters

Size Chart of Boron Carbide Sandblasting Nozzle

We are committed to delivering boron carbide sandblasting nozzle tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawing and technical specifications for customization.

Boron Carbide Sandblasting Nozzle
Item NO.	Diameter (mm)	Height (mm)	Bore Diameter (mm)
AT-BC-PZ1001	15	55	8
AT-BC-PZ1002	20	35	6
AT-BC-PZ1003	20	35	8
AT-BC-PZ1004	20	35	10
AT-BC-PZ1005	20	45	6
AT-BC-PZ1006	20	45	8
AT-BC-PZ1007	20	45	10
AT-BC-PZ1008	20	60	6
AT-BC-PZ1009	20	60	8
AT-BC-PZ1010	20	60	10
AT-BC-PZ1011	20	80	6
AT-BC-PZ1012	20	80	8
AT-BC-PZ1013	20	80	10
AT-BC-PZ1014	26	83	8
AT-BC-PZ1015	26	83	12
AT-BC-PZ1016	29	10	10
AT-BC-PZ1017	31	6.5	1.8
AT-BC-PZ1018	20	35	3
AT-BC-PZ1019	20	35	4
AT-BC-PZ1020	20	35	12
AT-BC-PZ1021	20	45	12
AT-BC-PZ1022	20	60	12
AT-BC-PZ1023	20	80	12

Technical Data of Boron Carbide Materials

		Index Data
		B4C
Hardness	GPa	≥24
Porosity Rate	%	＜0.2
Density	g/cm3	＞2.44
Compressive Strength	MPa	2500
Flexural Strength	MPa	480
Coefficient of Heat Expansion	10-6/℃	4
Thermal Conductivity	W/(M·K)	40
Content of B4C	%	≥90
Elastic Modulus	GPa	450
Operating Temperature	℃	1400

*This chart illustrates the standard characteristics of the boron carbide materials commonly employed in the manufacturing of our B4C products and parts. Please be aware that the attributes of customized boron carbide products and parts may vary depending on the specific processes involved.

Valuable Information

Boron Carbide Sandblasting Nozzle Packing

Boron carbide sandblasting nozzle are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
