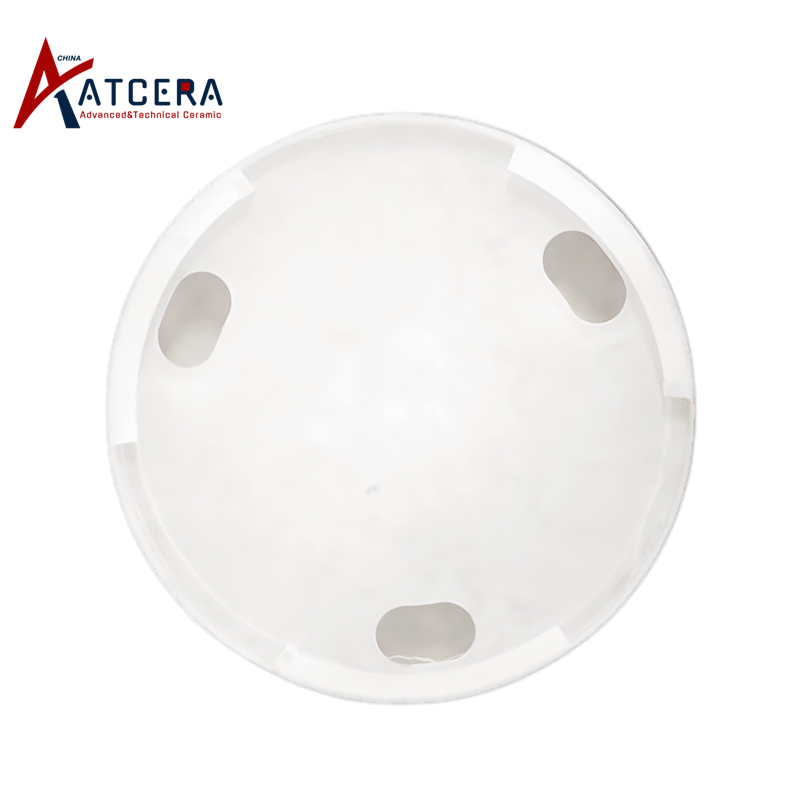

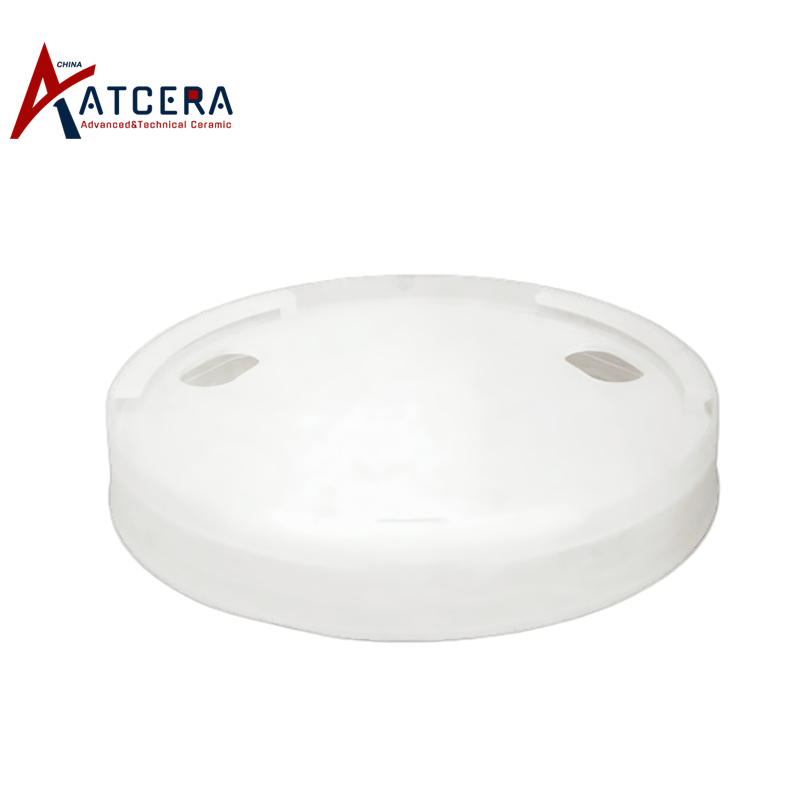

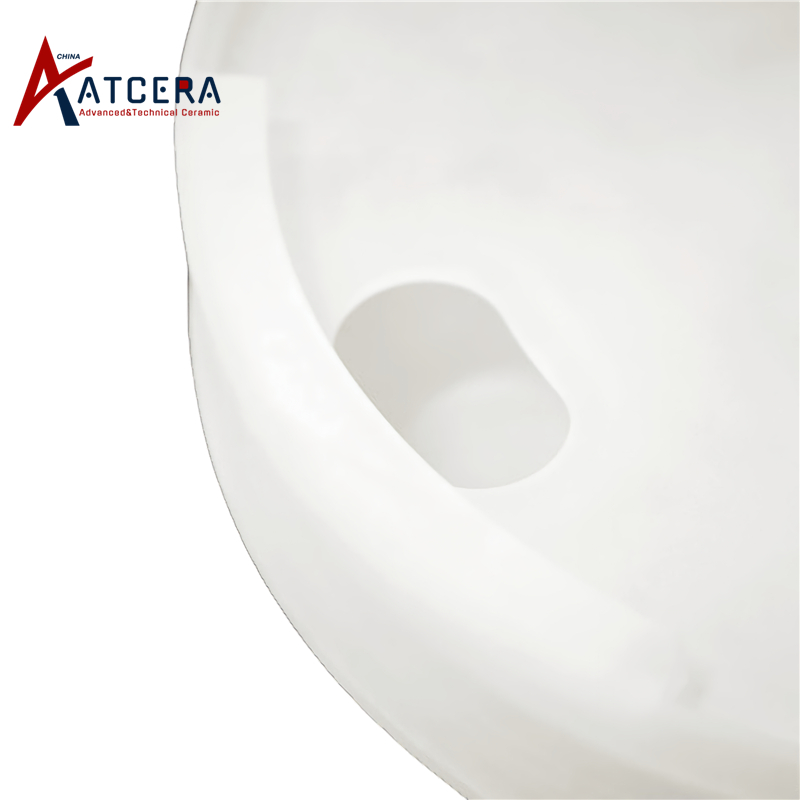

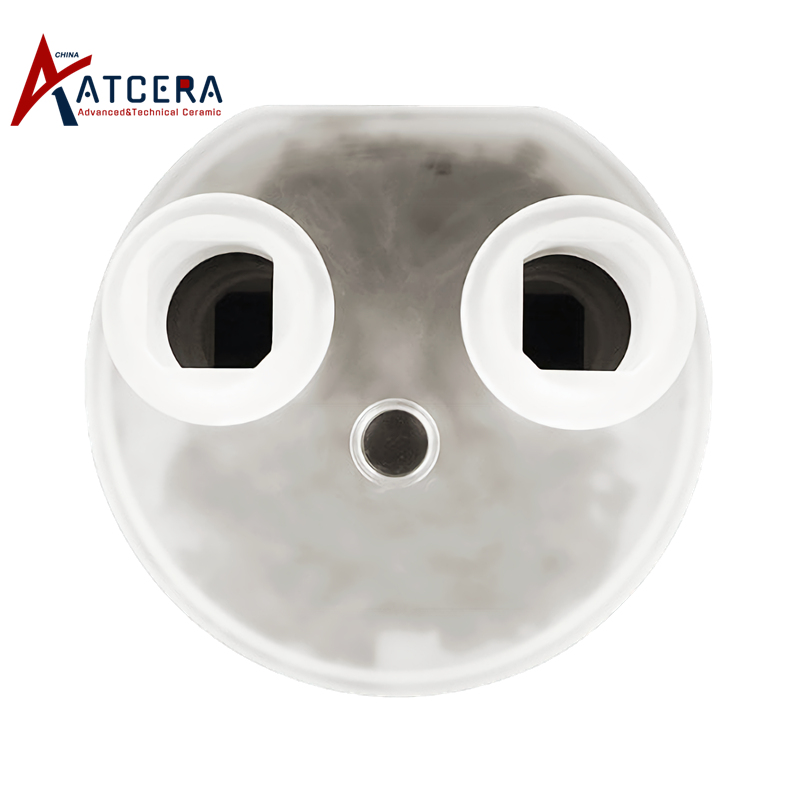

Quartz Furnace Door For Photovoltaic Cell Production

Quartz furnace door has high temperature resistance, good thermal shock resistance, small thermal expansion coefficient, also with small thermal conductivity and thermal insulation performance is very good. It has good corrosion resistance, can withstand acid and alkaline gas erosion. Quartz furnace door is widely used in photovoltaic cell diffusion furnace, annealing furnace, oxidation furnace and other equipment, used to maintain a stable temperature and atmosphere environment in the furnace.

Brand:
ATCERA
Item NO.:
AT-SY-LM001

Materials
Quartz
Shapes
Mechanical Parts
Applications
Semiconductor , Metallurgy Industry , Photovoltaic Cell Industry

Inquire Now

Properties of Quartz Furnace Door

1. Quartz furnace door has high temperature resistance, the maximum working temperature can be up to 1450℃, also with good thermal shock resistance, small thermal expansion coefficient, its mechanical strength does not drop at high temperature conditions.

2. Quartz furnace door has good corrosion resistance, can withstand acid and alkaline gas erosion.

Applications of Quartz Furnace Door

Quartz furnace door is widely used in photovoltaic cell diffusion furnace, annealing furnace, oxidation furnace and other equipment, used to maintain a stable temperature and atmosphere environment in the furnace.

Product Parameters
Material Parameters

Customization Design of Quartz Furnace Door

We are committed to delivering optimal quartz furnace doors tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and parameter requirements shall be provided if customized design request.

Send Requirements for Custom Design

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Valuable Information

Quartz Furnace Door Packing

Quartz furnace doors are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
