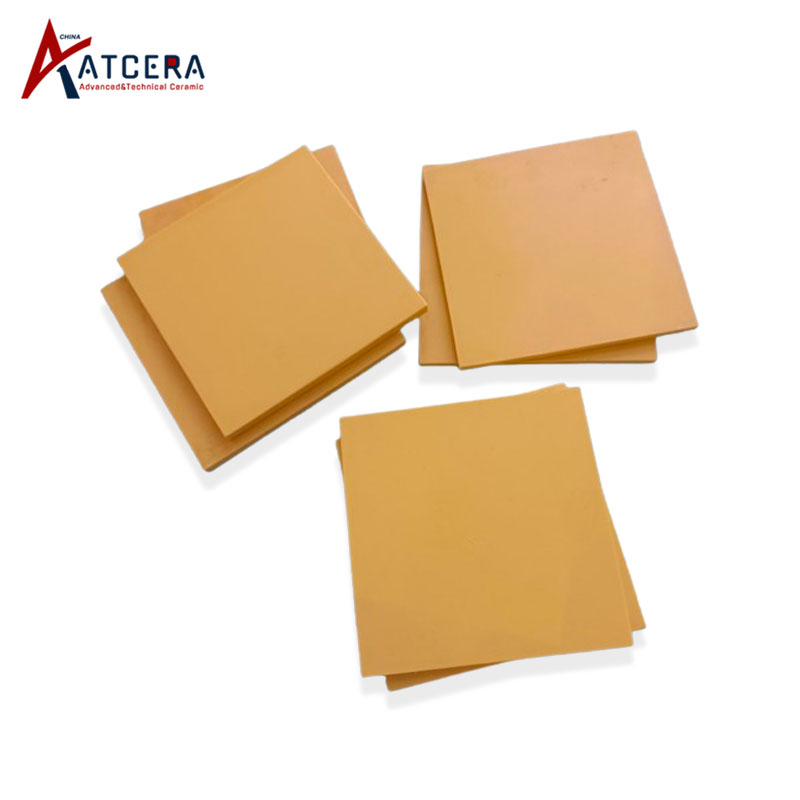

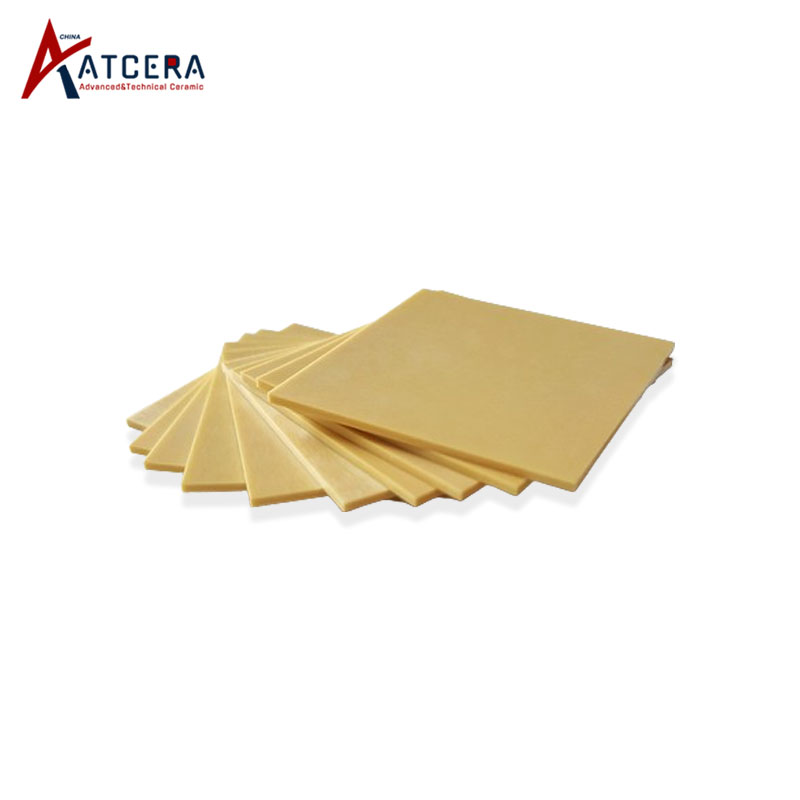

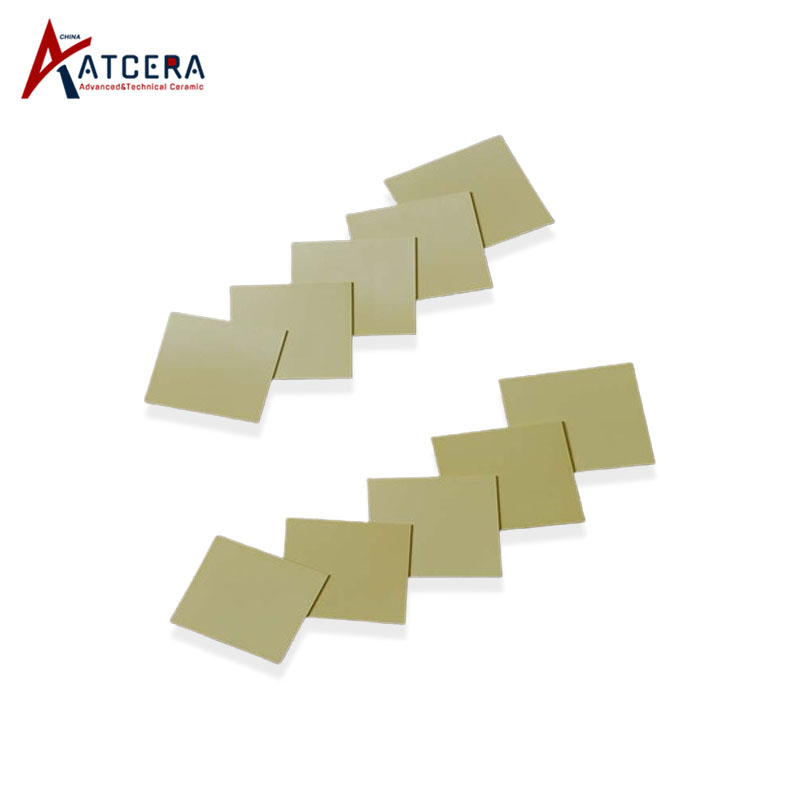

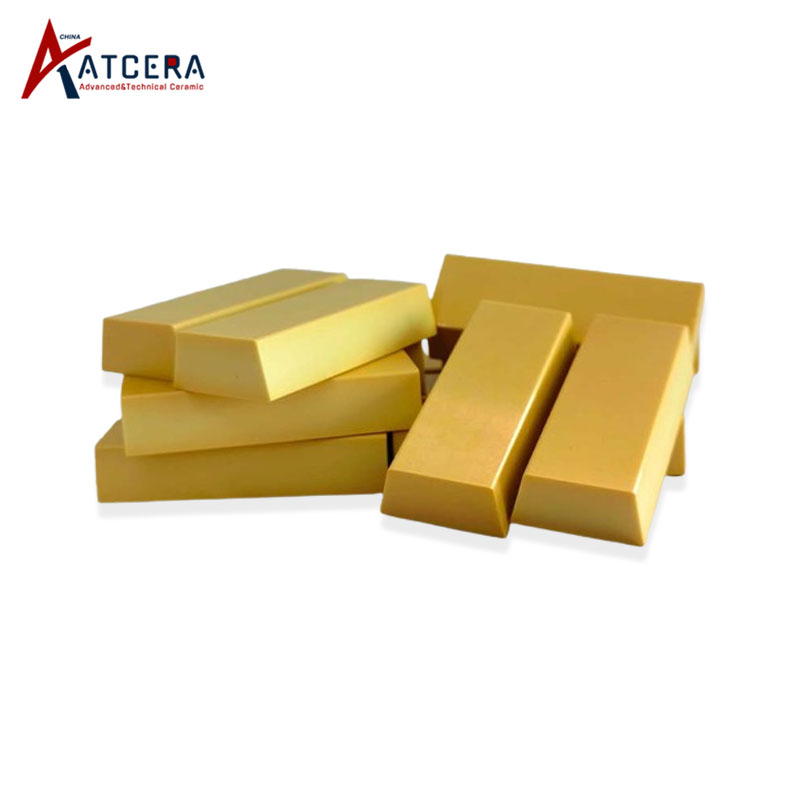

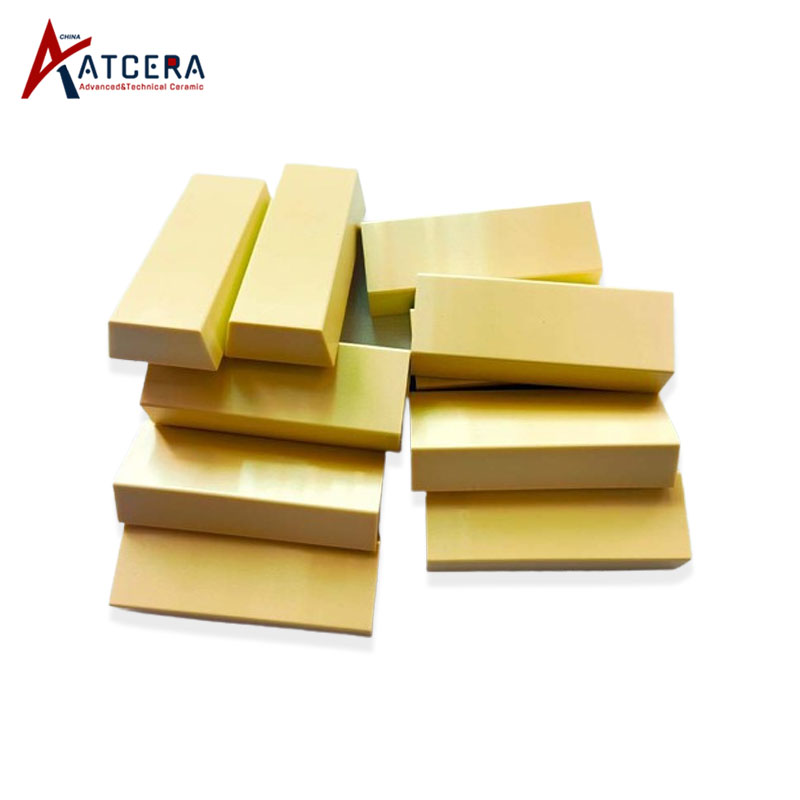

Magnesia stablized zirconia ceramic plate with magnesia as stabilizer, with high mechanical strength, good impact resistance, good wear and corrosion resistance, good resistance to high temperature and thermal shock, also has low thermal conductivity and good thermal insulation performance. It can be applied to harsh working environments, used in a variety of machining equipment, chemical equipment, metallurgical equipment, electrical equipment, to play the function of load-bearing, heat insulation, insulation, etc.
Brand:
ATCERAItem NO.:
AT-MG-B001Materials
MSZShapes
PlateApplications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry
1. Magnesia stablized zirconia ceramic plate with high mechanical strength, high load capacity, good toughness, resistance to mechanical shock, high hardness and good wear resistance.
2. Magnesia stablized zirconia ceramic plate is high temperature resistant, can work normally in high temperature environment above 1000℃, has strong thermal shock resistance, can withstand rapid temperature changes, low thermal conductivity, good insulation performance.
3. Magnesia stablized zirconia ceramic plate is well insulated, non-magnetic, can protect the equipment from leakage and electromagnetic interference.
4. Magnesia stablized zirconia ceramic plate has good corrosion resistance, can be in direct contact with all kinds of acids, alkalis and other chemical substances, with super chemical stability, no risk of corrosion failure.
Magnesia stablized zirconia ceramic plate can be used as mechanical parts for machining equipments, chemical equipments, metallurgical equipments, electrical equipments, etc. It plays the functions of load-bearing, thermal insulation, electrical insulation, etc., and can also be used for manufacturing containers with high temperature and corrosion resistance.
We are committed to delivering magnesia stablized zirconia ceramic plate tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.
Please provide drawings, parameter requirements and application environment.
| Magnesia Stablized Zirconia Ceramic Plate | |||
| Item NO. | Length (mm) |
Width (mm) |
Thickness (mm) |
| AT-MG-B001 | 60 | 40 | 10 |
| AT-MG-B002 | 65 | 65 | 3 |
| AT-MG-B003 | 80 | 50 | 5 |
| AT-MG-B004 | 100 | 50 | 3 |
| AT-MG-B005 | 100 | 60 | 5 |
| AT-MG-B006 | 100 | 100 | 10 |
| Material | Magnesia stablized zirconia (MSZ) |
| Density (g/cm3) | 5.7 |
| Flexture strength (MPa) | 540 |
| Young Modulus (GPa) | 250 |
| Poisson's ratio | 0.31 |
| Compressive strength (MPa) | 2500 |
| Hardness (HV) | 1100 |
| Fracture toughness (MPa*m1/2) | 7.5 |
| Maximum working temperature (℃) | 1200 |
| Thermal conductivity (W/m*K) | 18 |
| Thermal expansion coefficient (/℃) | 8*10-6 |
| Thermal shock resistance (ΔT ℃) | 250 |
*This chart illustrates the standard characteristics of the magnesia stablized zirconia materials commonly employed in the manufacturing of our magnesia stablized zirconia products and parts. Please be aware that the attributes of customized msz products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.
Magnesia stablized zirconia ceramic plate are carefully packaged in appropriate containers to avoid any potential damage.
1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.
2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.
3. Flexible business cooperation mechanism, support at least one piece of quantity customization.
4. Quickly provide samples and test reports to confirm that the product meets your needs.
5. Provide product use and maintenance suggestions to reduce your cost of use.
Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.
Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.
We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.
In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.
Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
