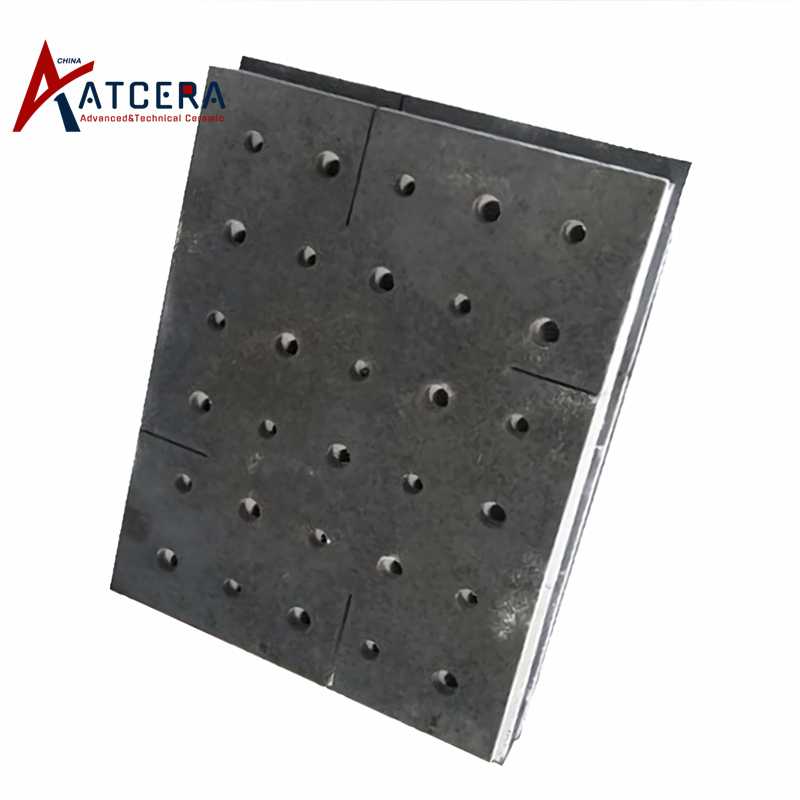

Nitride Bonded Silicon Carbide Refractory Plate NBSIC Refractory Slab

Nitride-bonded silicon carbide refractory plate is produced with silicon carbide as the main raw material, adding a certain proportion of silicon powder, and sintering in nitrogen environment at high temperature, widely used in a variety of ceramic sintering kiln. It has the characteristics of high temperature resistance, good thermal conductivity, strong oxidation resistance, the maximum use temperature of 1500℃,also with long service life and high mechanical strength. It can reduce the thickness of the refractory plate itself, improve the utilization space ratio and production capacity of the kiln.

Brand:
ATCERA
Item NO.:
AT-SIC-PB001

Materials
NBSIC
Shapes
Plate
Applications
Metallurgy Industry

Inquire Now

$NBSiC refractory plate$

Advantages of Nitride Bonded Silicon Carbide Refractory Plate

1. NBSiC refractory plate is high temperature resistant, the maximum use temperature can reach 1500℃, with good oxidation resistance and thermal shock resistance, can be well adapted to the ceramic sintering environment.

2. With high compressive and bending strength, can reduce the thickness of refractory plate itself, improve the utilization space rate and production capacity of the kiln.

3. NBSiC refractory plate has stable structure and smooth surface, no slag when used, no pollution to sintered ceramics.

$NBSiC refractory plate$

Applications of NBSIC Refractory Plate

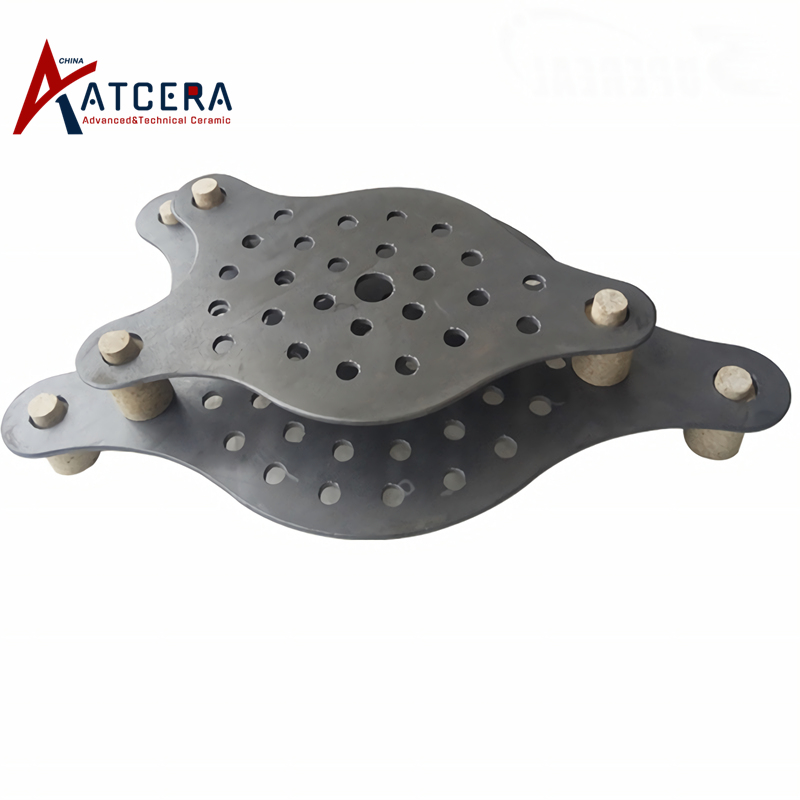

NBSiC refractory plate is used in a variety of ceramic sintering kilns, including tunnel kiln, shuttle kiln, roller kiln, push plate kiln, the function is to support the structure of the kiln and loading the ceramic that needs to be sintered.

Size Chart of NBSIC Refractory Plate

Committed to providing optimal NBSIC refractory plates customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Please provide usage scenario information, specification requirements, and drawing for customization.

Machining Tolerance: Length ±3mm, Width ±2mm.

NBSIC Refractory Plate
Item No.	L × W (mm)	Length (mm)	Width (mm)
AT-SIC-PB001	200*200	200	200
AT-SIC-PB002	250*250	250	250
AT-SIC-PB003	270*270	270	270
AT-SIC-PB004	280*280	280	280
AT-SIC-PB005	290*290	290	290
AT-SIC-PB006	300*280	300	280
AT-SIC-PB007	300*300	300	300
AT-SIC-PB008	310*300	310	300
AT-SIC-PB009	310*310	310	310
AT-SIC-PB010	320*300	320	300
AT-SIC-PB011	320*320	320	320
AT-SIC-PB012	340*340	340	340
AT-SIC-PB013	350*300	350	300
AT-SIC-PB014	350*350	350	350
AT-SIC-PB015	360*360	360	360
AT-SIC-PB016	370*240	370	240
AT-SIC-PB017	382*382	382	382
AT-SIC-PB018	390*290	390	290
AT-SIC-PB019	390*380	390	380
AT-SIC-PB020	390*390	390	390
AT-SIC-PB021	395*295	395	295
AT-SIC-PB022	400*300	400	300
AT-SIC-PB023	400*350	400	350
AT-SIC-PB024	400*370	400	370
AT-SIC-PB025	400*380	400	380
AT-SIC-PB026	400*400	400	400
AT-SIC-PB027	410*180	410	180
AT-SIC-PB028	410*400	410	400
AT-SIC-PB029	410*410	410	410
AT-SIC-PB030	420*370	420	370
AT-SIC-PB031	420*380	420	380
AT-SIC-PB032	420*400	420	400
AT-SIC-PB033	420*420	420	420
AT-SIC-PB034	430*330	430	330
AT-SIC-PB035	430*380	430	380
AT-SIC-PB036	430*390	430	390
AT-SIC-PB037	430*400	430	400
AT-SIC-PB038	430*420	430	420
AT-SIC-PB039	440*340	440	340
AT-SIC-PB040	440*390	440	390
AT-SIC-PB041	440*420	440	420
AT-SIC-PB042	450*300	450	300
AT-SIC-PB043	450*340	450	340
AT-SIC-PB044	450*350	450	350
AT-SIC-PB045	450*380	450	380
AT-SIC-PB046	450*400	450	400
AT-SIC-PB047	450*420	450	420
AT-SIC-PB048	450*450	450	450
AT-SIC-PB049	460*350	460	350
AT-SIC-PB050	460*360	460	360
AT-SIC-PB051	460*370	460	370
AT-SIC-PB052	460*390	460	390
AT-SIC-PB053	460*400	460	400
AT-SIC-PB054	460*420	460	420
AT-SIC-PB055	460*450	460	450
AT-SIC-PB056	460*460	460	460
AT-SIC-PB057	465*380	465	380
AT-SIC-PB058	470*300	470	300
AT-SIC-PB059	470*330	470	330
AT-SIC-PB060	470*390	470	390
AT-SIC-PB061	470*400	470	400
AT-SIC-PB062	475*475	475	475
AT-SIC-PB063	480*360	480	360
AT-SIC-PB064	480*370	480	370
AT-SIC-PB065	480*380	480	380
AT-SIC-PB066	480*390	480	390
AT-SIC-PB067	480*400	480	400
AT-SIC-PB068	480*420	480	420
AT-SIC-PB069	480*450	480	450
AT-SIC-PB070	480*480	480	480
AT-SIC-PB071	490*360	490	360
AT-SIC-PB072	490*400	490	400
AT-SIC-PB073	495*445	495	445
AT-SIC-PB074	500*260	500	260
AT-SIC-PB075	500*360	500	360
AT-SIC-PB076	500*370	500	370
AT-SIC-PB077	500*380	500	380
AT-SIC-PB078	500*400	500	400
AT-SIC-PB079	500*420	500	420
AT-SIC-PB080	500*430	500	430
AT-SIC-PB081	500*450	500	450
AT-SIC-PB082	500*460	500	460
AT-SIC-PB083	500*480	500	480
AT-SIC-PB084	500*500	500	500
AT-SIC-PB085	505*375	505	375
AT-SIC-PB086	510*390	510	390
AT-SIC-PB087	520*370	520	370
AT-SIC-PB088	520*400	520	400
AT-SIC-PB089	520*480	520	480
AT-SIC-PB090	520*500	520	500
AT-SIC-PB091	525*485	525	485
AT-SIC-PB092	530*330	530	330
AT-SIC-PB093	530*335	530	335
AT-SIC-PB094	530*500	530	500
AT-SIC-PB095	535*175	535	175
AT-SIC-PB096	540*370	540	370
AT-SIC-PB097	540*420	540	420
AT-SIC-PB098	550*100	550	100
AT-SIC-PB099	550*200	550	200
AT-SIC-PB100	550*300	550	300
AT-SIC-PB101	550*330	550	330
AT-SIC-PB102	550*370	550	370
AT-SIC-PB103	550*410	550	410
AT-SIC-PB104	550*420	550	420
AT-SIC-PB105	550*450	550	450
AT-SIC-PB106	550*500	550	500
AT-SIC-PB107	560*200	560	200
AT-SIC-PB108	560*480	560	480
AT-SIC-PB109	570*460	570	460
AT-SIC-PB110	570*500	570	500
AT-SIC-PB111	570*550	570	550
AT-SIC-PB112	580*430	580	430
AT-SIC-PB113	580*470	580	470
AT-SIC-PB114	580*500	580	500
AT-SIC-PB115	590*510	590	510
AT-SIC-PB116	590*520	590	520
AT-SIC-PB117	600*120	600	120
AT-SIC-PB118	600*200	600	200
AT-SIC-PB119	600*300	600	300
AT-SIC-PB120	600*305	600	305
AT-SIC-PB121	600*400	600	400
AT-SIC-PB122	600*500	600	500
AT-SIC-PB123	600*550	600	550
AT-SIC-PB124	600*600	600	600
AT-SIC-PB125	610*240	610	240
AT-SIC-PB126	610*400	610	400
AT-SIC-PB127	610*480	610	480
AT-SIC-PB128	620*560	620	560
AT-SIC-PB129	620*570	620	570
AT-SIC-PB130	620*600	620	600
AT-SIC-PB131	630*410	630	410
AT-SIC-PB132	650*400	650	400
AT-SIC-PB133	650*600	650	600
AT-SIC-PB134	650*650	650	650
AT-SIC-PB135	660*340	660	340
AT-SIC-PB136	660*520	660	520
AT-SIC-PB137	665*500	665	500
AT-SIC-PB138	670*360	670	360
AT-SIC-PB139	700*600	700	600
AT-SIC-PB140	720*400	720	400

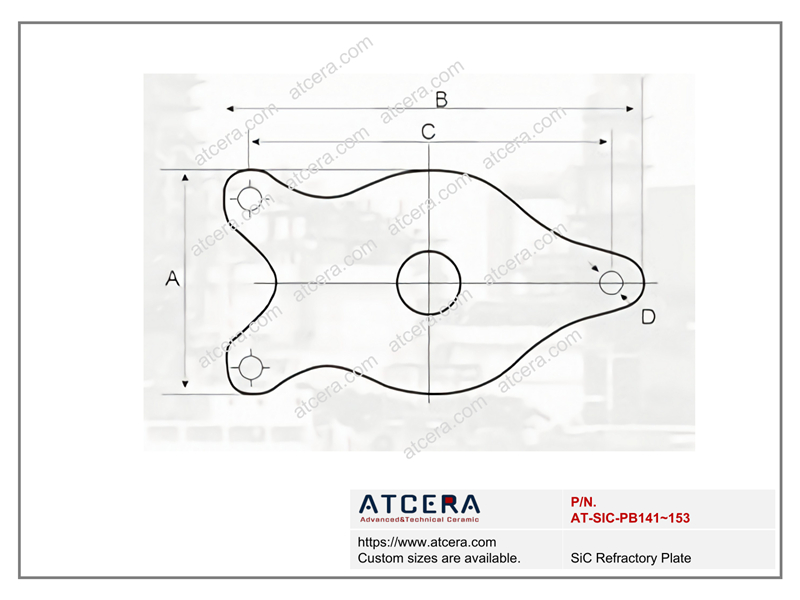

$Drawing of SiC Refractory Plate$

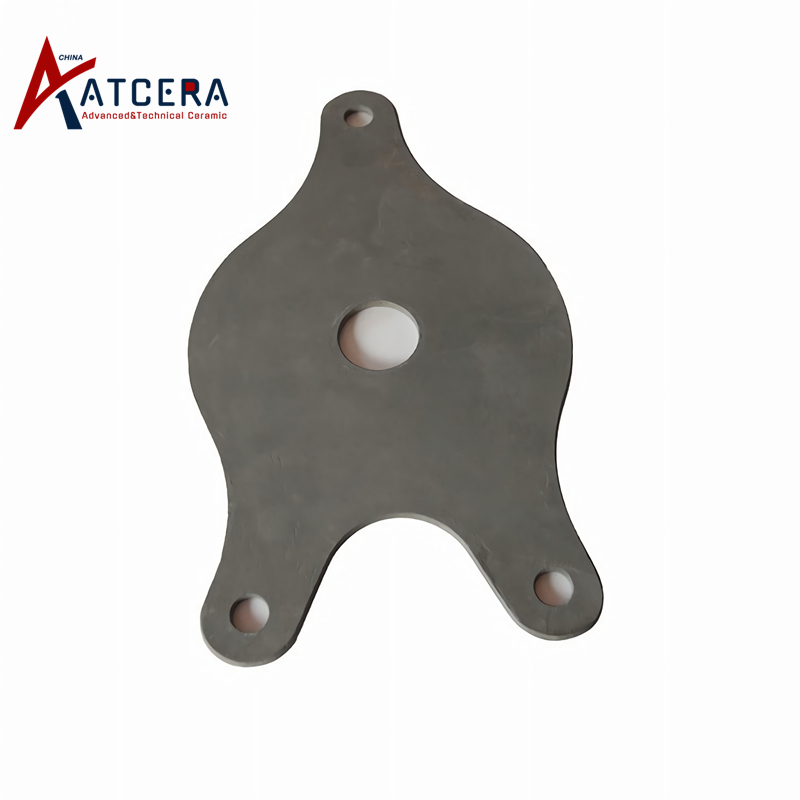

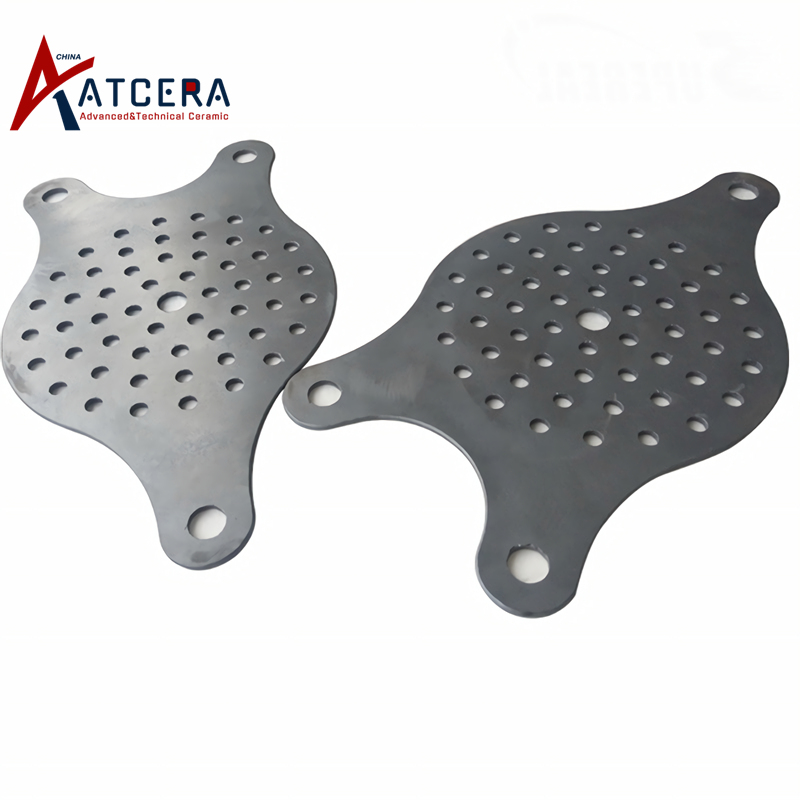

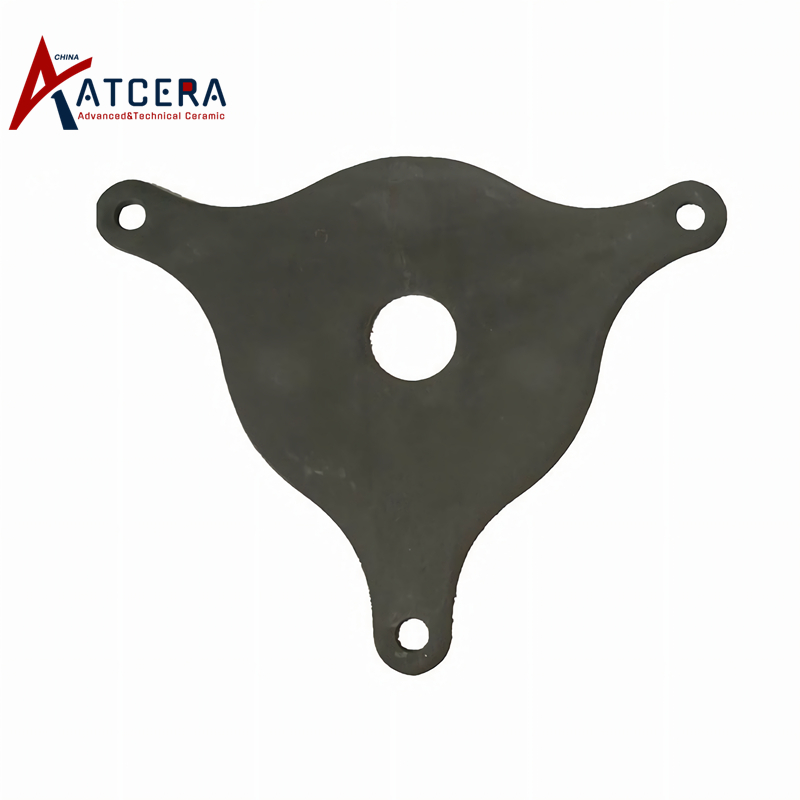

SiC Refractory Plate
Item No.	Board (inch)	A (mm)	B (mm)	C (mm)	D (mm)
AT-SIC-PB141	6	165	285	240	φ18
AT-SIC-PB142	6	170	288	238	φ18
AT-SIC-PB143	8	187	363	313	φ18
AT-SIC-PB144	8	195	350	295	φ18
AT-SIC-PB145	8.5	200	370	320	φ18
AT-SIC-PB146	9.5	220	390	335	φ18
AT-SIC-PB147	10	218	406	350	φ18
AT-SIC-PB148	10	230	405	350	φ18
AT-SIC-PB149	10.5	230	410	355	φ18
AT-SIC-PB150	11	230	410	360	φ18
AT-SIC-PB151	12	230	430	400	φ18
AT-SIC-PB152	12.5	230	450	395	φ18
AT-SIC-PB153	15	300	460	470	φ18

Technical Data of NBSiC Materials

Material	Nitride Bonded Silicon Carbide (NBSiC)
SiC (W%)	80
Free SiC (W%)	0
Si₃N₄ (W%)	20
Maximum Working Temperature (℃)	≤1550
Density (g/cm3)	2.8
Porosity (%)	12
Bending Strength (Mpa)	160(20℃)
Bending Strength (Mpa)	180(1200℃)
Modulus of Elasticity (Gpa)	1200
Thermal conductivity (W/m*K)	15(1000℃)
Thermal expansion coefficient (K-1×10-6)	5
Hardness (kg/mm²)	2600

*This chart illustrates the standard characteristics of the nitride bonded silicon carbide materials commonly employed in the manufacturing of our nbsic products and parts. Please be aware that the attributes of customized nbsic products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. In the process of transportation and use of NBSiC refractory plate, it is necessary to avoid violent impact to avoid damage.

2. Need to control the use temperature and the rate of temperature change, so as not to cause rupture.

3. Avoid being in a humid environment for a long time when not in use, so as not to affect its performance.

Valuable Information

$NBSIC refractory plates$

NBSIC Refractory Plate Packing

NBSIC refractory plates are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
