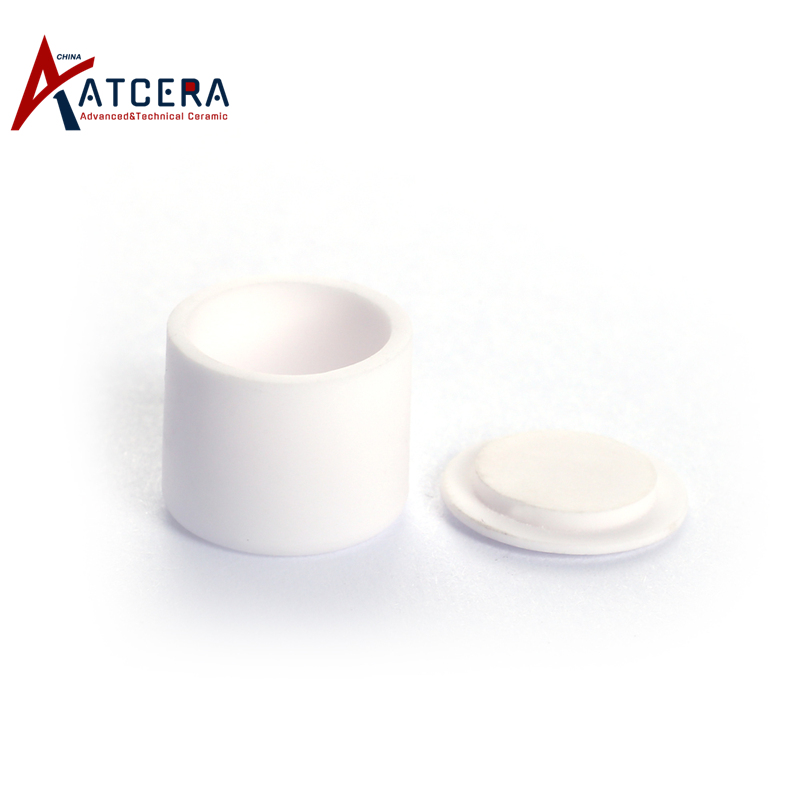

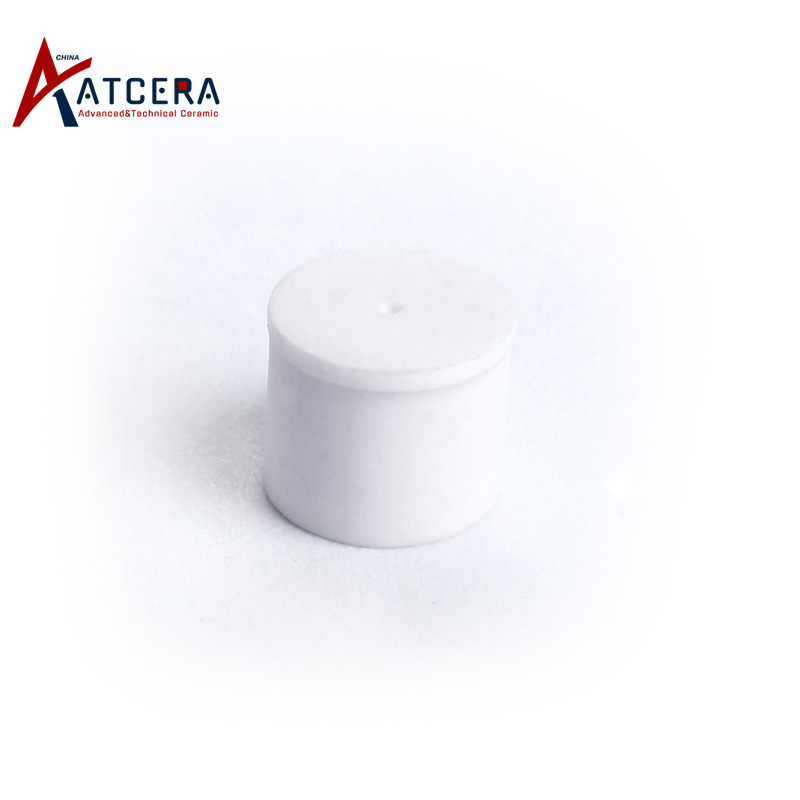

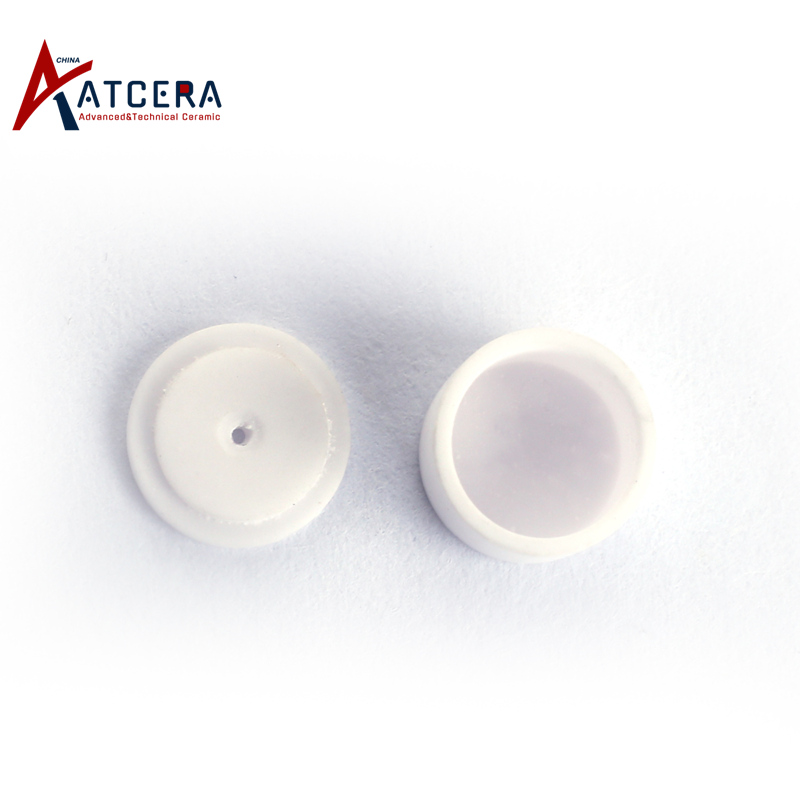

Alumina Crucible For DSC Analysis

The thermal analysis crucible is fabricated from high-temperature-resistant materials such as alumina, zirconia, platinum, and quartz. It serves as a crucial component in thermal analysis instruments, utilized in conducting thermal analysis experiments on various materials. The crucible exhibits excellent high-temperature resistance and thermal stability, ensuring the accuracy and reliability of experimental results.

Brand:
ATCERA
Item NO.:
AT-MA-001

Materials
Alumina
Shapes
Crucible
Applications
Metallurgy Industry , Laboratory Equipment and Instruments

Inquire Now

Applications of Alumina Crucible For DSC Analysis

The thermal analysis crucible is compatible with analyzers from brands such as Mettler, TA Instruments, Shimadzu, Netzsch, Setaram, and more. It finds application in material thermal analysis tests across various fields, including ceramics, glass, metals/alloys, minerals, catalysts, plastic polymers, coatings, pharmaceuticals, and foodstuffs.

Product Parameters
Material Parameters

Size Chart of Alumina Crucible For DSC Analysis

We are committed to delivering optimal alumina crucibles tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Provide drawings, including dimensions and specifications if customization requirements needed.

Mettler Toledo Alumina Crucible/Lids
Item NO.	Prod. Name	Capacity	Compatible with	Part No.
AT-MA-001	Alumina crucible small without lid	30μl	Mettler	Mettler
AT-MA-002	Alumina crucible small with lid	30μl	Shimadzu/Mettler	ME-51140843/ 201-54321, 201-56825-90
AT-MA-002-2	Alumina crucible with lids	50μl	Mettler
AT-MA-002-1	Alumina crucible with lids	60 µL	Mettler
AT-MA-003	Alumina crucible medium without lid	70μl	Mettler	Mettler 30244541
AT-MA-004	Alumina crucible medium with lid	70μl	Mettler TGA/sample robot	ME-00024123
AT-MA-005	Alumina crucible	85μl	Mettler	Mettler Toledo
AT-MA-006	Alumina crucible large without lid	150μl	Mettler	Mettler
AT-MA-007	Alumina crucible large with lid	150μl	Mettler E/sample robot	ME-00024124
AT-MA-008	Alumina lid	150μl	Mettler	Mettler
AT-MA-008-1	Alumina crucible large with lid	600μl	Mettler	ME-30077260
AT-MA-009	Alumina crucible	900μl	Mettler E	Mettler
AT-MA-010	Alumina crucible large with lid	900μl	Mettler	ME-51119960
AT-MA-011	Alumina lid-12	900μl	Mettler	Mettler
AT-MA-011-1	Oval Alumina crucible water test	900μl	Mettler	Mettler Volume Oval Shape for ME water test

TA Instruments Alumina Crucible/Lids
Item NO.	Prod. Name	Capacity	Compatible with	Part No.
AT-TA-022	Premium alumina sample cups/Alumina cup kit /Alumina Sample Cups	90μl	TA SDT Q600/SDT 2960	960070.901/ 961060.901
AT-TA-023	Premium alumina lids	90ul 6.5mm	TA SDT Q600/SDT 2960	960239.901
AT-TA-024	Premium alumina pan/lid	90μl	TA SDT Q600/SDT 2960	960070.901/960239.901
AT-TA-025	Alumina Sample Cups	40 μl	TA SDT Q600/SDT 2960	960072.901
AT-TA-026	Alumina Sample Cups and lids	40 μl	TA SDT Q600/SDT 2960 Sample Pans	960072.901/960239.901
AT-TA-027	ceramic sample pan	100μl	DTGA/Q5000 IR/TGA-HP50/VTI-SA	957329.903
AT-TA-027-1	ceramic sample pan	250μl	DTGA/Q5000 IR/TGA-HP50/VTI-SA
AT-TA-028	ceramic sample pan	100μl	TA Q500/Q50/TGA2950/2050/TGA-HP50/VTI-SA	952018.907
AT-TA-029	ceramic sample pan(OEM handle)	100μl	TA	/
AT-TA-029-1	ceramic sample pan(OEM handle)	250μl	TA	/
AT-TA-031-2	Alumina	/	/	820055.001
AT-TA-032	Crucible	100 µL	DTGA/Q5000R Sample Pans	957329.903
AT-TA-033	Ceramic Sample Pans, 250 µL (pkg of 3)	250 µL	Q5000 IR Sample Pans	957329.904
AT-TA-034	Ceramic Sample Pans, 250 µL (pkg of 3)	250 µL	TGA 2950/2050 Sample Pans	/
AT-TA-035	Ceramic Sample Pans, 500 µL (pkg of 3)	500 µL	TGA 2950/2050 Sample Pans	952018.91

Netzsch Alumina Crucible/Lids
Item NO.	Prod. Name	Capacity	Compatible with	Part No.
AT-NA-068	Alumina crucible	25μl	Netzsch	Netzsch
AT-NA-069	Alumina crucible	25μl	Netzsch	Netzsch
AT-NA-070	Alumina crucible	80μl	Netzsch	20*5SET
AT-NA-071	Alumina crucible	85μl	Netzsch DSC 204 F1 Phoenix®, DSC 200 F3 Maia®, DSC 3500 Sirius and DSC 214 Polyma， TG 209 F1 Libra® and TG 209 F3 Tarsus® ®，STA 449 F1/F3/F5 Jupiter® and DSC 404 F1/F3 Pegasus	Netzsch P/N: 399.972 / GB399972/
AT-NA-072	zirconia sample pan	85μl	Netzsch/TG 209 F3，TG 209 F1/STA 449 F3，STA 449 F1	Netzsch
AT-NA-073	Alumina lid	85μl	Netzsch DSC 204 F1 Phoenix®, DSC 200 F3 Maia®, DSC 3500 Sirius and DSC 214 Polyma， TG 209 F1 Libra® and TG 209 F3 Tarsus® ®，STA 449 F1/F3/F5 Jupiter® and DSC 404 F1/F3 Pegasus	Netzsch P/N: 399.973 / GB399973
AT-NA-074	Alumina crucible	85μl	Netzsch DSC 204 F1 Phoenix®, DSC 200 F3 Maia®, DSC 3500 Sirius and DSC 214 Polyma， TG 209 F1 Libra® and TG 209 F3 Tarsus® ®，STA 449 F1/F3/F5 Jupiter® and DSC 404 F1/F3 Pegasus	GB399972/GB399973
AT-NA-075	Alumina crucible	90μl	Netzsch	Netzsch
AT-NA-076	Alumina crucible	160μl	Netzsch	Netzsch
AT-NA-077	TG crucible from Al2O3	300μl	Netzsch TG 209 F1 Libra® and TG 209 F3 Tarsus®	NGB803698
AT-NA-078	Alumina lid	300μl	Netzsch TG 209 F1 Libra® and TG 209 F3 Tarsus®	NGB808209
AT-NA-079	TG Alumina crucible with lid	300μl	Netzsch TG 209 F1 Libra® and TG 209 F3 Tarsus®	NGB803698/NGB808209
AT-NA-080	Alumina crucible	350μl	Netzsch TG 209 F1 Libra® and TG 209 F3 Tarsus®	NGB800453
AT-NA-081	Alumina lid	350μl	Netzsch TG 209 F1 Libra® and TG 209 F3 Tarsus®	NGB800454
AT-NA-082	Alumina crucible with lid	350ul	Netzsch TG 209 F1 Libra® and TG 209 F3 Tarsus®	NGB800453/NGB800454
AT-NA-083	Alumina crucible	400μl	Netzsch	Netzsch
AT-NA-084	Alumina crucible	1mL	Netzsch	Netzsch
AT-NA-085	Alumina circle piece	D8mm	Netzsch	Netzsch
AT-NA-085-1	TGA-DTA crucibles for highest temperatures/crucible from Al2O3, 0.15 ml	0.15 ml	Netzsch STA 449 F1/F3 Jupiter® and DSC 404 F1/F3 Pegasus	GB399147
AT-NA-087	Alumina crucible Special shape/TGA-DTA crucibles	0.2ml	Netzsch DSC 404 F1/F3 Pegasus, STA 449 F1/F3/F5 Jupiter®	GB445172
AT-NA-087-1	Alumina lid	/	for NGB810411, GB445172; pierced, ø 0.5 mm hole	GB445175
AT-NA-086	Alumina crucible Special shape	0.3ml	Netzsch DSC 404 F1/F3 Pegasus, STA 449 F1/F3/F5 Jupiter®	NGB810411
AT-NA-088	Alumina crucible Special shape/Crucibles for TGA Sample Carrier	3.4ml	STA 449 F1/F3/F5 Jupiter	GB445213
AT-NA-088-01	Alumina crucible Special shape/Crucibles for TGA Sample Carrier	5ml	STA 449 F1/F3/F5 Jupiter	NGB809163
AT-NA-088-02	Alumina crucible Special shape/Crucibles for TGA Sample Carrier	4.2ml	STA 449 F1/F3/F5 Jupiter
AT-NA-089-1	Slip-on plate, flat, made of Al2O3	/	Netzsch DTA Sensor1 of the DSC 404 F1/F3 Pegasus，TGA2 , TGA-DTA3 Sensor of the STA 449 F1/F3/F5 Jupiter	GB343550
AT-NA-089-2	Slip-on plate	/	/	GB445240 /HTP40000A57.000-00

Shimadzu Alumina Crucible/Lids
Item NO.	Prod. Name	Capacity	Compatible with	Part No.
AT-DA-097	Alumina cell	25μl	Shimadzu	Shimadzu
AT-DA-098	Alumina cell/pan	25μl	Shimadzu /DSC-50/50Q/50V, DTA-50, TGA-50/50H, TGA-51/51H, DSC-60 y DTG-60,DSC-60 plus series	Shimadzu 201-54321
AT-DA-099	Alumina cell with lid	25μl	Shimadzu /DSC-50/50Q/50V, DTA-50, TGA-50/50H, TGA-51/51H, DSC-60 y DTG-60.	201-54321 with lid
AT-DA-099-1	ALUMINA PAN	90μl	DSC-60 series, DSC-60 plus series, TGA-50 series, TGA-51 series, DTG-60 series, and DTA-50 instruments	201-54321-01
AT-DA-100	Alumina cell	150μl	Shimadzu	Shimadzu
AT-DA-101	Alumina marco cell/crucible	850μl	Shimadzu TGA-51 series instruments	201-56825-90

Setaram Alumina Crucible/Lids
Item NO.	Prod. Name	Capacity	Compatible with	Part No.
AT-SA-120	Alumina crucible	30μl	Setaram
AT-SA-121	Alumina crucible	50μl	Setaram	DSC, TGA
AT-SA-122	Alumina crucible	95μl	Setaram
AT-SA-123	Alumina crucible	100μl	Setaram,DSC	DSC, TGA
AT-SA-123-1	Zirconia crucible	100μl	Setaram,DSC
AT-SA-124	Alumina crucible with hole	160μl	Setaram
AT-SA-125	Alumina crucible set	40μl	Setaram	CTC1800 Evolution
AT-SA-126	Alumina crucible set	110μl	Setaram	CTC1800 Evolution
AT-SA-126-1	Alumina crucible set	70μl	Setaram
AT-SA-124-1	special crucible with hole AL2O3	100μl	Setaram
AT-SA-127	Alumina crucible	400μl	Setaram	SETARAM LABSYS
AT-SA-128	Alumina crucible (Special shape)	100μl	Setaram (20pcs)

PerkinElmer Alumina Crucible/Lids
Item NO.	Prod. Name	Capacity	Compatible with	Part No.
AT-PA-132	Alumina crucible with Flat base	50μl	PerkinElmer,DuPont	TGA
AT-PA-133	Alumina Sample Cups with Round bottom, 60mm3	60μl	PerkinElmer PerkinElmer DTA7 and DTA1700,DuPont	PE-04190387
AT-PM-153-2	Alumina sample pans	120μl	PerkinElmer
AT-PA-133-1	Alumina crucible	20/40μl	PerkinElmer DSC 6000, DSC 8000, Pyris 1 DSC, Jade DSC, DSC 4000, Diamond DSC, DSC 6, DSC 8500, Pyris 6 DSC, DSC 7	PE-N5190180
AT-PA-134	Alumina crucible	250μl	PerkinElmer TGA6/As6 STA 8000, TGA 4000, STA 6000	PE-N5200045 PE-N5200040
AT-PA-134-1	STA 6000/TGA 4000 Alumina lids	250μl	PerkinElmer STA 6000/TGA 4000
AT-PA-135	Inner Alumina crucible	60 µL	PerkinElmer	N5200045
AT-PA-135-1	Alumina lids	60 µL	PerkinElmer	N5200045
AT-PA-136-1	Half handle ceramic sample pan	100μl	PerkinElmer TG	/

Linseis Alumina Crucible/Lids
Item NO.	Prod. Name	Capacity	Compatible with	Part No.
AT-LA-154	Alumina crucible	95μl	Linseis	Linseis
AT-LA-155	Alumina sample pans	150μl	Linseis	Linseis
AT-LA-156	Alumina circle piece	150μl	Linseis	Linseis
AT-LA-157	Alumina crucible Special shape	300μl	Linseis	Linseis
AT-LA-158	Alumina crucible (Special shape)	3.0ml	Linseis (20pcs)	Linseis
AT-LA-158-1	Alumium crucible	70μl	Linseis	Linseis

Hitachi(Seiko) Alumina Crucible/Lids
Item NO.	Prod. Name	Capacity	Compatible with	Part No.
AT-EA-159	Alumina crucible	25μl	Hitachi(Seiko), Bruker AXS	Seiko SII,Bruker AXS
AT-EA-160	Alumina crucible	65μl	Hitachi(Seiko), Bruker AXS	Seiko SII,Bruker AXS

Rigaku Alumina Crucible/Lids
Item NO.	Prod. Name	Capacity	Compatible with	Part No.
AT-RA-163	Alumina crucible	20μl	Rigaku	Rigaku
AT-RA-164	Alumina crucible	60μl	Rigaku	Rigaku
AT-RA-164-1	Zirconia crucible	60μl	Rigaku/Linseis	Rigaku

OEM Alumina Crucible/Lids
Item NO.	Prod. Name	Capacity
AT-OA-165	Alumina crucible	15μl
AT-OA-166	Alumina crucible	25μl
AT-OA-167	Alumina crucible	25μl
AT-OA-168	Alumina crucible	30μl
AT-OA-169	Alumina crucible	30μl
AT-OA-170	Alumina crucible	60μl
AT-OA-170-1	Alumina crucible	60μl
AT-OA-172	Alumina crucible	85μl
AT-OA-172-1	Alumina crucible	150μl
AT-OA-173	Alumina crucible	450μl
AT-OA-173-1	Alumina crucible	500μl
AT-OA-173-2	Alumina crucible	800μl
AT-OA-174	Alumina crucible	850μl
AT-OA-175	Alumina crucible	850μl
AT-OA-175-1	Alumina crucible	900μl
AT-OA-175-2	Alumina crucible	1ml
AT-OA-175-3	Alumina crucible	1.5ml
AT-OA-176	Alumina crucible	1.5ml
AT-OA-176-1	Alumina crucible	3.0ml
AT-OA-176-4	Alumina crucible	3.0ml
AT-OA-176-2	Alumina crucible	3ml
AT-OA-176-5	Alumina crucible	5ml
AT-OA-176-3	Alumina crucible	20ml
AT-OA-177	Alumina crucible	100μl
AT-OA-178	Alumina crucible	200μl
AT-OA-179	Alumina crucible	110μl
AT-OA-179-1	Alumina crucible	40μl
AT-OA-180	Alumina crucible	170μl
AT-OA-181	Alumina crucible	900μl
AT-OA-182	Alumina crucible	6.0ml
AT-OA-183	Alumina crucible with hole	30μl
AT-OA-183-1	Alumina crucible with hole	1.0ml
AT-OA-183-2	Alumina crucible with hole	1.5ml
AT-OA-183-3	Alumina crucible with hole	3.0ml
AT-OA-183-4	Alumina crucible with hole	9.0ml
AT-OA-184	Tapered Alumina crucible	40μl

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Valuable Information

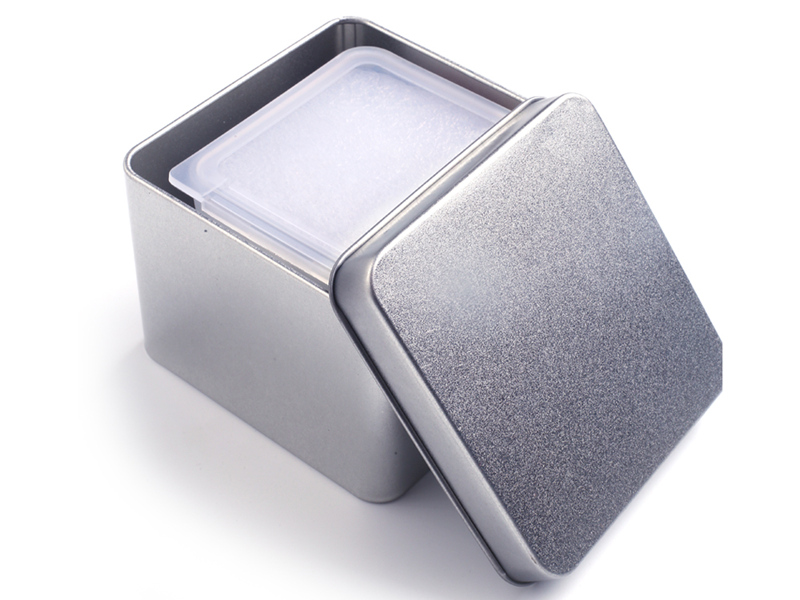

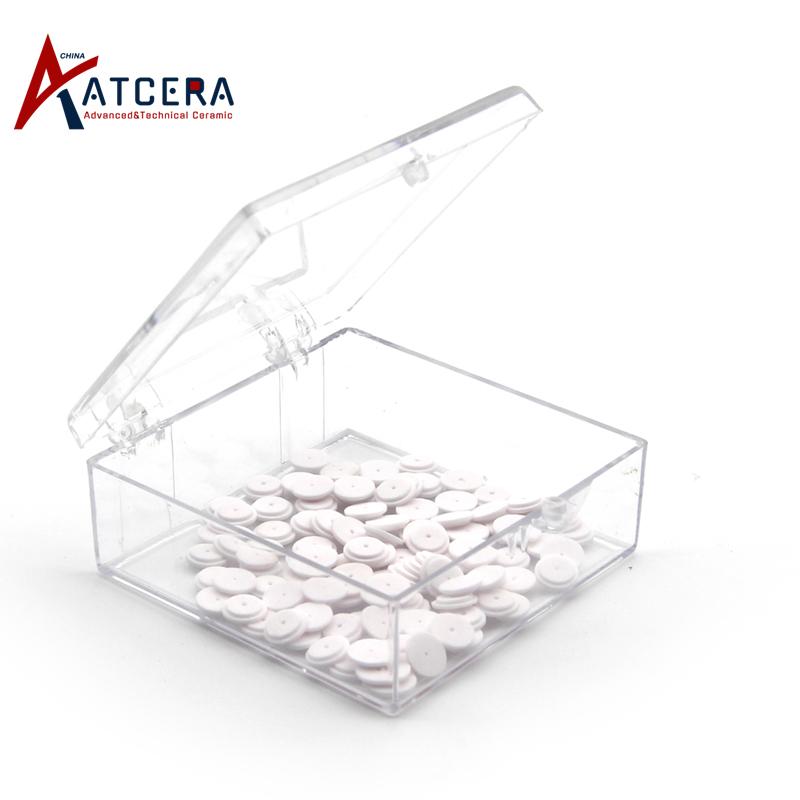

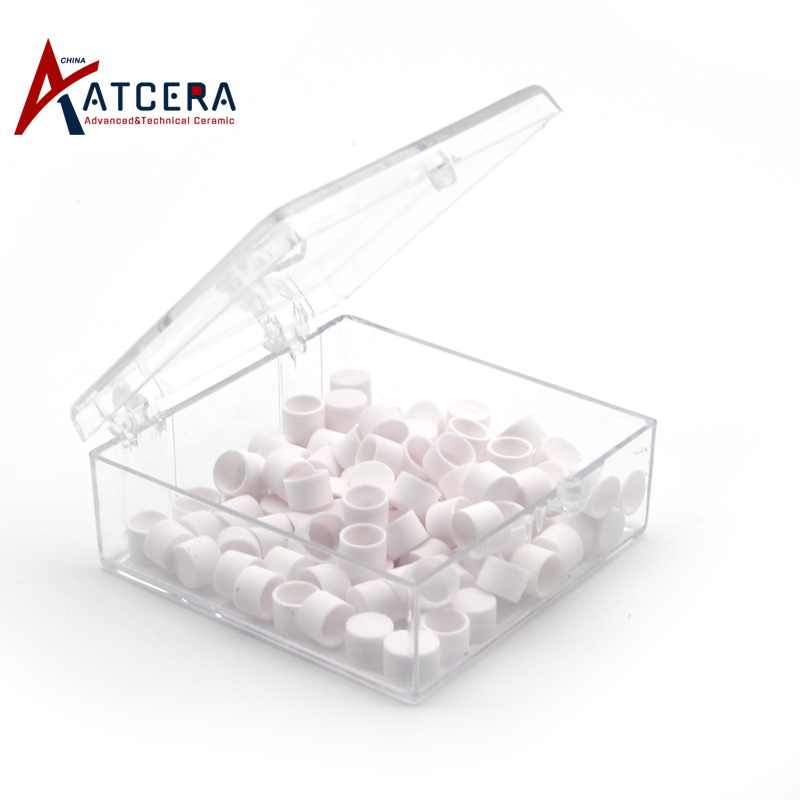

Alumina Crucible For DSC Analysis Packing

Alumina Crucible Packing

Alumina crucibles are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Preparation Of Aluminum Nitride Substrate And Selection Of Sintering Additives

In the field of high-tech materials, aluminum nitride (AlN) ceramics, with its excellent thermal conductivity, excellent electrical insulation properties and excellent mechanical strength, have become the core material in key fields such as electronic packaging, power electronics and microwave communication equipment. However, the preparation of aluminum nitride substrate is a complex process...

Application Requirements Of Aluminum Nitride Substrate

Aluminum nitride (AlN) as an advanced ceramic material, because of its unique physical and chemical properties, has shown great application potential in electronic packaging, power electronics, high frequency communication and other fields. As a core component in these fields, aluminum nitride substrates not only have to meet the basic physical performance requirements, but also need to ...

Effect Of Bulk Density Of Granulated Powder On Sintering Densification Of Silicon Nitride Balls

Si3N4 powder is the main raw material for the preparation of silicon nitride balls. Selecting the appropriate treatment method to obtain the powder with regular shape and uniform particle size distribution is the basis for the stable implementation of Si3N4 ceramic ball forming, sintering, processing and other processes. According to the different atomization methods, the spray gr...

Optimizing The Spray Granulation Process To Improve The Performance Of Si3N4 balls

Silicon nitride (Si3N4) balls show great potential in the field of high-speed, high-precision, long-life bearings due to their excellent properties, such as lightweight, self-lubricating, high insulation, non-magnetic, high elastic modulus and excellent corrosion resistance. This paper aims to discuss the optimization of the spray granulation process of Si3N4 powder, especially the press...

Silicon Nitride Ball: A New Choice For High-Tech Powder Grinding Media

With the rapid development of high-tech industry, the requirements for fineness, purity and consistency of powder materials are increasing. As a key component in the powder preparation process, the performance of grinding medium directly determines the quality of the final product. Traditionally, zirconia ceramic balls are widely used in the field of ultra-fine grinding because of their high bendi...

Application Performance And Advantage Analysis Of Silicon Nitride Ball In Ultrafine Grinding Field

With the rapid development of nanotechnology and ultrafine material science, the demand for high-purity and ultrafine powder is increasing day by day. Silicon nitride ball, with its excellent hardness, very low wear rate and good chemical stability, has gradually become the key grinding medium in the field of ultrafine grinding. The purpose of this paper is to systematically describe the performan...

Study On Performance Characteristics And Application Of Silicon Nitride Ball In Mechanical Engineering Field

With the rapid development of modern mechanical engineering technology, the requirements for material properties are increasingly stringent, especially under extreme conditions such as high temperature, high speed, strong corrosion, etc., traditional metal materials and polymer materials have been difficult to meet the needs. Silicon nitride (Si ₄) As an advanced ceramic material with excellent ov...

Sol-gel Polishing Technology: Challenges And Opportunities To Innovate Silicon Carbide Substrate Polishing

Silicon carbide, the emerging star of the semiconductor material industry, is gradually leading the innovation trend of microelectronics technology with its excellent performance indicators. Its unique thermal conductivity, far superior to traditional semiconductor materials, provides the possibility for efficient heat dissipation, especially in high-power electronic devices show unparalleled adva...

Application And Advantages Of Plasma Assisted Polishing In AlN Substrate Processing

Aluminum nitride (AlN) ceramics, as a material with excellent thermal conductivity, mechanical properties and electrical properties, have been widely used in large-scale integrated circuits and electronic packages in recent years. Its excellent properties make it an ideal cooling substrate and packaging material. However, due to the high hardness, high brittleness and low fracture toughness of alu...

Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology

In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...

Alumina Crucible Aluminum Oxide Ceramic Crucible Conical

Alumina Crucible Aluminum Oxide Ceramic Crucible Cylindrical

Alumina Tray Aluminum Oxide Ceramic Crucible Trapezoid

Alumina Crucible Tray Aluminum Oxide Ceramic Rectangular Crucible With Cover

Alumina Combustion Crucible Boat Aluminum Oxide Ceramic Crucible Flat Bottom

Alumina Combustion Crucible Boat Aluminum Oxide Ceramic Furnace Crucible

Alumina Combustion Crucible Boat Aluminum Oxide Ceramic Crucible Round Bottom

Alumina Crucible Aluminum Oxide Ceramic Crucible Point Bottom

FAQ

Do you supply the materials unlisted on your website?

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Can you aid in material selection & ceramic product design?

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

Do you have a minimum order value requirement?

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

What services beyond ceramic products do you offer?

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Do you offer international shipping services?

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.

All FAQs

Send Your inquiry

Contact With Us

Contact With Us

Looking for Video?

Office Hours

Monday to Friday: 9:00 AM - 12:00 PM, 2:00 PM - 5:30 PM

Please note that our office hours are based on Beijing Time, which is eight hours ahead of Greenwich Mean Time (GMT). We appreciate your understanding and cooperation in scheduling your inquiries and meetings accordingly. For any urgent matters or queries outside our regular hours, feel free to contact us via email, and we will get back to you as soon as possible. Thank you for your business, and we look forward to serving you.

Home

Products

contact
