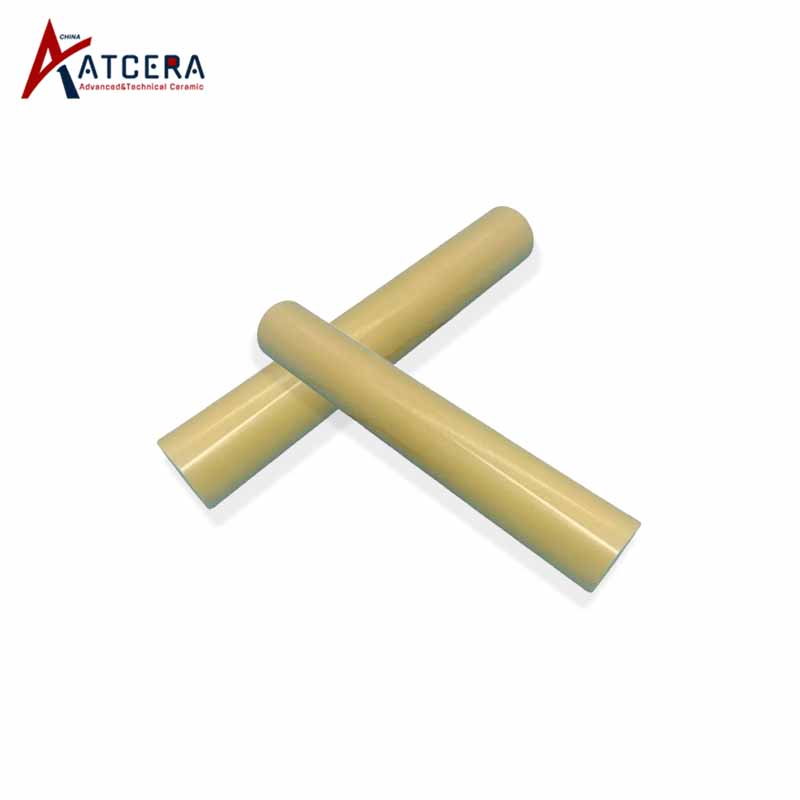

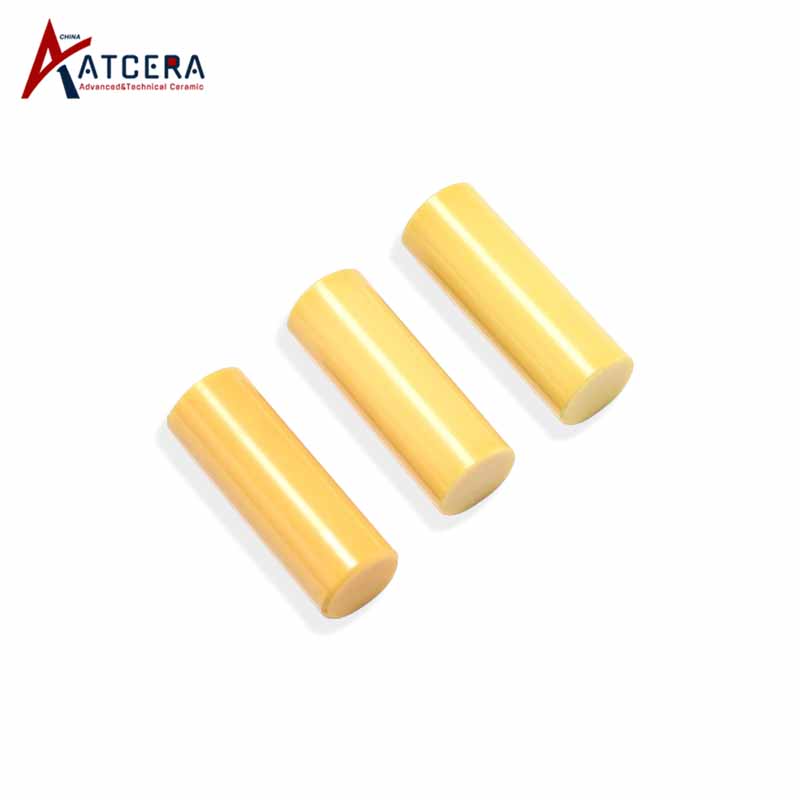

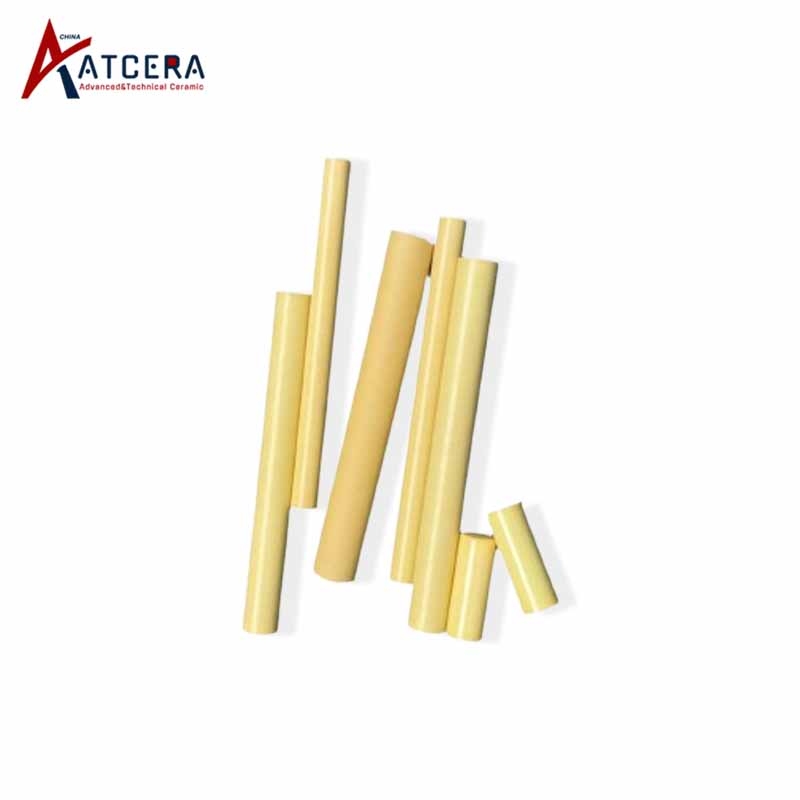

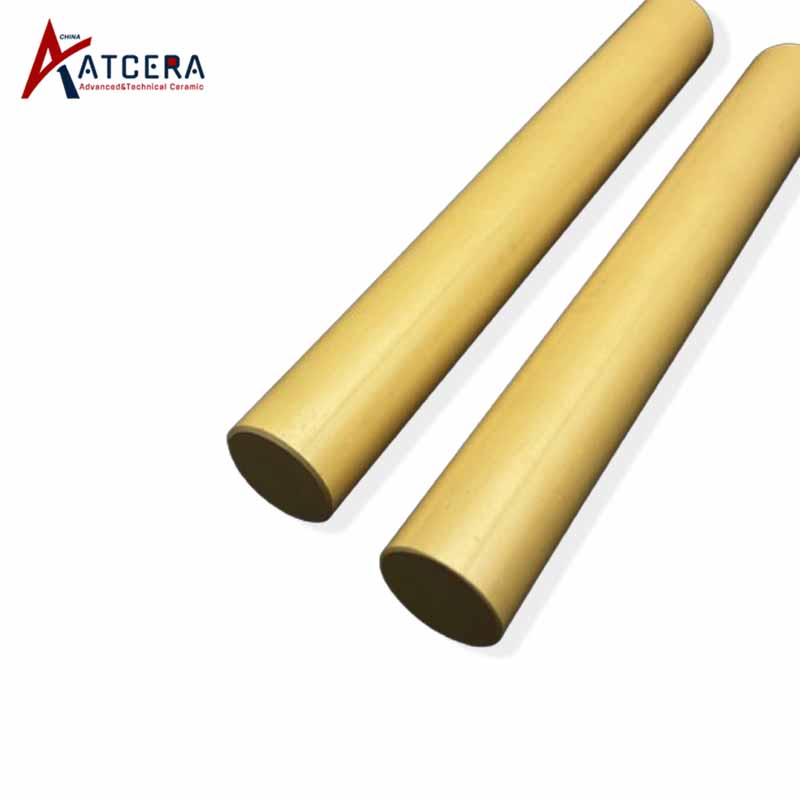

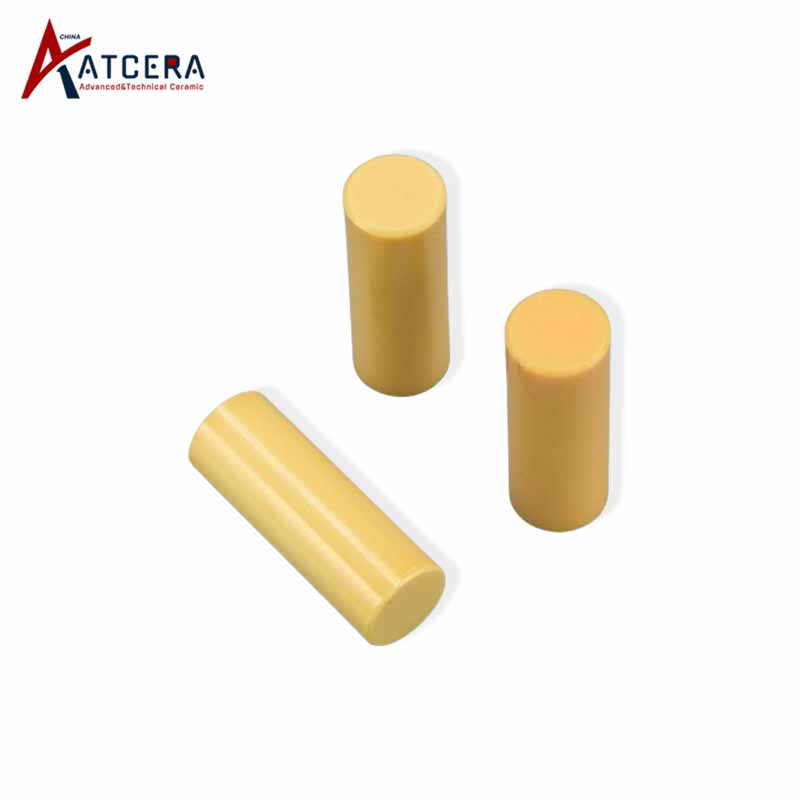

Magnesia Stablized Zirconia Ceramic Rod MSZ Ceramic Rod

Magnesia stablized zirconia ceramic rods are made of zirconia ceramics with magnesium oxide as stabilizer, with high mechanical strength, high toughness, good impact resistance, strong abrasion and corrosion resistance, good resistance to high temperature and thermal shock. It can be used to make all kinds of mechanical parts and components, which are used in equipment for machining, chemical industry, metallurgy and other industries.

Brand:
ATCERA
Item NO.:
AT-MGO-B001

Materials
MSZ
Shapes
Rod
Applications
Mechanical Parts , Petrochemical Industry , Food Processing , Metallurgy Industry , Biology and Medicine

Inquire Now

Properties of Magnesia Stablized Zirconia Ceramic Rod

1. Magnesia stablized zirconia ceramic rods have high mechanical strength, high load-bearing capacity, good toughness, resistance to mechanical shock, high hardness and good wear resistance.

2. Magnesia stablized zirconia ceramic rods are high temperature resistant and can work normally in high temperature environments above 1000℃. They have superb thermal shock resistance and can withstand drastic temperature changes.

3. Magnesia stablized zirconia ceramic rods are well insulated and non-magnetic, which can protect the equipment from power leakage and electromagnetic interference.

4. Magnesia stablized zirconia ceramic rods have good corrosion resistance, can be in direct contact with various acids, alkalis and other chemicals, with super chemical stability, no risk of corrosion failure.

Applications of MSZ Ceramic Rod

Magnesia stablized zirconia ceramic rods can be used to manufacture various ceramic structural parts, such as hydraulic rods, support rods, plungers, drive shafts, stirring and draining devices, etc., which are widely used in equipment for machining, chemical industry, metallurgy and other industries.

Size Chart of MSZ Ceramic Rod

We are committed to delivering magnesia stablized zirconia ceramic rod tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings, parameter requirements and application environment for customization.

Magnesia Stablized Zirconia Ceramic Rod
Item NO.	Outer Diameter (mm)	Length (mm)
AT-MGO-B001	5	10-400
AT-MGO-B002	10	10-400
AT-MGO-B003	15	10-400
AT-MGO-B004	17	10-400
AT-MGO-B005	20	10-400
AT-MGO-B006	25	10-400
AT-MGO-B007	30	10-400
AT-MGO-B008	50.8	304

Technical Data of Mg-PSZ Materials

Material	Magnesia stablized zirconia (MSZ)
Density (g/cm3)	5.7
Flexture strength (MPa)	540
Young Modulus (GPa)	250
Poisson's ratio	0.31
Compressive strength (MPa)	2500
Hardness (HV)	1100
Fracture toughness (MPa*m1/2)	7.5
Maximum working temperature (℃)	1200
Thermal conductivity (W/m*K)	18
Thermal expansion coefficient (/℃)	*810-6**
Thermal shock resistance (ΔT ℃)	250

*This chart illustrates the standard characteristics of the magnesia stablized zirconia materials commonly employed in the manufacturing of our magnesia stablized zirconia products and parts. Please be aware that the attributes of customized msz products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Before the installation of magnesia stablized zirconia ceramic rod, the surface should be noted whether there are scratches or cracks, or other defects, if defective, need to be replaced.

2. The surface of the ceramic rod should be cleaned of dust and impurities etc. before installation to avoid affecting its performance.

3. The state of the ceramic rod should be checked regularly, if cracks and other defects start to appear, it is necessary to stop continuing to use it and replace it in time.

Valuable Information

Machining Precision

1. Diameter tolerance: ±0.01mm

2. Hole depth tolerance: ±0.005mm

3. Surfance roughness:Ra0.5

4. Cylindricity:±0.004mm

5. Concentricity:±0.003mm

6. Parallelism:±0.002mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
