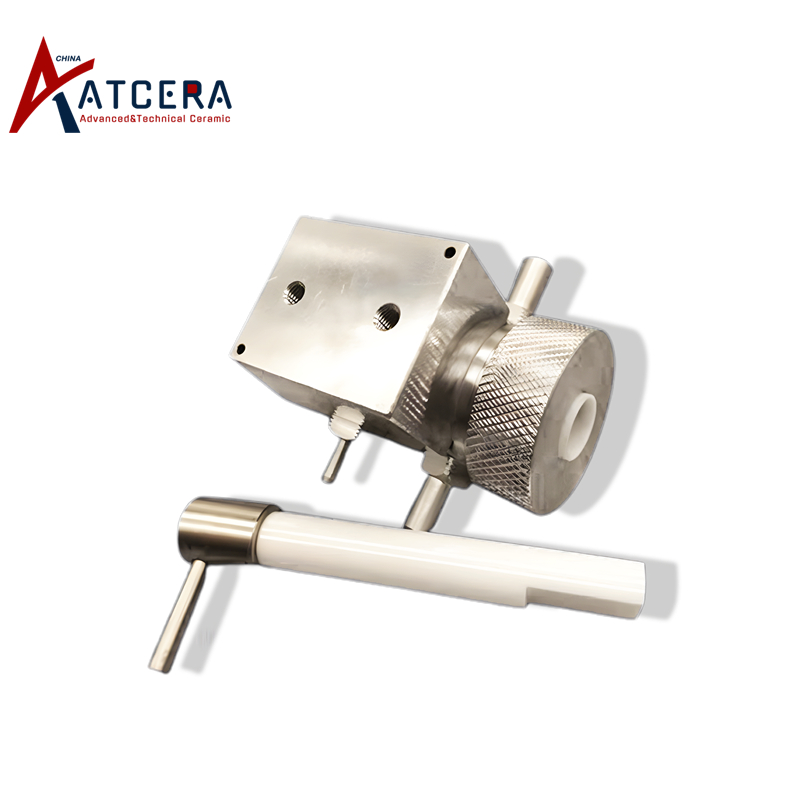

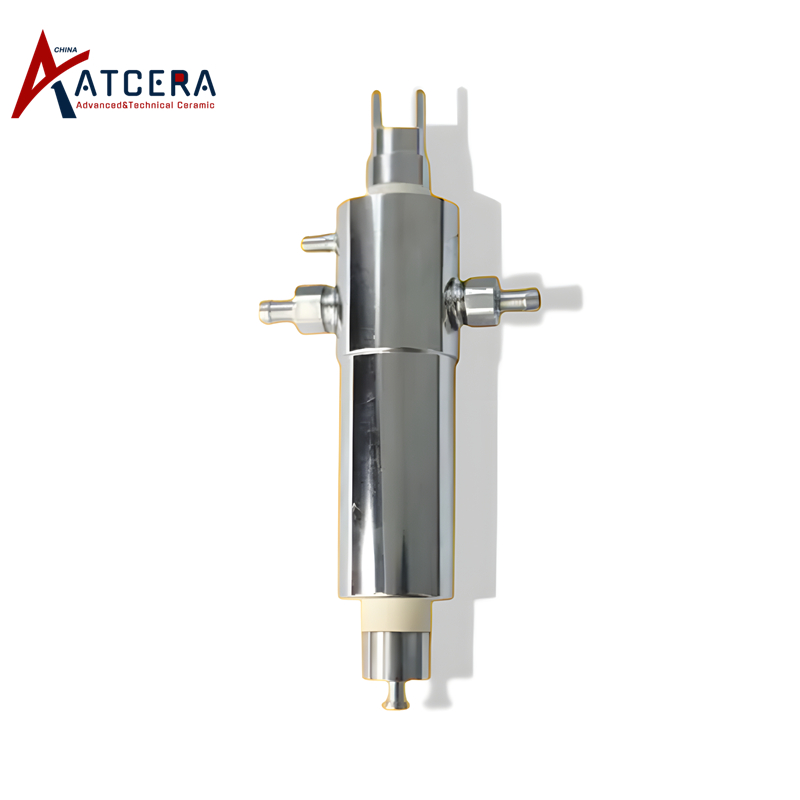

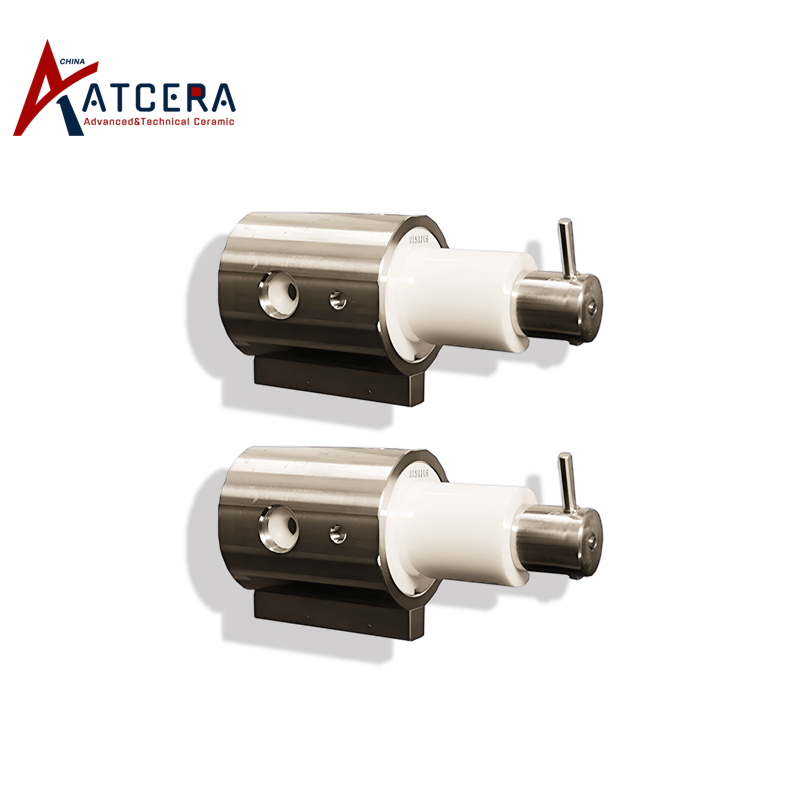

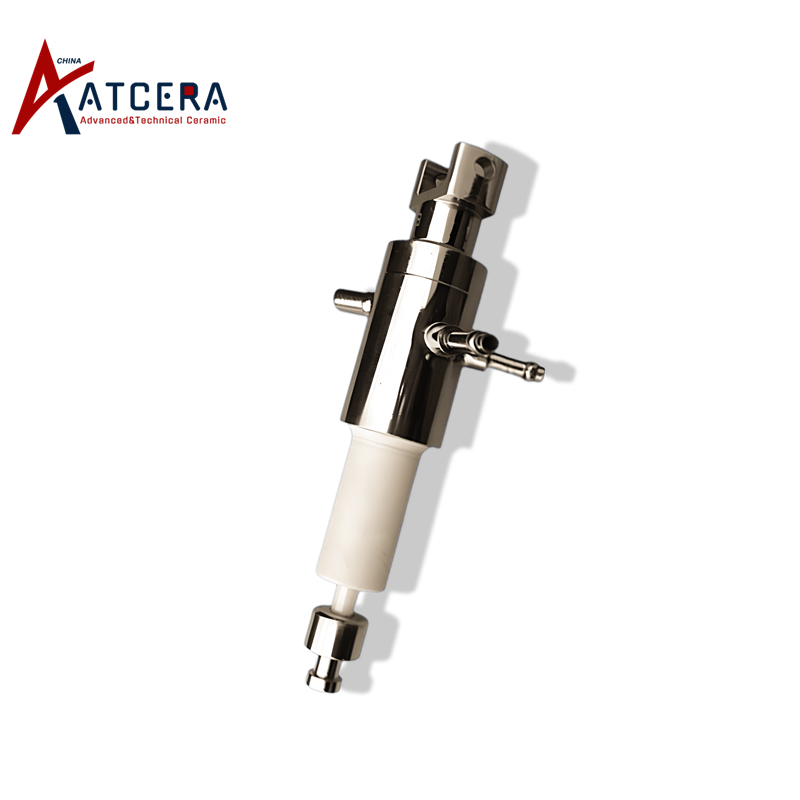

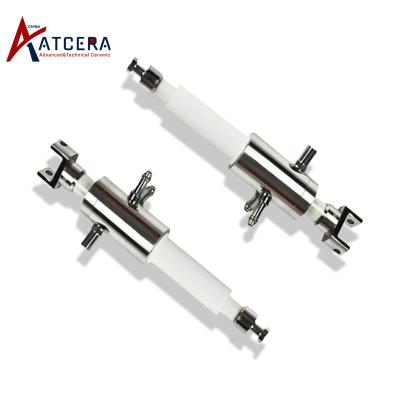

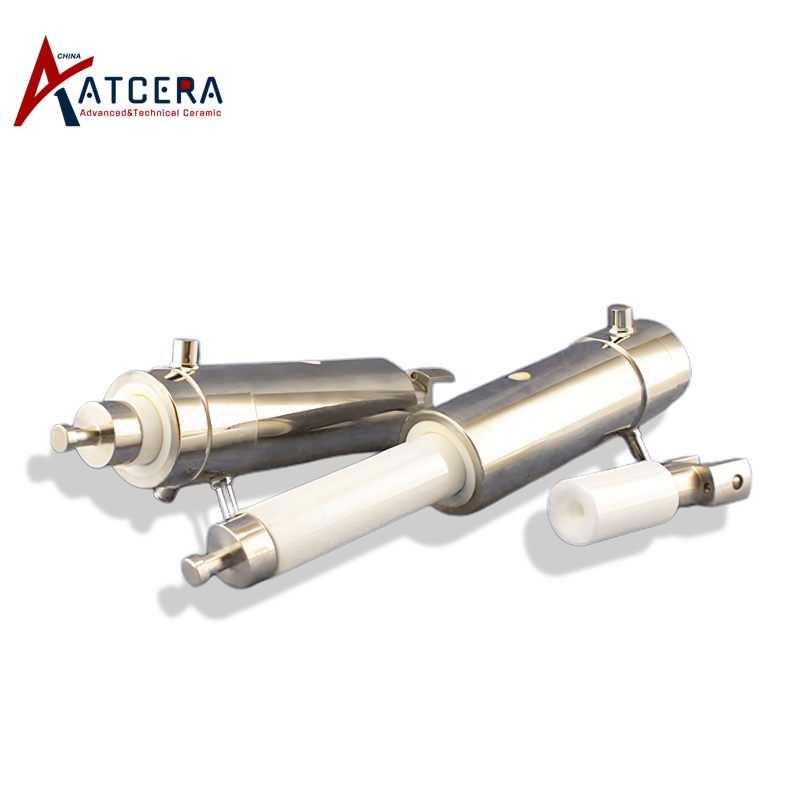

Alumina Ceramic Metering Pump Al2O3 Dosing Pump

Alumina ceramic metering pump is a type of high-precision liquid metering pump, usually constituted by the pump body, rotating body (there is a liquid inlet and outlet hole), plunger, sealing ring and other parts. Plunger in the ceramic pump body to do reciprocating linear movement, for liquid inhalation and discharge, rotary body can rotate to achieve the liquid inlet and outlet switch.

  • Brand:

    ATCERA
  • Item NO.:

    AT-CP-5001
  • Materials

    Alumina
  • Shapes

    Pump
  • Applications

    Mechanical Parts , Petrochemical Industry , Food Processing , Lithium Battery Production
Alumina ceramic metering pump

Properties of Aluminum Oxide Metering Pump



⩟ Durable Corrosion Resistance

Alumina ceramic material boasts excellent resistance to corrosion, making it suitable for transporting various corrosive liquids without contaminating the fluids.



⩟ Precision Engineering

Alumina ceramic material is crafted with high processing precision, ensuring it meets the stringent requirements for precise metering.



⩟ Extended Lifespan

Thanks to its high hardness and superior wear resistance, alumina material contributes to the prolonged service life of alumina metering pumps.



⩟ Convenient Maintenance

The straightforward structure of alumina ceramic metering pumps allows for easy online cleaning, ultimately reducing maintenance costs.



⩟ Enhanced Safety

Alumina material is inherently non-toxic and harmless, exhibiting good biological compatibility and causing no irritation or side effects to the human body.

Applications of Ceramic Dosing Pump

Applications of Ceramic Dosing Pump

Alumina ceramic metering pumps are used to measure and control the flow of fluids, to achieve precise metering of various liquids in the industrial field, such as food additives, chemical agents, etc.



⩟ Chemical industry

Alumina metering pump can be used for acid, alkali, chloride, amine, solvent and other chemical substances flow measurement and control;



⩟ Petroleum industry

Alumina dosing pump can be used as a measuring device for lubricating oil, distillate oil and other processing raw materials to ensure the accuracy and stability of oil processing and production;



⩟ Food industry

Alumina ceramic metering pumps can be used to control the amount of food additives added to maintain the quality and taste of food;



⩟ Water treatment

It can be used for water treatment and dosing pump, to remove water scale, maintain water quality, and inhibit bacteria and algae growth.





Size Chart for Aluminum Oxide Metering Pump



We are committed to delivering alumina metering pump tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Drawing and specification requirement shall be provided if customized request.



Machining Tolerance
Metering deviation is less than 0.3% during the range of 0.5-40g.



Alumina Ceramic Metering Pump
Item NO. Volmue (ml) Filling Accuracy (%) Al2O3's Purity (%)
AT-CP-5001 0.02 ≤0.5% 95-99%
AT-CP-5002 0.5 ≤0.5% 95-99%
AT-CP-5003 1 ≤0.5% 95-99%
AT-CP-5004 2 ≤0.5% 95-99%
AT-CP-5005 3 ≤0.5% 95-99%
AT-CP-5006 5 ≤0.5% 95-99%
AT-CP-5007 7 ≤0.5% 95-99%
AT-CP-5008 10 ≤0.5% 95-99%
AT-CP-5009 15 ≤0.5% 95-99%
AT-CP-5010 16 ≤0.5% 95-99%
AT-CP-5011 20 ≤0.5% 95-99%
AT-CP-5012 25 ≤0.5% 95-99%
AT-CP-5013 0.3-2 ≤0.1% 95-99%
AT-CP-5014 0.5-3 ≤0.1% 95-99%
AT-CP-5015 1.0-5.5 ≤0.1% 95-99%
AT-CP-5016 2.0-7 ≤0.1% 95-99%
AT-CP-5017 2.0-7 ≤0.1% 95-99%
AT-CP-5018 2.0-10 ≤0.1% 95-99%
AT-CP-5019 3.0-15 ≤0.1% 95-99%
AT-CP-5020 5.0-25 ≤0.1% 95-99%
AT-CP-5021 10-50 ≤0.1% 95-99%



Specification of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions

1. Installation requirements
When install the alumina metering pump, ensure that it's firmly fixed to avoid axial and radial movement;

2. Liquid temperature
the liquid temperature should be within the use temperature range to ensure the normal operation and accuracy of the metering pump;

3. Liquid properties
For liquid containing solid particles or high viscosity, it is necessary to pre-treat or select appropriate pump head;

4. Pump cleaning
Before or after each use, the pump body and related components should be cleaned in time to prevent residue deterioration in the pump body;

5. Regular maintenance
It is recommended to regularly check the pump plunger, seals and other parts wear, and timely replacement or adjustment if any wear that may affect the pump performance;

6. Pump storage
In the case that alumina metering pump is not used for a long time, the pump should be cleaned and stored in a dry and cool environment.

Valuable Information

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
