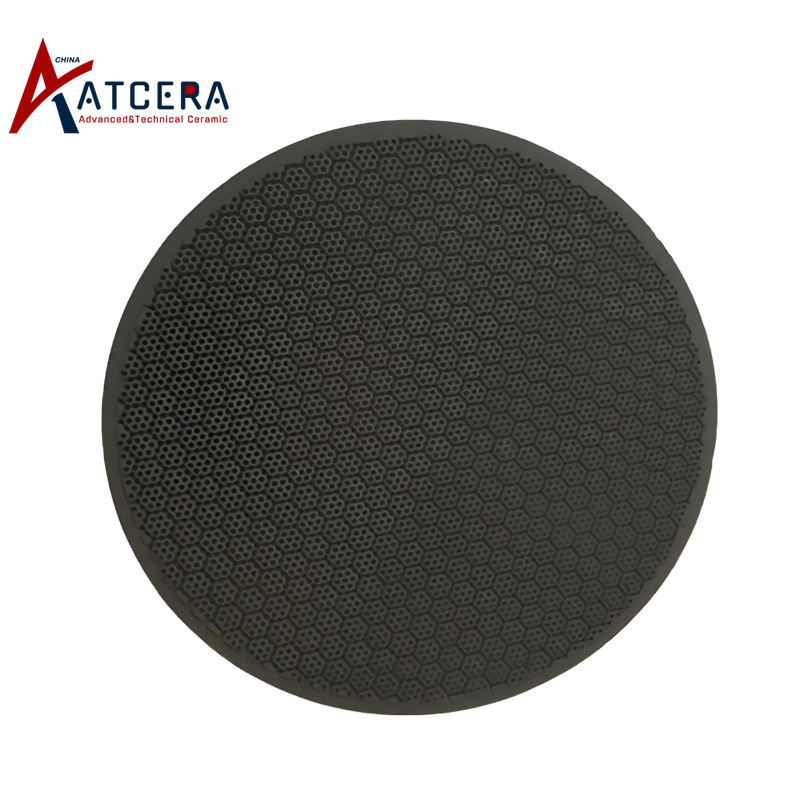

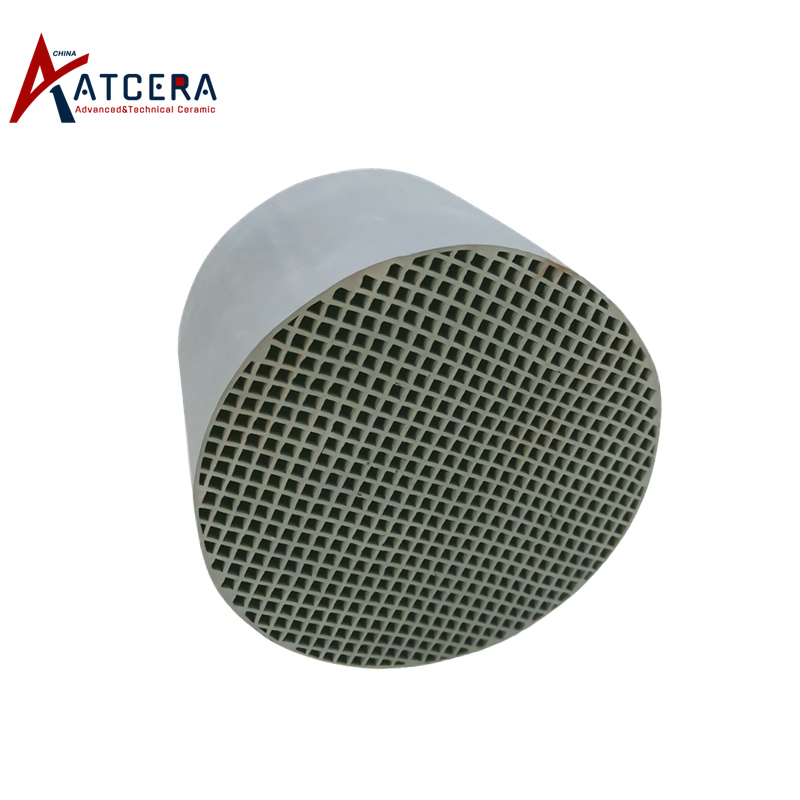

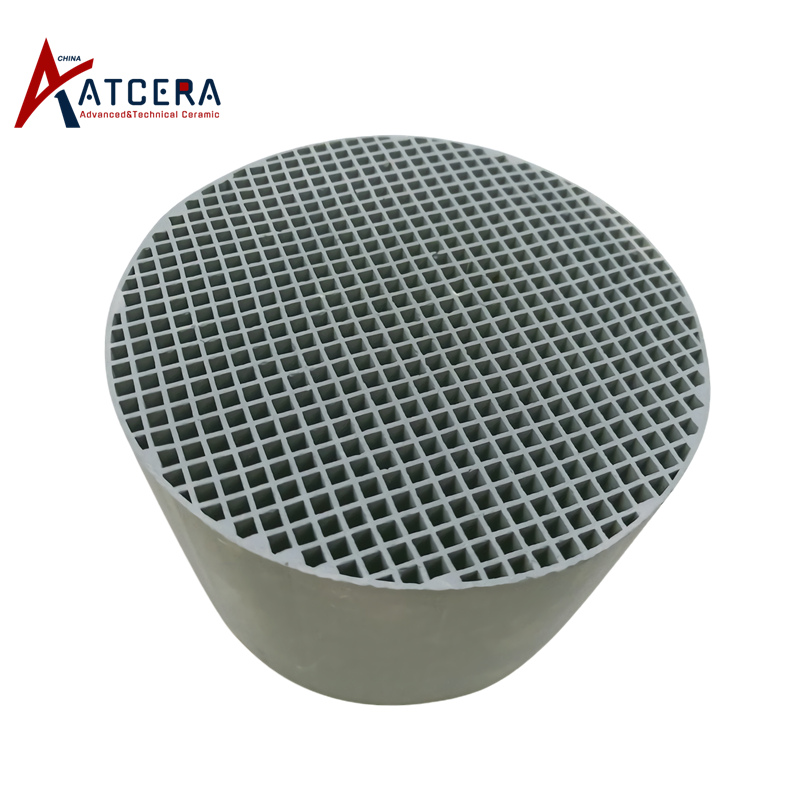

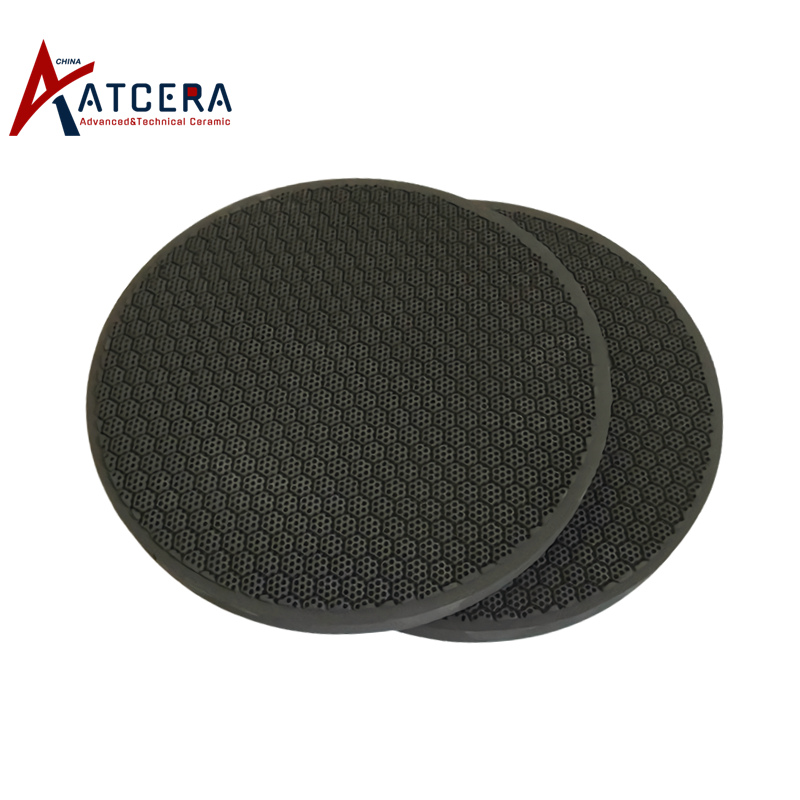

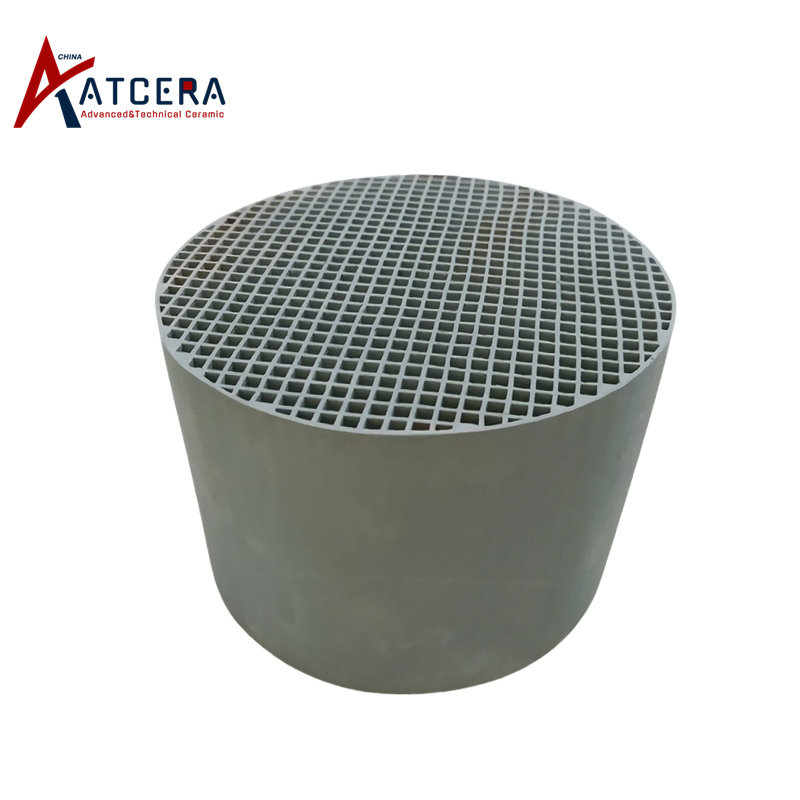

Silicon Carbide Honeycomb Ceramic Heat Accumulator

Silicon carbide honeycomb ceramic is produced with silicon carbide powder as raw materials, sintered after forming, it has high mechanical strength and thermal conductivity, high temperature and corrosion resistance. The internal is of porous structure, high porosity, large specific surface area, can be used as a filter and catalyst carrier used for automobile exhaust purification, it can also be used as a regenerative oxidizer heat accumulator.

  • Brand:

    ATCERA
  • Item NO.:

    AT-SIC-FW001
  • Materials

    SiC
  • Shapes

    Mechanical Parts
  • Applications

    Petrochemical Industry , Biology and Medicine
sic ceramic honeycomb ceramic

Properties of Silicon Carbide Honeycomb Ceramic Heat Accumulator





1. Silicon carbide honeycomb ceramic is resistant to high temperature and corrosion, the highest working temperature can reach higher than 1300℃, it also has good oxidation resistance, can adapt to harsh working environment.





2. Silicon carbide honeycomb ceramic has high porosity, large specific surface area, high mechanical strength, stable structure, and is not easy to break.





3. Silicon carbide honeycomb ceramic has high thermal conductivity and fast heat exchange, which is conducive to improving catalytic efficiency and heat exchange speed.

sic heat accumulator

Applications of SiC Honeycomb Ceramic Heat Accumulator







1. Silicon carbide honeycomb ceramic can be used as a filter and catalyst carrier, used for automobile exhaust purification, it can intercept, capture diesel exhaust carbon smoke particles, and CO, NO and other harmful components in the exhaust can be generated into harmless components for discharge, it is widely used in a variety of diesel engine powered vehicle exhaust treatment, including diesel cars, heavy trucks, mine operation vehicles and forklifts.





2. It can also be used as a heat accumulator of a regenerative oxidizer to absorb and store the heat energy in the high-temperature exhaust gas, and transfer the heat energy to other process fluids through heat exchange to improve the utilization efficiency of fuel.













Size Chart for Silicon Carbide Honeycomb Ceramic Heat Accumulator

We are committed to delivering optimal silicon carbide honeycomb ceramic heat accumulators tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.









Operation environment information, drawing and parameter requirements shall be provided if customized design request.



Dimension tolerance: ±2mm.



Silicon Carbide Honeycomb Ceramic Heat Accumulator
Item NO. Diameter of Section
(mm)
Cross-sectional Area
(mm2)
Height
(mm)
AT-SIC-FW001 118.4 11010 ≤200
AT-SIC-FW002 127 12667
AT-SIC-FW003 144 16286
AT-SIC-FW004 150 17671
AT-SIC-FW005 190 28352
AT-SIC-FW006 228 40828
AT-SIC-FW007 240 45238
AT-SIC-FW008 267 55990
AT-SIC-FW009 286 64242
AT-SIC-FW010 305 73061
AT-SIC-FW011 330 85529









Technical Data of Silicon Carbide Materials



Item Unit Index Data
Reaction-sintered SiC
(SiSiC)
Silicon Nitride Bonded With SiC
(NBSiC)
Sintered SiCn Without Pressure
(SSiC)
SiC Content % 85 80 99
Free  Silicon Content % 15 0 0
Max. Service Temp. 1380 1550 1600
Density g/cm3 3.02 2.72 3.1
Porosity % 0 12 0
Bending Strength 20℃ Mpa 250 160 380
1200℃ Mpa 280 180 400
Modulus of Elasticity 20℃ Gpa 330 220 420
1200℃ Gpa 300 / /
Thermal Conductivity 1200℃ W/m.k 45 15 74
Coefficient of Thermal Expansion K-1×10-6 4.5 5 4.1
Vickers Hardness HV kg/mm2 2500 2500 2800





*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.









Usage Instructions




1. Avoid violent impact during silicon carbide honeycomb ceramic delivery, installation and use period, to prevent damage or fracture.



2. Silicon carbide honeycomb ceramic storage needs to avoid high humidity environment, keep the package intact, avoid dust or debris entering into it.



3. Silicon carbide honeycomb ceramic needs regular cleaning and maintenance during long-term use, and damaged modules need to be replaced in time.


Valuable Information

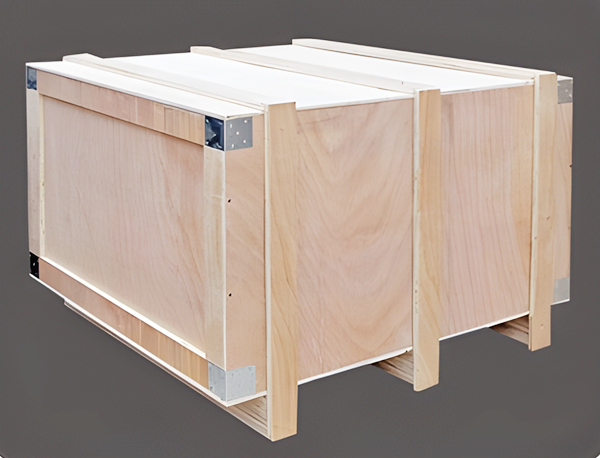

Silicon Carbide Ceramic Heat Accumulator Packing

Silicon Carbide Honeycomb Ceramic Heat Accumulator Packing









Silicon carbide honeycomb ceramic heat accumulators are carefully packaged in appropriate containers to avoid any potential damage.

















Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
