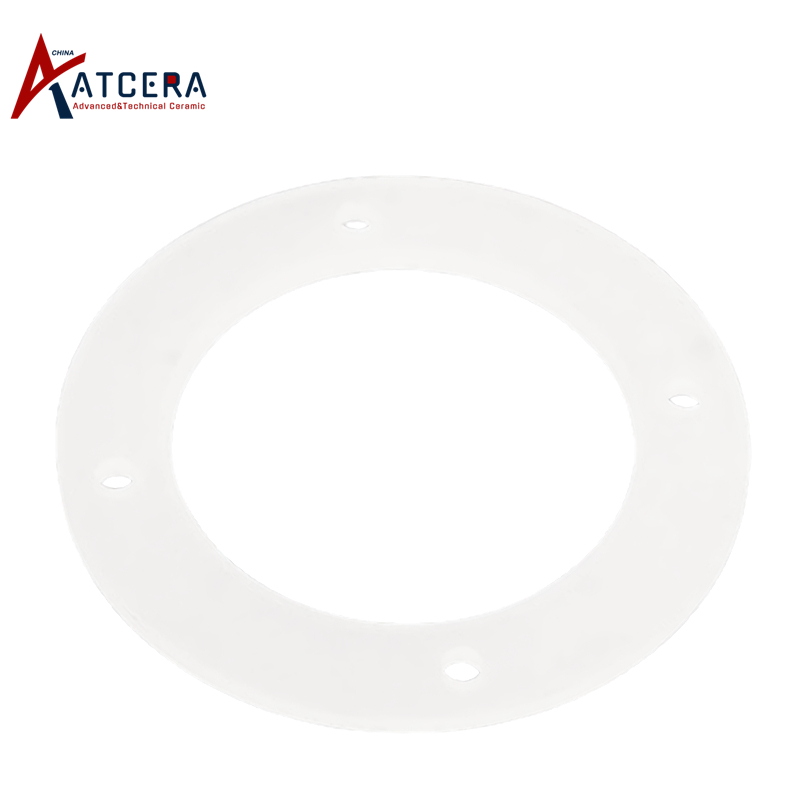

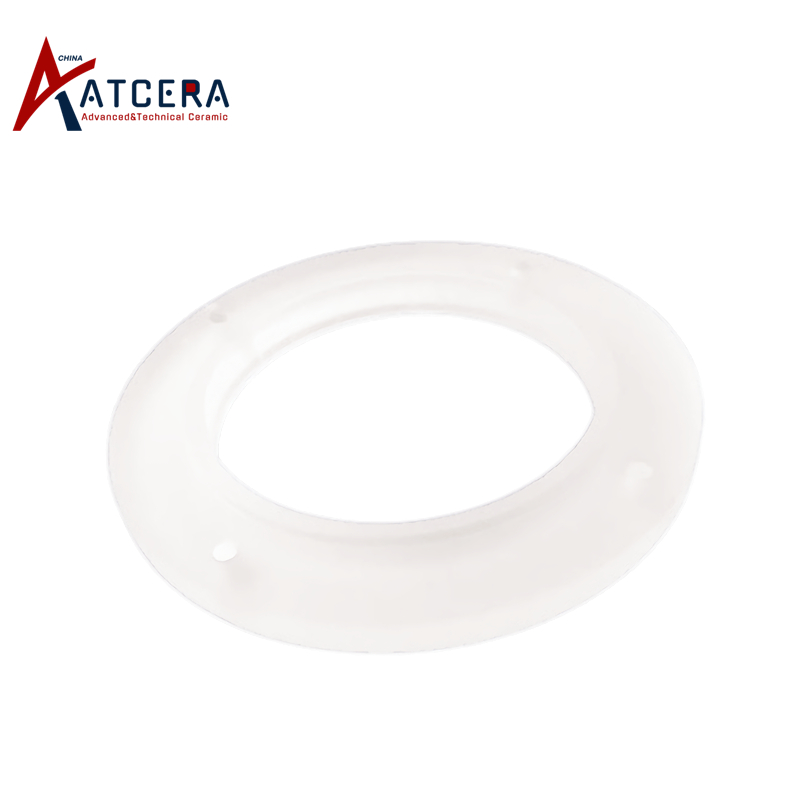

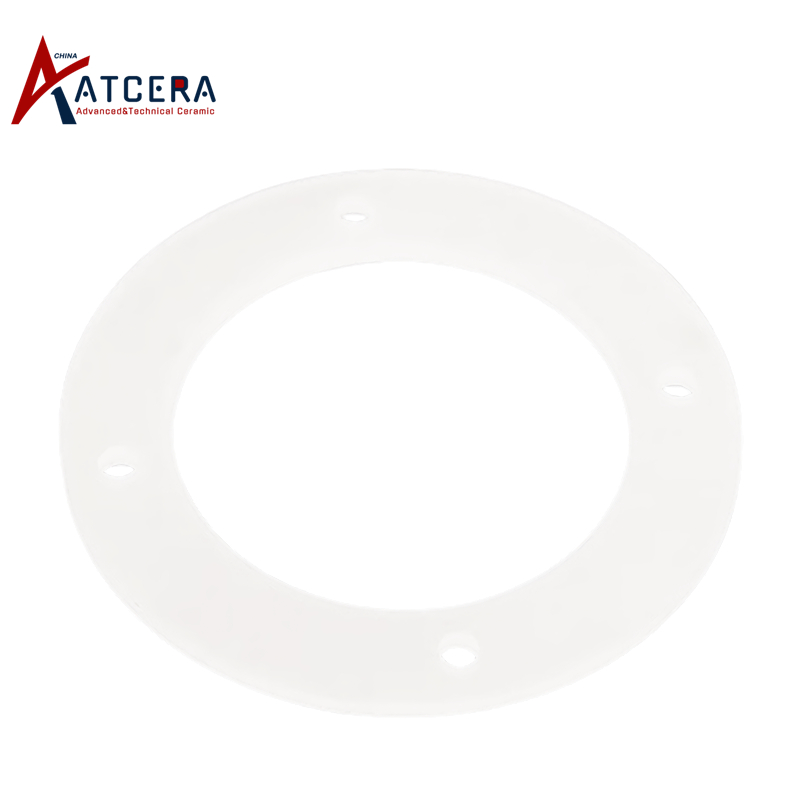

Quartz Flange Corrosive Resistant

Quartz flange is resistant to corrosion and high temperature, with good thermal shock resistance, small thermal expansion coefficient, excellent chemical stability and high temperature stability. It can be used in high temperature, strong acid, strong alkali environment for the connection between pipes and pipes, as well as pipes and other equipment.

Brand:
ATCERA
Item NO.:
AT-SY-FL001

Materials
Quartz
Shapes
Mechanical Parts
Applications
Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Quartz Flange

1. Quartz flange has strong corrosion resistance and can operate stably in environment with strong acid, alkali and other corrosive gases for a long time.

2. Quartz flange has good high temperature stability, good thermal shock resistance, small thermal expansion coefficient, and long-term stable operation in high temperature environment.

Applications of Quartz Flange

Quartz flange is mainly used in environment with high temperature and corrosive substances, such as petroleum, chemical, pharmaceutical, metallurgy, aviation and other fields.

Product Parameters
Material Parameters

Size Chart of Quartz Flange

We are committed to delivering optimal quartz flanges tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and parameter requirements shall be provided if customized design request.

Dimension tolerance: ±0.05mm

Send Requirements for Custom Design

Quartz Flange
Item no.	Outer Dia. (mm)	Inner Dia. (mm)	Height (mm)	Purity (%)
AT-SY-FL001	10	5	4	99.9-99.99
AT-SY-FL002	20	12	3	99.9-99.99
AT-SY-FL003	80	52.8	5	99.9-99.99
AT-SY-FL004	105	82.5	8	99.9-99.99
AT-SY-FL005	115	92.5	5	99.9-99.99
AT-SY-FL006	152	102.8	7	99.9-99.99
AT-SY-FL007	195	154	6	99.9-99.99
AT-SY-FL008	275	165	10	99.9-99.99
AT-SY-FL009	300	230	7.5	99.9-99.99
AT-SY-FL010	300	230	15	99.9-99.99
AT-SY-FL011	335	265	7.5	99.9-99.99
AT-SY-FL012	335	265	15	99.9-99.99

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Valuable Information

Quartz Flange Packing

Quartz flanges are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
