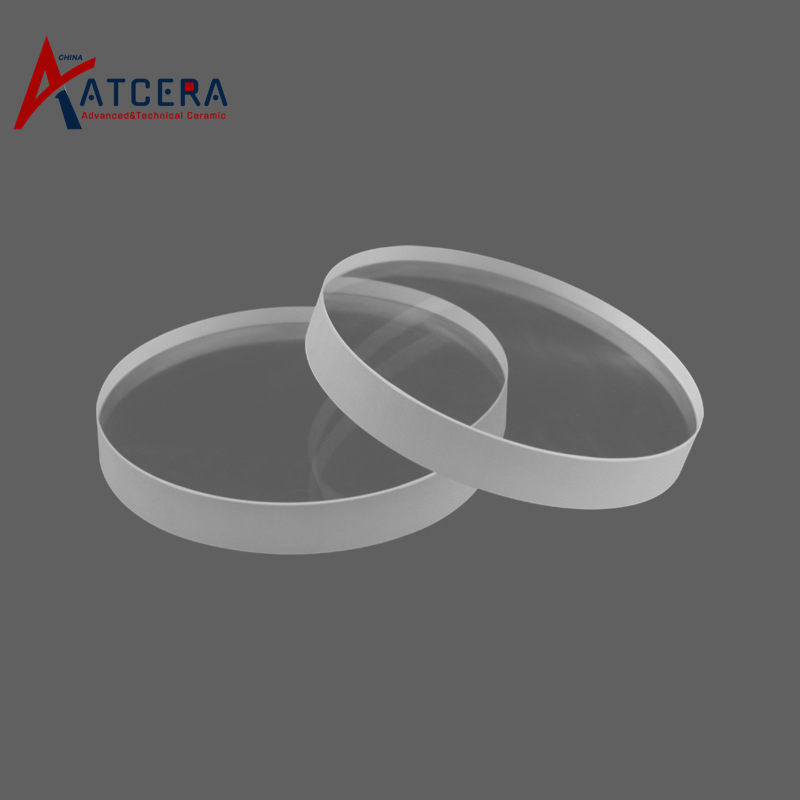

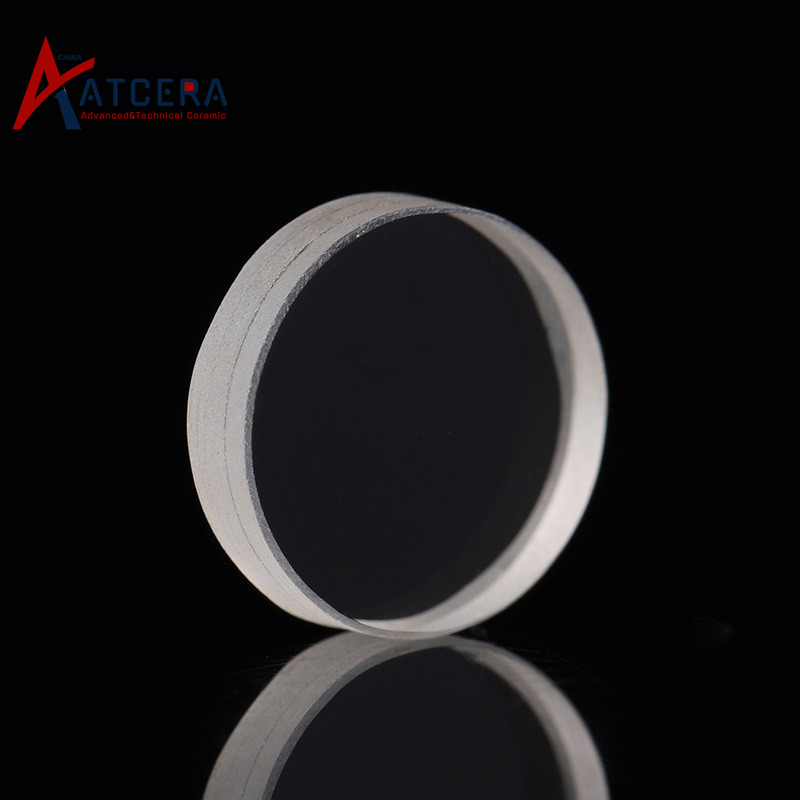

Quartz Sight Glass

Quartz glass mirror is made of high purity quartz, has high temperature and corrosion resistance, small thermal expansion coefficient, good thermal shock resistance and excellent optical performance, it can be through far ultraviolet spectrum, also visible light and near infrared spectrum. Quartz sight glass is widely used on boilers, smelting, chemical and other industrial equipment to observe and monitor liquid levels, combustion flames and chemical reactions.

Brand:
ATCERA
Item NO.:
AT-SY-SJ001

Materials
Quartz
Shapes
Mechanical Parts
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Quartz Sight Glass

1. Quartz sight glass has high temperature resistance, maximum working temperature can be up to 1450℃, also with good thermal shock resistance, can resist sharp temperature changes.

2. Quartz material is non-toxic and harmless, with good corrosion resistance, will not be eroded by chemical substances.

3.Quartz sight glass has excellent optical performance, it can be through far ultraviolet spectrum, also visible light and near infrared spectrum, so observation is very convenient.

Applications of Quartz Sight Glass

Quartz sight glass is widely used on boilers, smelting, chemical and other industrial equipment to observe and monitor liquid levels, combustion flames and chemical reactions.

Product Parameters
Material Parameters

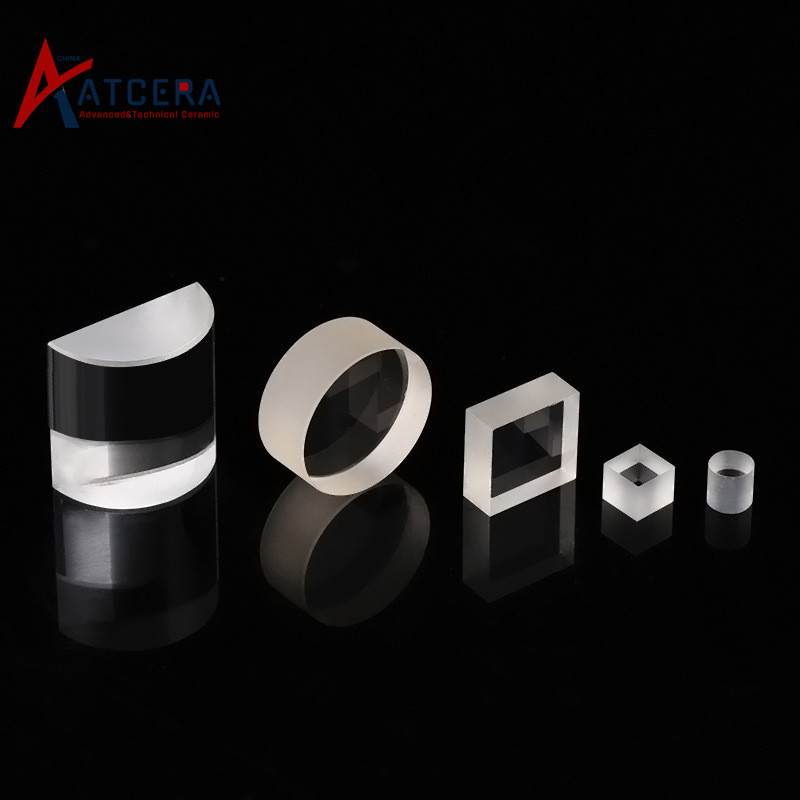

Customization Design of Quartz Sight Glass

We are committed to delivering optimal quartz sight glasses tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and parameter requirements shall be provided if customized design request.

Material option: JGS1, JGS2, JGS3

Send Requirements for Custom Design

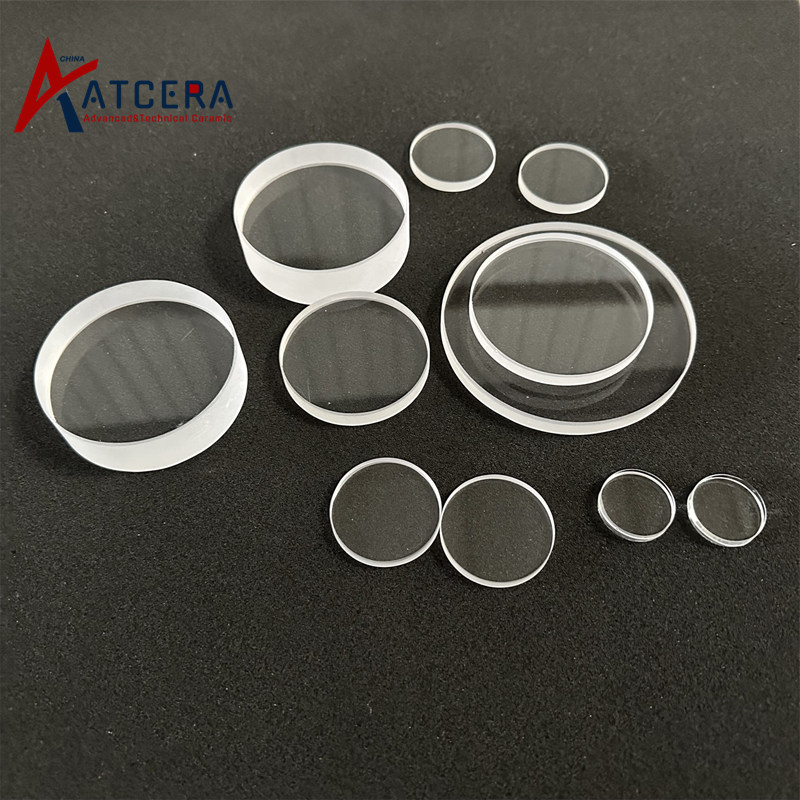

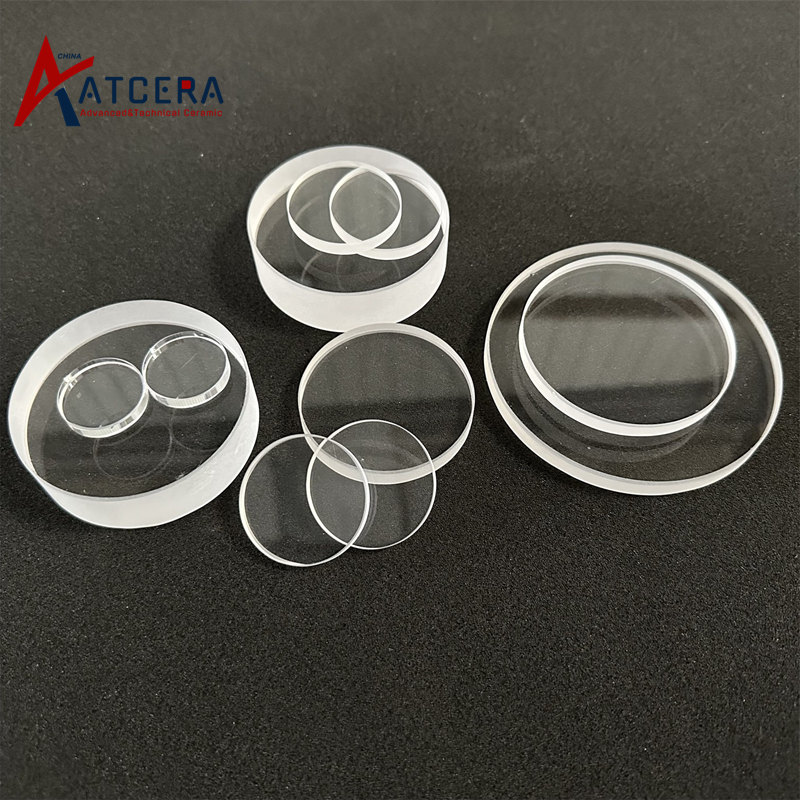

Quartz Sight Glass Round
Item no.	Diameter (mm)	Thickness (mm)	Purity (%)
AT-SY-SJ001	10	2	99.99
AT-SY-SJ002	35	5	99.99
AT-SY-SJ003	50	5	99.99
AT-SY-SJ004	50	8	99.99
AT-SY-SJ005	55	5	99.99
AT-SY-SJ006	55	10	99.99
AT-SY-SJ007	60	5	99.99
AT-SY-SJ008	60	10	99.99
AT-SY-SJ009	65	5	99.99
AT-SY-SJ010	70	5	99.99
AT-SY-SJ011	80	3	99.99
AT-SY-SJ012	80	8	99.99
AT-SY-SJ013	95	8	99.99
AT-SY-SJ014	100	8	99.99
AT-SY-SJ015	120	10	99.99
AT-SY-SJ016	150	8	99.99
AT-SY-SJ017	150	20	99.99
AT-SY-SJ018	175	20	99.99
AT-SY-SJ019	200	20	99.99
AT-SY-SJ020	200	30	99.99
AT-SY-SJ021	250	20	99.99
AT-SY-SJ022	250	30	99.99
AT-SY-SJ023	300	1-30	99.99

Quartz Sight Glass Square
Item no.	Length (mm)	Width (mm)	Thickness (mm)	Purity (%)
AT-SY-SJ024	20	10	2	99.99
AT-SY-SJ025	50	30	5	99.99
AT-SY-SJ026	80	50	5	99.99
AT-SY-SJ027	80	50	8	99.99
AT-SY-SJ028	80	50	10	99.99
AT-SY-SJ029	100	80	5	99.99
AT-SY-SJ030	150	100	5	99.99
AT-SY-SJ031	200	120	10	99.99
AT-SY-SJ032	500	400	1-30	99.99

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Valuable Information

Quartz Sight Glass Packing

Quartz sight glasses are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
