Quartz Flask Quartz Glass Flask

Quartz flask is made of high purity quartz, usually the bottle neck is small, to prevent the internal solution from splashing out, and the bottom is larger, which can contain more solution. Generally flask can be divided into two types, round bottom type and flat bottom type. Quartz flask has high temperature resistance, good thermal shock resistance, light transmission is very good, and the material is non-toxic and harmless, with good corrosion resistance. It can be used for liquid heating, distillation and fractionation, and as a liquid chemical reaction container.

Brand:
ATCERA
Item NO.:
AT-SY-SP1001

Materials
Quartz
Shapes
Mechanical Parts
Applications
Laboratory Equipment and Instruments

Inquire Now

Properties of Quartz Glass Flask

1. Quartz flask has high temperature resistance, good thermal shock resistance, can resist sharp temperature changes.

2. Quartz material is non-toxic and harmless, with good corrosion resistance, will not be eroded by chemical solutions.

3.Quartz flask transparency is very high, almost all visible light and ultraviolet light have good penetration, observation is very convenient.

Applications of Quartz Glass Flask

Quartz flask can be used for liquid heating, distillation and fractionation, and as a liquid chemical reaction container.

Product Parameters
Material Parameters

Customization Design of Quartz Glass Flask

We are committed to delivering optimal quartz glass flasks tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and parameter requirements shall be provided if customized design request.

Send Requirements for Custom Design

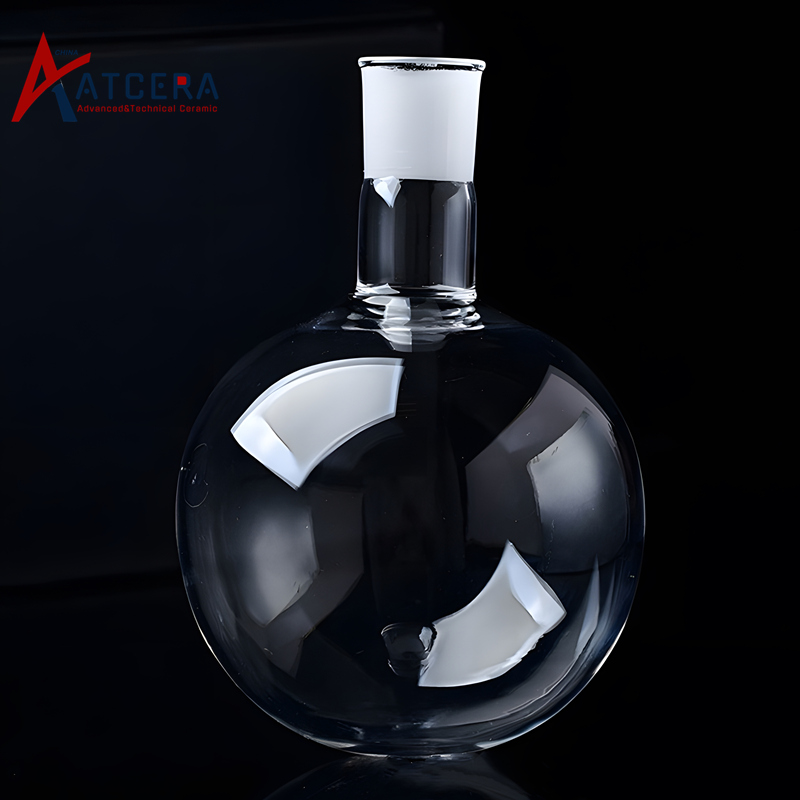

Single-neck Quartz Glass Flask Round/Flat Bottom
Item no.	Volume (mm)	Diameter (mm)	Dia.×Height (mm)	Purity (%)
AT-SY-SP1001	25	19	41*85	99.99
AT-SY-SP1002	50	19	55*94	99.99
AT-SY-SP1003	50	24	55*94	99.99
AT-SY-SP1004	100	19	65*109	99.99
AT-SY-SP1005	100	24	65*109	99.99
AT-SY-SP1006	150	19	75*121	99.99
AT-SY-SP1007	150	24	75*121	99.99
AT-SY-SP1008	250	24	84*130	99.99
AT-SY-SP1009	500	24	115*152	99.99
AT-SY-SP1010	1000	24	135*213	99.99
AT-SY-SP1011	2000	24	170*258	99.99

Double-neck Quartz Glass Flask Round Bottom
Item no.	Volume (mm)	Diameter (mm)	Dia.×Height (mm)	Purity (%)
AT-SY-SP1012	100	24/29	64*105	99.99
AT-SY-SP1013	250	24/29	85*140	99.99
AT-SY-SP1014	500	24/29	105*163	99.99
AT-SY-SP1015	1000	24/29	131*200	99.99
AT-SY-SP1016	2000	24/29	131*200	99.99

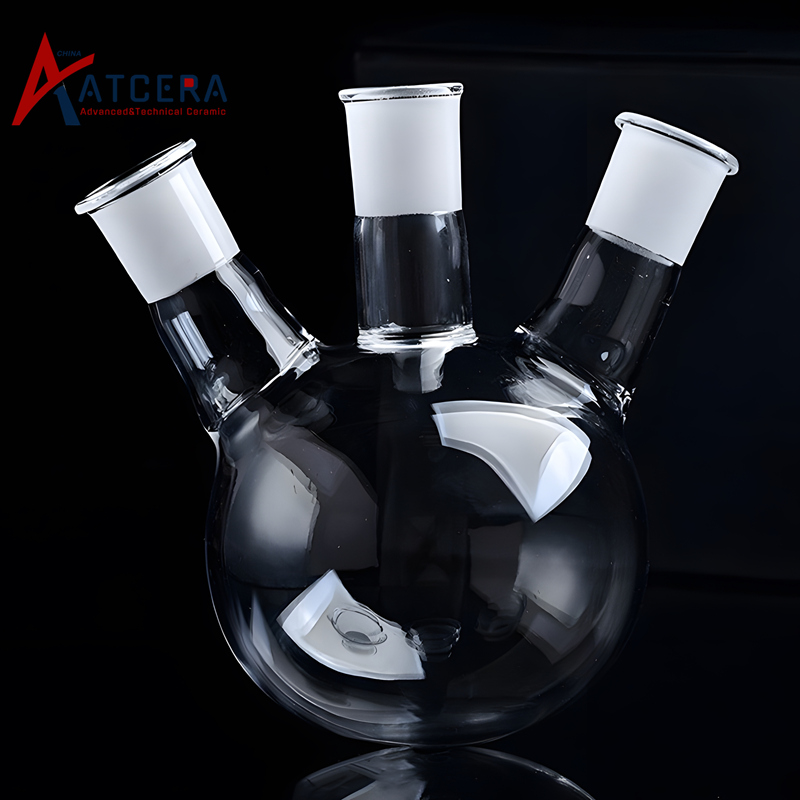

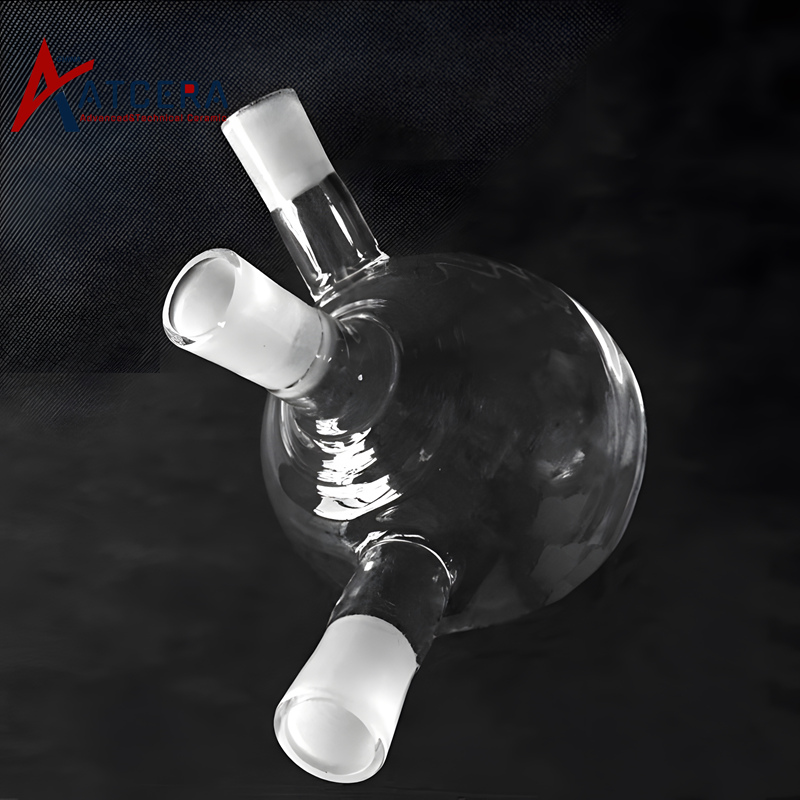

Triple-neck Quartz Glass Flask Round Bottom
Item no.	Volume (mm)	Diameter (mm)	Dia.×Height (mm)	Purity (%)
AT-SY-SP1017	50	24/29	51*85	99.99
AT-SY-SP1018	100	24/29	64*103	99.99
AT-SY-SP1019	150	24/29	75*121	99.99
AT-SY-SP1020	250	24/29	85*130	99.99
AT-SY-SP1021	500	24/29	105*160	99.99
AT-SY-SP1022	1000	24/29	131*187	99.99
AT-SY-SP1023	2000	24/29	166*230	99.99

Quadruple-neck Quartz Glass Flask Round Bottom
Item no.	Volume (mm)	Diameter (mm)	Dia.×Height (mm)	Purity (%)
AT-SY-SP1024	250	24/19/19/14	80*132	99.99
AT-SY-SP1025	500	24/19/19/14	106*147	99.99
AT-SY-SP1026	1000	24/19/19/14	140*200	99.99
AT-SY-SP1027	2000	24/19/19/14	173*242	99.99
AT-SY-SP1028	5000	40/24/24/14	235*335	99.99

Erlenmeyer Quartz Glass Flask
Item no.	Volume (mm)	Diameter (mm)	Dia.×Height (mm)	Purity (%)
AT-SY-SP1029	50	19/24	/	99.99
AT-SY-SP1030	100	19/24	/	99.99
AT-SY-SP1031	150	19/24	/	99.99
AT-SY-SP1032	250	24	80*146	99.99
AT-SY-SP1033	500	24	98*185	99.99
AT-SY-SP1034	1000	24/29	/	99.99
AT-SY-SP1035	2000	29	/	99.99

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Valuable Information

Quartz Glass Flask Packing

Quartz glass flasks are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
